Logitech GROUP 15m Extended Cable Plenum-Rated
PRODUCT DESCRIPTION
Logitech GROUP 15m Extended Cable (939-001490) - 2 Years Local Warranty
Logitech GROUP 15m Extended Cable — More Room Between Hub, Camera and Speakerphone

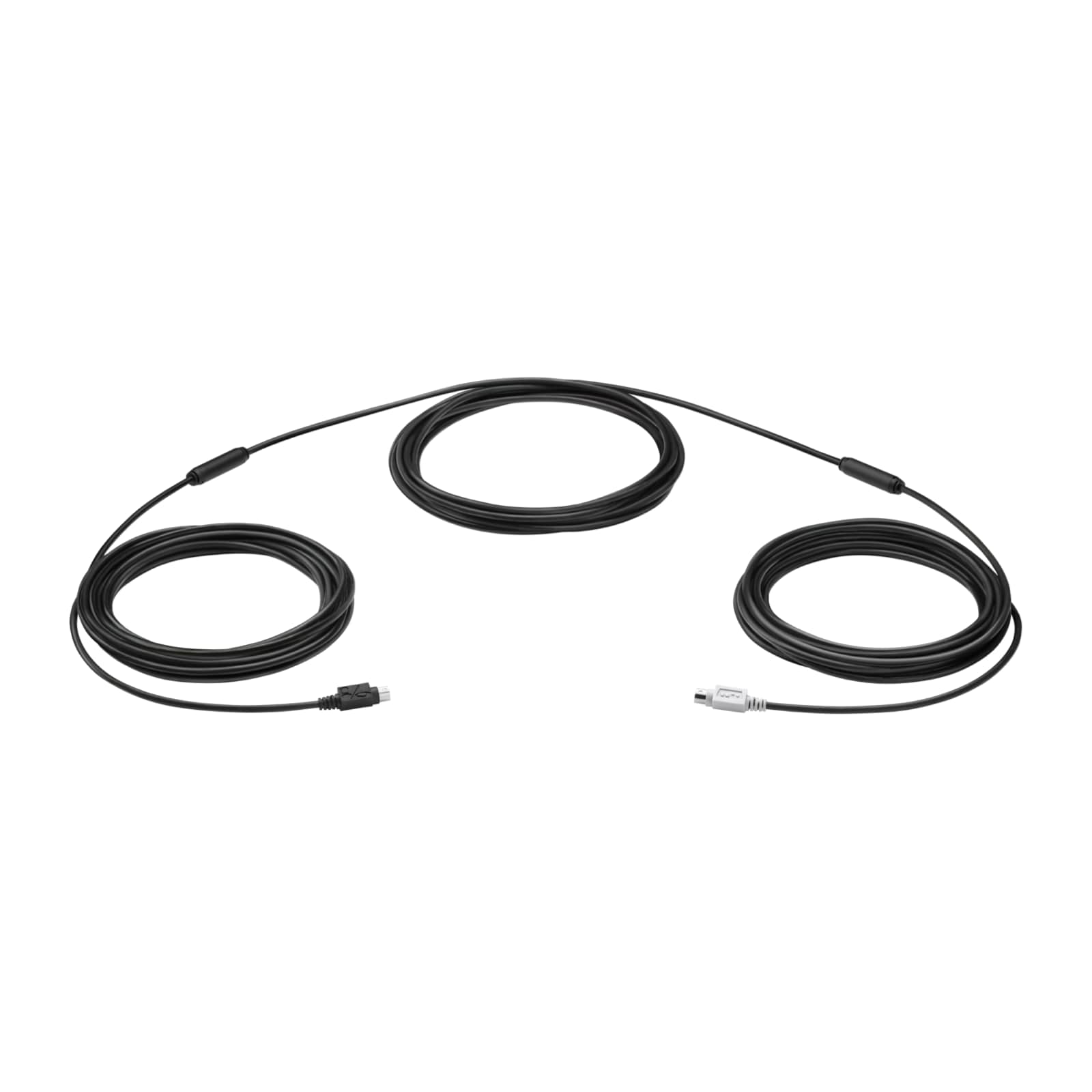

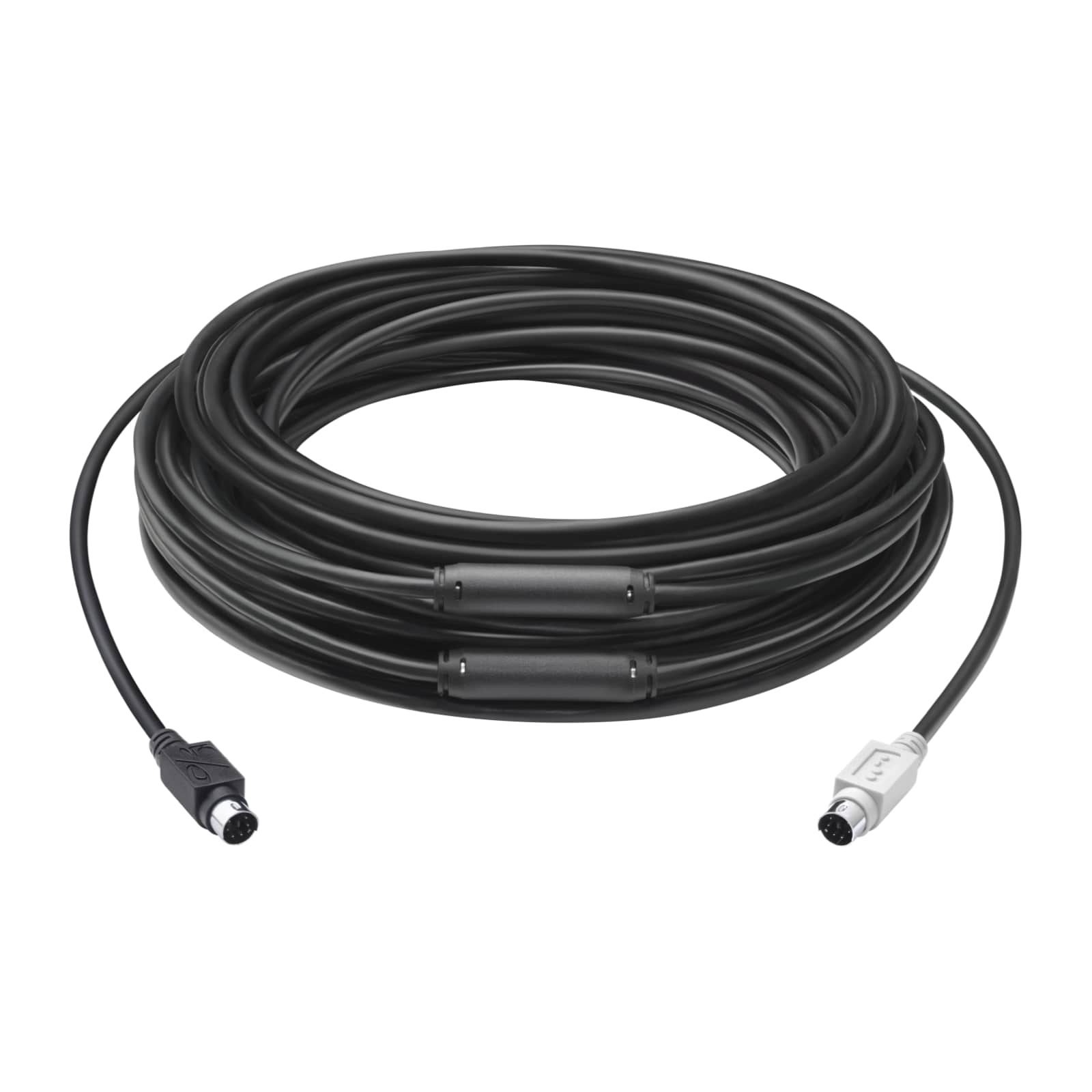

The Logitech GROUP 15m Extended Cable (939-001490) replaces the 5 m Mini-DIN cable supplied with Logitech GROUP and triples the distance from the GROUP hub to the camera or speakerphone, up to 15 m (49.2 ft). It gives installers the freedom to place the camera at the display and the speakerphone at the centre of a long boardroom table.
Clean Installation Through Conduit or Raceway
The cable can be routed through a conduit or raceway for a tidy, permanent installation, and Velcro cable management straps are included. The 15 m cable is plenum rated (UL/CSA Type CMP), so it can be routed through ceiling and other plenum spaces. Note that the extended cables are unidirectional — follow the direction tags on each end when connecting.
Logitech GROUP 15m Extended Cable Datasheet — Technical Specifications
General
| Part Number | 939-001490 |
| Product series | Logitech GROUP accessories |
| Compatibility | Logitech GROUP video conferencing system |
| Warranty | 2 Years Local Warranty (Singapore) |
Cable
| Length | 15 m (49.2 ft) |
| Connection type | Mini-DIN-6 |
| Direction | Unidirectional — follow the tags on each end |
| Dimensions | 15 m x 5 mm cable; 50 x 12 mm repeater |
| Weight | 510 g (18.0 oz) |
Environment & Compliance
| Operating temperature | 0 to 50 °C |
| Storage temperature | -40 to 80 °C |
| Relative humidity | 0–80% |
| Compliance | FCC Class A, CE, UL/CSA Type CMP (plenum), RoHS |
Compatibility & Installation Notes
The 15m Extended Cable works only with the Logitech GROUP video conferencing system. It replaces either of the two 5 m Mini-DIN cables in the GROUP box — the hub-to-camera cable or the hub-to-speakerphone cable — so order two if both runs need extending.
Unlike the bi-directional 5 m cable supplied with GROUP, the 10 m and 15 m extended cables are unidirectional. Tags on each end show the correct orientation; connecting the cable the wrong way round will stop the system working correctly.
Package Contents & GROUP Ordering Information
In the box: One 15 m extended Mini-DIN cable and Velcro cable management straps.
Logitech GROUP family at SourceIT:
| Model | Part Number |
| Logitech GROUP Video Conferencing System | 960-001054 |
| Logitech GROUP 10m Extended Cable | 939-001487 |
| Logitech GROUP 15m Extended Cable (this listing) | 939-001490 |
| Logitech GROUP Expansion Mics | 989-000171 |
Datasheet & Downloads
Frequently Asked Questions — Logitech GROUP 15m Extended Cable
How far can I place the camera or speakerphone from the hub?
Up to 15 m (49.2 ft) — three times the 5 m reach of the cable included with GROUP. For a shorter run, the GROUP 10m Extended Cable is also available.
Does the cable direction matter?
Yes. The extended cables are unidirectional. Follow the tags on each end; the 5 m cable supplied with GROUP is bi-directional, but the 10 m and 15 m cables are not.
Will it work with other Logitech systems such as MeetUp or Rally?
No. This is a Mini-DIN cable for the Logitech GROUP system only. For MeetUp expansion microphones see the MeetUp 10M Extended Cable.
Do I need one cable or two?
Each cable extends one connection. GROUP uses two 5 m cables — hub to camera and hub to speakerphone — so order two extended cables if both need the extra length.
Does it come with a local warranty?
Yes. Every Logitech GROUP 15m Extended Cable sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
