Logitech Rally Plus Video Conferencing System for Large Room
PRODUCT DESCRIPTION
Logitech Rally Plus Video Conferencing System for Large Room (960-001242) - 2 Years Local Warranty
Modular 4K Conference Room System for Large Meeting Rooms and Boardrooms
Logitech Rally Plus is the large-room configuration of the modular Rally system: a motorised 4K PTZ camera, a Display Hub, a Table Hub, two Rally Speakers and two Rally Mic Pods. The extra speaker gives you stereo coverage across a wide room and the second mic pod covers a longer table, which is why Logitech rates Rally Plus at up to 16 seats out of the box against 10 for the standard Rally.

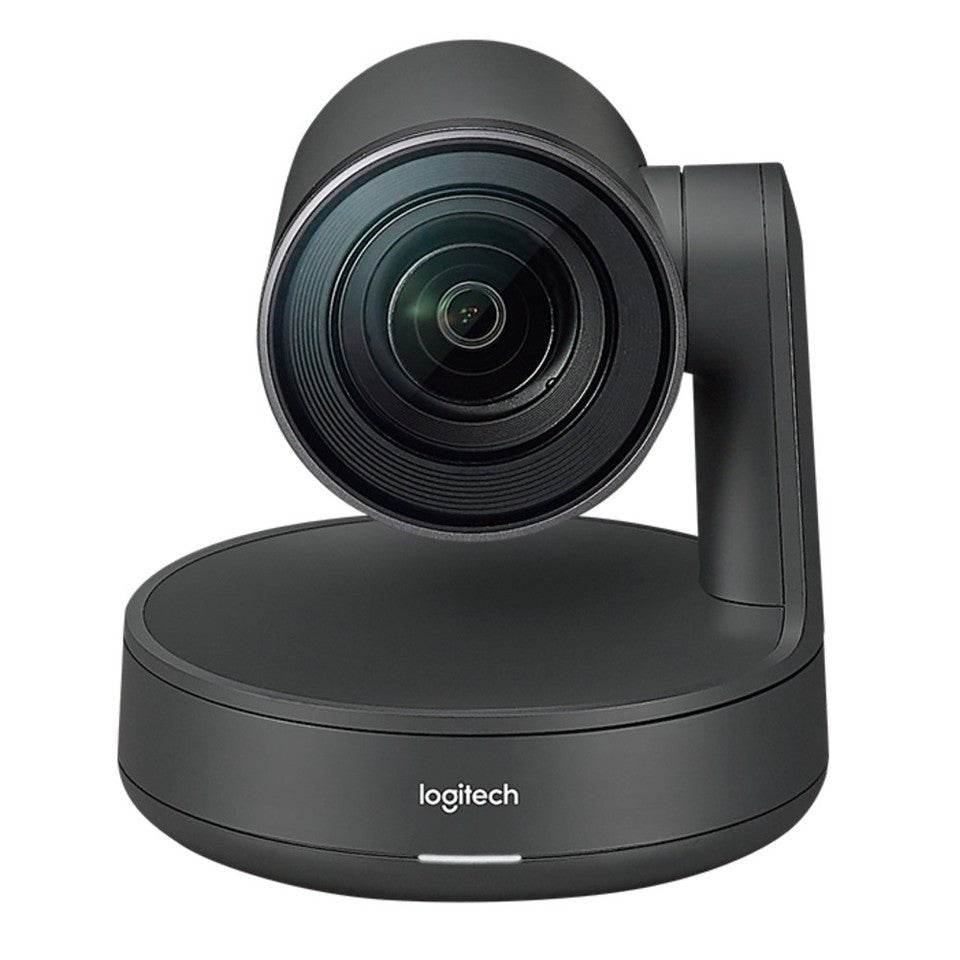

15x HD Zoom Motorised PTZ Camera with RightSight Auto-Framing
The Rally Camera shoots 4K at 30 fps (and 1080p at 60 fps) through a 90° diagonal lens, with motorised pan of ±90° and tilt from +50° to −90° at up to 70° per second. Zoom is 15x HD — Logitech’s spec hub breaks that down as 5x optical plus 3x digital. RightSight handles automatic framing, RightLight with Wide Dynamic Range keeps faces properly exposed, and the camera parks lens-down for privacy when it is not streaming.
Two Speakers, Two Mic Pods and Expansion to 46 Seats
Each Rally Mic Pod carries four omnidirectional microphones forming eight acoustic beams over a 4.5 m diameter, with acoustic echo cancellation, voice activity detection and AI noise suppression. Each Rally Speaker uses a 76 mm rare-earth driver reaching 100 dB SPL at 7.5 W across 200 Hz to 20 kHz. Rally Plus ships at the maximum supported two speakers, and you can still daisy-chain up to seven mic pods in total to scale coverage out to as many as 46 seats.
Certified for Microsoft Teams Rooms, Zoom Rooms and Google Meet
Logitech’s certification matrix lists Rally Plus as certified for Microsoft Teams Rooms on Windows with a room PC, Microsoft Teams Rooms on Android, Zoom Rooms on Windows and Mac, Zoom Rooms Appliance with a Logitech RoomMate, Google Meet and Tencent. Two HDMI outputs drive dual displays for a boardroom, and Logitech Sync gives IT remote firmware management, health monitoring and room insights.
Logitech Rally Plus Quick Setup Guide
The connections below are the whole install: CAT6A between the hubs, USB-C to the camera, USB to the room computer, Mini XLR to each speaker and the 12-pin cable to the mic pods. SourceIT can also arrange full installation and commissioning in Singapore.
Logitech Rally Plus Datasheet — Technical Specifications
General
| Product | Logitech Rally Plus modular video conferencing system, large room |
| Recommended room size | Up to 16 seats as supplied with two mic pods |
| Maximum expansion | Up to 46 seats with 7 mic pods; ships at the 2-speaker maximum |
| Included components | Rally Camera, Display Hub, Table Hub, 2 x Rally Speaker, 2 x Rally Mic Pod |
| Part number | 960-001242 |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Video resolutions | 4K, 1440p, 1080p, 900p, 720p and SD at 30 fps; 1080p and 720p also at 60 fps |
| Zoom | 15x HD zoom (5x optical plus 3x digital), as published on Logitech’s spec hub |
| Field of view | 90° diagonal (DFOV) / 82.1° horizontal (HFOV) / 52.2° vertical (VFOV) |
| Pan and tilt | Motorised pan ±90° (180° total) and tilt +50° / −90° (140° total) |
| Pan/tilt speed | Adaptive, up to 70° per second |
| Camera presets | 3 presets (Preset 1, Preset 2, Home) via remote |
| Focus | Autofocus; depth of field 60 cm to infinity |
| Image processing | RightLight with Wide Dynamic Range, noise reduction and colour optimisation |
| Auto-framing | RightSight automatic camera control |
| Privacy | Lens parks and rotates downward when not streaming |
Audio — Speakers
| Driver | One 76 mm (3 in) high-performance driver with rare-earth magnet |
| Output | 95 dB SPL at 1 W; 100 dB SPL at 7.5 W (±2 dB at 0.5 m) |
| Distortion | Less than 2.5% at 200–300 Hz; less than 1% from 300 Hz to 10 kHz at 7.5 W |
| Frequency response | 200 Hz – 20 kHz; 48 kHz sampling |
| Connection | Captive Mini XLR cable, 2.95 m (9.6 ft), carrying signal and power from the Rally Display Hub |
| Maximum per system | 2 speakers per Rally system |
Audio — Mic Pods
| Microphones per pod | 4 omnidirectional microphones forming 8 acoustic beams (beamforming) |
| Frequency response | 90 Hz – 16 kHz; sensitivity greater than −27 dB ±1 dB at 1 Pa; 48 kHz data rate |
| Pickup range | 4.5 m (15 ft) diameter per mic pod |
| Audio processing | Acoustic echo cancellation, voice activity detection and AI filter noise suppression |
| Expansion | Daisy-chain up to 7 mic pods; 2.95 m (9.6 ft) 12-pin captive cable per pod |
Connectivity

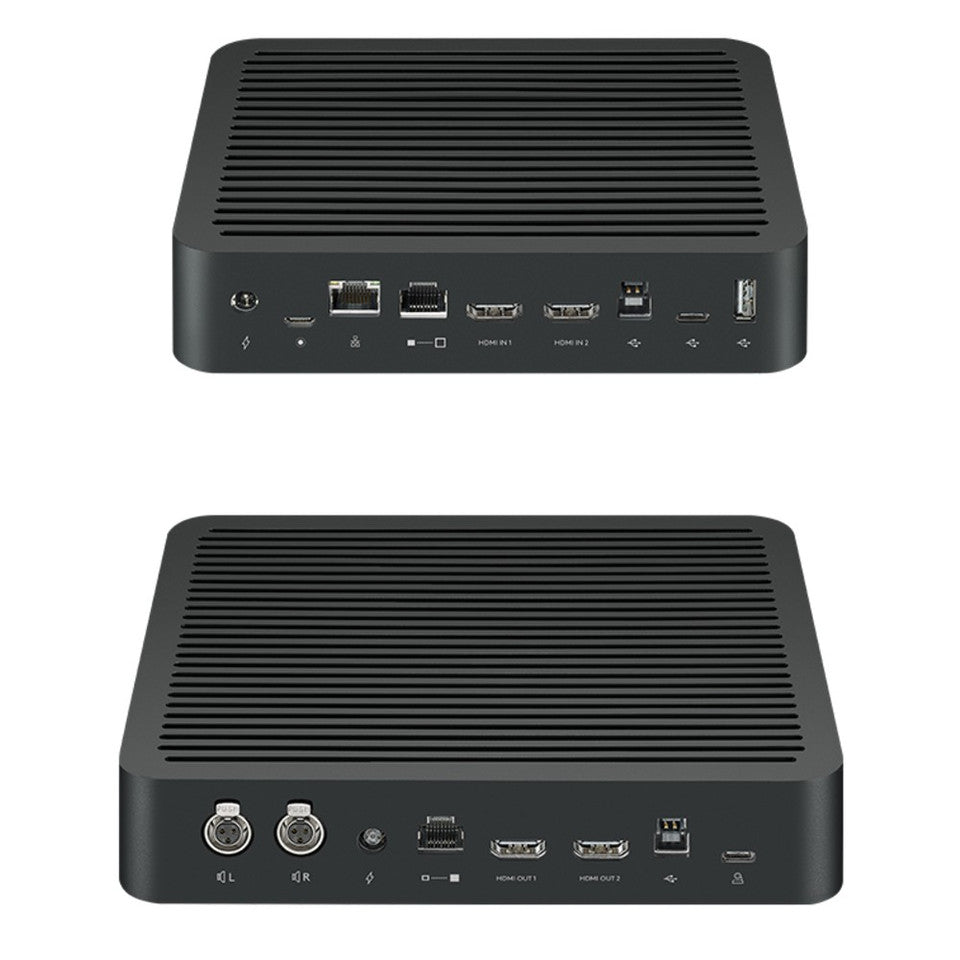

| Display Hub | 2 x HDMI Type-A display out, USB Type-C to camera, USB Type-B to room computer, RJ45 to Table Hub, 2 x Mini XLR to speakers |
| Table Hub | 2 x HDMI Type-A for content in and pass-through, USB Type-C (4K capable), USB Type-A, USB Type-B, 12-pin mic connector for up to 7 pods, Bluetooth |
| Camera to hub | USB 3.1 Type-C to Type-C, 2 m (6.5 ft) |
| Computer to hub | USB Type-A to Type-B, 2 m (6.5 ft) |
| Hub to hub | CAT6A, 5 m (16.4 ft) included; supports customer-supplied cable up to 50 m (164 ft) |
| Single display output | Up to 4K at 30 fps (YCbCr 4:2:0) |
| Dual display output | HDMI 1 up to 1080p60 and HDMI 2 up to 1080p30 upscaled to 1080p60. If HDMI 1 runs 4K, HDMI 2 is disabled. |
Design & Power
| Rally Camera | 182.5 x 152 x 152 mm, 1,513 g (model V-R0010) |
| Rally Speaker | 103 x 449 x 80 mm, 1,645 g (model V-U0048) |
| Rally Mic Pod | 21 x 102 x 102 mm, 296 g (model V-U0049) |
| Rally Table Hub | 503 g (model V-U0047) |
| Rally Display Hub | 898 g (model V-R0009) |
| Power | Two power supplies included, 90 W and 96 W, with 1.5 m AC cables |
Compatibility & Software Support
Logitech Rally and Rally Plus are managed through Logitech Sync for firmware, device health and remote monitoring, and work as USB devices with Windows, macOS and ChromeOS room computers.
| Microsoft Teams Rooms on Windows | Certified with a room PC |
| Microsoft Teams Rooms on Android | Certified |
| Zoom Rooms (Windows & Mac) | Certified |
| Zoom Rooms Appliance | Certified with Logitech RoomMate |
| Google Meet | Certified |
| Tencent | Certified |
| Device management | Logitech Sync |
Certification status is taken from Logitech’s CollabOS platform certification matrix — view the current matrix. Pair Rally with a Logitech RoomMate and a Tap IP for a PC-free appliance room, or with a room PC for Microsoft Teams Rooms on Windows.
Package Contents & Rally Series Ordering Information
In the box

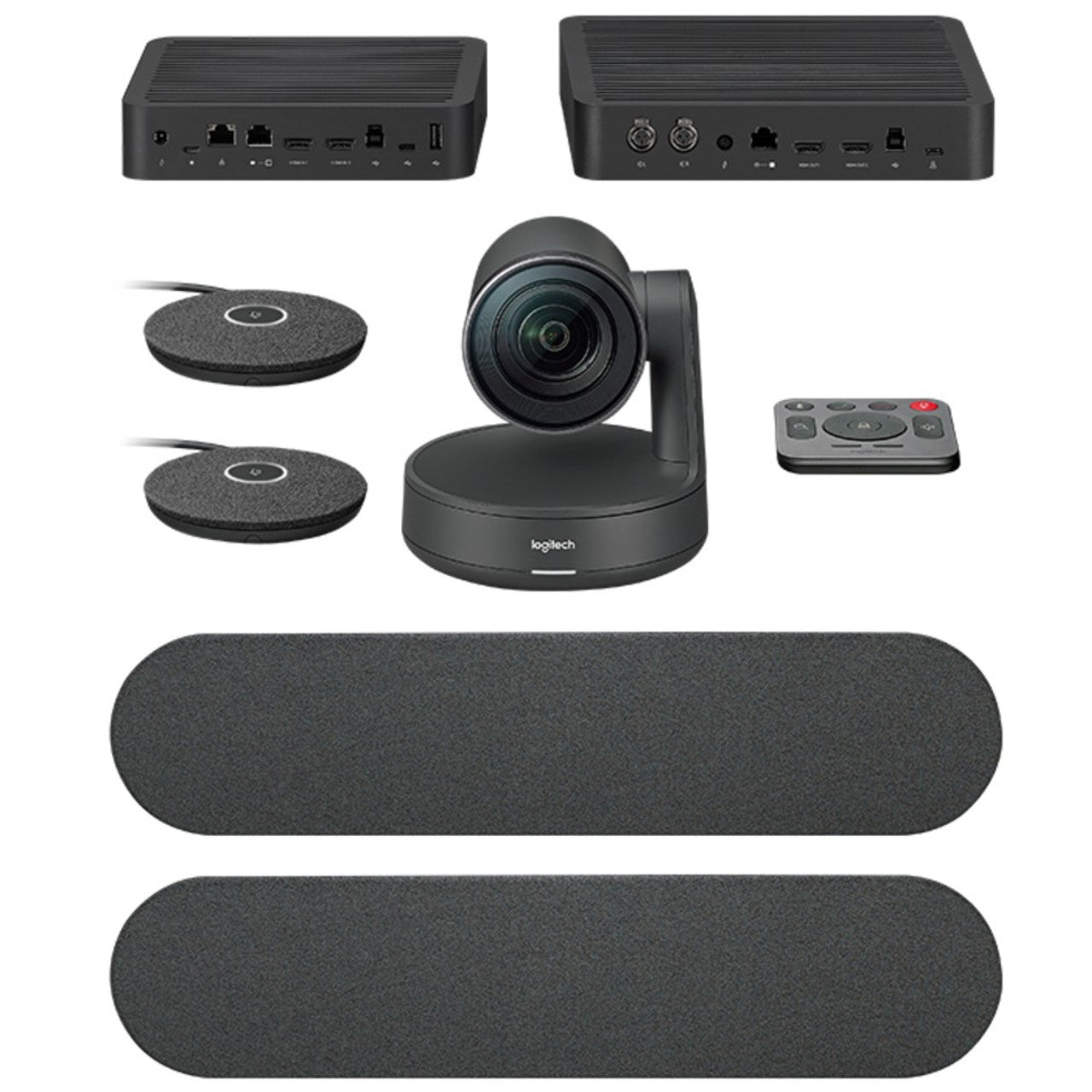

Rally Camera, Rally Display Hub, Rally Table Hub, Rally Speaker (x2), Rally Mic Pod (x2), remote control, USB Type-C to USB Type-C cable, USB Type-A to USB Type-B cable, CAT6A Ethernet cable, HDMI Type-A cables (x2), AC cables (x2) and power supplies (x2).
Rally series ordering information
| Rally — medium room system — 960-001237 | View listing |
| Rally Plus — large room system — 960-001242 (this listing) | View listing |
| Rally Camera — standalone 4K PTZ camera — 960-001226 | View listing |
| Rally Speaker — additional speaker — 960-001230 | View listing |
| Rally Mic Pod, Graphite — 989-000430 | View listing |
| Rally Mic Pod, White — 952-000038 | View listing |
| Rally Mic Pod Hub — 939-001647 | View listing |
| Rally Mounting Kit — 939-001644 | View listing |
| Rally Mic Pod Extension Cable — 952-000047 | View listing |
| Rally Camera Power Adaptor — 993-001900 | View listing |
| Rally Camera Power Splitter — 993-001903 | View listing |
Regional part numbers
Logitech publishes different part numbers for the same Rally system by region. The SKUs stocked on this listing are 960-001237 (Rally) and 960-001242 (Rally Plus), which appear in Logitech’s global part number guide as the EMEA part numbers; Logitech also lists 960-001217 / 960-001225 for the Americas and 960-001219 / 960-001274 for Asia-Pacific. The hardware and specifications are identical — the difference is the regional power cord and packaging. If your procurement process requires a specific regional part number, tell SourceIT before you raise the PO and we will confirm what we can supply.
Datasheet & Downloads
- Logitech Rally official datasheet (PDF)
- Logitech Rally Accessories datasheet — Speaker and Mic Pod (PDF)
- Logitech Rally specifications on the Logitech spec hub
- Logitech CollabOS platform certification matrix
- Logitech VC room solutions global part number guide (PDF)
- Logitech Rally product page (Singapore)
Frequently Asked Questions — Logitech Rally Plus
What exactly does Rally Plus add over the standard Rally?
A second Rally Speaker and a second Rally Mic Pod. Logitech’s package contents confirm Rally Plus ships with two of each against one of each on Rally (960-001237), which is why the seat rating rises from 10 to 16. Everything else — camera, hubs, cabling — is the same.
Can I add a third speaker to Rally Plus?
No. A Rally system supports a maximum of two speakers, and Rally Plus already ships with both. You can, however, keep adding microphone coverage: up to seven Rally Mic Pods in total, rated by Logitech at up to 46 seats.
Do I need a room PC, a licence or a compute appliance?
Rally Plus is a USB peripheral system and needs a host. Use a laptop for BYOD, a room PC for Microsoft Teams Rooms on Windows or Zoom Rooms, or a Logitech RoomMate with a Tap IP controller for a PC-free appliance room. Platform licences come from Microsoft or Zoom separately.
Rally Plus or a Rally Bar for a large boardroom?
A Rally Bar installs faster and needs no room PC, but the microphones and speakers are fixed in the bar at the front of the room. In a long boardroom, Rally Plus lets you put two mic pods on the table and two speakers where they are actually heard. If the room is long and the far end matters, Rally Plus is the safer specification.
Is the 15x zoom optical?
Partly. Logitech’s spec hub states 15x HD zoom made up of 5x optical plus 3x digital. Some Logitech marketing pages shorten this to “15x HD zoom”, but no official source claims 15x optical.
What resolution can the two HDMI outputs drive in a dual-display boardroom?
A single display can run up to 4K at 30 fps (YCbCr 4:2:0). Using both outputs, HDMI 1 runs up to 1080p60 and HDMI 2 up to 1080p30 upscaled to 1080p60; setting HDMI 1 to 4K disables HDMI 2. Specify dual-display boardrooms at 1080p.
How far can the hubs be separated?
The included CAT6A cable between Display Hub and Table Hub is 5 m, and Logitech supports a customer-supplied cable up to 50 m. That is what makes Rally Plus workable in a boardroom where the display wall and the table are a long way apart.
Does the Rally Plus come with a Singapore warranty?
Yes. Every Logitech Rally Plus sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
