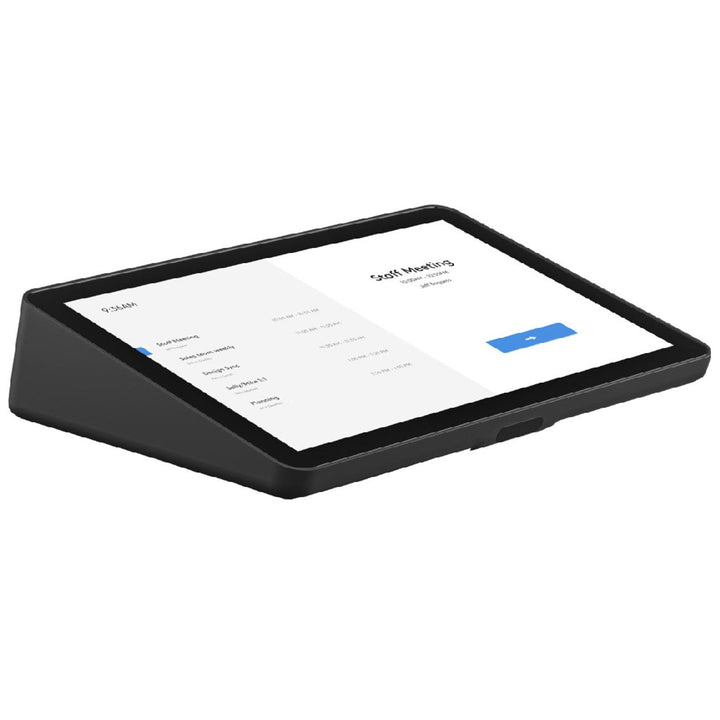

Logitech Tap IP Touch Controller Graphite

Logitech Tap IP Network Connected Meeting Room Touch Controller Graphite (952-000085) - 2 Years Local Warranty

Professional Network-Connected Touch Controller for Meeting Rooms

Logitech Tap IP Network Connected Meeting Room Touch Controller Graphite (952-000085) is built to simplify video conferencing and meeting room management for modern workplaces. Featuring a sleek Graphite finish and intuitive touchscreen interface, it delivers seamless room control and collaboration experiences for enterprise conference rooms and hybrid work environments.

Simple One-Touch Meeting Join Experience

The Logitech Tap IP allows users to quickly join and manage meetings through a responsive touchscreen interface. Its one-touch meeting functionality improves usability and enhances collaboration efficiency while reducing complexity for employees and meeting room users.

Certified for Microsoft Teams Rooms and Zoom Rooms

Optimized for leading collaboration platforms including Microsoft Teams Rooms and Zoom Rooms, the Tap IP ensures reliable integration and enterprise-grade conferencing performance. The network-connected architecture supports simplified deployment, centralized room management, and cleaner cable organization.

Modern Graphite Design with Flexible Mounting Options

The premium Graphite finish blends seamlessly into modern office and meeting room environments. Flexible mounting options including tabletop, wall, and riser mounts allow organizations to deploy the Tap IP according to different room layouts and collaboration requirements.

Technical Specifications

General
Model: 952-000085
Product Name: Logitech Tap IP Network Connected Meeting Room Touch Controller
Color: Graphite
Product Type: Meeting Room Touch Controller
Deployment: Meeting rooms, boardrooms, collaboration spaces
Usage Mode: Network-connected touch controller for conferencing systems
Certification: Compatible with Microsoft Teams Rooms and Zoom Rooms

Display Specifications
Display Size: 10.1-inch touchscreen
Resolution: 1280 × 800
Touch Technology: Capacitive multi-touch
Viewing Angle: Wide-angle display
Display Coating: Anti-glare and oleophobic coating

Connectivity
Connection Type: Ethernet-based connectivity
Power over Ethernet (PoE): Supported
Network Port: 1 × RJ45 Ethernet
Cable Management: Integrated cable retention and routing system

Supported Platforms
Microsoft Teams Rooms
Zoom Rooms
Google Meet room deployments (supported configurations)
Logitech room solutions

Features
One-touch meeting join
Meeting scheduling and calendar integration
Touch-based conferencing controls
Room control functionality
Simple appliance-based deployment
Centralized device management via Logitech Sync

Management & Administration
Remote Device Management: Logitech Sync supported
Firmware Updates: Remote firmware management
Monitoring & Analytics: Supported through Logitech Sync portal
Provisioning: Centralized deployment and configuration support

Security
Enterprise-grade device security
Secure network communications
Controlled administrative access support

Mounting Options
Table mount
Riser mount
Wall mount support
Integrated cable management for clean installation

Ports & Interfaces
1 × RJ45 Ethernet port
PoE support for power and data over single cable

Power
Power Type: Power over Ethernet (PoE)
External Power Adapter: Optional depending on deployment

Physical Specifications
Dimensions: 246.2 × 171.3 × 56.1 mm
Weight: Approx. 1.0 kg
Color: Graphite
Form Factor: Desktop touch controller console

Package Contents
Logitech Tap IP Touch Controller
Mounting accessories
Network connection accessories
Quick start documentation

Key Features
10.1-inch capacitive touchscreen
Single-cable PoE deployment
Microsoft Teams and Zoom Rooms compatible
One-touch meeting control
Enterprise-grade cable management
Centralized remote device management

Typical Use Cases
Microsoft Teams Rooms deployments
Zoom Rooms deployments
Meeting room scheduling and control
Boardroom conferencing systems
Hybrid workplace collaboration environments
