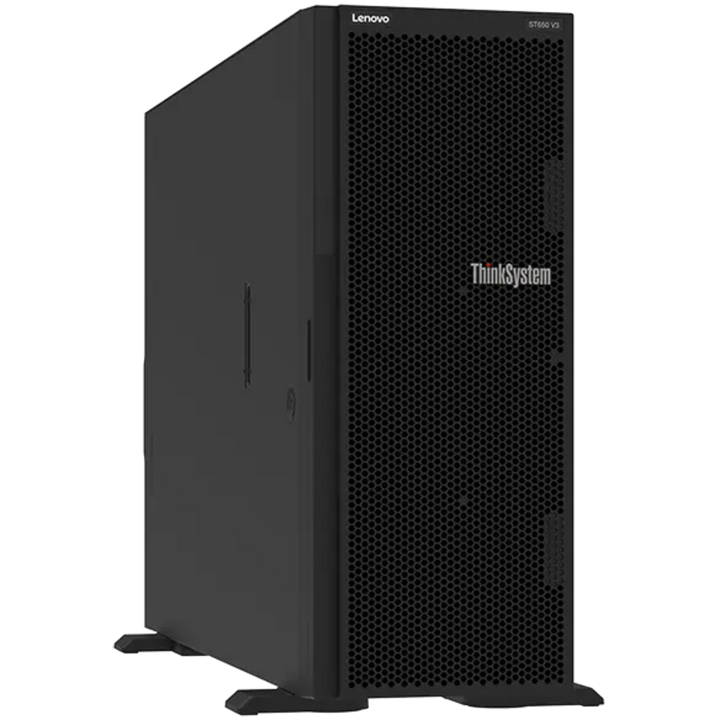

Lenovo ThinkSystem ST650 V3 Tower Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem ST650 V3 Tower Server (Configure-to-Order) - Local Warranty
Dual-Socket Intel Xeon in a Tower
The Lenovo ThinkSystem ST650 V3 is a 2-socket tower server, also convertible to a 4U rack, for one or two 5th Gen or 4th Gen Intel Xeon Scalable processors with up to 32 cores each. 32 DDR5 DIMM slots take up to 4 TB of memory at up to 5600 MHz with 5th Gen Xeon.
Enterprise Storage and Expansion
Up to 32 x 2.5-inch or 16 x 3.5-inch hot-swap drives (up to 24 NVMe), two 5.25-inch media bays for optical or tape, nine PCIe slots (five PCIe 5.0, four PCIe 4.0) and support for up to four double-wide GPUs. Two onboard 10GBASE-T ports come standard.
Managed by Lenovo XClarity
XClarity Controller 2 (XCC2) provides embedded out-of-band management, and a Root of Trust module with TPM 2.0 protects the firmware. Hot-swap drives, power supplies and fans keep maintenance quick for branch offices and server rooms.
Lenovo ThinkSystem ST650 V3 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem ST650 V3 Tower Server |
| Machine Types | 7D7A (3-year warranty), 7D7B (1-year warranty) |
| Form Factor | Tower (convertible to 4U rack) |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Warranty | Three-year or one-year (depending on machine type) customer-replaceable unit and onsite limited warranty, 9x5 next business day; service upgrades selected at configuration |
Processor & Memory
| Processors | One or two 5th Gen or 4th Gen Intel Xeon Scalable processors; up to 32 cores, up to 3.9 GHz, up to 250 W TDP |
| Chipset | Intel C741 |
| Memory Slots | 32 DDR5 DIMM slots (16 per processor) |
| Maximum Memory | 4 TB (32 x 128 GB 3DS RDIMMs) |
| Memory Speed | 5th Gen Xeon: up to 5600 MHz (1 DPC), 4400 MHz (2 DPC); 4th Gen Xeon: up to 4800 MHz (1 DPC), 4400 MHz (2 DPC) |
| Memory Protection | ECC, SDDC, ADDDC, memory mirroring |
Storage
| Drive Bays | Up to 32 x 2.5" or 16 x 3.5" hot-swap; up to 24 NVMe drives |
| Maximum Internal Storage | 983.04 TB (32 x 30.72 TB 2.5" SSDs); 352 TB (16 x 22 TB 3.5" HDDs) |
| Storage Controllers | 8 onboard SATA ports, 12 onboard NVMe ports, RAID adapters (8, 16 or 32 ports) |
| Media Bays | Two half-height 5.25" bays for optical or tape drives |
Expansion & Networking
| PCIe Slots | 9 slots: 5 x PCIe 5.0 and 4 x PCIe 4.0 |
| GPU Support | Up to 8 x single-wide or 4 x double-wide GPUs |
| Network | 2 x onboard 10GBASE-T RJ-45 ports; 1 x 1GbE management port |
| Front Ports | 1 x USB 3.2 Gen 1, 1 x USB 2.0 |
| Rear Ports | 4 x USB 3.2 Gen 1, 1 x VGA, 1 x serial, 1 x management port |
| Video | Embedded graphics with 16 MB memory, up to 1920x1200 32 bpp at 60 Hz |
Management & Security
| Embedded Management | Lenovo XClarity Controller 2 (XCC2) |
| Security | Root of Trust module with TPM 2.0, power-on and administrator passwords |
Power, Cooling & Physical
| Power Supplies | Up to two hot-swap redundant AC PSUs, 750 W to 2600 W options |
| Cooling | Up to 4 x N+1 redundant hot-swap 92 mm fans (single- or dual-rotor) |
| Hot-Swap Parts | Drives, power supplies and fans |
| Dimensions (H x W x D) | 462 x 175 x 734 mm |
| Weight | Up to 39.1 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Lenovo's OS Interoperability Guide for the versions certified on your chosen processor.
Management Tools
XClarity Controller 2 gives out-of-band console, monitoring and alerting from day one, and the XClarity portfolio scales management across multiple ThinkSystem servers.
Typical Workloads
Server virtualisation, file and database serving, backup with internal tape, VDI and GPU-accelerated workloads in offices, branch sites and server rooms without a full rack.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The ST650 V3 is built to order: tower chassis with the processors, memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rack conversion kit and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 (this listing) | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Product guide | Lenovo ThinkSystem ST650 V3 Server Product Guide (Lenovo Press) |
| Datasheet | Lenovo ThinkSystem ST650 V3 Datasheet (Lenovo Press) |
| 3D tour | ThinkSystem ST650 V3 interactive 3D tour |
| Lenovo product page | ThinkSystem ST650 V3 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem ST650 V3
Is this a fixed configuration?
No. The ST650 V3 is configure-to-order. Processors, memory, drives, storage controller, network adapters, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
Can it be rack-mounted?
Yes. The ST650 V3 is a tower that converts to a 4U rack server.
How much memory can it take?
32 DDR5 DIMM slots for up to 4 TB, running at up to 5600 MHz with 5th Gen Intel Xeon Scalable processors.
Can I fit a tape drive?
Yes. Two half-height 5.25-inch media bays take optical or tape drives.
Does it support GPUs?
Yes, up to four double-wide or eight single-wide GPUs.
