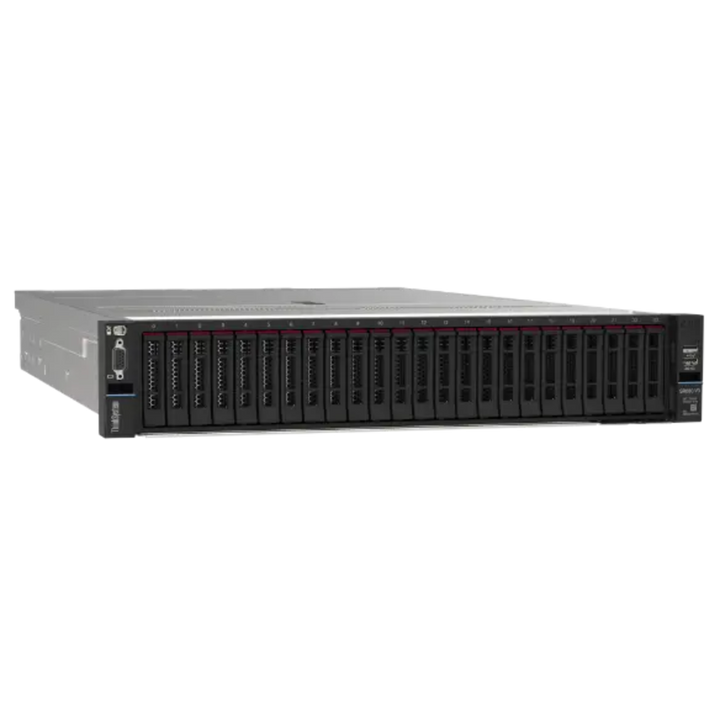

Lenovo ThinkSystem SR650 V3 2U Rack Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR650 V3 2U Rack Server (Configure-to-Order) - Local Warranty
2U, Dual-Socket Intel Xeon Performance
The Lenovo ThinkSystem SR650 V3 is a 2-socket 2U rack server. It takes one or two 5th Gen Intel Xeon Scalable processors with up to 64 cores each (or 4th Gen with up to 60 cores), and 32 TruDDR5 RDIMM slots for up to 8 TB of memory at up to 5600 MHz.
Storage and Expansion That Scale With the Workload
The chassis supports up to 20 x 3.5-inch or 40 x 2.5-inch hot-swap drive bays, up to 12 PCIe slots (10 rear, 2 front) plus an OCP 3.0 slot with a PCIe 5.0 x16 interface, and up to 3 double-wide or 8 single-wide GPUs, making it a fit for databases, virtualisation and cloud, VDI and AI.
Managed and Secured by Lenovo XClarity
Every SR650 V3 includes the Lenovo XClarity Controller 2 (XCC2) for out-of-band management, works with XClarity Administrator, and is protected by Platform Firmware Resiliency, TPM 2.0 and a chassis intrusion switch.
Lenovo ThinkSystem SR650 V3 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR650 V3 Rack Server |
| Machine Types | 7D75, 7D76 |
| Form Factor | 2U rack server, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Lenovo Limited Warranty | 1 year (machine type 7D75) or 3 years (machine type 7D76), customer-replaceable unit and onsite, 9x5 next business day response; service upgrades available at configuration |
Processor & Memory
| Processors | One or two 5th Gen Intel Xeon Scalable processors (up to 64 cores, up to 3.9 GHz, up to 385 W TDP) or 4th Gen Intel Xeon Scalable processors (up to 60 cores, up to 350 W TDP) |
| Chipset | Intel C741 |
| Memory Slots | 32 DIMM slots (16 per processor), 8 channels per processor, 2 DIMMs per channel |
| Memory Types | TruDDR5 RDIMMs, 9x4 RDIMMs and 3DS RDIMMs |
| Memory Speed | Up to 5600 MHz at 1 DPC; up to 4800 MHz at 2 DPC |
| Maximum Memory | 8 TB (32 x 256 GB 3DS RDIMMs) |
Storage
| Drive Bays | Up to 20 x 3.5" or 40 x 2.5" hot-swap drive bays (front, mid and rear combined) |
| Storage Controllers | 14 x onboard SATA, up to 20 x onboard NVMe, 8/16/32-port RAID adapters |
Expansion & Networking
| PCIe Slots | Up to 12 PCIe slots (10 rear, 2 front) |
| OCP Slot | Dedicated OCP 3.0 SFF slot, PCIe 5.0 x16 host interface, 1 GbE to 100 GbE adapters |
| GPU Support | Up to 8 x single-wide or 3 x double-wide GPUs |
| Front Ports | 1 x USB 3.2 Gen 1, 1 x USB 2.0, external diagnostics port, optional VGA |
| Rear Ports | 3 x USB 3.2 Gen 1, 1 x VGA, 1 x RJ-45 1GbE management |
| Video | Embedded graphics with 16 MB memory, up to 1920 x 1200 at 60 Hz |
Management & Security
| Embedded Management | Lenovo XClarity Controller 2 (XCC2) |
| Management Software | Lenovo XClarity Administrator, XClarity Provisioning Manager, XClarity Energy Manager |
| Security | Platform Firmware Resiliency, TPM 2.0, chassis intrusion switch, power-on and administrator passwords |
| Hot-Swap Parts | Drives, power supplies and fans |
Power, Cooling & Physical
| Power Supplies | Up to two hot-swap redundant AC supplies: 750 W, 1100 W, 1800 W, 2400 W or 2600 W, 80 PLUS Platinum or Titanium; -48 V DC and 240 V DC options |
| Cooling | 5 (one processor) or 6 (two processors) hot-swap 60 mm fans |
| Dimensions (W x H x D) | 445 x 87 x 766 mm |
| Maximum Weight | 38.8 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Check Lenovo's OS Interoperability Guide for the exact versions certified on your chosen processor.
Management Tools
XClarity Controller 2 gives out-of-band monitoring, alerting and firmware updates from day one. XClarity Administrator manages fleets of ThinkSystem servers from a single console.
Typical Workloads
Databases, virtualisation and cloud computing, VDI, software-defined storage, enterprise applications and GPU-accelerated AI and analytics.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR650 V3 is built to order: chassis with the processors, memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 (this listing) | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Lenovo Press product guide | Lenovo ThinkSystem SR650 V3 Server Product Guide |
| Product guide (PDF) | Lenovo ThinkSystem SR650 V3 Product Guide (PDF) |
| User documentation | ThinkSystem SR650 V3 documentation on Lenovo Docs |
| Lenovo product page | ThinkSystem SR650 V3 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR650 V3
Is this a fixed configuration?
No. The SR650 V3 is configure-to-order. Processors, memory, drives, storage controller, network adapters, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
32 TruDDR5 RDIMM slots for up to 8 TB, at up to 5600 MHz with 5th Gen Xeon processors.
How many drives does it hold?
Up to 40 x 2.5-inch or 20 x 3.5-inch hot-swap drives across front, mid and rear bays.
Does it support GPUs?
Yes. Up to three double-wide or eight single-wide GPUs.
SR650 V3 or SR650 V4?
The SR650 V3 uses 4th/5th Gen Intel Xeon Scalable processors. The SR650 V4 moves to Intel Xeon 6 with faster DDR5 (up to 6400 MHz RDIMM or 8000 MHz MRDIMM), all-PCIe 5.0 slots and two OCP slots.
