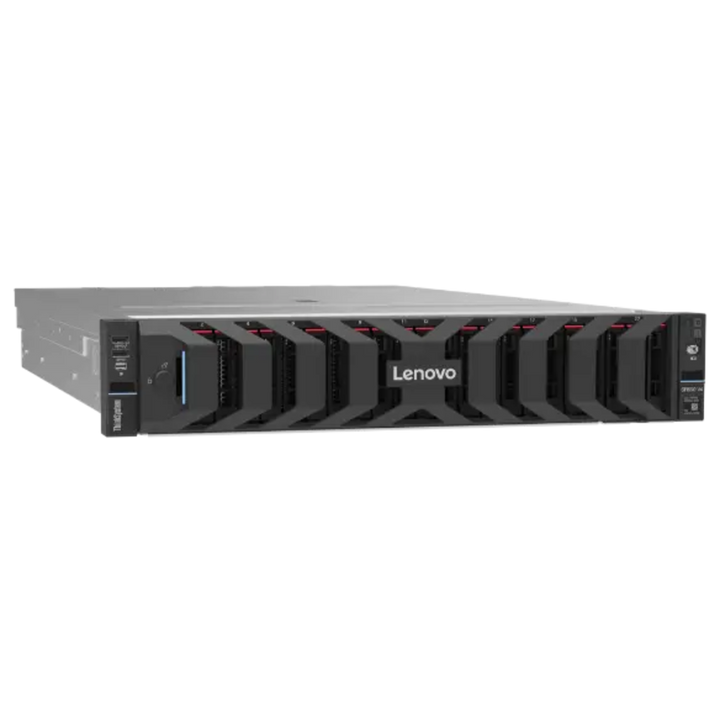

Lenovo ThinkSystem SR650 V4 2U Rack Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR650 V4 2U Rack Server (Configure-to-Order) - Local Warranty
2U, Dual-Socket Intel Xeon 6
The Lenovo ThinkSystem SR650 V4 is a 2-socket 2U rack server built on Intel Xeon 6700P and 6500P processors with up to 86 cores and 172 threads each. 32 DDR5 slots take up to 8 TB of memory, with RDIMMs at up to 6400 MHz or MRDIMMs at up to 8000 MHz, plus CXL 2.0 memory expansion.
Storage and All-PCIe 5.0 Expansion
The chassis supports up to 40 x 2.5-inch, 16 x 3.5-inch or 32 x E3.S hot-swap drives, up to 10 rear PCIe 5.0 slots plus two OCP 3.0 slots, and up to 2 double-wide or 10 single-wide GPUs, for virtualisation, databases, software-defined storage and AI inference.
XClarity Management and Neptune Liquid Cooling
Every SR650 V4 includes the Lenovo XClarity Controller 3 (XCC3) and is protected by TPM 2.0, Secure Boot and a chassis intrusion switch. Optional Lenovo Neptune open-loop liquid cooling for processors, or for processors, memory and voltage regulators, removes most of the server's heat through liquid in dense deployments.
Lenovo ThinkSystem SR650 V4 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR650 V4 Rack Server |
| Machine Types | 7DGC, 7DGD (7DK2 with Compute Complex Neptune Core Module) |
| Form Factor | 2U rack server, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Lenovo Limited Warranty | 1 year (machine type 7DGC) or 3 years (machine type 7DGD), customer-replaceable unit and onsite, 9x5 next business day response; service upgrades available at configuration |
Processor & Memory
| Processors | One or two Intel Xeon 6700P or 6500P processors, up to 86 cores / 172 threads, up to 4.0 GHz, up to 350 W TDP |
| Memory Slots | 32 DIMM slots (16 per processor), 8 channels per processor, 2 DIMMs per channel |
| Memory Types | DDR5 RDIMMs, 3DS RDIMMs, MRDIMMs; CXL 2.0 memory modules (up to 12, E3.S 2T) |
| Memory Speed | RDIMM up to 6400 MHz at 1 DPC and 5200 MHz at 2 DPC; MRDIMM up to 8000 MHz (1 DPC only) |
| Maximum Memory | 8 TB (32 x 256 GB 3DS RDIMMs) |
| Memory Protection | ECC, SDDC, ADDDC, memory mirroring |
Storage
| Front Drive Bays | 24 x 2.5", 12 x 3.5" or 32 x E3.S 1T |
| Mid Drive Bays | 8 x 2.5" (optional) |
| Rear Drive Bays | 8 x 2.5" or 4 x 3.5" (optional) |
| Maximum Drives | 40 x 2.5", 16 x 3.5" or 32 x E3.S |
| Boot | 2 x front or rear hot-swap M.2 bays, or internal M.2 module for up to 2 M.2 drives (RAID-0/1) |
| Storage Controllers | Onboard NVMe (optional RAID), tri-mode RAID adapters, 12 Gb SAS/SATA RAID adapters and HBAs |
Expansion & Networking
| PCIe Slots | Up to 10 rear slots, all PCIe 5.0; optional 2 front PCIe slots |
| OCP Slots | 2 x OCP 3.0 SFF slots, PCIe 5.0 |
| GPU Support | Up to 10 x single-wide or 2 x double-wide GPUs (up to 4 double-wide on the SR650a V4) |
| Front Ports | External diagnostics port; optional 2 x USB 3; optional Mini DisplayPort |
| Rear Ports | 2 x USB 3, 1 x VGA, 1 x RJ-45 1GbE management, optional DB-9 serial |
| Video | Embedded graphics with 16 MB memory |
Management & Security
| Embedded Management | Lenovo XClarity Controller 3 (XCC3); optional XCC3 Premier |
| Management Software | Lenovo XClarity One, XClarity Administrator |
| Security | TPM 2.0, Secure Boot, chassis intrusion switch, optional lockable security bezel |
| Hot-Swap Parts | Drives, power supplies and fans |
Power, Cooling & Physical
| Power Supplies | Up to two hot-swap redundant AC supplies: 800 W, 1300 W, 2000 W, 2700 W or 3200 W, 80 PLUS Platinum or Titanium; 1300 W -48 V DC and HVAC/HVDC options |
| Cooling | 5 or 6 hot-swap 60 mm fans (N+1); optional Lenovo Processor Neptune Core Module or Compute Complex Neptune Core Module (open loop) |
| Dimensions (W x H x D) | 445 x 87 x 796 mm |
| Maximum Weight | 38.8 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server. Check Lenovo's OS Interoperability Guide for the exact versions certified on your chosen processor.
Management Tools
XClarity Controller 3 gives out-of-band monitoring, alerting and firmware updates from day one; XCC3 Premier adds remote control. XClarity One and XClarity Administrator manage fleets of ThinkSystem servers.
Typical Workloads
Virtualisation and cloud, databases and analytics, software-defined storage, VDI and GPU-accelerated AI inference.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR650 V4 is built to order: chassis with the processors, memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 (this listing) | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Lenovo Press product guide | Lenovo ThinkSystem SR650 V4 Server Product Guide |
| Product guide (PDF) | Lenovo ThinkSystem SR650 V4 Product Guide (PDF) |
| User documentation | ThinkSystem SR650 V4 documentation on Lenovo Docs |
| Lenovo product page | ThinkSystem SR650 V4 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR650 V4
Is this a fixed configuration?
No. The SR650 V4 is configure-to-order. Processors, memory, drives, storage controller, network adapters, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
32 DDR5 slots for up to 8 TB; RDIMMs run at up to 6400 MHz and MRDIMMs at up to 8000 MHz. CXL 2.0 memory modules can add further capacity.
How many drives does it hold?
Up to 40 x 2.5-inch, 16 x 3.5-inch or 32 x E3.S hot-swap drives across front, mid and rear bays.
Does it support GPUs?
Up to two double-wide or ten single-wide GPUs. For up to four double-wide GPUs, choose the SR650a V4.
Can it be liquid cooled?
Yes. Lenovo Neptune open-loop options cool the processors, or the processors, memory and voltage regulators (machine type 7DK2).
