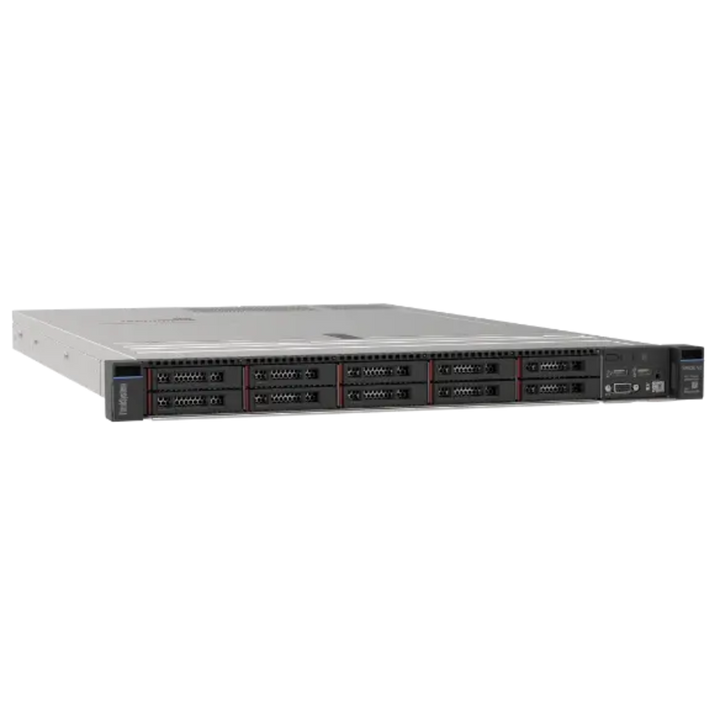

Lenovo ThinkSystem SR630 V3 1U Rack Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR630 V3 1U Rack Server (Configure-to-Order) - Local Warranty
1U, Dual-Socket Intel Xeon Performance
The Lenovo ThinkSystem SR630 V3 is a 2-socket 1U rack server for small businesses up to large enterprises. It takes one or two 5th Gen Intel Xeon Scalable processors with up to 64 cores each (or 4th Gen with up to 60 cores), and 32 TruDDR5 RDIMM slots for up to 8 TB of memory at up to 5600 MHz.
Dense Storage and PCIe 5.0 Expansion
Front bays take up to 10 x 2.5-inch, 4 x 3.5-inch or 16 x EDSFF drives, with optional rear 2.5-inch bays and M.2 boot. Up to three rear PCIe slots (two PCIe 5.0), optional front slots and a dedicated OCP 3.0 slot with a PCIe 5.0 x16 interface suit databases, virtualisation and cloud, infrastructure security and HPC.
Managed and Secured by Lenovo XClarity
Every SR630 V3 includes the Lenovo XClarity Controller 2 (XCC2) for out-of-band management, works with XClarity Administrator, and is protected by Root of Trust, Platform Firmware Resiliency, TPM 2.0 and a chassis intrusion switch.
Lenovo ThinkSystem SR630 V3 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR630 V3 Rack Server |
| Machine Types | 7D72, 7D73 |
| Form Factor | 1U rack server, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Lenovo Limited Warranty | 1 year (machine type 7D72) or 3 years (machine type 7D73), customer-replaceable unit and onsite, 9x5 next business day response; service upgrades available at configuration |
Processor & Memory
| Processors | One or two 5th Gen Intel Xeon Scalable processors (up to 64 cores, up to 385 W TDP) or 4th Gen Intel Xeon Scalable processors (up to 60 cores, up to 350 W TDP) |
| Memory Slots | 32 DIMM slots (16 per processor), 8 channels per processor |
| Memory Types | TruDDR5 RDIMMs, 9x4 RDIMMs and 3DS RDIMMs |
| Memory Speed | Up to 5600 MHz at 1 DPC and 4800 MHz at 2 DPC (5th Gen); up to 4800 MHz at 1 DPC and 4400 MHz at 2 DPC (4th Gen) |
| Maximum Memory | 8 TB (32 x 256 GB 3DS RDIMMs) |
Storage
| Front Drive Bays | 10 x 2.5", 8 x 2.5", 16 x EDSFF or 4 x 3.5" hot-swap |
| Rear Drive Bays | 2 x 2.5" or 2 x 7 mm hot-swap (optional) |
| Maximum Drives | 12 x 2.5", 4 x 3.5" or 16 x EDSFF; up to 16 onboard NVMe |
| Boot | Up to 2 x M.2 drives (internal) |
| Storage Controllers | 12 x onboard SATA (Intel VROC SATA RAID), up to 16 x onboard NVMe (Intel VROC NVMe RAID), 12 Gb SAS/SATA RAID adapters (8, 16 or 32 ports) |
Expansion & Networking
| PCIe Slots | Up to 3 rear slots (2 x PCIe 5.0, 1 x PCIe 4.0), plus optional front full-height and low-profile slots |
| OCP Slot | Dedicated OCP 3.0 SFF slot, PCIe 5.0 x16 host interface; 2- and 4-port adapters at 1/10/25/100 GbE |
| GPU Support | Up to 3 x single-wide GPUs, 75 W each |
| Front Ports | 1 x USB 3.2 Gen 1 (5 Gb/s), 1 x USB 2.0 |
| Rear Ports | 3 x USB 3.2 Gen 1 (5 Gb/s), 1 x VGA, 1 x RJ-45 1GbE management |
Management & Security
| Embedded Management | Lenovo XClarity Controller 2 (XCC2) |
| Management Software | Lenovo XClarity Administrator, XClarity Provisioning Manager, XClarity Energy Manager |
| Security | Root of Trust, Platform Firmware Resiliency, TPM 2.0, chassis intrusion switch, power-on and administrator passwords |
| Hot-Swap Parts | Drives, power supplies and fans |
Power, Cooling & Physical
| Power Supplies | Up to two hot-swap redundant AC supplies: 750 W, 1100 W or 1800 W, 80 PLUS Platinum or Titanium |
| Cooling | Up to 8 x N+1 redundant hot-swap 40 mm dual-rotor fans; optional Lenovo Neptune liquid-assisted cooling module |
| Dimensions (W x H x D) | 440 x 43 x 773 mm |
| Maximum Weight | 20.8 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server. Check Lenovo's OS Interoperability Guide for the exact versions certified on your chosen processor.
Management Tools
XClarity Controller 2 gives out-of-band monitoring, alerting and firmware updates from day one. XClarity Administrator manages fleets of ThinkSystem servers from a single console.
Typical Workloads
Databases, virtualisation and cloud computing, infrastructure security, enterprise applications, collaboration and email, web serving and HPC.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR630 V3 is built to order: chassis with the processors, memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 (this listing) | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Lenovo Press product guide | Lenovo ThinkSystem SR630 V3 Server Product Guide |
| Product guide (PDF) | Lenovo ThinkSystem SR630 V3 Product Guide (PDF) |
| User documentation | ThinkSystem SR630 V3 documentation on Lenovo Docs |
| Lenovo product page | ThinkSystem SR630 V3 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR630 V3
Is this a fixed configuration?
No. The SR630 V3 is configure-to-order. Processors, memory, drives, storage controller, network adapters, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
32 TruDDR5 RDIMM slots for up to 8 TB, at up to 5600 MHz with 5th Gen Xeon processors.
Does it support NVMe?
Yes. Up to 16 onboard NVMe drives, including 16 x EDSFF at the front, with Intel VROC NVMe RAID.
Can it take GPUs?
Up to three single-wide 75 W GPUs. For double-wide GPUs, choose the 2U SR650 V3.
SR630 V3 or SR630 V4?
The SR630 V3 uses 4th/5th Gen Intel Xeon Scalable processors. The SR630 V4 moves to Intel Xeon 6 with faster DDR5 (up to 6400 MHz RDIMM or 8000 MHz MRDIMM) and two OCP slots.
