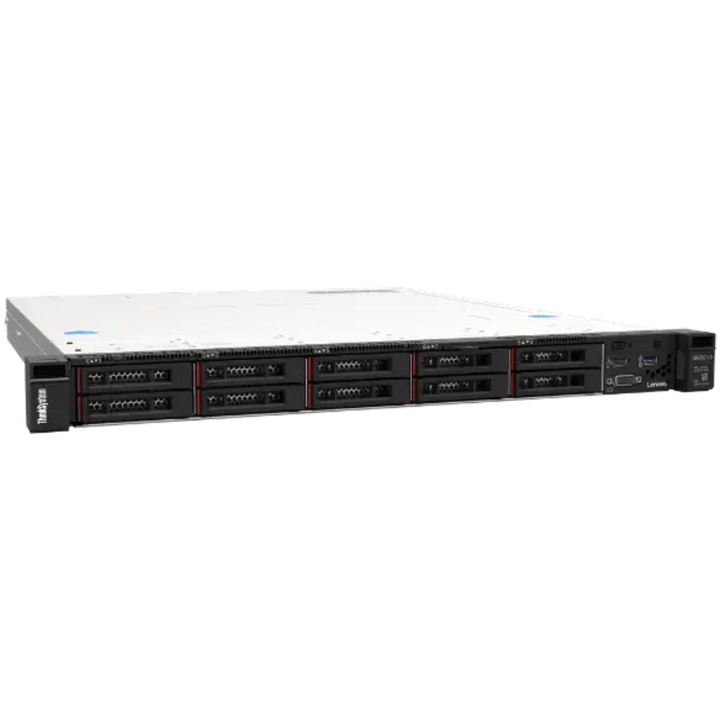

Lenovo ThinkSystem SR250 V3 1U Rack Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR250 V3 1U Rack Server (Configure-to-Order) - Local Warranty
1U, Single-Socket Value Server
The Lenovo ThinkSystem SR250 V3 is a single-socket 1U rack server for growing businesses. It takes one Intel Xeon 6300 Series or Xeon E-2400 Series processor with up to 8 cores (or an entry Intel Pentium G7400), with four TruDDR5 ECC UDIMM slots for up to 128 GB of memory at 4400 MHz.
Flexible Storage and Expansion
Front bays take up to 10 x 2.5-inch or 4 x 3.5-inch drives, hot-swap or simple-swap, with SATA, SAS and NVMe options and onboard SATA, Intel VROC or 12 Gb RAID/HBA adapters. Two PCIe Gen4 slots, or one PCIe Gen5 x16 slot for a GPU, plus two integrated Gigabit Ethernet ports suit file and print, small virtualisation, edge and branch-office workloads.
Managed by Lenovo XClarity
Every SR250 V3 includes the Lenovo XClarity Controller 2 (XCC2) for remote monitoring and management, works with XClarity Administrator, and is protected by TPM 2.0, Platform Firmware Resiliency and power-on/administrator passwords.
Lenovo ThinkSystem SR250 V3 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR250 V3 Rack Server |
| Machine Types | 7DCM, 7DCL |
| Form Factor | 1U rack server, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Lenovo Limited Warranty | 1 year (machine type 7DCM) or 3 years (machine type 7DCL), customer-replaceable unit and onsite, 9x5 next business day response; service upgrades available at configuration |
Processor & Memory
| Processor | One Intel Xeon 6300 Series (up to 8 cores, up to 3.6 GHz), Intel Xeon E-2400 Series (up to 8 cores, up to 3.5 GHz) or Intel Pentium G7400/G7400T (2 cores) |
| Chipset | Intel C266 |
| Memory Slots | 4 DIMM slots, TruDDR5 ECC UDIMMs |
| Memory Speed | Up to 4400 MHz |
| Maximum Memory | 128 GB (4 x 32 GB UDIMMs) |
Storage
| Drive Bays | 10 x 2.5" hot-swap, 8 x 2.5" hot-swap, 4 x 3.5" hot-swap or 4 x 3.5" simple-swap (SATA, SAS and NVMe options depending on configuration) |
| Maximum Internal Storage | Up to 76.8 TB (2.5-inch) or 96 TB (3.5-inch), depending on configuration |
| Storage Controllers | Onboard SATA, Intel VROC, or 12 Gb SAS/SATA RAID adapters and HBAs |
| Optical Drive | Not supported internally; external USB optical drive |
Expansion & Networking
| PCIe Slots | Two slots: 2 x PCIe Gen4 x8, or 1 x PCIe Gen5 x16 for GPU support (configuration dependent) |
| Embedded NIC | 2 x 1GbE RJ-45 (Broadcom BCM5720) |
| Management Port | 1 x dedicated RJ-45 XClarity Controller port |
| Front Ports | 1 x USB 3.2 Gen 1 (5 Gb/s), 1 x USB 2.0, optional VGA |
| Rear Ports | 2 x USB 3.2 Gen 1 (5 Gb/s), 1 x VGA, 1 x serial, 2 x RJ-45 1GbE, 1 x RJ-45 management |
| Video | G200 graphics with 16 MB memory, integrated in XCC2 |
Management & Security
| Embedded Management | Lenovo XClarity Controller 2 (XCC2) |
| Management Software | Lenovo XClarity Administrator, XClarity Provisioning Manager, XClarity Energy Manager |
| Security | TPM 2.0, Platform Firmware Resiliency, power-on and administrator passwords, optional lockable front bezel |
| Hot-Swap Parts | Drives and hot-swap power supplies |
Power, Cooling & Physical
| Power Supplies | Single 300 W fixed (80 PLUS Gold), or two 800 W hot-swap redundant (80 PLUS Platinum or Titanium) |
| Cooling | 4 non-hot-swap system fans |
| Dimensions (W x H x D) | 434.4 x 43 x 561 mm |
| Maximum Weight | 12.3 kg (3.5-inch configuration); 11.44 kg (2.5-inch configuration) |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Check Lenovo's OS Interoperability Guide for the exact versions certified on your chosen processor.
Management Tools
XClarity Controller 2 gives out-of-band monitoring, alerting and firmware updates. XClarity Administrator manages fleets of ThinkSystem servers from a single console.
Typical Workloads
File and print, small-business virtualisation, collaboration and email, web serving, edge and branch-office infrastructure.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR250 V3 is built to order: chassis with the processor, memory, drives, storage controller, network options and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 (this listing) | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Lenovo Press product guide | Lenovo ThinkSystem SR250 V3 Server Product Guide |
| Product guide (PDF) | Lenovo ThinkSystem SR250 V3 Product Guide (PDF) |
| User documentation | ThinkSystem SR250 V3 documentation on Lenovo Docs |
| Lenovo product page | ThinkSystem SR250 V3 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR250 V3
Is this a fixed configuration?
No. The SR250 V3 is configure-to-order. Processor, memory, drives, storage controller, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
Which processors does it take?
One Intel Xeon 6300 Series or Xeon E-2400 Series processor with up to 8 cores, or an entry Intel Pentium G7400.
How much memory can it take?
Four TruDDR5 ECC UDIMM slots for up to 128 GB at 4400 MHz.
Can it run a GPU?
Yes, in the riser configuration with one PCIe Gen5 x16 slot.
SR250 V3 or SR630 V3?
The SR250 V3 is a single-socket server for small workloads with up to 128 GB of memory. The SR630 V3 is a dual-socket 1U server with up to 8 TB of memory for heavier virtualisation and database work.
