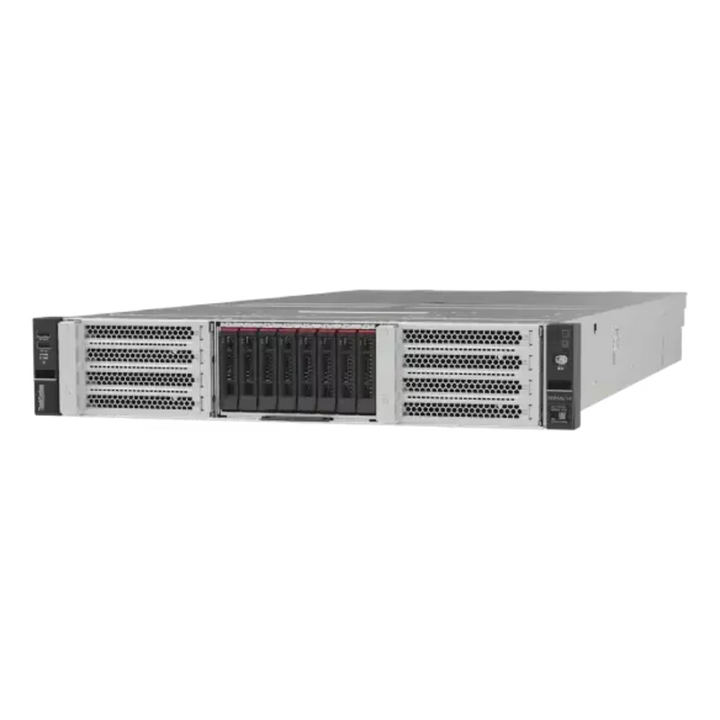

Lenovo ThinkSystem SR650a V4 2U GPU Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR650a V4 2U GPU Server (Configure-to-Order) - Local Warranty
2U GPU Server Built on Intel Xeon 6
The Lenovo ThinkSystem SR650a V4 is a 2U rack server designed around GPU acceleration. It takes one or two Intel Xeon 6700P-series or 6500P-series processors with up to 86 cores each, and 32 DDR5 DIMM slots for up to 8 TB of memory.
Front-Mounted GPUs for AI and Visual Computing
Up to eight front slots carry the accelerators: up to 4 x double-wide GPUs or 8 x single-wide GPUs, all serviceable from the cold aisle. Up to six rear PCIe slots and two OCP 3.0 slots with a PCIe 5.0 host interface handle networking, making it a fit for AI inference, fine-tuning, VDI and media workloads in a standard 2U footprint.
Managed by Lenovo XClarity
Every SR650a V4 includes the XClarity Controller 3 (XCC3) for out-of-band management, a Root of Trust module with TPM 2.0 and hot-swap drives, power supplies and fans.
Lenovo ThinkSystem SR650a V4 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR650a V4 GPU Server |
| Machine Types | 7DGC (1-year warranty), 7DGD (3-year warranty) |
| Form Factor | 2U rack server |
| Order Type | Configure-to-Order (processors, memory, GPUs, drives, network adapters, power supplies and support term chosen per order) |
| Lenovo Standard Warranty | 1 year or 3 years depending on machine type; customer-replaceable unit and onsite, 9x5 next business day |
Processor & Memory
| Processors | One or two Intel Xeon 6700P-series or 6500P-series processors, up to 86 cores / 172 threads, up to 4.0 GHz, up to 350 W TDP |
| Chipset | None (integrated into the processor) |
| Memory Slots | 32 DIMM slots (16 per processor); 8 memory channels per processor, 2 DIMMs per channel |
| Maximum Memory | 8 TB (32 x 256 GB 3DS RDIMMs) |
GPU & Expansion
| GPU Support | Up to 4 x double-wide or 8 x single-wide GPUs, installed in the front slots |
| PCIe Slots | Up to 8 front slots for GPUs, up to 6 rear slots, plus 2 x OCP slots |
| Network | 2 x dedicated OCP 3.0 SFF slots with PCIe 5.0 host interface |
Storage
| Drive Bays | Up to 8 x 2.5-inch or 8 x E3.S hot-swap drive bays, all front accessible |
| Storage Controllers | Onboard NVMe, RAID adapters or HBAs |
| Optical Drive | None |
Management & Security
| Systems Management | Operator panel with status LEDs; Lenovo XClarity Controller 3 (XCC3) embedded management |
| Video | Embedded graphics with 16 MB memory and 2D hardware accelerator |
| Security | Chassis intrusion switch, power-on and administrator passwords, Root of Trust module supporting TPM 2.0 |
Power, Cooling & Physical
| Power Supplies | Up to 2 x hot-swap redundant AC power supplies, 80 PLUS Platinum or Titanium |
| Cooling | 6 x (two processors) or 5 x (one processor) hot-swap 60 mm single-rotor or dual-rotor fans |
| Hot-Swap Parts | Drives, power supplies and fans |
| Dimensions (W x H x D) | 445 x 87 x 924 mm |
| Maximum Weight | 38.8 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server. Check Lenovo's OS interoperability guide for the exact versions certified with your chosen processors and GPUs.
Management Tools
XClarity Controller 3 provides out-of-band console, monitoring and alerting from day one, and Lenovo XClarity software brings the server into fleet management alongside other ThinkSystem servers.
Typical Workloads
AI inference and model fine-tuning, VDI and virtual workstations, video analytics, media rendering and other GPU-accelerated enterprise applications.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR650a V4 is built to order: chassis with the processors, memory, GPUs, drives, network adapters and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 (this listing) | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Product guide | Lenovo ThinkSystem SR650a V4 Product Guide (Lenovo Press) |
| Datasheet | Lenovo ThinkSystem SR650a V4 Datasheet (Lenovo Press) |
| Video walkthrough | ThinkSystem SR650a V4 Video Walkthrough (Lenovo Press) |
| User documentation | ThinkSystem SR650a V4 documentation (Lenovo Docs) |
| Lenovo product page | ThinkSystem SR650a V4 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR650a V4
Is this a fixed configuration?
No. The SR650a V4 is configure-to-order. Processors, memory, GPUs, drives, network adapters, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How many GPUs does it take?
Up to four double-wide GPUs or eight single-wide GPUs, all mounted in the front slots.
How much memory can it take?
32 DDR5 DIMM slots for up to 8 TB using 256 GB 3DS RDIMMs.
Can it run with one processor?
Yes. It supports one or two Intel Xeon 6700P-series or 6500P-series processors; a single-processor build uses five fans instead of six.
SR650a V4 or SR650 V4?
The SR650a V4 is the GPU-optimised variant with front-mounted accelerators. The SR650 V4 is the general-purpose 2U model with more drive bay options for virtualisation and storage-heavy work.
