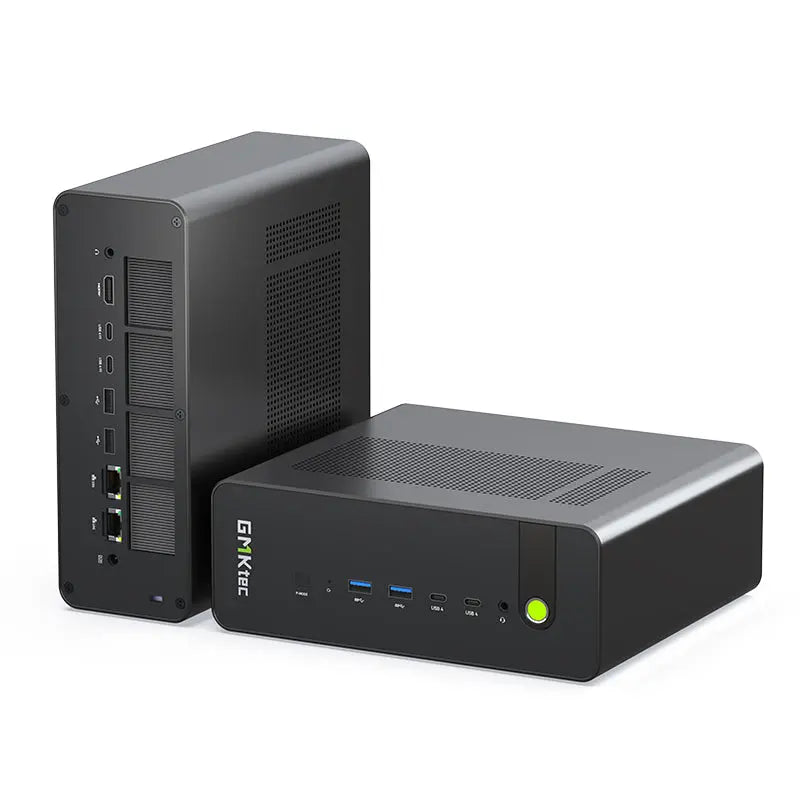

GMKtec EVO-X5 Pro AI Mini PC AMD Ryzen AI Max+ PRO 495/ 192GB/ 4TB SSD/ Win 11 Pro
PRODUCT DESCRIPTION
GMKtec EVO-X5 Pro AI Mini PC, AMD Ryzen AI Max+ PRO 495 / 192 GB LPDDR5X / 4 TB SSD (GM5030) - 3 Years Warranty, Singapore Local Warranty
Run up to 320B-parameter LLMs locally, on your desk
The EVO-X5 Pro is GMKtec's flagship AI workstation, built on AMD's Ryzen AI Max+ PRO 495: 16 Zen 5 cores and 32 threads up to 5.2 GHz, a 40-compute-unit Radeon 8065S GPU, and an XDNA 2 NPU rated up to 55 TOPS, for up to 131 TOPS of overall AI performance. It is paired with 192 GB of LPDDR5X-8533 unified memory - the maximum AMD supports for this processor - of which GMKtec states up to 160 GB can be dynamically allocated as graphics memory. GMKtec rates the EVO-X5 Pro to run fully offline large language models of up to 320 billion parameters, keeping sensitive data, prompts and documents on-premises instead of in a cloud API.
Built for business deployment
As a Ryzen PRO platform, the EVO-X5 Pro adds enterprise features that consumer AI mini PCs lack: AMD DASH out-of-band remote management (on one of the two 10GbE ports), AMD Memory Guard, a dedicated dTPM 2.0 chip and a fingerprint reader. Connectivity is workstation-class: dual 10 Gigabit Ethernet, two USB4 v2 (80 Gbps) ports plus two USB4 (40 Gbps), tri-band Wi-Fi 7 and Bluetooth 5.4. A vapor-chamber, triple-fan cooler in a CNC-machined all-metal chassis is validated by GMKtec for 24/7 continuous operation.
This configuration
This listing is the top 192 GB / 4 TB build (item code GM5030) with Windows 11 Professional installed. Three M.2 2280 PCIe slots allow storage expansion, which GMKtec quotes at up to 24 TB in total. Memory is soldered at the platform maximum, so no upgrade is needed or possible.
Warranty and availability
Sold with a 3-year Singapore local warranty through the local distributor - GMKtec's own international store offers 1 year. The EVO-X5 Pro is a new launch and is coming soon; contact us to reserve stock or to discuss project quantities.
GMKtec EVO-X5 Pro Datasheet - Technical Specifications
General
| GMKtec official product name | GMKtec EVO-X5 Pro AMD Ryzen AI Max+ PRO 495 AI Mini PC |
| Distributor item code / SKU | GM5030 |
| EAN | 6972570966076 |
| Form factor | AI mini PC / compact workstation |
| This configuration | 192 GB LPDDR5X / 4 TB M.2 PCIe SSD / Windows 11 Professional |
| Warranty | 3 Years, Singapore local warranty |
Processor
| Processor | AMD Ryzen AI Max+ PRO 495 (AMD product ID 100-000002124) |
| Cores / threads | 16 cores / 32 threads, Zen 5 architecture, TSMC 4 nm FinFET |
| Clock speed | 3.1 GHz base, up to 5.2 GHz boost |
| Cache | 16 MB L2 / 64 MB L3 |
| Power | AMD: 55 W default TDP, 45-120 W cTDP. GMKtec platform tuning: 54-120 W sustained, peak at 160 W. |
| AMD PRO technologies | AMD DASH, AMD Memory Guard, AMD Secure Processor, Virtualization-Based Security, Windows Secured-core PC support |
Graphics & AI
| Graphics | AMD Radeon 8065S, 40 compute units, RDNA 3.5, up to 3000 MHz, hardware ray tracing |
| NPU | AMD XDNA 2, up to 55 TOPS |
| Overall AI performance | Up to 131 TOPS |
| Local LLM capability | Fully offline LLMs up to 320B parameters (GMKtec rating) |
| Display output | Up to 8K |
Memory & Storage
| Memory | 192 GB LPDDR5X-8533 unified memory, 256-bit, onboard (soldered) |
| Memory bandwidth | Up to 273 GB/s |
| Graphics memory | Up to 160 GB dynamically allocated (GMKtec) |
| Storage | 4 TB M.2 PCIe SSD |
| Storage slots | 3 x M.2 2280 PCIe, up to 24 TB total (GMKtec) |

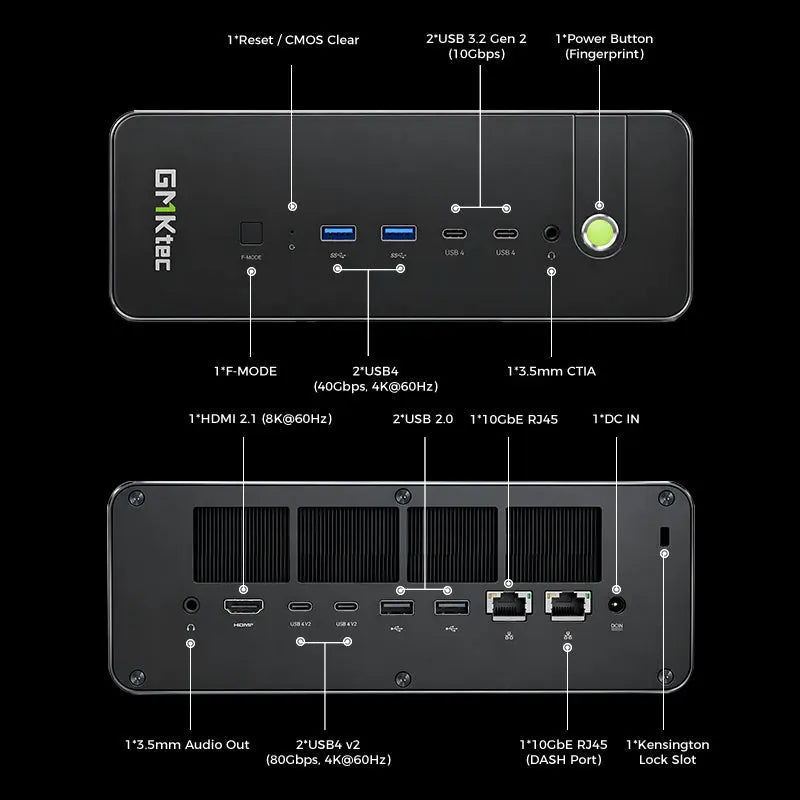

Connectivity & Ports
| Ethernet | 2 x 10 Gigabit LAN (RJ45), 1 x DASH-enabled |
| Wireless | Tri-band Wi-Fi 7, Bluetooth 5.4 |
| USB-C | 2 x USB4 v2 (up to 80 Gbps); 2 x USB4 (up to 40 Gbps) |
| USB-A | 2 x USB 3.2; 2 x USB 2.0 |
| Video | 1 x HDMI 2.1, plus display output over USB4 |
| Audio | 2 x 3.5 mm audio; High Definition Audio |
| Security | Fingerprint reader, dedicated dTPM 2.0, Kensington lock slot |
Physical & Power
| Cooling | Vapor chamber with triple-fan cooling |
| Chassis | CNC-machined all-metal, black |
| Power adapter | 19.5V / 16.9A (330 W), LITEON |
| Dimensions | 221 (W) x 195 (D) x 80 (H) mm |
| Weight | 2.5 kg |
| Operating system | Windows 11 Professional |
Compatibility & Fit
| Local AI frameworks | Suited to running open-weight LLMs on-device with common local AI tools on Windows; the exact model size you can load depends on quantisation and graphics-memory allocation. Tell us your target model and we will advise before you order. |
| Memory upgrade | Not possible - 192 GB is soldered at AMD's maximum for this processor. |
| Storage upgrade | Three M.2 2280 PCIe slots; free slots can take additional NVMe SSDs. |

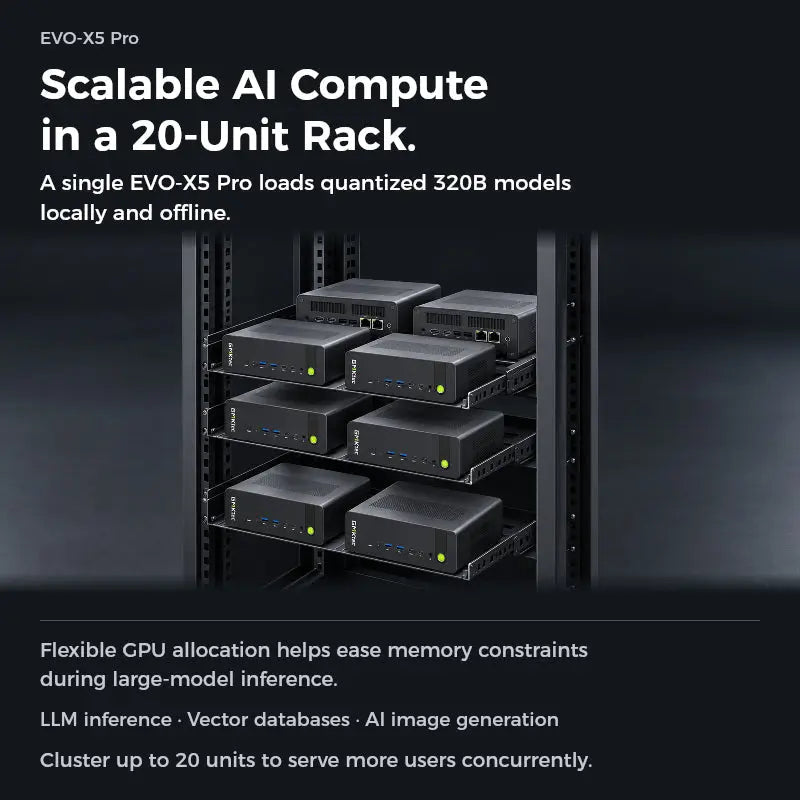

| Networking | Dual 10GbE suits fast NAS/storage access, model sharing across a team, and inline network roles. One port supports AMD DASH for IT remote management. |
| Expansion | USB4 v2 at 80 Gbps supports high-speed external storage, docks and displays. No OCuLink port is listed for this model. |
| Power & placement | Ships with a 330 W adapter. Allow ventilation around the unit for sustained workloads. |

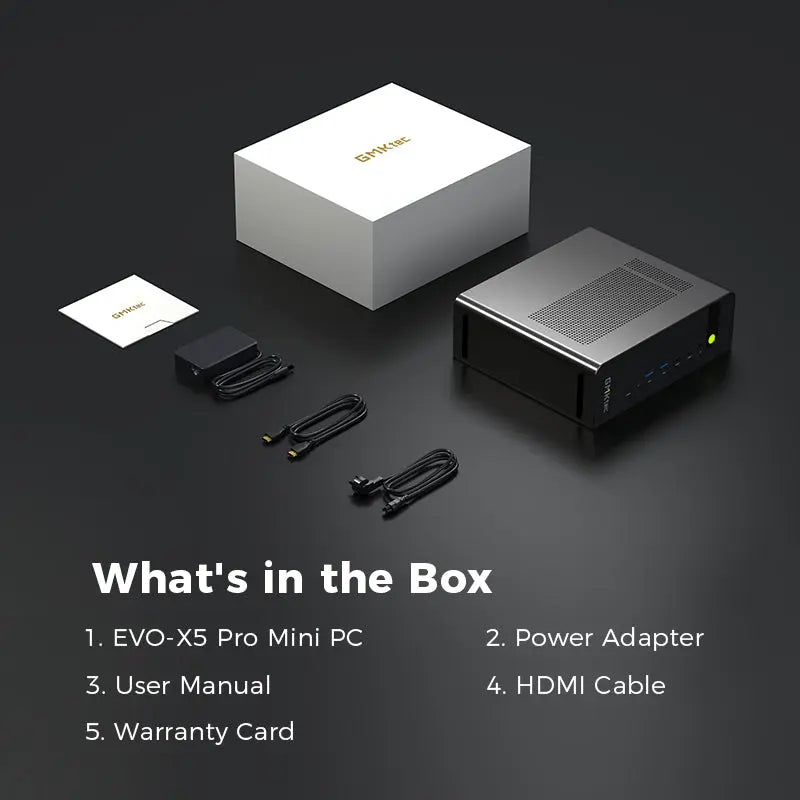

Package Contents & Ordering Information
- GMKtec EVO-X5 Pro AI mini PC (192 GB / 4 TB, Windows 11 Pro installed)
- 19.5V / 16.9A (330 W) power adapter
- Documentation
Related GMKtec AI models
| GM5030 (this listing) | EVO-X5 Pro - Ryzen AI Max+ PRO 495 / 192 GB / 4 TB - 131 TOPS, dual 10GbE, USB4 v2 |
| GM5013 | EVO-X2 - Ryzen AI Max+ 395 / 128 GB / 2 TB - 126 TOPS |
| GM5026 | EVO-T2S - Intel Core Ultra X7 358H / 64 GB / 1 TB - 180 TOPS, 10G LAN, OCuLink |
| GM5027 | EVO-X1 Pro - Ryzen AI 9 HX 470 / 64 GB / 1 TB - OCuLink, dual 2.5G LAN |
Coming soon. Prices and availability change without notice; please contact us to reserve stock or for project pricing.
Datasheet & Downloads
Frequently Asked Questions - GMKtec EVO-X5 Pro

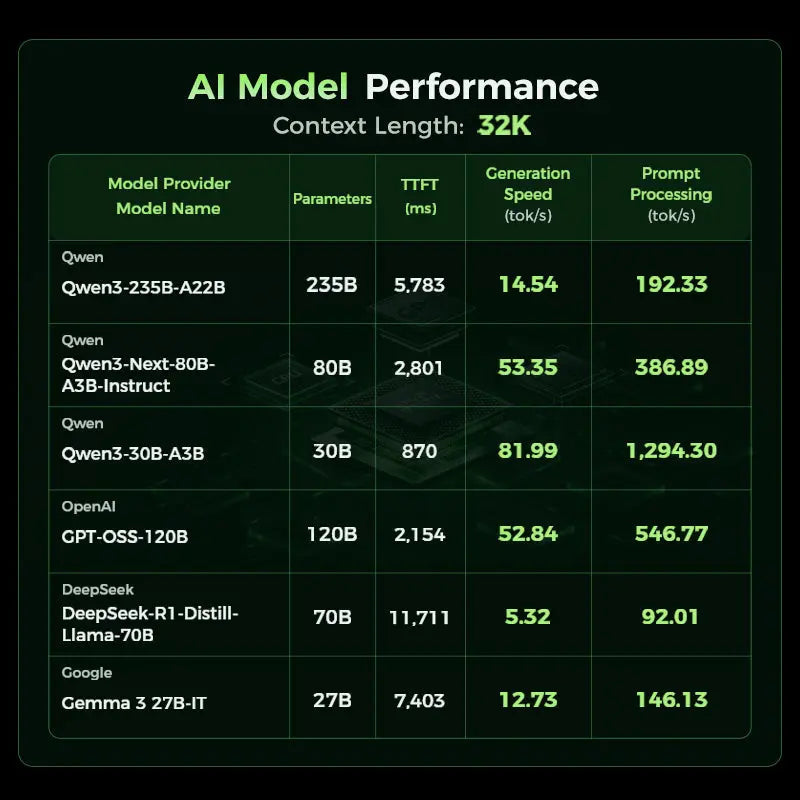

How large an AI model can it run?
GMKtec rates the EVO-X5 Pro for fully offline LLMs of up to 320 billion parameters, using up to 160 GB of its 192 GB unified memory as graphics memory. Actual capacity depends on the model's quantisation and context length - tell us which model you plan to run and we will confirm before you order.

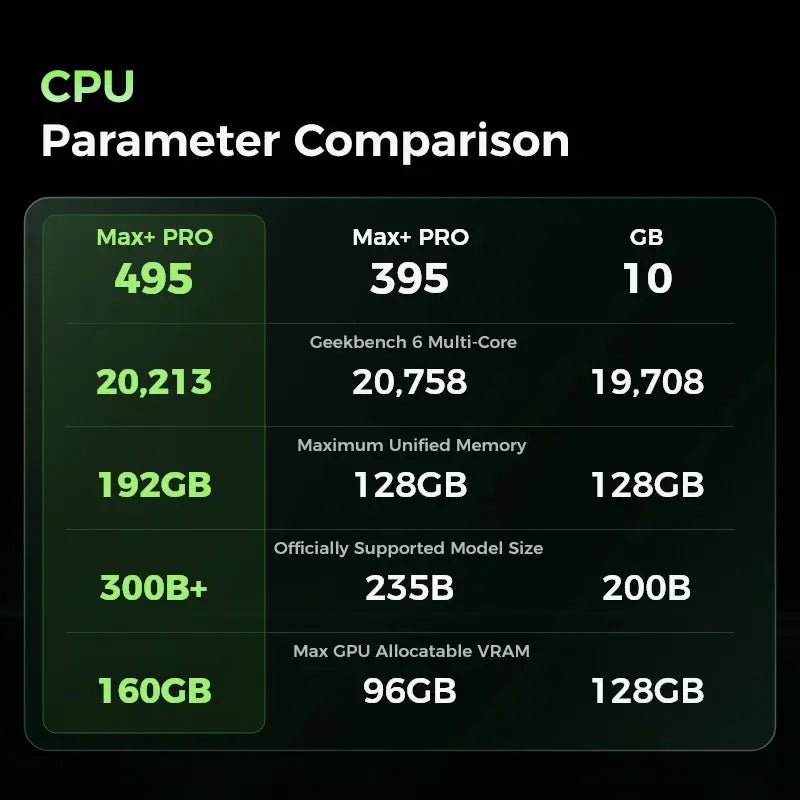

How does it compare with the EVO-X2?
The EVO-X5 Pro moves up from the Ryzen AI Max+ 395 to the PRO 495 (5.2 GHz, Radeon 8065S, 55 TOPS NPU, 131 TOPS overall), from 128 GB to 192 GB of faster LPDDR5X-8533, from 2 TB to 4 TB storage with a third M.2 slot, and from a single 2.5G port to dual 10GbE. It also adds USB4 v2, AMD DASH, dTPM 2.0 and a fingerprint reader.
What does the "PRO" processor add?

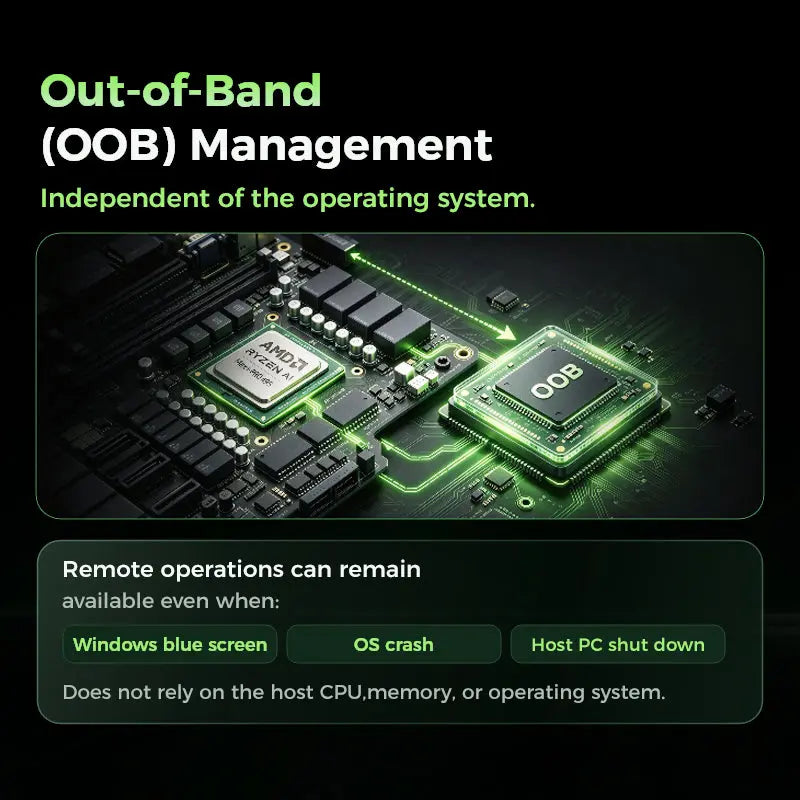

AMD PRO technologies for business fleets: AMD DASH out-of-band remote management, AMD Memory Guard memory encryption, AMD Secure Processor and Windows Secured-core PC support.
Can the memory be upgraded?
No. The 192 GB is soldered and is already the maximum AMD supports for this processor.
Is it suitable for 24/7 operation?
GMKtec states the EVO-X5 Pro is validated for 24/7 continuous operation, with vapor-chamber triple-fan cooling and an all-metal chassis.
What warranty does it come with?
3 years Singapore local warranty through the local distributor.
When is it available?
The EVO-X5 Pro is a new launch and is coming soon. Contact us to reserve a unit.
