GMKtec NucBox G11 Plus Mini PC AMD Ryzen 5 3500U/ 16GB/ 512GB SSD/ Win 11 Pro
PRODUCT DESCRIPTION
GMKtec NucBox G11 Plus Mini PC, AMD Ryzen 5 3500U / 16 GB DDR4 / 512 GB SSD (GM5029) - 3 Years Warranty, Singapore Local Warranty
A compact dual-LAN office PC with triple 4K output
The NucBox G11 Plus is GMKtec's successor to the NucBox G11, in the same silver chassis but with an AMD Ryzen 5 3500U processor - four cores, eight threads, up to 3.70 GHz, with AMD Radeon Vega 8 graphics. It keeps the features that made the G11 popular for small offices and network roles: dual 2.5 Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.2, triple 4K display support and a low 15 W processor in a 128.5 x 127 x 51 mm box. It ships ready to use with 16 GB DDR4 memory, a 512 GB NVMe SSD and Windows 11 Professional installed.
Where it fits
Microsoft 365 and browser-based business applications, reception and front-desk PCs, point-of-sale and kiosk terminals, digital signage across up to three 4K screens, and network appliances such as a firewall or VPN gateway using the two 2.5G ports. It is an entry-level machine: for heavier multitasking, development work or larger spreadsheets, the NucBox M6 Ultra (Ryzen 5 7640HS, DDR5) is the next step up.
Replacing the NucBox G11
The G11 Plus replaces the NucBox G11 (Ryzen Embedded R2514) in GMKtec's range. Ports, networking, chassis, memory type and storage layout are the same, so existing G11 deployments, mounts and accessories carry over. The difference is the processor: the Ryzen 5 3500U is a mainstream mobile part rather than an embedded one, so AMD's embedded long-availability programme does not apply to it.
Warranty
Sold with a 3-year Singapore local warranty through the local distributor (item code GM5029). GMKtec's own international store offers a 1-year warranty, so the local term is a meaningful upgrade. Please ask us to confirm service type and claim process before ordering if the unit will be used in a production role.
GMKtec NucBox G11 Plus Datasheet - Technical Specifications
General
| GMKtec official product name | GMKtec G11 Plus AMD Ryzen 5 3500U Mini PC |
| Distributor item code / SKU | GM5029 |
| EAN | 6972570965796 |
| Form factor | Compact mini PC desktop |
| This configuration | 16 GB DDR4 / 512 GB M.2 PCIe SSD / Windows 11 Professional (GMKtec also offers barebone and 16 GB / 256 GB builds) |
| Warranty | 3 Years, Singapore local warranty |
Processor & Graphics
| Processor | AMD Ryzen 5 3500U, 4 cores / 8 threads |
| Clock speed | 2.1 GHz base, up to 3.70 GHz boost |
| Cache | 4 MB L3 |
| Architecture | Zen+, 12 nm |
| TDP | 15 W |
| Graphics | AMD Radeon Vega 8 Graphics (integrated) |
| AI acceleration | No NPU - this is not an AI PC |
Memory & Storage
| Memory | 16 GB DDR4 SO-DIMM (2 x 8 GB), max 32 GB |
| Storage | 512 GB M.2 PCIe SSD |
| Storage slots | 1 x M.2 2280 SATA/PCIe, 1 x M.2 2280 PCIe |

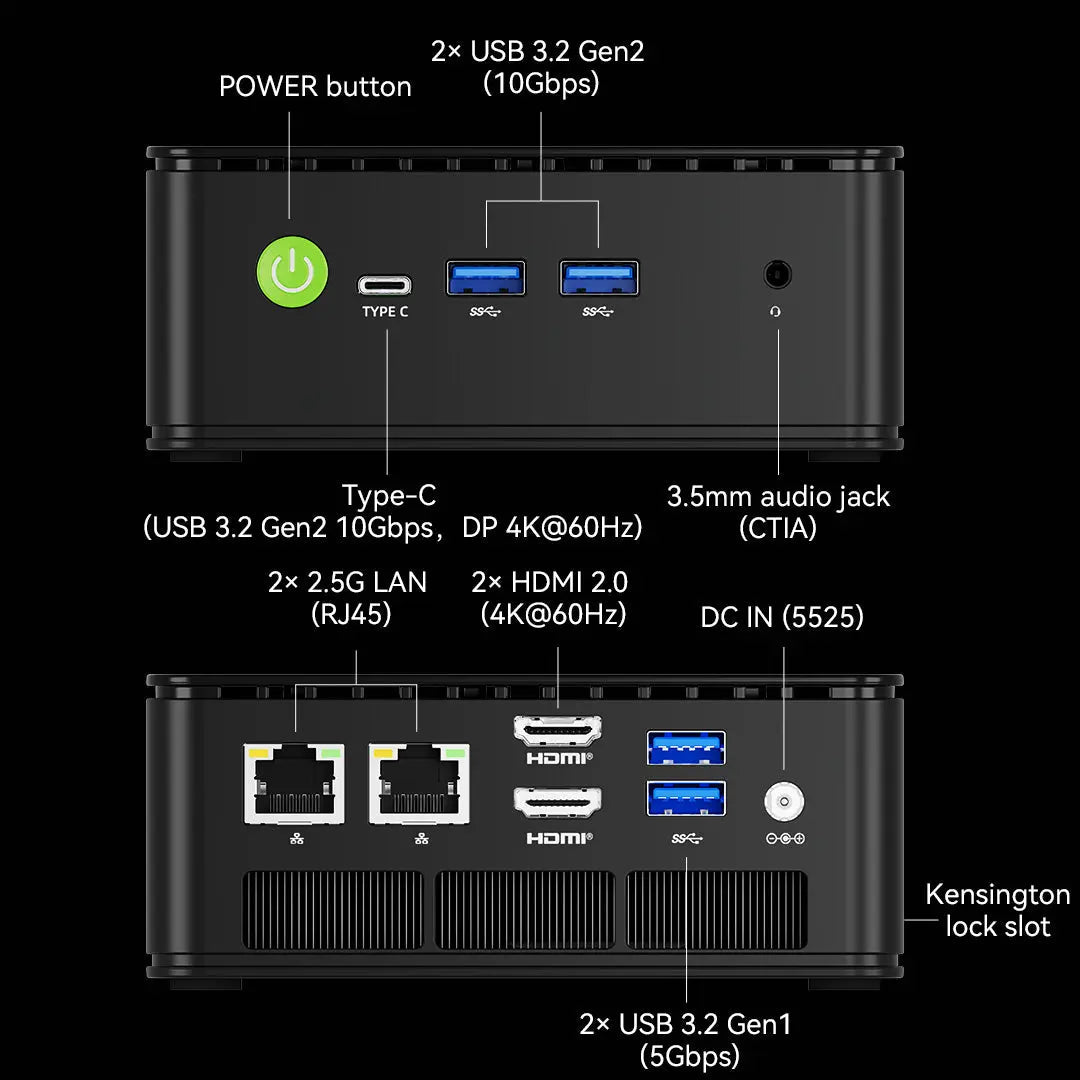

Connectivity & Ports
| Wireless | Dual-band Wi-Fi 6E, Bluetooth 5.2 |
| Ethernet | 2 x 2.5 Gigabit LAN (RJ45) |
| USB | 4 x USB 3.2; 1 x USB-C (PD / DisplayPort / data) |
| Video | 2 x HDMI 2.0, plus DisplayPort via USB-C - triple 4K display support |
| Audio | 1 x 3.5 mm audio jack; High Definition Audio |
Physical & Power
| Power adapter | 19V / 3.42A (65 W) |
| Dimensions | 128.5 (W) x 127 (D) x 51 (H) mm |
| Weight | 460 g |
| Colour | Silver |
| Operating system | Windows 11 Professional |
Compatibility & Fit

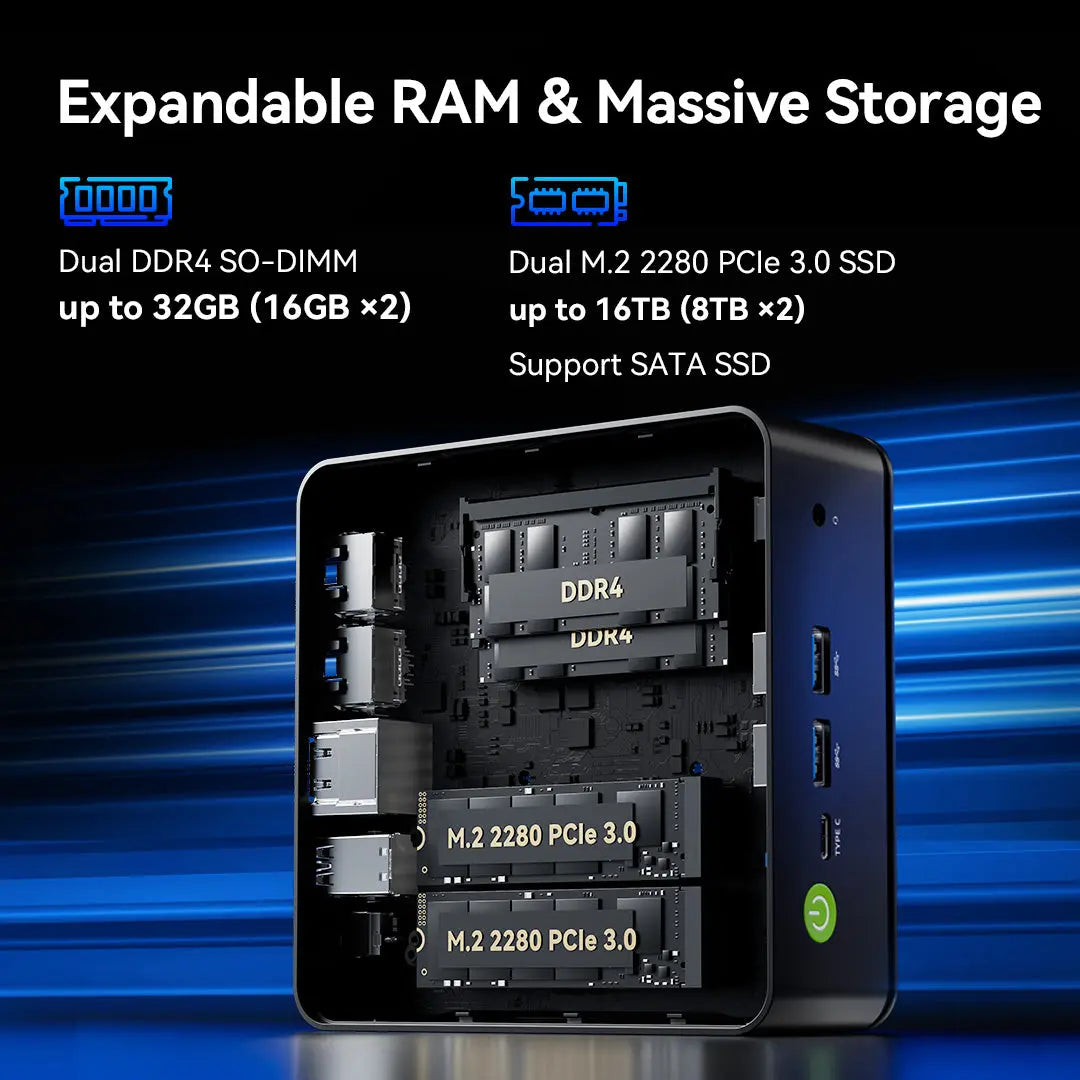

| Memory upgrade | Two DDR4 SO-DIMM slots, up to 32 GB. DDR5 modules will not fit. |
| Storage upgrade | One M.2 2280 slot remains free for a second SSD. |

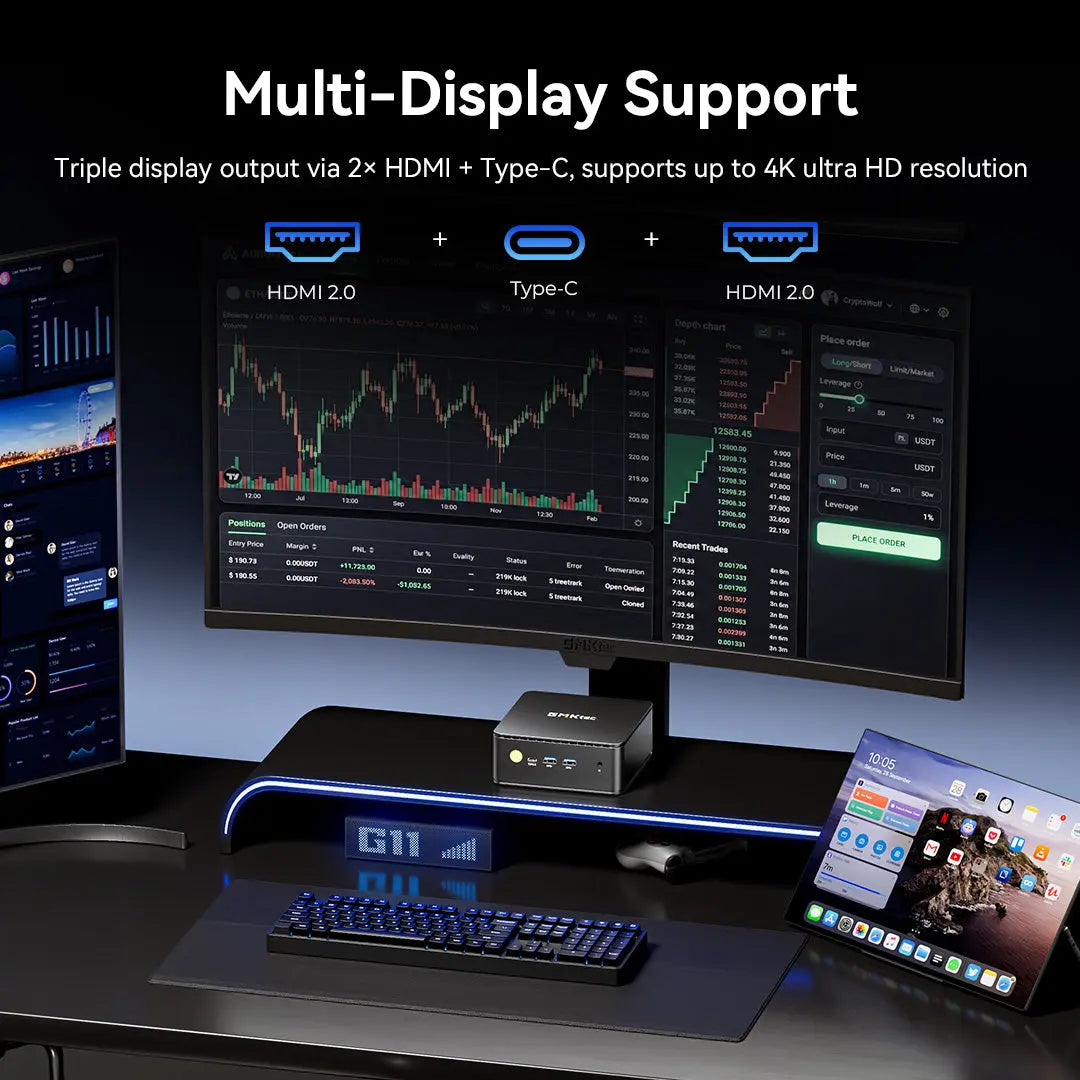

| Displays | Up to three 4K displays: 2 x HDMI 2.0 plus USB-C DisplayPort. |
| Network roles | Two independent 2.5G ports suit firewall, router, VPN gateway or network-segmentation use. The unit ships with Windows 11 Pro; installing another OS is at the customer's discretion. |
| Upgrading from NucBox G11 | Same chassis, ports, memory type and storage slots as the G11, so mounts and accessories carry over. |
| Not fitted | No NPU, no OCuLink, no USB4. For AI workloads see the EVO series; for eGPU expansion see the NucBox K12. |
Package Contents & Ordering Information
- GMKtec NucBox G11 Plus mini PC (16 GB / 512 GB, Windows 11 Pro installed)
- 19V / 3.42A (65 W) power adapter
- Documentation; please confirm mounting accessories with us if required
Related GMKtec models
| GM5029 (this listing) | NucBox G11 Plus - Ryzen 5 3500U / 16 GB DDR4 / 512 GB - dual 2.5G LAN |
| GM5028 | NucBox G5S - Intel Celeron N5095 / 8 GB / 512 GB - smallest and lowest-cost option |
| GM5019 | NucBox M6 Ultra - Ryzen 5 7640HS / 16 GB DDR5 / 512 GB - considerably faster, dual 2.5G LAN |
| GM5015 | NucBox K12 - Ryzen 7 H 255 / 32 GB DDR5 / 1 TB - OCuLink, triple M.2 |
Prices and availability change without notice; please contact us for project or volume pricing.
Datasheet & Downloads
Frequently Asked Questions - GMKtec NucBox G11 Plus
What is the difference between the G11 and the G11 Plus?
The processor. The G11 used the AMD Ryzen Embedded R2514; the G11 Plus uses the AMD Ryzen 5 3500U. Both are 4-core / 8-thread, 15 W, Zen+ parts with Radeon Vega 8 graphics, and the chassis, ports, dual 2.5G LAN, Wi-Fi 6E and DDR4 memory layout are the same.
Can I upgrade the memory and storage?
Yes. Two DDR4 SO-DIMM slots support up to 32 GB, and one of the two M.2 2280 slots is free for an additional SSD.
How many monitors can I connect?
Up to three 4K displays, using the two HDMI 2.0 ports and the USB-C port with DisplayPort.
Can it be used as a firewall?
Yes - the two 2.5 Gigabit Ethernet ports and low-power processor suit pfSense, OPNsense or similar firewall and gateway roles. It ships with Windows 11 Pro; we do not supply or support third-party firewall software.
Does it have AI acceleration?
No. The Ryzen 5 3500U has no NPU. For on-device AI, see the GMKtec EVO-X1, EVO-X1 Pro, EVO-X2 or EVO-T2S.
What warranty does it come with?
3 years Singapore local warranty through the local distributor.
