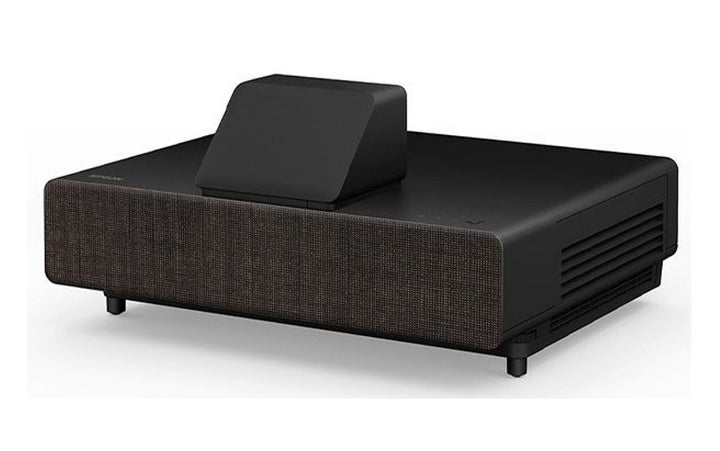

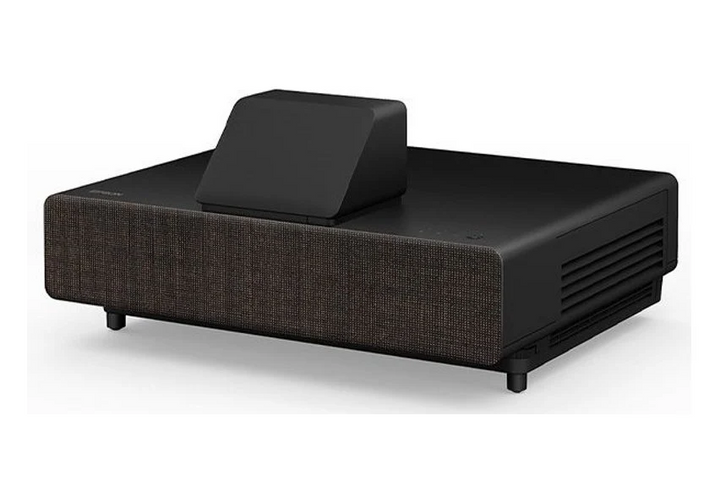

Epson EH-LS500B Projector
PRODUCT DESCRIPTION
Epson EH-LS500B 4K PRO-UHD Ultra Short Throw Laser Projection TV, Android TV Edition (V11H956652) - 3 Years Singapore Local Warranty
4,000 Lumens of Laser Output for a 130-Inch Picture in a Lit Room
The EH-LS500B puts out 4,000 lumens of white light and 4,000 lumens of colour light — Epson publishes the same figure for both, so the image does not lose colour saturation as it gets brighter. Paired with a 2,500,000:1 dynamic contrast ratio, that is enough to hold a convincing 100-inch to 130-inch picture in a condominium living room with the blinds partly open, a showroom, a clubhouse or a hospitality space. It is a genuine replacement for a large flat panel rather than a projector that only works after dark.
4K PRO-UHD Enhancement From a Full HD 3LCD Engine
Epson's 4K PRO-UHD processing drives a native Full HD 1080p 3LCD engine and shifts each pixel diagonally to place twice as many pixels on screen as Full HD alone, while accepting and processing a 4K signal. The practical result is visibly finer detail and smoother edges than a straight 1080p projector on 4K sources. It is important to be clear about what that means: the panels themselves are Full HD, and the 4K result comes from Epson's pixel-shifting and image processing rather than a native 3840 x 2160 imager.
Ultra Short Throw: 0.4 m to 0.82 m From the Wall
A 0.27 – 0.37:1 throw ratio means the projector lives on a cabinet between 0.4 and 0.82 metres from the wall and fills 65 to 130 inches. No ceiling bracket, no cable trunking across the room, and no one casting a shadow when they stand up. For a Singapore apartment or a fitted-out showroom that removes the two costliest parts of a projector installation. Manual vertical and horizontal keystone correction of ±3° is provided for final alignment once the cabinet is square to the wall.
Android TV, Three HDMI Inputs and RS-232C Control
This is the Android TV Edition, so streaming apps, casting and voice control run on the projector itself without a separate media player. Three HDCP 2.2 HDMI inputs take a 4K set-top box, a games console and a Blu-ray player at once, while a 10 W stereo speaker system covers everyday listening before you add a soundbar. RS-232C control makes it straightforward to fold into a room automation or control system — useful for boardrooms, clubhouses and managed hospitality spaces where the projector has to answer to a wall panel rather than a handset.
Epson EH-LS500B Datasheet — Technical Specifications
General
| Product | Epson EH-LS500B Ultra Short Throw Laser Projection TV, Android TV Edition |
| Part Number (SKU) | V11H956652 |
| Projection Technology | 3LCD, RGB liquid crystal shutter projection system |
| Native Resolution | Full HD 1080p (16:9) |
| Image Processing | 4K PRO-UHD with 4K enhancement (diagonal pixel shift, accepts 4K input) |
| Platform | Android TV |
| Operating Time | Laser light source rated 20,000 hours in Eco mode |
| GTIN | 8715946679139 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 4,000 lumens (1,200 lumens economy) |
| Colour Light Output | 4,000 lumens (1,200 lumens economy) |
| Contrast Ratio | 2,500,000:1 |
| Screen Size | 65 inches to 130 inches |
| Throw Ratio | 0.27 – 0.37:1 (ultra short throw) |
| Projection Distance | 0.4 m – 0.82 m |
| Keystone Correction | Manual vertical ±3°, manual horizontal ±3° |
| High Dynamic Range | HDR10 and HLG |
Light Source
| Type | Laser |
| Rated Life | 20,000 hours (Eco mode) |
Connectivity
| Video Input | HDMI x 3 (HDCP 2.2) |
| USB | USB Type-A, USB 2.0 Mini-B |
| Control | RS-232C |
Audio & Features
| Built-in Speaker | 10 W stereo |
| Smart Features | Android TV apps, casting and voice control |
| Image Setup | Keystone correction and geometric adjustment |
| Noise Level | 37 dB(A) normal / 23 dB(A) economy |
Physical & Environmental
| Dimensions (W x D x H) | 458 x 375 x 228 mm |
| Weight | 9.3 kg |
| Finish | Black |
Power
| Power Consumption | 293 W (normal on-mode) / 366 W (normal peak mode) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Placement and screen
The EH-LS500B is an ultra-short-throw projector intended to sit on a low cabinet beneath the screen, between 0.4 and 0.82 metres from the wall depending on whether you want 65 or 130 inches. The cabinet must be level and the wall or screen flat, because only ±3° of manual keystone correction is available on each axis — this is an alignment trim, not a way to correct a badly placed unit. An ambient-light-rejecting screen is strongly recommended if the room has daylight.
What it connects to
Three HDMI inputs with HDCP 2.2 accept 4K sources such as a UHD set-top box, a games console and a 4K Blu-ray player simultaneously. USB Type-A supports media playback and accessory power, and USB Mini-B is a service port. RS-232C allows serial control from a room automation or control system.
Network and content
Android TV is built in on this edition, so apps, casting and voice control run on the projector without a streaming stick. Where corporate or hospitality network policy restricts app stores, the projector works equally well as a plain HDMI display from a managed source device.
Related Epson projectors on SourceIT
The Full HD Epson EH-LS300B is the smaller, lighter option in the same family. The newer (arriving shortly — ask us) and (arriving shortly — ask us) continue the 4K PRO-UHD laser projection TV line.
Package Contents & Epson EH-LS Laser Projection TV Range
In the box
Epson does not publish a box-contents list for this model on its product data page, so no inventory of accessories is claimed here. SourceIT can confirm exactly what ships in the carton before you order.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EH-LS laser projection TV range
| Model | Resolution and brightness |
| EH-LS300B | Full HD 1080p, 3,600 lumens |
| EH-LS500B (this listing) | 4K PRO-UHD enhancement, 4,000 lumens |
| (arriving shortly — ask us) | 4K PRO-UHD, ultra short throw |
| (arriving shortly — ask us) | 4K PRO-UHD, ultra short throw |
Datasheet & Downloads
- Epson Singapore — EH-LS500B ATV support, drivers and manuals
- Epson — EH-LS500B Android TV Edition product page and full specifications
SourceIT can email the current data sheet revision for the EH-LS500B together with a quotation, including the throw-distance table so you can size the cabinet and screen before installation.
Frequently Asked Questions — Epson EH-LS500B
Is the EH-LS500B a native 4K projector?
No. It uses a native Full HD 1080p 3LCD engine with Epson's 4K PRO-UHD processing, which shifts pixels diagonally to put twice the number of Full HD pixels on screen and accepts 4K input. It gives noticeably finer detail than plain 1080p, but the imaging panels are Full HD.
How far from the wall does the cabinet need to be?
Between 0.4 and 0.82 metres, giving 65 to 130 inches. The throw ratio is 0.27 – 0.37:1.
Can it cope with daylight?
At 4,000 lumens of both white and colour light output it is one of the brighter ultra-short-throw units, and on an ambient-light-rejecting screen it stays watchable in a lit room. Direct sun on the screen will still wash out the picture.
Do I need a streaming stick?
Not on this edition. Android TV is built in, with apps, casting and voice control. Three HDMI inputs remain available for your own sources.
How much keystone correction is there?
Manual vertical and horizontal correction of ±3° only. Ultra-short-throw geometry is unforgiving, so the cabinet needs to be level and square to the wall before you trim the image.
Can it be controlled from a room automation system?
Yes. An RS-232C port is provided for serial control alongside the standard remote.
How is it different from the EH-LS300B?
The EH-LS300B is Full HD without 4K enhancement, 3,600 lumens, 61 to 120 inches, 7.2 kg, with two HDMI inputs and a 20 W Yamaha sound system. The EH-LS500B adds 4K PRO-UHD processing, 4,000 lumens, 130-inch capability, a third HDMI input and RS-232C, at 9.3 kg with a 10 W speaker system.
What warranty and invoicing do I get from SourceIT?
Every unit is sold with local Singapore warranty support and a GST invoice issued by SourceIT, ready for your company's claims and asset records.
