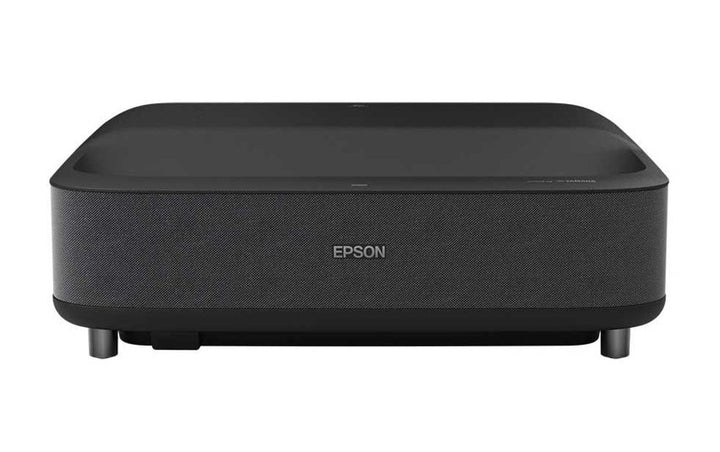

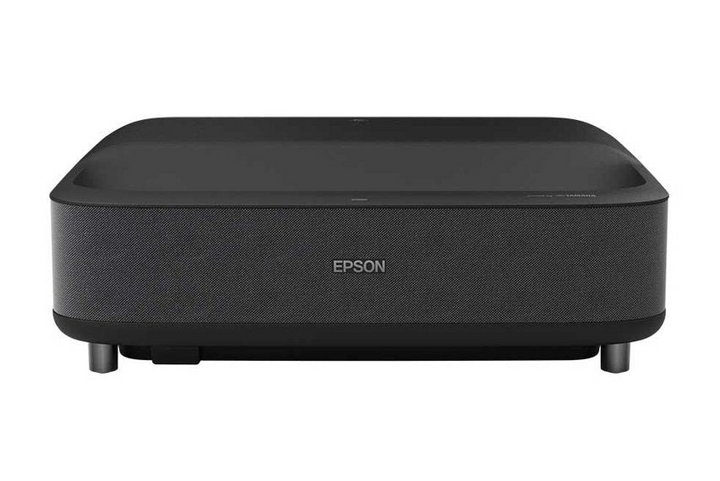

Epson EH-LS300B Projector
PRODUCT DESCRIPTION
Epson EH-LS300B EpiqVision Ultra Full HD Ultra Short Throw Laser Projection TV (V11HA07152) - 3 Years Singapore Local Warranty
A 120-Inch Picture From a Console 40 cm Off the Wall
With a 0.26 – 0.35:1 throw ratio the EH-LS300B sits on a low cabinet almost against the wall and still fills 61 to 120 inches — a 70-inch image needs only about 0.4 metres of clearance. That removes the ceiling rig, the cable run across the room and the shadow problem that makes conventional projectors awkward in showrooms, hotel suites, staff lounges and residential living rooms. Because the unit sits in front of the audience rather than above it, nobody walks through the beam and no one has to plan a soffit or a chase for cabling.
3,600 Lumens of Laser Light for Rooms With the Blinds Open
Epson quotes 3,600 lumens of white light output and 3,600 lumens of colour light output, with the same figure for both so colour does not collapse as the picture brightens. A dynamic contrast ratio of 2,500,000:1 and up to 1.07 billion colours keep dark scenes readable rather than grey. This is enough output to hold a watchable picture in a daylit condominium living room or a hotel lobby with an ambient-light-rejecting screen, which is precisely where a conventional 1,000-lumen portable projector gives up.
Android TV and a 20 W Yamaha Sound System in One Box
Android TV runs on the projector itself, so streaming apps, casting and voice control work without a separate media box or a second remote. Audio is handled by a 20 W stereo system developed with Yamaha, which is a genuine 2.1-style arrangement rather than a token speaker — enough to carry a film or a product video in a medium room without a soundbar. A digital coaxial audio output is there when you do want to pass sound to an AV receiver or an active speaker pair.
Laser Light Source Rated at 20,000 Hours With No Lamp to Change
The laser light source is rated by Epson at 20,000 hours, so an installation running several hours a day goes years without consumables, and there is no lamp door to reach behind a wall-hugging cabinet. Start-up is immediate and there is no cool-down before power is cut, which matters for hospitality and retail sites on a timed power schedule. Fan noise runs at 37 dB(A) normal and 23 dB(A) in economy mode, and the unit draws 215 W in normal on-mode. At 7.2 kg and 467 x 400 x 149 mm it fits a standard media console.
Epson EH-LS300B Datasheet — Technical Specifications
General
| Product | Epson EH-LS300B EpiqVision Ultra Laser Projection TV |
| Part Number (SKU) | V11HA07152 |
| Projection Technology | 3LCD, RGB liquid crystal shutter projection system |
| Native Resolution | Full HD 1080p, 1920 x 1080 |
| Platform | Android TV |
| Operating Time | Laser light source rated 20,000 hours |
| GTIN | 8715946677143 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 3,600 lumens (1,800 lumens economy) |
| Colour Light Output | 3,600 lumens (1,800 lumens economy) |
| Contrast Ratio | 2,500,000:1 |
| Colour Reproduction | Up to 1.07 billion colours |
| Screen Size | 61 inches to 120 inches |
| Throw Ratio | 0.26 – 0.35:1 (ultra short throw) |
| Projection Distance (70-inch image) | 0.4 m |
| High Dynamic Range | HDR support |
Light Source
| Type | Laser |
| Rated Life | 20,000 hours |
Connectivity
| Video Input | HDMI in x 2 |
| USB | USB 2.0 Type-A, USB 2.0 Mini-B (service) |
| Audio Output | Digital coaxial / S-PDIF audio out |
| Wireless | Wireless LAN IEEE 802.11a/b/g/n/ac |
Audio & Features
| Built-in Speaker | 20 W stereo, Sound by Yamaha |
| Smart Features | Android TV apps, casting and voice control |
| Image Setup | Keystone correction and geometric adjustment |
| Noise Level | 37 dB(A) normal / 23 dB(A) economy |
Physical & Environmental
| Dimensions (W x D x H) | 467 x 400 x 149 mm |
| Weight | 7.2 kg |
| Finish | Black |
Power
| Power Consumption | 215 W (normal on-mode) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Placement and screen
The EH-LS300B is an ultra-short-throw unit designed to sit on a console or low cabinet directly beneath the screen. A 70-inch image needs roughly 0.4 metres between the cabinet face and the wall, and the supported range is 61 to 120 inches. Because it throws upward at a steep angle, the wall or screen must be flat and the cabinet level — keystone correction and geometric adjustment are provided for fine alignment, but they are not a substitute for a level surface. An ambient-light-rejecting screen will make a visible difference in a daylit room.
What it connects to
Two HDMI inputs cover a set-top box, a games console, a Blu-ray player, a laptop or a video bar at the same time. USB Type-A handles media playback and powering a small accessory, while USB Mini-B is a service port. A digital coaxial audio output passes sound to an AV receiver or a soundbar when you want more than the internal 20 W Yamaha system.
Network and content
Android TV is built in, with dual-band wireless LAN (802.11a/b/g/n/ac) for streaming apps, casting and voice control. Note that Epson does not list a wired Ethernet port on this model, so plan for Wi-Fi coverage at the installation point or feed content over HDMI from a cabled source device.
Related Epson projectors on SourceIT
Step up to 4K PRO-UHD with the Epson EH-LS500B, or see the newer (arriving shortly — ask us) and (arriving shortly — ask us) laser projection TVs.
Package Contents & Epson EH-LS Laser Projection TV Range
In the box
Epson does not publish a box-contents list for this model on its product data page, so no inventory of accessories is claimed here. SourceIT can confirm exactly what ships in the carton before you order.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EH-LS laser projection TV range
| Model | Resolution and brightness |
| EH-LS300B (this listing) | Full HD 1080p, 3,600 lumens |
| EH-LS500B | 4K PRO-UHD enhancement, 4,000 lumens |
| (arriving shortly — ask us) | 4K PRO-UHD, ultra short throw |
| (arriving shortly — ask us) | 4K PRO-UHD, ultra short throw |
Datasheet & Downloads
- Epson Singapore — EH-LS300B support, drivers and manuals
- Epson — EH-LS300B product page and full specifications
SourceIT can email the current data sheet revision for the EH-LS300B together with a quotation, including the throw-distance table so you can size the cabinet and screen before installation.
Frequently Asked Questions — Epson EH-LS300B
How close to the wall does it sit?
Very close. The throw ratio is 0.26 – 0.35:1, so a 70-inch image needs about 0.4 metres. It is designed to live on a media console under the screen rather than on a ceiling mount.
Is it really 4K?
No. The EH-LS300B is a native Full HD 1080p projector. If you need 4K PRO-UHD, look at the EH-LS500B, EH-LS650B or EH-LS800B in the same range.
Can I use it in a room with the blinds open?
At 3,600 lumens of both white and colour light output it holds up well in ambient light, especially on an ambient-light-rejecting screen. Direct sunlight falling on the screen will still wash out the image.
Do I need a separate streaming box?
No. Android TV is built in with apps, casting and voice control, over dual-band Wi-Fi. Two HDMI inputs are available for a set-top box, console or laptop if you prefer.
Is there an Ethernet port?
Epson does not list a wired LAN port on this model. Plan for wireless coverage at the installation point, or run content from a cabled source device over HDMI.
Will I need a soundbar?
For most rooms, no. The built-in system is a 20 W stereo arrangement developed with Yamaha. A digital coaxial audio output is provided if you want to drive an AV receiver or external speakers.
How long does the light source last?
Epson rates the laser light source at 20,000 hours. There is no lamp to replace and no cool-down period before switching off at the wall.
What warranty and invoicing do I get from SourceIT?
Every unit is sold with local Singapore warranty support and a GST invoice issued by SourceIT, ready for your company's claims and asset records.
