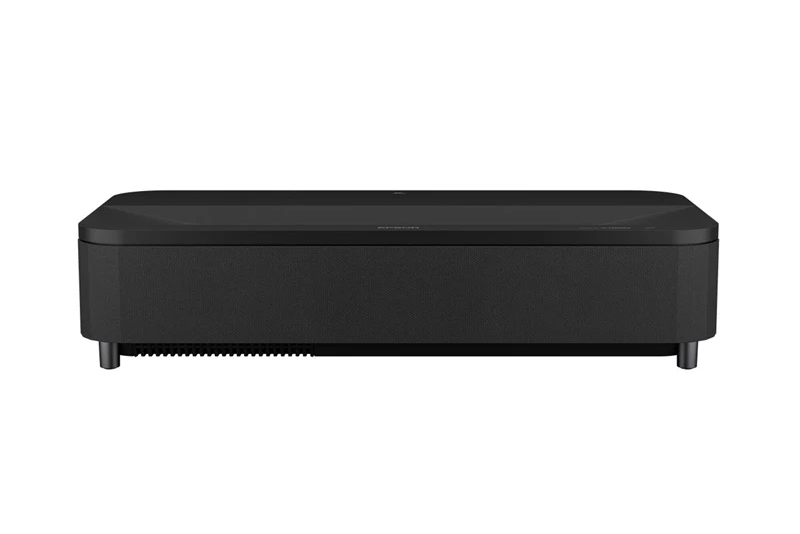

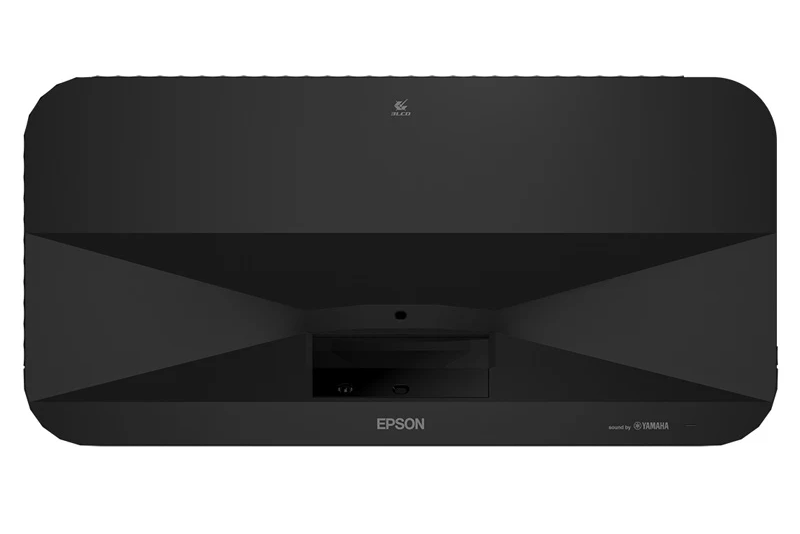

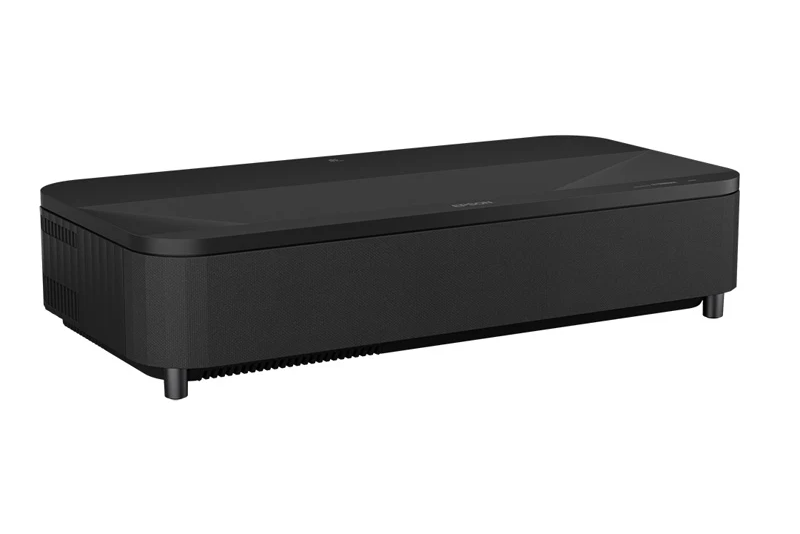

Epson EH-LS800B 4K PRO-UHD Ultra Short Throw Laser Projection TV

General

Projection & Optics

Light Source

Connectivity

Audio & Features

Physical & Environmental

Power

Specifications are taken from Epson's published product data for this exact model on the Epson regional page linked under Datasheet & Downloads. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.

Console placement and throw distance

The EH-LS800B is an ultra short throw projector and belongs on a level, rigid console or low cabinet hard against the projection wall rather than on a ceiling mount. Epson publishes a throw ratio of 0.16 at wide zoom and 0.40 at tele, a 90-inch image at 0.32 m measured from the end of the unit, and a screen size range of 32 to 150 inches. The body is 341 x 695 x 156 mm including feet and weighs 12.3 kg, so the cabinet needs to take a 695 mm width and that load, with airflow around the chassis.

What it connects to

Three HDMI inputs with HDCP 2.3 cover a set-top box, a games console, a media player and a laptop, with ARC on HDMI 2 for a soundbar or AV receiver. Three USB type A ports handle storage, an RJ45 adaptor, a camera, a microphone or an HID device, with the third reserved for 5 V / 2 A power. A USB B port is for firmware updates. Audio can also leave by stereo mini jack or S/PDIF. Wireless is built in for the Android TV platform, so a separate streaming box is usually unnecessary.

Screens and surfaces

Ultra short throw projectors perform best against a flat, uniform wall or a purpose-made ultra short throw screen. A conventional matte-white roller screen is usually the wrong pairing, because the extreme projection angle exaggerates any ripple in the surface. Focus is manual on this model, so allow access to the unit during commissioning. SourceIT can quote the screen and console together with the projector so the room is specified as one package.

Security and control

Epson lists a Kensington-style lock provision and a password protect function on HDMI 1 and 2, which matters for a showroom, a lobby or a tenanted meeting room where the unit is left unattended. A motion sensor is also listed for this model. For a room that genuinely needs a ceiling-mounted projector rather than a console unit, the Epson EB installation range SourceIT lists is the right place to look instead.

In the box

• Epson EH-LS800B projector
• 1.8 m power cord
• Printed user's guide kit
• Remote control and batteries

Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.

Epson EpiqVision Ultra range

• Epson Australia — EH-LS800B specifications
• Epson Singapore support page — Epson EH-LS800B (downloads and manuals)

Epson Singapore no longer publishes a specification page for the EH-LS800B, so the figures above are taken from Epson Australia's product page for this exact model. Epson part numbers differ by region: Epson Singapore's support record shows V11HA90152 and Epson Australia shows V11HA90153 for the same black EH-LS800B. SourceIT can email the current Epson data sheet revision on request with a quotation.

What is an ultra short throw laser projection TV?

It is a projector built to sit on a console directly in front of the projection wall instead of being ceiling-mounted at the back of the room. Epson publishes a 0.16 throw ratio at wide zoom for the EH-LS800B and a 90-inch image at 0.32 m, so it replaces a flat panel in the room without a wall bracket, a ceiling mount or a long cable run.

How big a picture will it give?

Epson publishes a 32 to 150 inch screen size range for this model. Because the throw is extremely short, the console position sets the image size far more than the 1 - 2.5 digital zoom does, so fix the cabinet depth first and use the zoom for final trimming only.

Do I need a special screen, or can I project onto the wall?

A flat, uniform, light-coloured wall works. A purpose-made ultra short throw screen works better, because the extreme projection angle exaggerates any ripple or texture in the surface. A conventional roller screen is usually the wrong pairing for this format. SourceIT can quote the screen with the projector.

Is there a lamp to replace?

No. The EH-LS800B uses a laser diode light source rather than a replaceable lamp module, so there is no lamp consumable to hold in stores and no downtime to book for a lamp change.

Does it need a separate streaming box or soundbar?

Usually not. A smart media player running Android TV is built in, and the audio system is a 20 W Yamaha arrangement of two 2.1-channel satellites and a woofer. If you want external audio later, HDMI 2 carries ARC and there are stereo mini and S/PDIF outputs.

How does it differ from the EH-LS650B?

Both are 4K PRO-UHD ultra short throw laser projection TVs. Epson rates the EH-LS800B at 4,000 lumens with a 32 to 150 inch range, a 0.16 to 0.40 throw ratio and three HDMI inputs; the EH-LS650B is rated at 3,600 lumens with a 60 to 120 inch range, a 0.25 to 0.62 throw ratio and two HDMI inputs. The EH-LS800B is wider at 695 mm and heavier at 12.3 kg, so check the console before you choose.

Can I ceiling-mount it instead?

It is not designed for that. An ultra short throw projector is engineered around a fixed, very short distance to the wall on a console below the image. If the room needs a ceiling-mounted projector, the standard-throw and short-throw Epson EB models SourceIT lists are the right range instead.

Does it come with a Singapore warranty and a GST invoice?

Yes. Every Epson EH-LS800B sold by SourceIT carries three years Singapore local warranty and is invoiced with GST.
