Epson EH-LS650B 4K PRO-UHD Ultra Short Throw Laser Projection TV (Black)
PRODUCT DESCRIPTION
Epson EH-LS650B 4K PRO-UHD Ultra Short Throw Laser Projection TV, Black (V11HB07152) - 3 Years Singapore Local Warranty
A 120-Inch Picture From 43 cm Off the Wall
Epson rates the EH-LS650B at a 0.25 to 0.62 throw ratio, with a 77-inch image from 43.3 cm and a 60-inch to 120-inch screen size range. That is the whole argument for a laser TV in a Singapore condominium living room, a showroom feature wall or a client lounge: the unit sits on a console hard against the wall instead of on a ceiling mount at the back of the room, so there is no projector cage, no ceiling chase, no long HDMI run and nobody walking through the beam on the way to the sofa. The install reduces to a console, a power point and a source cable.
3,600 Lumens of 4K PRO-UHD From a 3-Chip 3LCD Engine
Epson publishes 3,600 lumens colour light output and 3,600 lumens white light output for this model, from a true 3-chip 3LCD engine using 0.62-inch C2 Fine panels. Colour and white brightness matching is what keeps a bright room honest: the picture does not lose saturation when the blinds are open. Resolution is 4K PRO-UHD with full 10-bit colour video processing, up to 1.07 billion colours, HDR10 and HLG support, and a contrast ratio quoted at over 2,500,000:1. Frame interpolation, super resolution, auto contrast and scene-adaptive gamma are all listed for this model.
Built-In Android TV and Yamaha 2.1 Audio — No Separate Source or Soundbar
The EH-LS650B has a smart media player built in and runs Android TV, so streaming apps and voice search through Google Assistant come from the projector itself rather than an external box. Sound is a Yamaha DSP 2.1 system: two full-range 5 W drivers and a 10 W subwoofer, 20 W in total, with Theatre, TV, Studio, Stadium, Concert and Karaoke sound modes. One of the two HDMI 2.0 ports carries ARC, so a soundbar or AV receiver can be added later on a single cable without re-cabling the console.
20,000-Hour Laser Light Source, Supplied in Singapore by SourceIT
Epson rates the laser light source at 20,000 hours, with no lamp module to order, stock or swap out during the life of the unit, and the projector draws 264 W running and 2 W in standby. For a facilities or IT team that removes the projector from the maintenance calendar entirely. SourceIT supplies the EH-LS650B in Singapore with three years Singapore local warranty and a GST invoice on every unit, so the projector is supported here rather than through a parallel-import channel with no local service path.
Epson EH-LS650B Datasheet — Technical Specifications
General
| Product | Epson EH-LS650B 4K PRO-UHD Ultra Short Throw Laser Projection TV |
| Part Number (SKU) | V11HB07152 |
| Colour | Black |
| Projection System | Epson 3-chip 3LCD technology |
| LCD Panel | 0.62 inch with C2 Fine |
| Content Playback | Android TV, smart media player built in |
| Colour Modes | Dynamic, Vivid, Cinema, Natural |
| Warranty | 3 Years Singapore Local Warranty |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Resolution | 4K PRO-UHD |
| Aspect Ratio | 16:9 |
| Colour Light Output | 3,600 lm |
| White Light Output | 3,600 lm |
| Contrast Ratio | Over 2,500,000:1 |
| Colour Video Processing | Full 10-bit |
| Colour Reproduction | Up to 1.07 billion colours |
| Throw Ratio | 0.25 - 0.62 |
| Screen Size | 60" to 120" |
| Projection Distance | 43.3 cm at wide for a 77" screen |
| Zoom (digital) | 1.0 - 2.5 |
| F Number | 1.6 |
| Focal Length | 3.7 mm |
| Offset | 5.2 : -1 |
Light Source
| Light Source | Laser diode |
| Light Source Life | 20,000 h |
Connectivity
| Input: Digital | 2 x HDMI 2.0 (18 Gbps / HDCP 2.3), one with ARC |
| USB: I/O | 3 x USB type A (2 for data, 1 for 5 V / 2 A power supply), 1 x USB B mini (service only) |
| Output: Audio | 1 x S/PDIF |
| Wireless Connectivity | Built-in |
Audio & Features
| Built-in Speakers | Yamaha DSP 2.1; 2 x full-range 5 W speakers and 1 x 10 W subwoofer (20 W total) |
| Sound Modes | Theatre, TV, Studio, Stadium, Concert, Karaoke |
| HDR10 | Yes |
| HLG | Yes |
| Frame Interpolation | Yes |
| Super Resolution | Yes |
| Auto Contrast | Yes |
| Scene Adaptive Gamma | Yes |
Physical & Environmental
| Dimensions D x W x H (excluding feet) | 400 x 467 x 133 mm |
| Package Dimensions D x W x H | 565 x 540 x 236 mm |
| Weight | 7.4 kg |
| Package Weight | 10.47 kg |
Power
| Power Consumption (normal / standby) | 264 W / 2 W |
Specifications are taken from Epson's published product data for this exact model on the Epson regional page linked under Datasheet & Downloads. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Console placement and throw distance
This is an ultra short throw projector: it belongs on a level, rigid console or low cabinet hard against the projection wall, not on a ceiling mount. Epson publishes a throw ratio of 0.25 to 0.62 and a 77-inch image at 43.3 cm, with an overall screen size range of 60 to 120 inches. The body measures 400 x 467 x 133 mm excluding feet and weighs 7.4 kg, so size the joinery for the cabinet depth and allow airflow behind and around the unit. Digital zoom of 1.0 to 2.5 and an offset of 5.2 : -1 handle the final alignment.
What it connects to

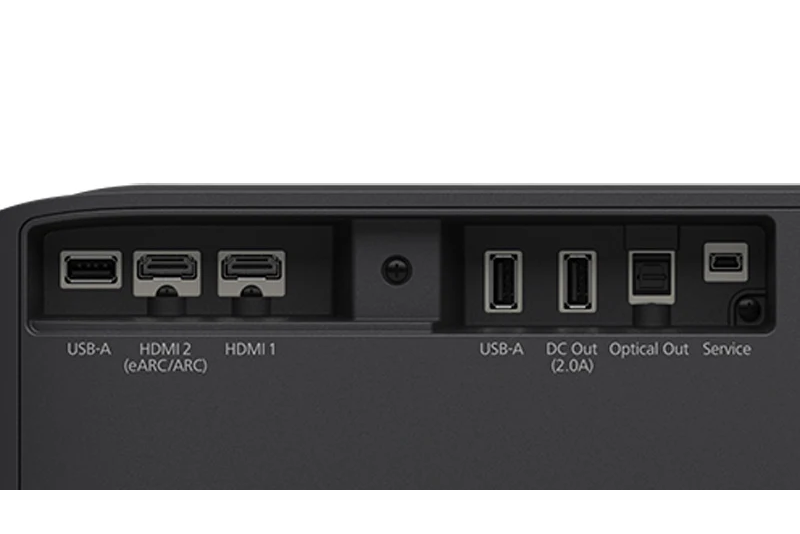

Two HDMI 2.0 ports at 18 Gbps with HDCP 2.3 take a set-top box, a games console, a media player or a laptop; one of them carries ARC so a soundbar or AV receiver can share a single cable. Three USB type A ports cover data and a 5 V / 2 A powered device, and a USB B mini port is reserved for service. Wireless is built in for the Android TV platform, and an S/PDIF output feeds a legacy audio system. Because Android TV is on board, a separate streaming box is usually unnecessary.
Screens and surfaces
Ultra short throw projectors perform best against a flat, uniform wall or a purpose-made ultra short throw screen; a conventional roller screen is usually the wrong pairing, because the extreme projection angle exaggerates any ripple in the surface. SourceIT can quote the screen and the console together with the projector so the room is specified as one package.
Elsewhere in the range
If a console-mounted laser TV is not right for the room, the standard-throw and short-throw Epson EB projectors SourceIT lists cover ceiling-mounted meeting rooms, classrooms and boardrooms instead. The other EpiqVision Ultra laser projection TVs SourceIT lists are in the range table below.
Package Contents & Epson EpiqVision Ultra Range
In the box
- Epson EH-LS650B ultra short throw laser projection TV
- 1.8 m power cable
- Projector remote control
- Batteries
- Quick setup guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EpiqVision Ultra range
| Model | Format |
| EH-LS300B | EpiqVision Ultra ultra short throw laser projection TV |
| EH-LS500B | EpiqVision Ultra ultra short throw laser projection TV |
| EH-LS650B (this listing) | 4K PRO-UHD ultra short throw laser projection TV, 3,600 lm |
| EH-LS800B | 4K PRO-UHD ultra short throw laser projection TV, 4,000 lm |
Datasheet & Downloads
- Epson Australia — EH-LS650B specifications
- Epson Singapore support page — Epson EH-LS650B (downloads and manuals)
Epson Singapore no longer publishes a specification page for the EH-LS650B, so the figures above are taken from Epson Australia's product page for this exact model. Epson part numbers differ by region: Epson Singapore's support record shows V11HB07152 and Epson Australia shows V11HB07153 for the same black EH-LS650B. SourceIT can email the current Epson data sheet revision on request with a quotation.
Frequently Asked Questions — Epson EH-LS650B
What is an ultra short throw laser projection TV?
It is a projector built to sit on a console directly in front of the projection wall instead of being ceiling-mounted at the back of the room. Epson publishes a 0.25 to 0.62 throw ratio for the EH-LS650B and a 77-inch image from 43.3 cm, so it replaces a flat panel in the room without a wall bracket, a ceiling mount or a long cable run.
How big a picture does it give?
Epson publishes a screen size range of 60 to 120 inches for this model, with digital zoom of 1.0 to 2.5 for final sizing. Because the throw is so short, the console position sets the image size far more than the zoom does, so fix the cabinet depth first.
Do I need a special screen, or can I project onto the wall?
A flat, uniform, light-coloured wall works. A purpose-made ultra short throw screen works better, because the extreme projection angle exaggerates any ripple or texture in the surface. A conventional roller screen is usually the wrong pairing for this format. SourceIT can quote the screen with the projector.
Is there a lamp to replace?
No. The EH-LS650B uses a laser diode light source, rated by Epson at 20,000 hours, so there is no lamp module to hold in stores and no lamp change to schedule downtime for.
Does it need a separate streaming box or soundbar?
Usually not. A smart media player running Android TV is built in, and the audio system is a Yamaha DSP 2.1 arrangement of two 5 W full-range drivers and a 10 W subwoofer, 20 W in total. If you do want external audio later, one of the two HDMI 2.0 ports carries ARC and there is an S/PDIF output.
How does it differ from the EH-LS800B?
Both are ultra short throw 4K PRO-UHD laser projection TVs. Epson rates the EH-LS650B at 3,600 lumens with a 60 to 120 inch screen range and a 0.25 to 0.62 throw ratio; the EH-LS800B is rated at 4,000 lumens with a 32 to 150 inch range and a 0.16 to 0.40 throw ratio, and carries three HDMI inputs instead of two. The EH-LS800B is the larger, brighter unit and needs a longer console.
What does the B in EH-LS650B mean?
It denotes the black chassis finish. This listing is the black unit.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every Epson EH-LS650B sold by SourceIT carries three years Singapore local warranty and is invoiced with GST.
