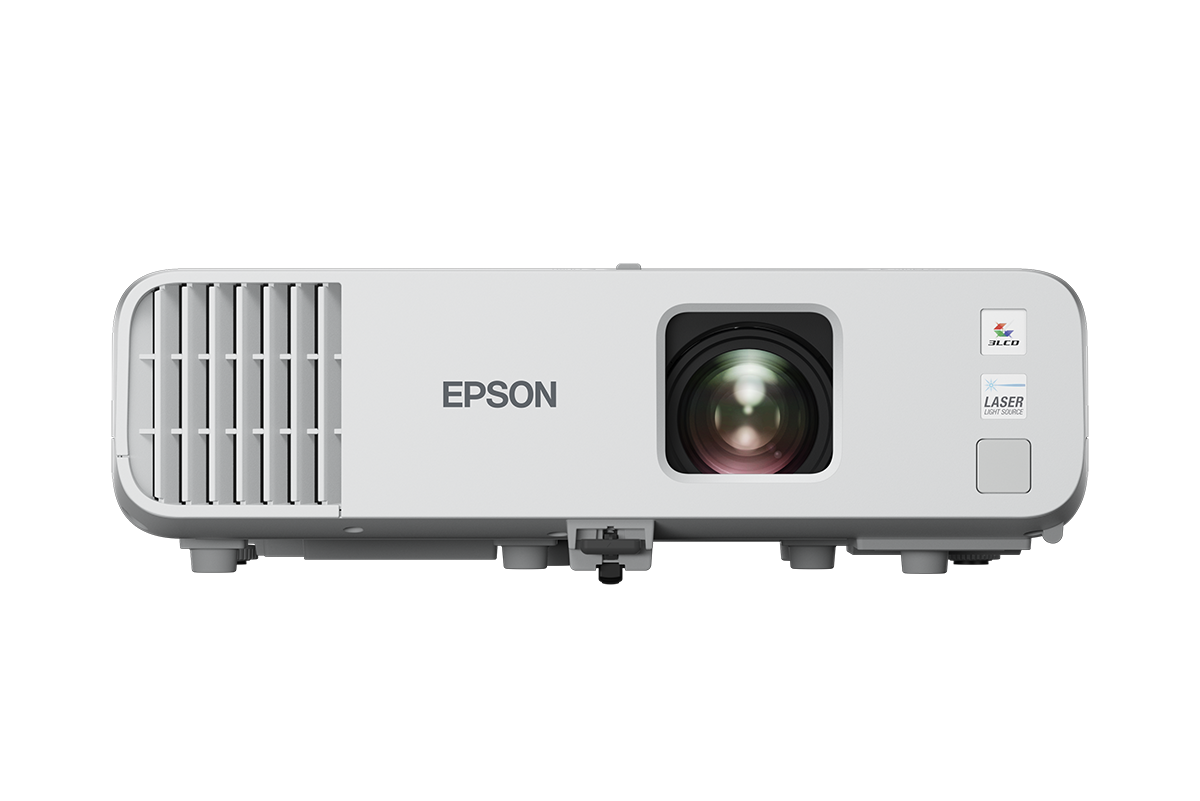

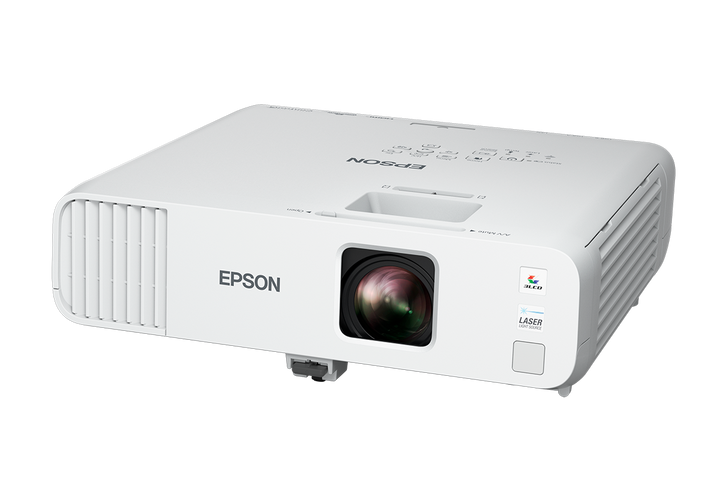

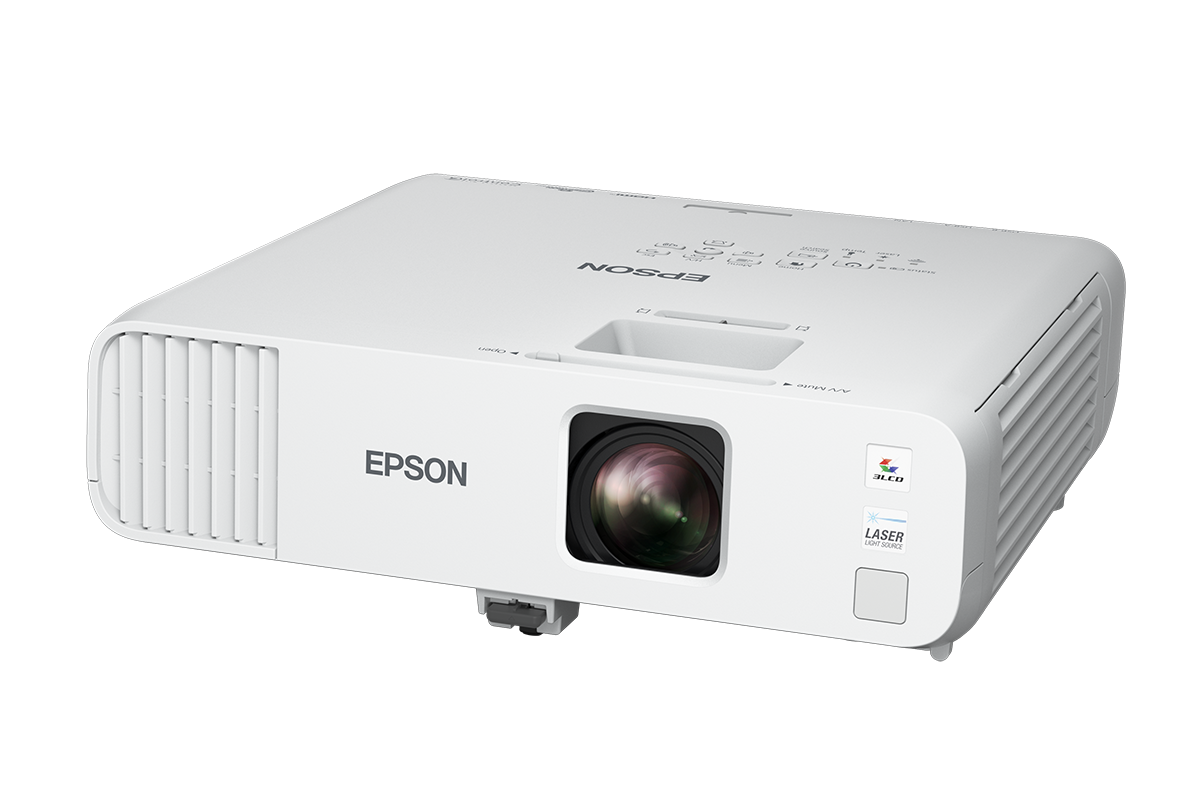

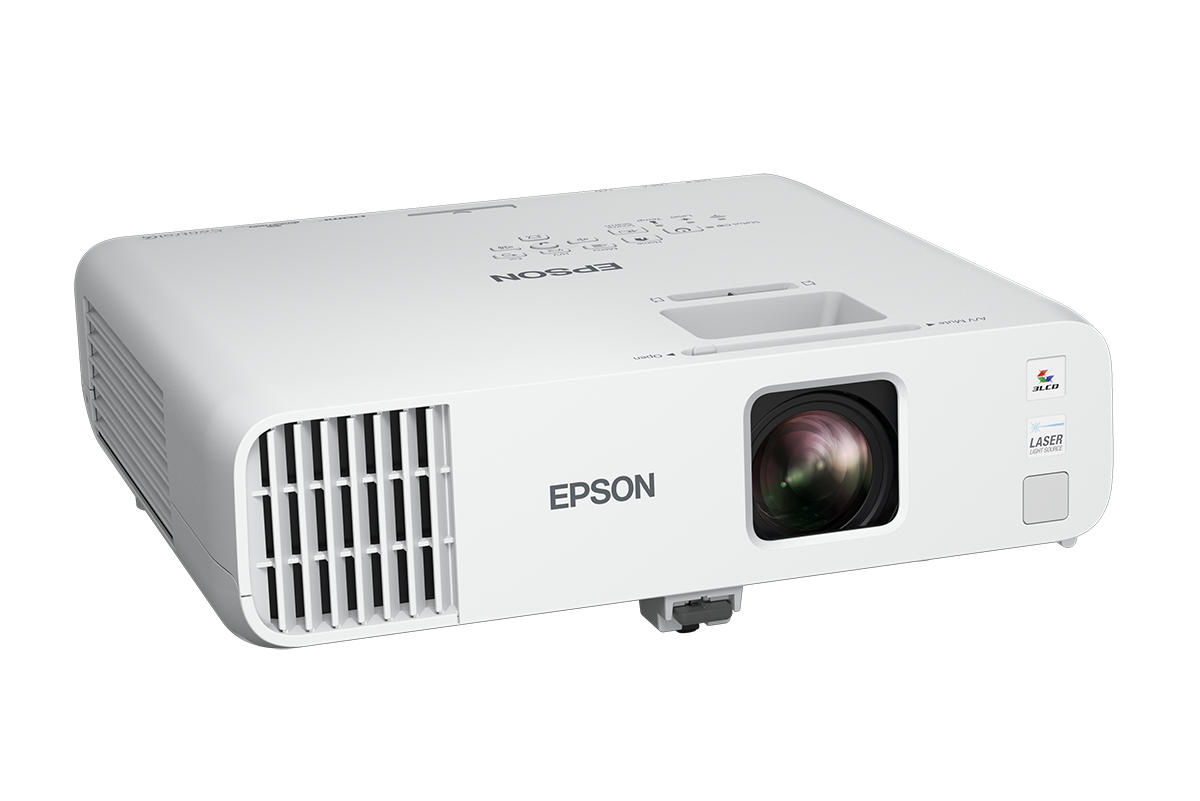

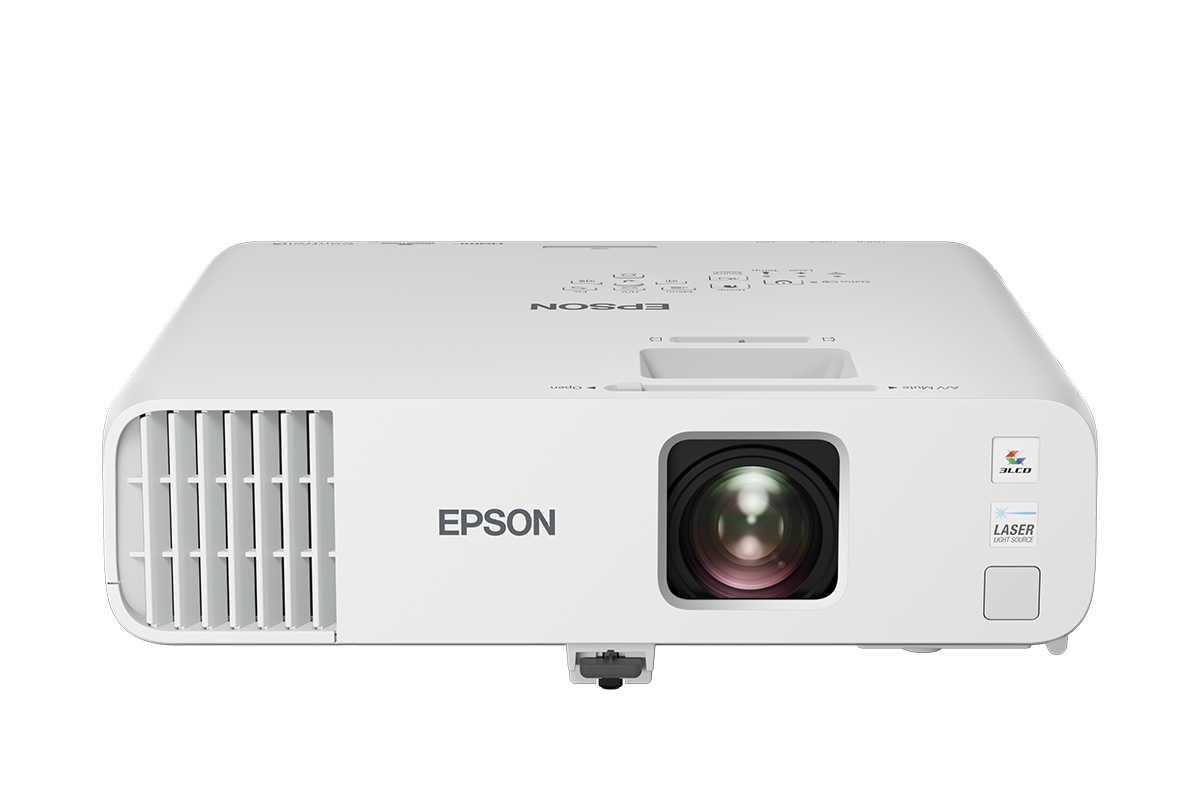

Epson EB-L270F Full HD Standard-Throw Laser Projector
PRODUCT DESCRIPTION
Epson EB-L270F Full HD Standard-Throw Laser Projector (V11HC68052) - 3 Years Singapore Local Warranty
20,000-Hour Laser Light Source That Removes the Lamp Replacement Cycle
The EB-L270F runs a laser light source rated at 20,000 hours in Normal mode and 30,000 hours in Low mode. For a meeting room used eight hours a day, five days a week, that is comfortably beyond a decade of service before the light source is a consideration. There is no lamp to budget for, no lamp-hours counter to watch and no ladder work mid-term. For ceiling-mounted units in lobbies, lecture theatres and boardrooms where access means scaffolding or a scissor lift, removing the lamp cycle is where the real operating saving sits.
5,200 Lumens with Matching Colour Brightness for Bright Corporate Spaces
Epson rates the EB-L270F at 5,200 lumens white brightness to ISO 21118 and 5,200 lumens colour brightness to IDMS 15.4. Those matching figures are the point: a projector that measures high on white but low on colour renders logos, charts and photography noticeably duller than its headline number suggests. With a contrast ratio quoted at over 5,000,000:1, the EB-L270F holds detail in dark image areas while staying bright enough for a room with windows, daylight blinds up and the ceiling lights on.
Dual HDMI with HDCP 2.3, Microphone Input and 16W Speaker

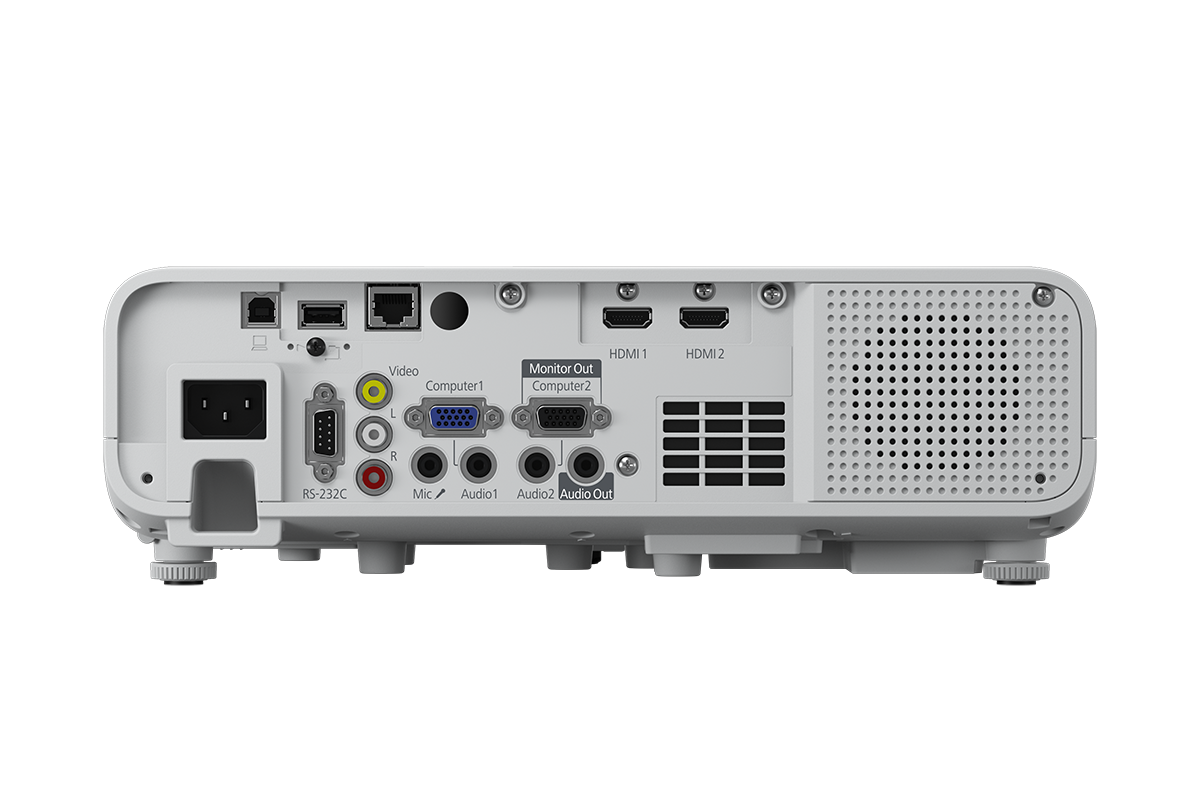

Two HDMI inputs supporting HDCP 2.3 accept a room PC, a video bar or a protected media source without handshake trouble. Two D-Sub 15-pin VGA inputs and a composite RCA input keep older equipment and document cameras usable. A dedicated microphone input and a 16W mono speaker mean a trainer can present and be heard in a classroom without a separate PA, which matters for smaller sites and satellite offices. A monitor output with Share with Computer, an audio output, USB Type A and Type B and an RS-232C control port complete the panel.
31” to 310” Coverage with Auto Keystone for Fast Room Changes
A 1.32 to 2.12 throw ratio gives the EB-L270F wide placement latitude, covering 31” to 310” images from 88cm to 906cm. Auto keystone squares the image without a technician, and manual correction runs to ±30° vertically and ±30° horizontally for rooms where the projector cannot sit on the screen centre line. Built-in content playback lets the unit run a playlist without a source device attached, which suits wayfinding, reception screens and unattended information displays. At 4.2kg it is straightforward to bracket or to move between rooms.
Epson EB-L270F Datasheet — Technical Specifications
General
| Product | Epson EB-L270F Full HD Standard-Throw Laser Projector |
| Part Number (SKU) | V11HC68052 |
| Resolution | Full HD |
| Light Source Type | Laser |
| Content Playback | Yes |
| Local Warranty (Singapore) | 3 Years — supplied by SourceIT with GST invoice |
Projection & Optics
| White Brightness (ISO 21118) | 5,200 lm |
| Colour Brightness (IDMS 15.4) | 5,200 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Throw Ratio (Zoom Wide – Zoom Tele) | 1.32 – 2.12 |
| Screen Size (Wide) | 31” to 310” [88cm to 906cm] |
| Keystone Correction | ±30° vertical / ±30° horizontal |
| Auto Keystone | Yes |
Light Source
| Type | Laser |
| Light Source Life (Normal / Low) | 20,000 / 30,000 hours |
| Replacement Air Filter | ELPAF60 |
Connectivity
| HDMI | 2 (HDCP 2.3) |
| D-Sub 15-pin (VGA) | 2 |
| Composite Video (RCA) | 1 |
| USB | Type A x 1, Type B x 1 |
| Audio Input (RCA / Stereo Mini Jack) | 1 / 2 |
| Microphone Input | 1 |
| Monitor Output | 1 (Share with Computer) |
| Audio Output | 1 |
| Network (LAN RJ45) | 1 |
| Wireless | Optional (ELPAP11 wireless LAN dongle) |
| Control | RS-232C x 1 |
| Screen Mirroring | Miracast |
Audio & Features
| Speaker | 16 W mono |
| Wireless Standards (Screen Mirroring) | IEEE 802.11g (54 Mbps), 802.11n (72.2 Mbps 2.4GHz / 150.0 Mbps 5GHz), 802.11a (54 Mbps), 802.11ac (325 Mbps) |
| Wireless Mode | Access Point (Wi-Fi Direct) |
| Wireless Security | WPA2-PSK (AES) |
| Start-Up Period | Less than 9 seconds (Epson logo) |
| Quick Startup | Less than 5 seconds (display) |
| Warm-Up Period | 30 seconds |
| Cool-Down Period | Instant Off |
| Direct Power On / Off | Yes / Yes |
Physical & Environmental
| Dimensions Excluding Feet (W x D x H) | 325 x 299 x 90 mm |
| Maximum Dimensions (W x D x H) | 325 x 299 x 105 mm |
| Weight | 4.2 kg |
| Fan Noise (Normal / Eco) | 38dB / 28dB |
| Operating Temperature (low altitude) | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Temperature (high altitude) | 0 °C to 35 °C (32 °F to 95 °F) |
| Operating Altitude | 0 m to 3,048 m (0 ft to 10,000 ft) with high altitude mode above 1,500 m |
Power
| Power Supply | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (Normal / Low) | 278W / 209W |
| Network Standby (On / Off) | 2.0W / 0.5W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
With a 1.32 to 2.12 throw ratio the EB-L270F covers 31” to 310” images from 88cm to 906cm, so it suits everything from a small huddle room to a hall. Epson lists the ELPMB23 ceiling mount plus the ELPMB60W in white and ELPMB60B in black for this model. Auto keystone squares the image on power-up and manual correction runs to ±30° vertically and horizontally for off-centre placement. The chassis measures 325 x 299 x 90mm excluding feet and weighs 4.2kg, which is within the range of a standard projector bracket.
What it connects to
Two HDMI inputs with HDCP 2.3 handle a room PC, a laptop or a video bar, including protected content. Two D-Sub 15-pin VGA inputs and a composite RCA input cover legacy sources and the ELPDC21 or ELPDC30 document cameras Epson lists for this model. Audio arrives over RCA or one of two stereo mini jacks, and a dedicated microphone input feeds the 16W mono speaker so a presenter can be heard without a separate PA. A monitor output with Share with Computer drives a confidence display.
Network and content management
A wired LAN RJ45 port is fitted as standard for monitoring, scheduling and firmware updates. Wireless is optional on this model and requires the ELPAP11 wireless LAN dongle; once fitted, Miracast screen mirroring runs over Access Point (Wi-Fi Direct) with WPA2-PSK (AES) security across 802.11a/g/n/ac. Built-in content playback runs a playlist directly from the projector with no source device attached, which suits wayfinding and unattended information displays. RS-232C gives a control processor direct serial command.
Accessories and related models
Epson lists the ELPKS71 soft carrying case, ELPAP11 wireless LAN dongle, ELPAF60 air filter and the ELPMB23, ELPMB60W and ELPMB60B ceiling mounts for this projector. Within the SourceIT range, the Epson EB-L210SF Wireless Full HD Short Throw Laser Projector covers rooms where throw distance is tight, and the Epson EB-L520U WUXGA 3LCD Laser Projector steps up to WUXGA resolution.
Package Contents & Epson EB-L Laser Range
In the box
- Power cable, 1.8m, 3 wire
- HDMI cable, 1.8m
- Remote control with AA x 2 batteries
- Quick Start Guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-L laser range
| Model | Resolution |
| EB-L270F (this listing) | Full HD (standard throw) |
| EB-L210SF | Full HD (short throw) |
| EB-805F | Full HD |
| EB-L520U | WUXGA |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-L270F together with a formal quotation. Tell us the room dimensions, mounting method and whether you need the ELPAP11 wireless dongle, and we will confirm the throw distance and bracket before you order.
Frequently Asked Questions — Epson EB-L270F
How long does the laser light source last?
Epson rates it at 20,000 hours in Normal mode and 30,000 hours in Low mode. There is no lamp to replace within that period, which is the main reason laser models suit ceiling-mounted installations where access is awkward.
Does the EB-L270F have Wi-Fi built in?
No. Wireless is optional on this model and requires the ELPAP11 wireless LAN dongle. A wired LAN RJ45 port is fitted as standard. Once the dongle is installed, Miracast screen mirroring runs over Access Point (Wi-Fi Direct) with WPA2-PSK (AES) security.
What does the “F” in EB-L270F mean?
In Epson's EB-L laser range the leading “L” denotes a laser light source and the trailing letter denotes native resolution. “F” indicates Full HD. An “S” before the final letter, as in EB-L210SF, indicates a short-throw lens.
Can a presenter use a microphone with it?
Yes. The EB-L270F has a dedicated microphone input and a 16W mono speaker, so in a classroom or training room a presenter can be amplified without installing a separate PA system.
Can it display content without a computer attached?
Yes. Content playback is built in, so the projector can run a playlist on its own. That suits wayfinding, reception areas and unattended information displays where you do not want a media player sitting behind the unit.
How large an image will it produce?
Epson publishes a range of 31” to 310” at throw distances from 88cm to 906cm, with a 1.32 to 2.12 throw ratio. A 100” image sits roughly 2.9 to 4.7 metres from the screen depending on where you set the zoom.
Will it work with an existing control system?
Yes. An RS-232C control port allows direct serial command from a Crestron, Extron or AMX processor, and the LAN RJ45 port allows IP monitoring and control. Both are standard on this model.
What warranty and invoicing do I get from SourceIT?
Every EB-L270F sold by SourceIT carries a 3-year Singapore local warranty and ships with a GST invoice. Service is handled locally through Epson Singapore's network.
