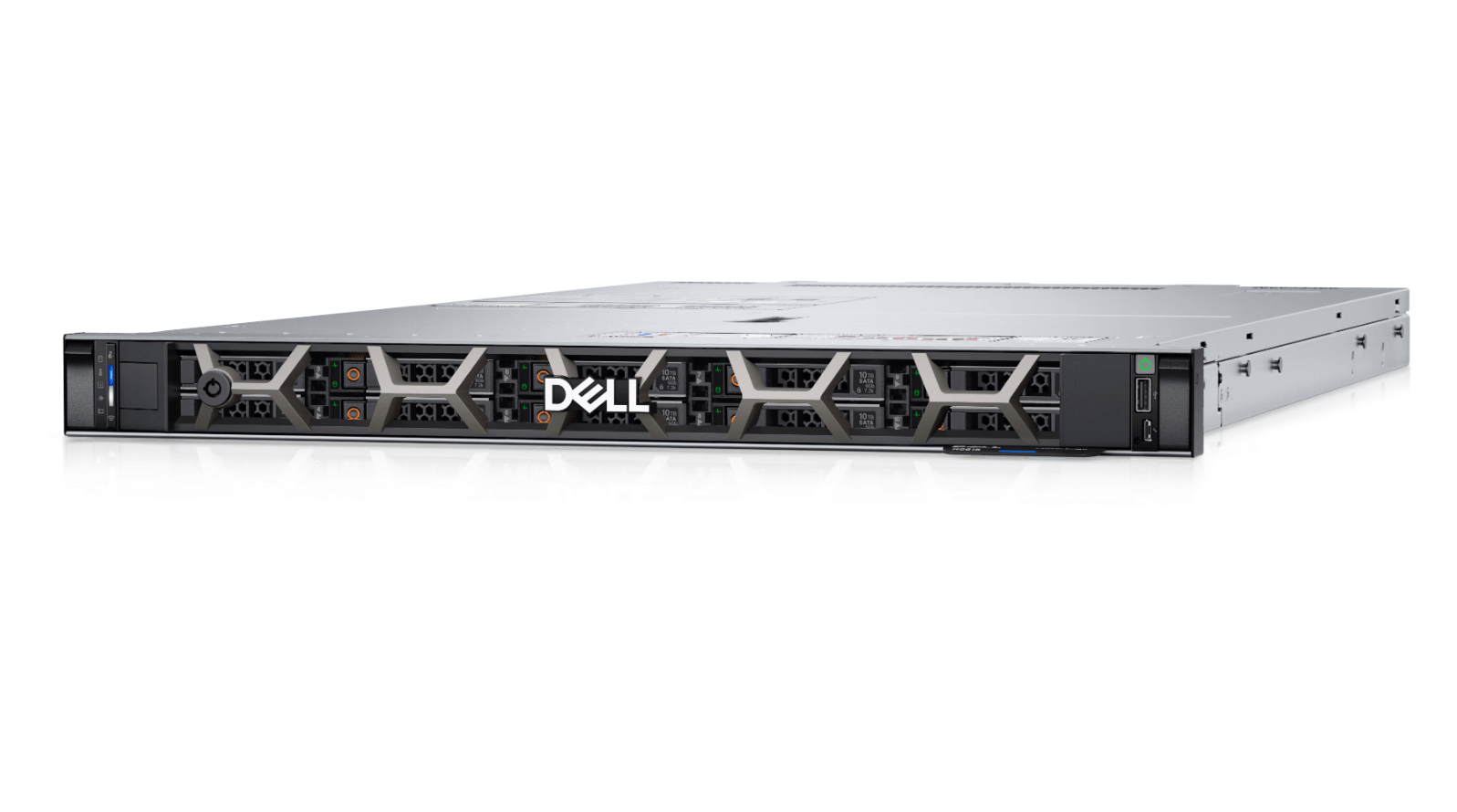

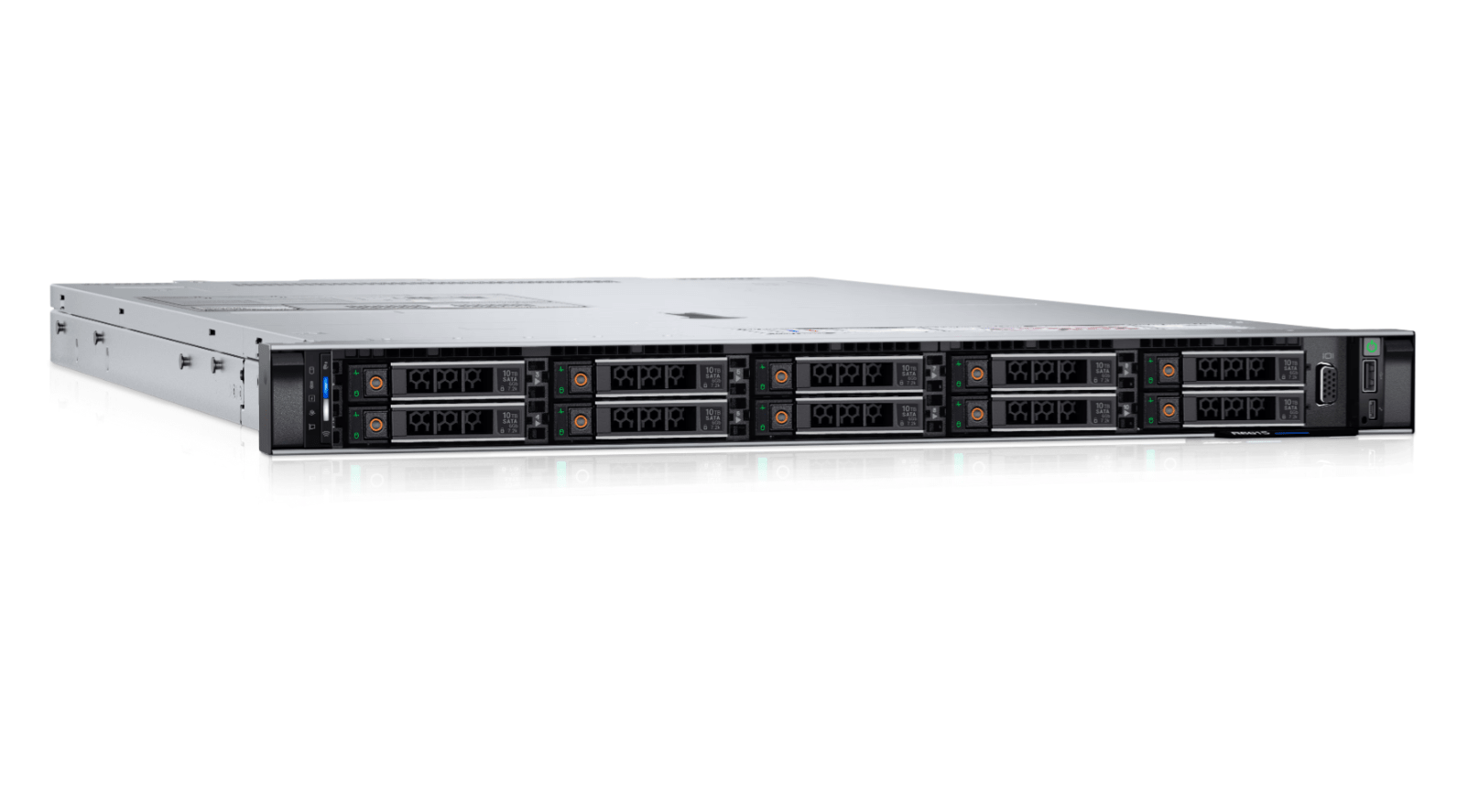

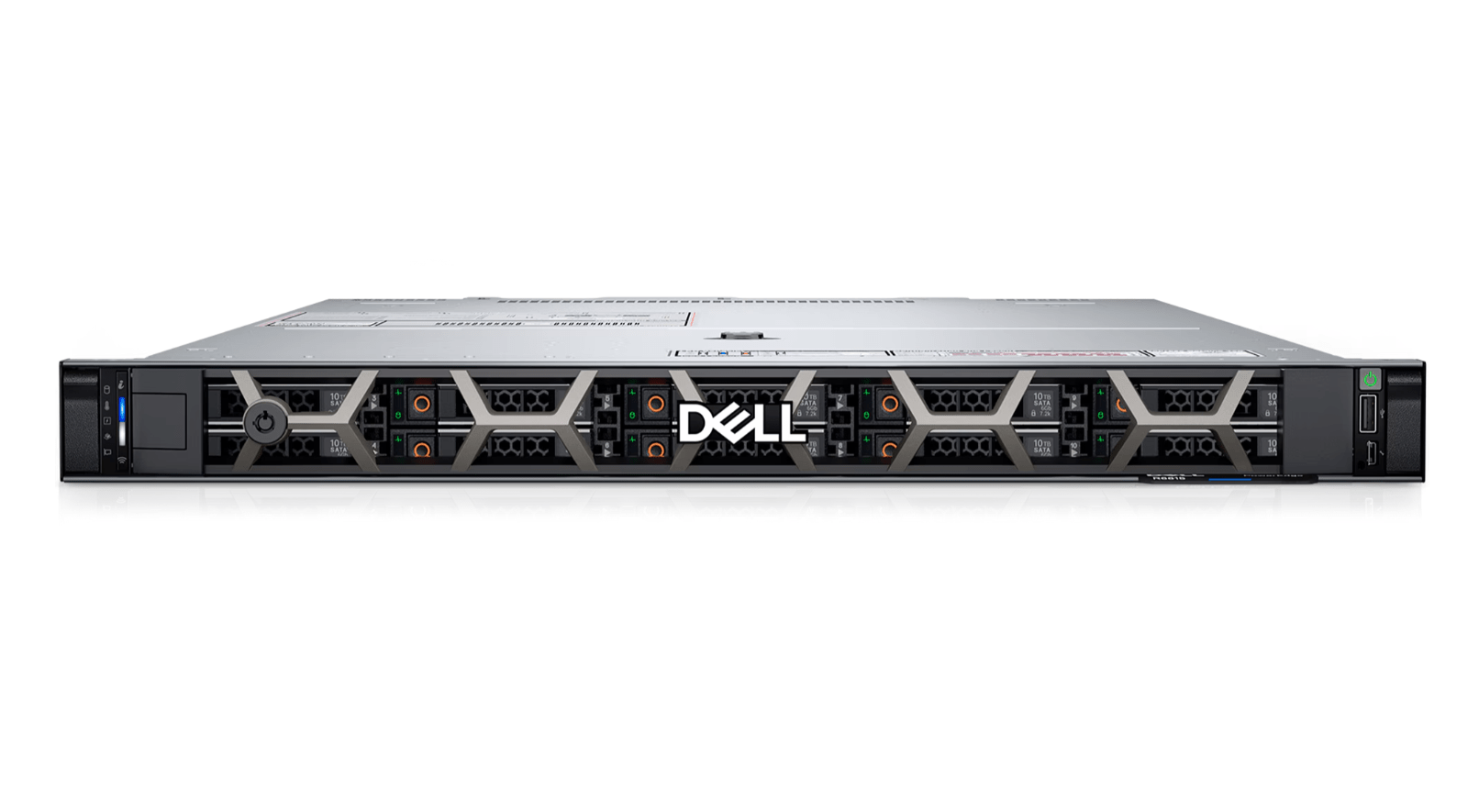

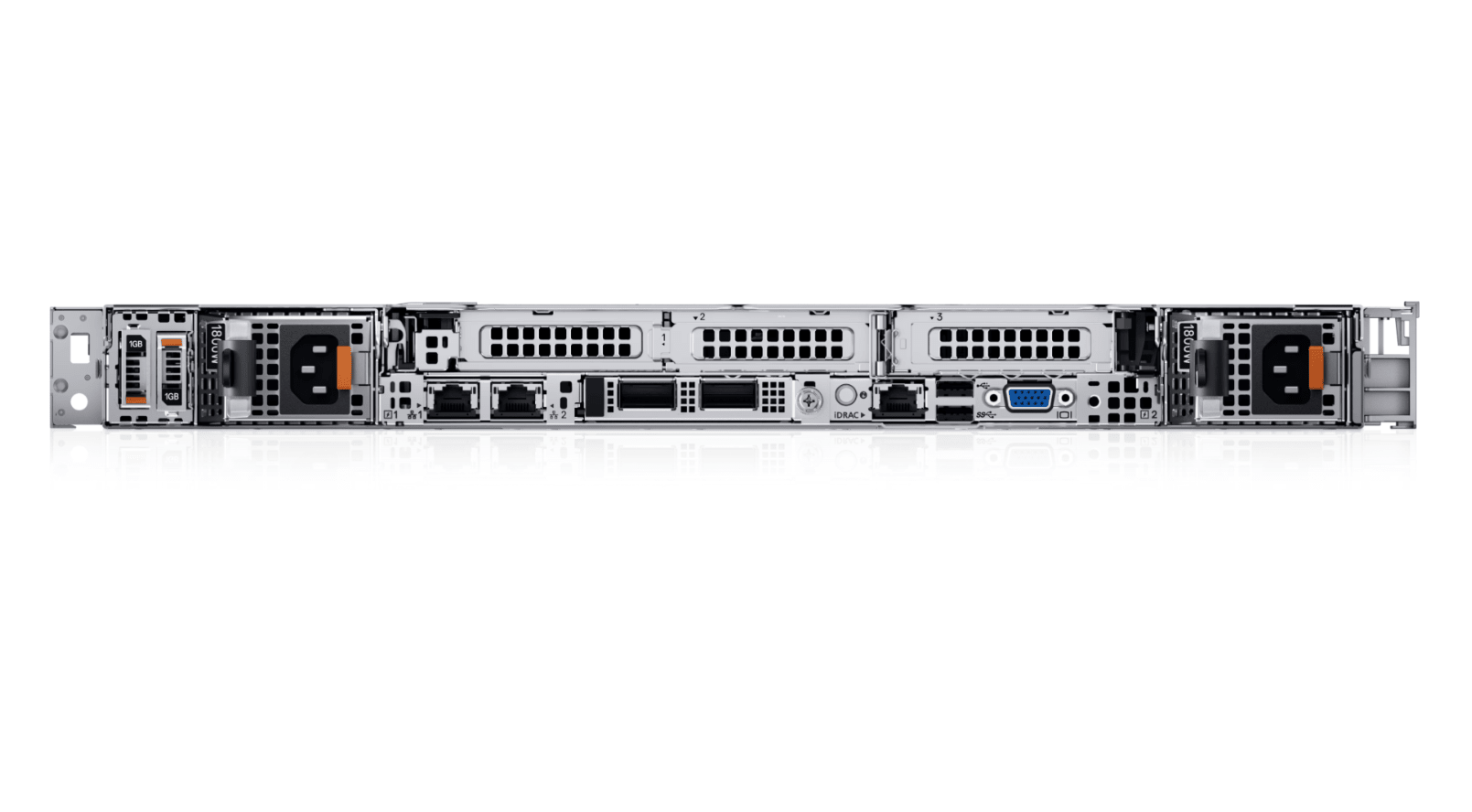

Dell PowerEdge R6615 Rack Server

Dell PowerEdge R6615 Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

High-Performance AMD Rack Server for Enterprise Workloads

Dell Technologies PowerEdge R6615 Rack Server is a powerful enterprise server platform designed to support virtualization, cloud computing, software-defined storage, databases, analytics, and business-critical applications. Powered by AMD EPYC processor architecture, the PowerEdge R6615 delivers exceptional performance, scalability, and efficiency for modern data center environments.

Optimized for Virtualization and Cloud Infrastructure

The Dell PowerEdge R6615 is engineered to handle demanding workloads including virtualization clusters, private cloud environments, ERP systems, analytics platforms, and enterprise databases. Its scalable architecture helps organizations maximize compute density while maintaining operational efficiency and reliability.

Flexible Configure-To-Order Deployment Platform

As an Advance CTO (Configure-To-Order) solution, the Dell PowerEdge R6615 Rack Server supports customizable processor, memory, storage, networking, and expansion configurations. Organizations can tailor infrastructure deployments based on specific workload requirements and future growth plans.

Designed for Modern Enterprise Data Centers

Built for enterprises, government agencies, educational institutions, and service providers, the PowerEdge R6615 provides dependable infrastructure for mission-critical operations. Its rack-mounted architecture enables efficient deployment and centralized management while supporting enterprise-grade performance and scalability.

Technical Specifications

General
Model: PowerEdge R6615
Product Name: Dell PowerEdge R6615 Rack Server
Manufacturer: Dell Technologies
Server Type: Enterprise Rack Server
Form Factor: 1U Rack Server
Deployment: Virtualization, software-defined storage, cloud infrastructure, data analytics, enterprise applications
Configuration Type: Advanced CTO (Configure-ToOrder)
Processor Platform: AMD EPYC™ 9004 Series Processors
Architecture: Single-Socket Enterprise Compute Platform
Target Workloads: Virtualization, VDI, cloud computing, databases, analytics, software-defined storage

Processor Specifications
Processor Support: 1 x AMD EPYC™ 9004 Series Processor
Maximum CPU Cores: Up to 128 Cores
Processor Socket: SP5
Processor Architecture: AMD EPYC Genoa / Bergamo
Maximum Processor TDP: Up to 400W
Performance Optimization: High Core Density Single-Socket Architecture

Memory Specifications
Memory Technology: DDR5 ECC RDIMM
DIMM Slots: Up to 12 DIMM Slots
Maximum Memory Capacity: Up to 3TB
Memory Speed: Up to 4800 MT/s
Memory Protection: ECC Supported

Storage Specifications
Storage Architecture: Flexible CTO Configuration

Supported Storage Types:
• NVMe SSD
• SAS SSD
• SATA SSD
• HDD

Drive Bay Options:
• Up to 10 x 2.5-inch NVMe/SAS/SATA drives
• Up to 4 x 3.5-inch drives (configuration dependent)
• EDSFF storage configurations supported

Hot Swap Drives: Supported
RAID Support: Supported
Storage Controller Options: Dell PERC RAID Controllers

Expansion & PCIe
PCIe Generation: PCIe Gen5
Expansion Slots: Multiple PCIe Gen5 Expansion Slots
OCP Support: OCP NIC 3.0 Supported
Storage Expansion: Supported
Networking Expansion: Supported

Networking
Network Interface: CTO Dependent

Supported Networking Options:
• 1GbE Ethernet
• 10GbE Ethernet
• 25GbE Ethernet
• 100GbE Ethernet
• OCP 3.0 Network Adapters

Remote Management: Dell iDRAC9 Enterprise
Out-of-Band Management: Supported

Power Specifications
Power Supply Type: Dual Hot Plug Redundant Power Supplies
Power Redundancy: Supported
Power Efficiency: 80 PLUS Platinum / Titanium Supported

Cooling & Thermal Design
Cooling Type: Enterprise High Efficiency Cooling
Optimized Airflow Design: Supported
Thermal Monitoring: Supported
Redundant Fans: Supported

Management & Security
Management Platform: Dell OpenManage with iDRAC9
Remote Monitoring: Supported
Firmware Updates: Supported
Server Health Monitoring: Supported
Secure Boot: Supported
TPM 2.0 Security: Supported
Silicon Root of Trust: Supported
System Lockdown: Supported

Virtualization Support
Supported Hypervisors:
• VMware vSphere
• Microsoft Hyper-V
• Linux KVM
• Red Hat Virtualization

Cloud Deployment: Supported
Container Platforms: Kubernetes Ready

Operating System Compatibility
Supported Operating Systems:
• Microsoft Windows Server
• Ubuntu Server
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Design & Construction
Form Factor: 1U Rack Mount
Rack Compatibility: Standard Enterprise Rack
Deployment Environment: Data Center / Cloud Infrastructure / Enterprise IT
Construction: Enterprise Grade Rack Chassis

Performance & Features
Single-socket AMD EPYC architecture with exceptional core density
DDR5 high-speed memory platform
PCIe Gen5 expansion capability
Flexible NVMe storage deployment
Optimized for virtualization and cloud workloads
Enterprise lifecycle management platform
High performance-per-watt infrastructure design
Scalable software-defined infrastructure support

Package Contents
Dell PowerEdge R6615 Rack Server Chassis
Power Supply Units (configuration dependent)
Rail Kit (optional)
Documentation
CTO Components according to final build

Key Features
1U enterprise rack server
AMD EPYC 9004 processor platform
Up to 128 CPU cores
DDR5 ECC memory support
PCIe Gen5 architecture
Flexible NVMe storage deployment
Dell iDRAC9 remote management
Advanced CTO configurable platform

Typical Use Cases
Enterprise virtualization
Virtual desktop infrastructure (VDI)
Cloud infrastructure
Database hosting
Software-defined storage
Private cloud deployment
Analytics workloads
Enterprise application hosting
High-density compute environments

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
