PRODUCT DESCRIPTION

Dell PowerEdge R7625 2U Rack Server (Configure-to-Order) - Local Warranty

2U, Dual-Socket AMD EPYC Performance

The Dell PowerEdge R7625 is Dell's 16th-generation 2U dual-socket AMD rack server. It takes up to two 4th Gen AMD EPYC 9004 Series processors with up to 128 cores each, and 24 DDR5 RDIMM slots for up to 6 TB of memory at up to 4800 MT/s.

Storage and Expansion That Scale With the Workload

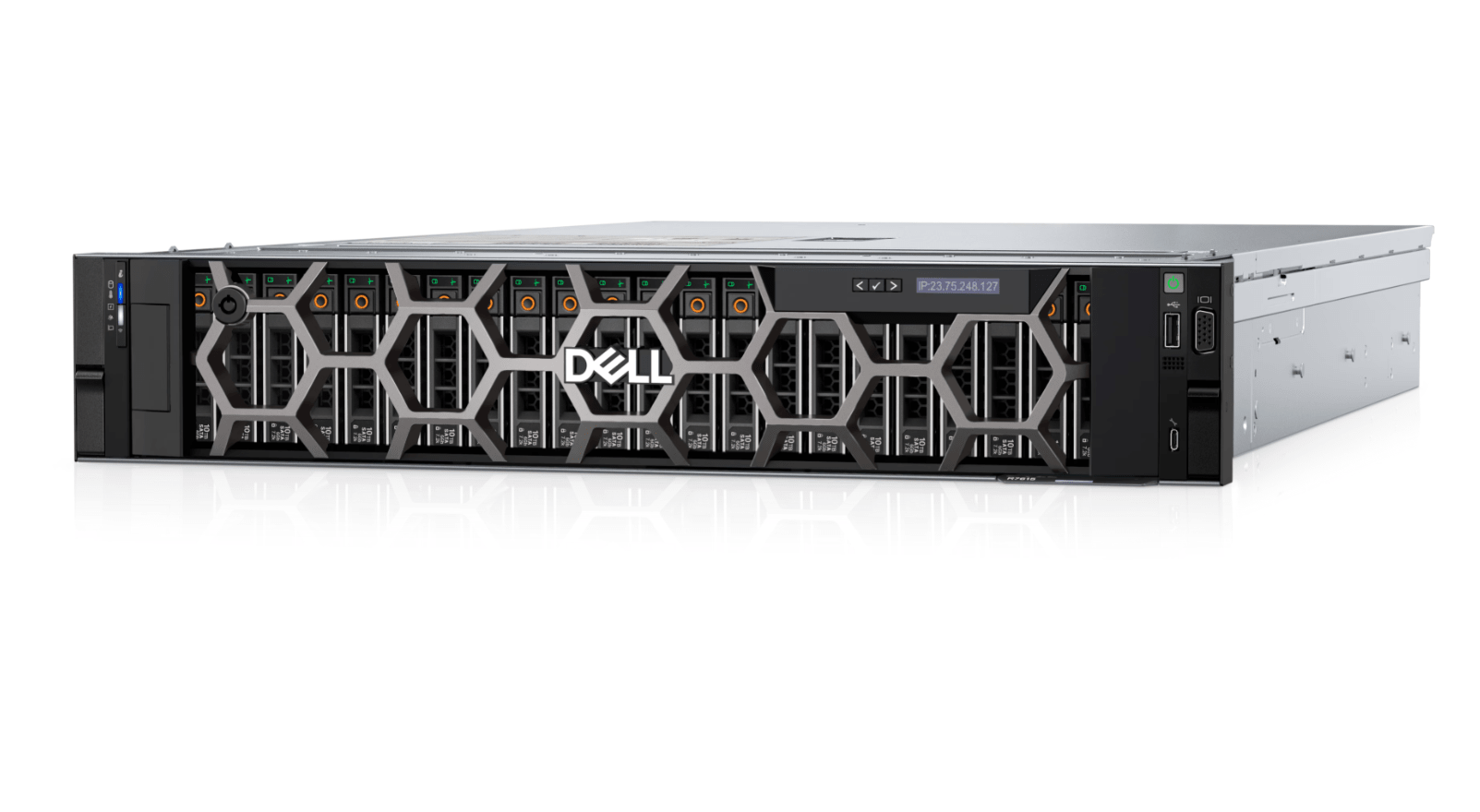

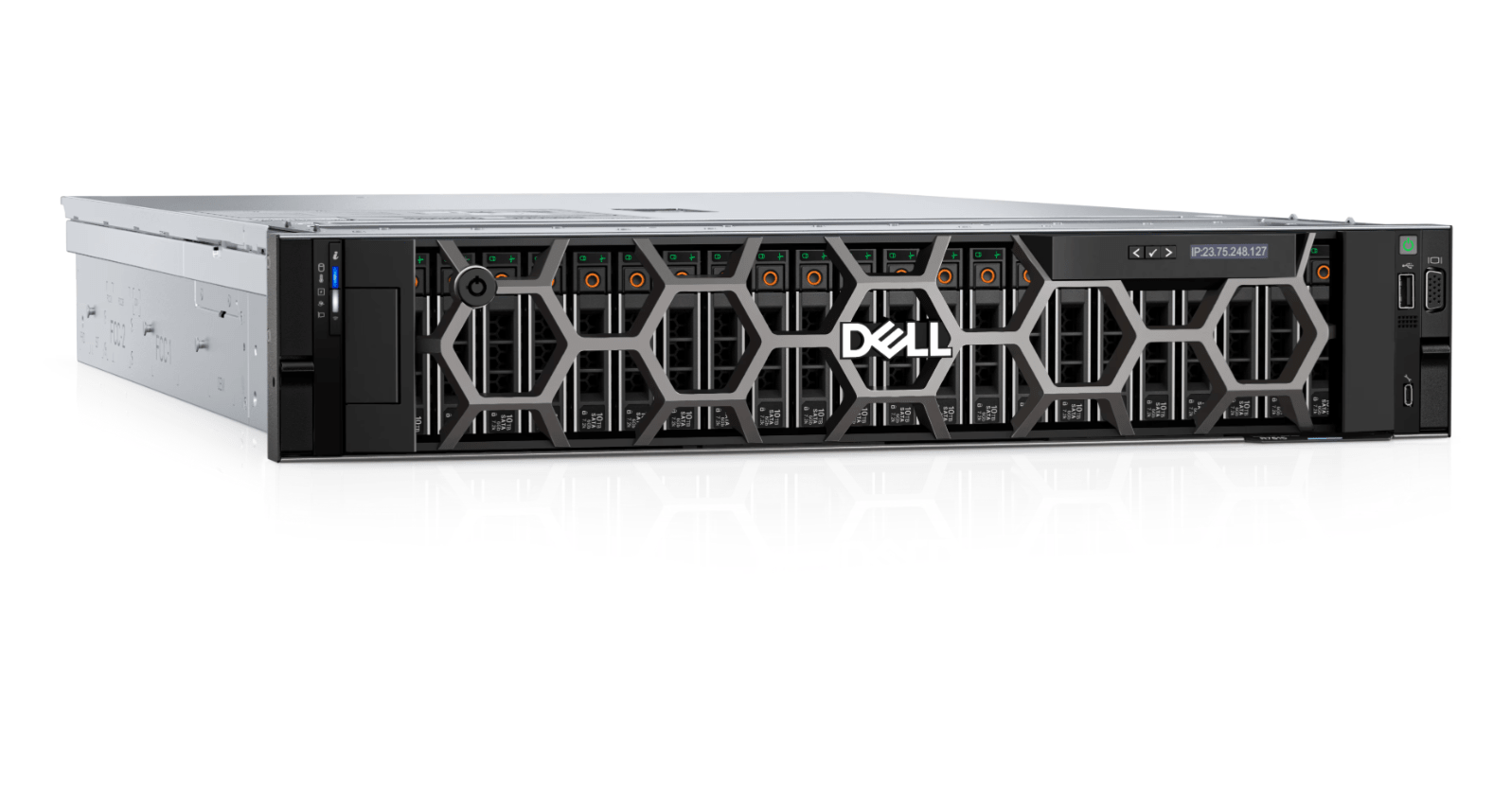

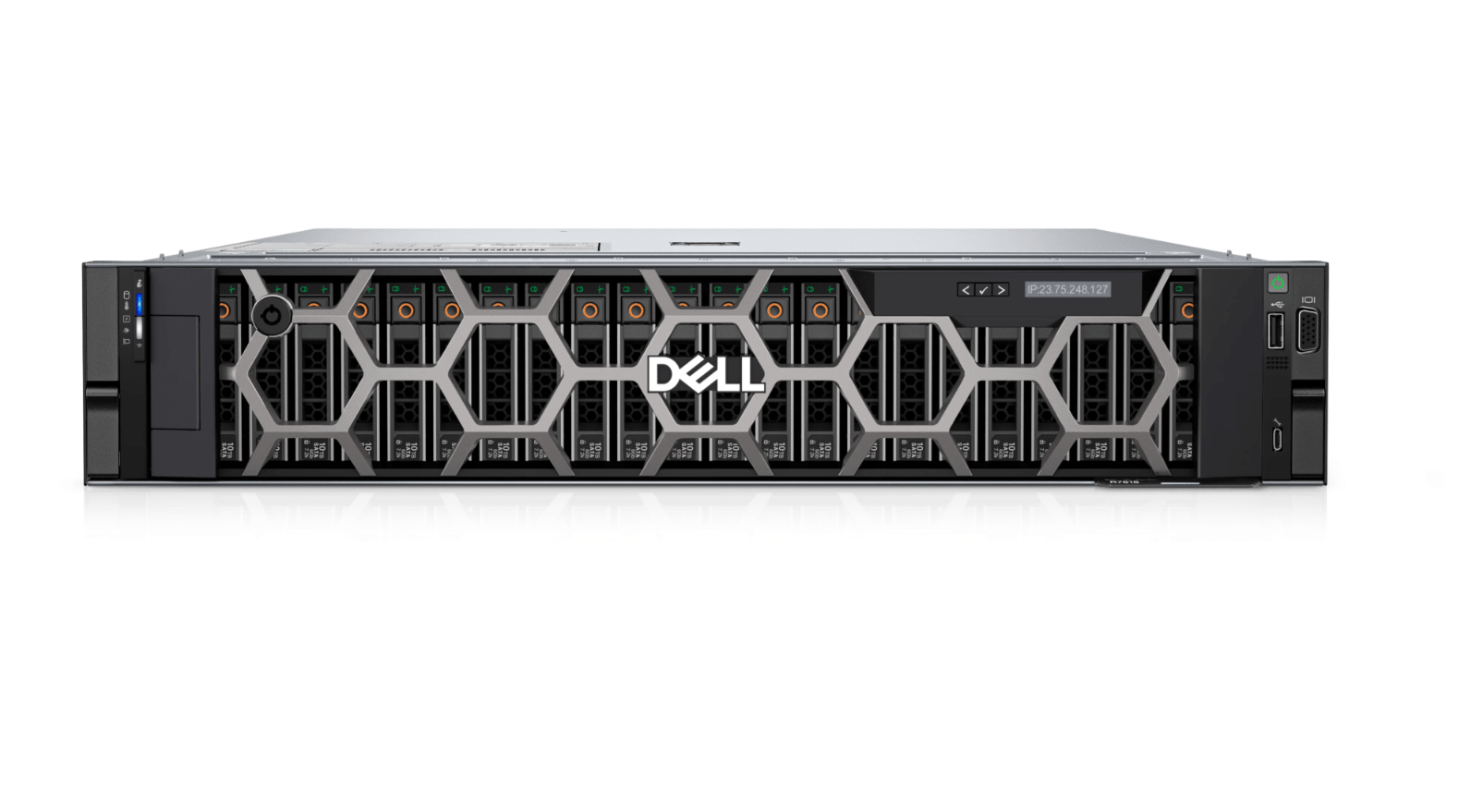

Front bays take up to 24 x 2.5-inch SAS/SATA/NVMe drives, 12 x 3.5-inch SAS/SATA drives or up to 32 x EDSFF E3.S Gen5 NVMe drives, with optional rear bays on top. Up to eight PCIe slots (Gen5 and Gen4), an optional OCP 3.0 network card and support for up to two 300 W double-width GPUs make it a fit for virtualisation, databases, analytics and AI workloads.

Managed and Secured by iDRAC9

Every R7625 ships with Dell's iDRAC9 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by AMD Secure Encrypted Virtualization (SEV), a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, System Lockdown and TPM 2.0.

Dell PowerEdge R7625 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R7625 Rack Server
Generation	Dell PowerEdge 16th Generation (AMD)
Form Factor	2U rack server
Order Type	Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processors	Up to two 4th Gen AMD EPYC 9004 Series processors, up to 128 cores each
Memory Slots	24 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only
Maximum Memory	6 TB
Memory Speed	Up to 4800 MT/s

Storage

Front Drive Bays	Up to 8 or 12 x 3.5" SAS/SATA (max 240 TB); up to 8, 16 or 24 x 2.5" SAS/SATA/NVMe (max 368.64 TB); or up to 8, 16 or 32 x EDSFF E3.S Gen5 NVMe (max 245.76 TB)
Rear Drive Bays	Up to 2 or 4 x 2.5" SAS/SATA/NVMe (max 61.44 TB) or up to 4 x EDSFF E3.S Gen5 NVMe (max 30.72 TB)
Internal RAID Controllers	PERC H965i, PERC H755, PERC H755N, PERC H355
HBA Options	HBA355i (internal), HBA355e (external)
Software RAID	S160
Boot	BOSS-N1 with 2 x M.2 NVMe (hardware RAID), or USB

Expansion & Networking

PCIe Slots	Up to eight PCIe slots (Gen5 and Gen4, depending on riser configuration)
GPU Support	Up to 2 x 300 W double-width or 6 x 75 W single-width GPUs
Embedded NIC	2 x 1GbE LOM card (optional)
Network Options	1 x OCP 3.0 card (optional)
Front Ports	1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA

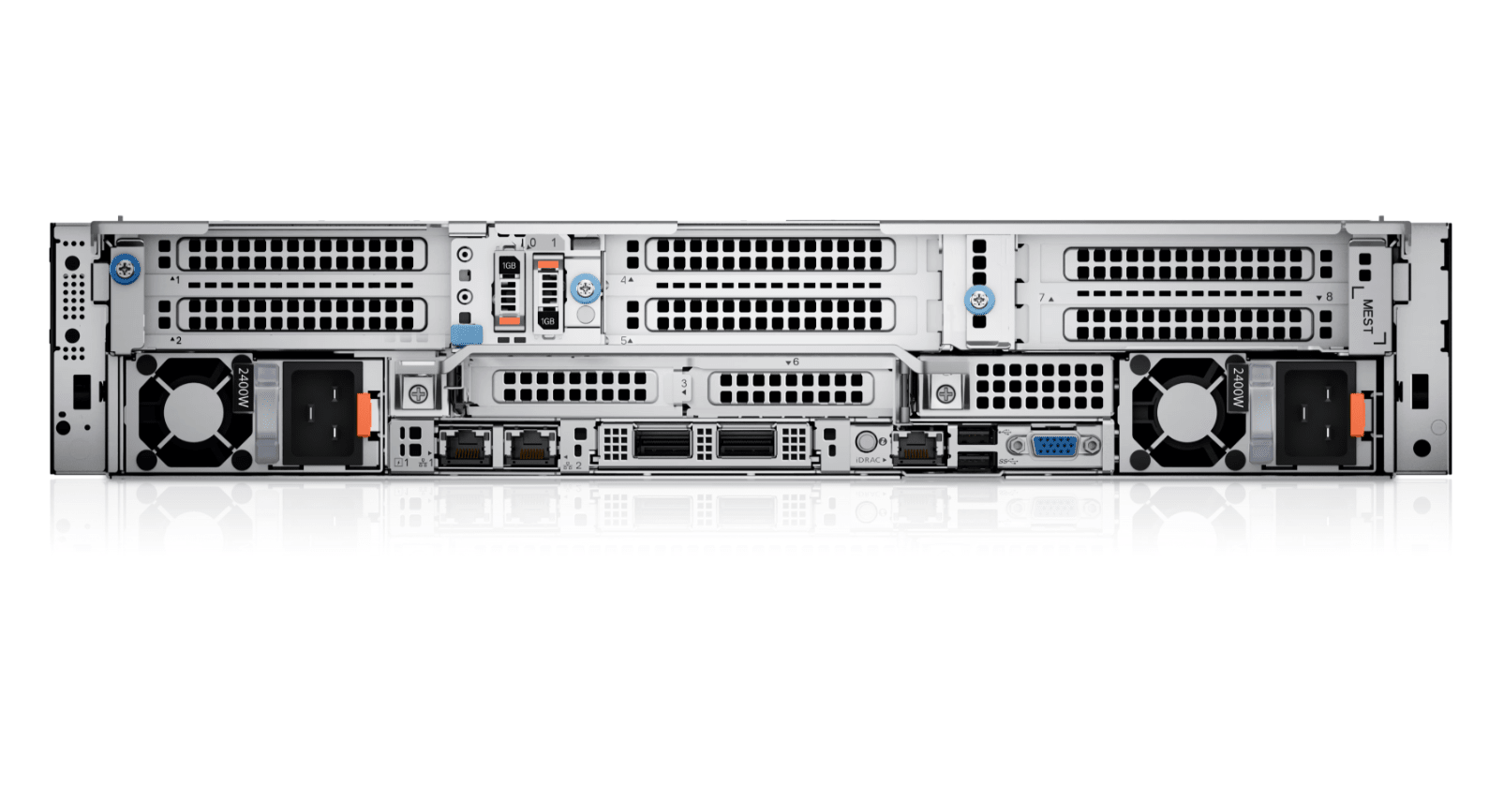

Rear Ports	1 x dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x serial (optional), 1 x VGA (optional on Direct Liquid Cooling configurations)
Internal Port	1 x USB 3.0 (optional)

Management & Security

Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
OpenManage	OpenManage Enterprise, CloudIQ, Power Manager, Service and Update Manager plug-ins; integrations for VMware vCenter, Microsoft System Center and Windows Admin Center
Security	AMD Secure Encrypted Virtualization (SEV), AMD Secure Memory Encryption (SME), Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification, System Lockdown, Data at Rest Encryption, TPM 2.0 (FIPS, CC-TCG certified)
Bezel	Optional LCD bezel or security bezel

Power, Cooling & Physical

Power Supplies	Hot-swap redundant PSUs, options from 800 W Platinum up to 3200 W Titanium (277 VAC / 336 VDC), including 1100 W -48 to -60 VDC
Cooling	Air cooling; optional Direct Liquid Cooling
Fans	Up to 6 hot-plug fans (High Performance Silver or High Performance Gold)
Dimensions (H x W x D)	86.8 x 482 x 772.13 mm (with bezel)

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and plug-ins bring the R7625 into VMware vCenter, Microsoft System Center and Windows Admin Center.

Typical Workloads

Server virtualisation and consolidation, VDI, SQL and in-memory databases, data analytics, software-defined storage and GPU-accelerated AI inference.

Package Contents & Dell PowerEdge 16th Generation Ordering Information

What Is Supplied

The R7625 is built to order: chassis with the processors, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 16th Generation

Model	Key feature
PowerEdge R360	1U, 1-socket Intel Xeon E-2400
PowerEdge R660xs	1U, 2-socket Intel Xeon, cost-optimised
PowerEdge R660	1U, 2-socket Intel Xeon, high density
PowerEdge R760xs	2U, 2-socket Intel Xeon, cost-optimised
PowerEdge R760	2U, 2-socket Intel Xeon, up to 8 TB memory
PowerEdge R6615	1U, 1-socket AMD EPYC 9004
PowerEdge R6625	1U, 2-socket AMD EPYC 9004
PowerEdge R7615	2U, 1-socket AMD EPYC 9004
PowerEdge R7625 (this listing)	2U, 2-socket AMD EPYC 9004
PowerEdge T360	Tower, 1-socket Intel Xeon E-2400
PowerEdge T560	Tower, 2-socket Intel Xeon

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R7625 Spec Sheet (PDF)
Technical guide	Dell PowerEdge R7625 Technical Guide (PDF)
Manuals & drivers	PowerEdge R7625 manuals and documents on Dell Support
Dell product page	PowerEdge R7625 on dell.com

Frequently Asked Questions — Dell PowerEdge R7625

Is this a fixed configuration?

No. The R7625 is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much memory can it take?

24 DDR5 RDIMM slots for up to 6 TB, running at up to 4800 MT/s.

Does it support NVMe and GPUs?

Yes. It supports up to 24 x 2.5-inch NVMe-capable bays or 32 x E3.S Gen5 NVMe drives at the front, and up to two 300 W double-width or six 75 W single-width GPUs.

Can it be liquid cooled?

Yes. Direct Liquid Cooling is optional alongside standard air cooling.

R7625 or R760?

Both are 2U dual-socket servers. The R7625 uses AMD EPYC 9004 processors with up to 128 cores each and 24 DIMM slots; the R760 uses Intel Xeon Scalable processors with 32 DIMM slots. The choice usually follows core-count needs, software licensing and existing platform standards.
