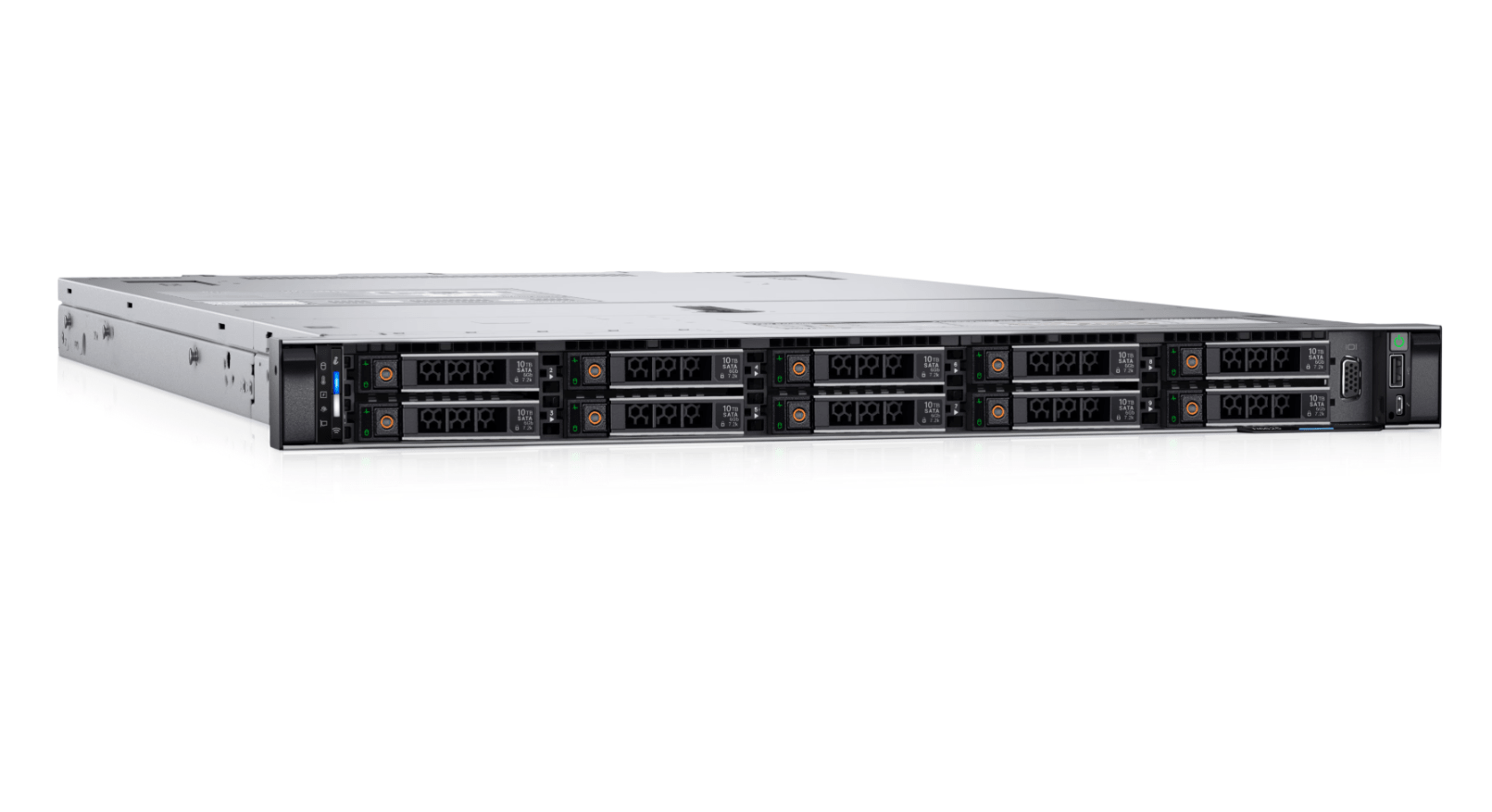

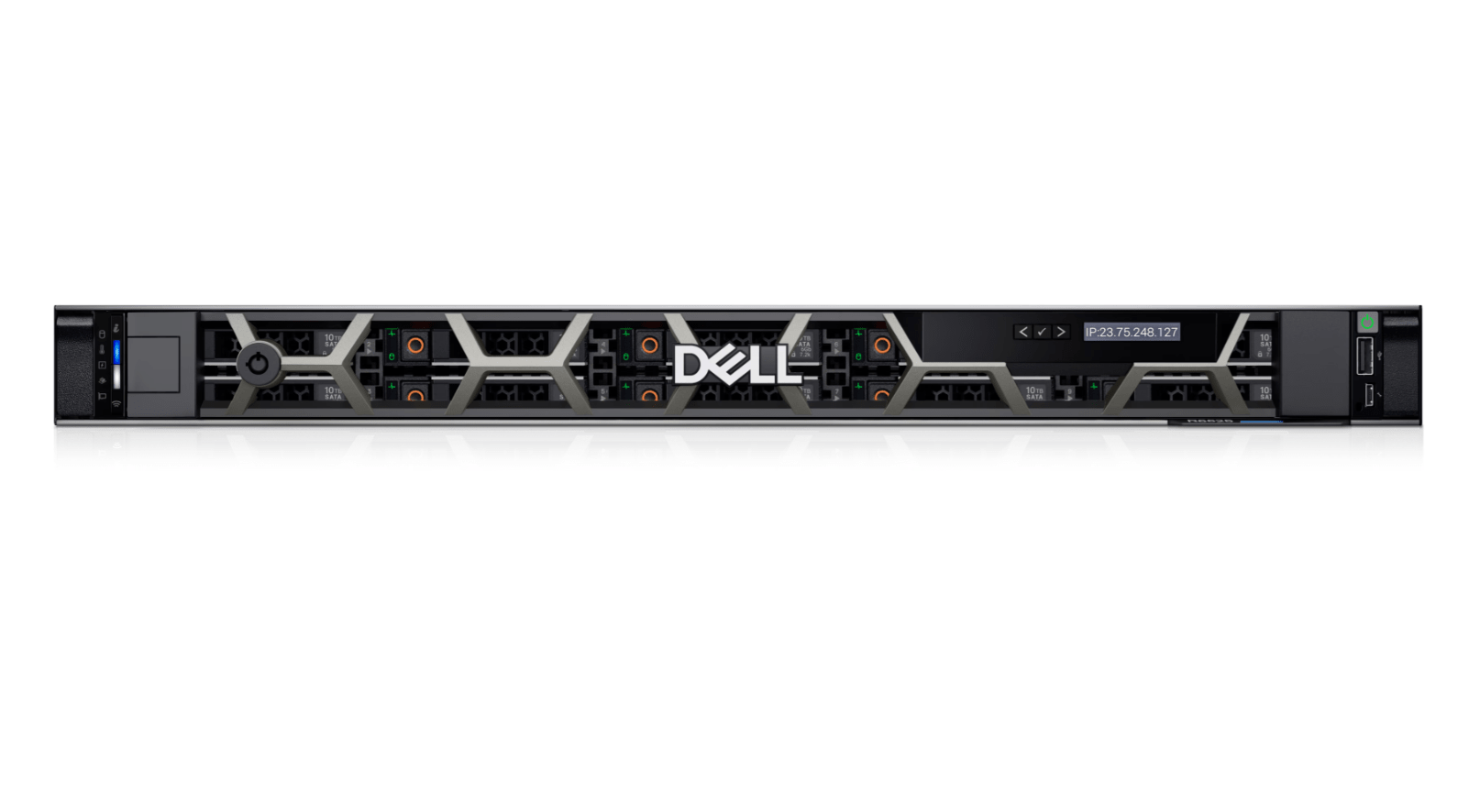

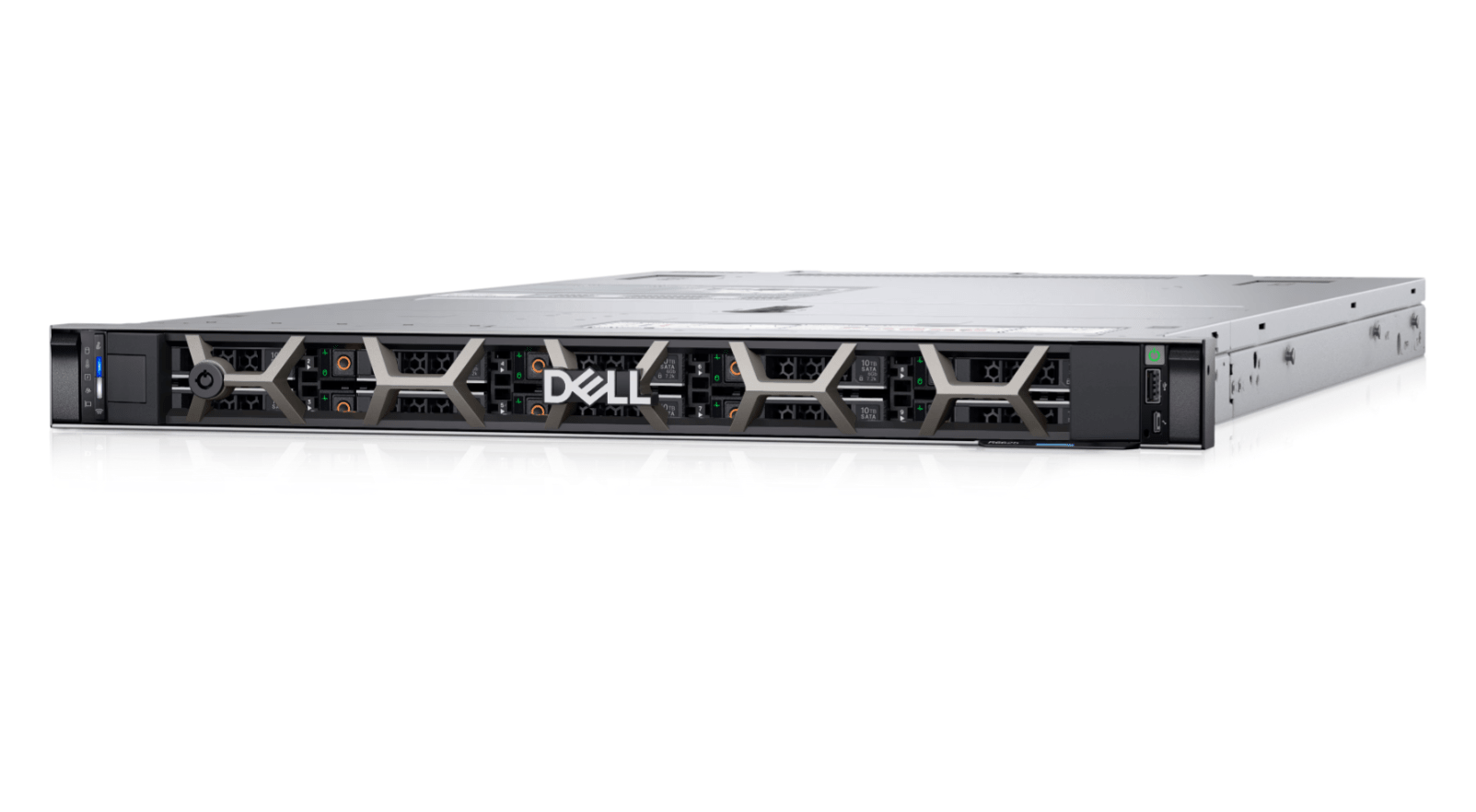

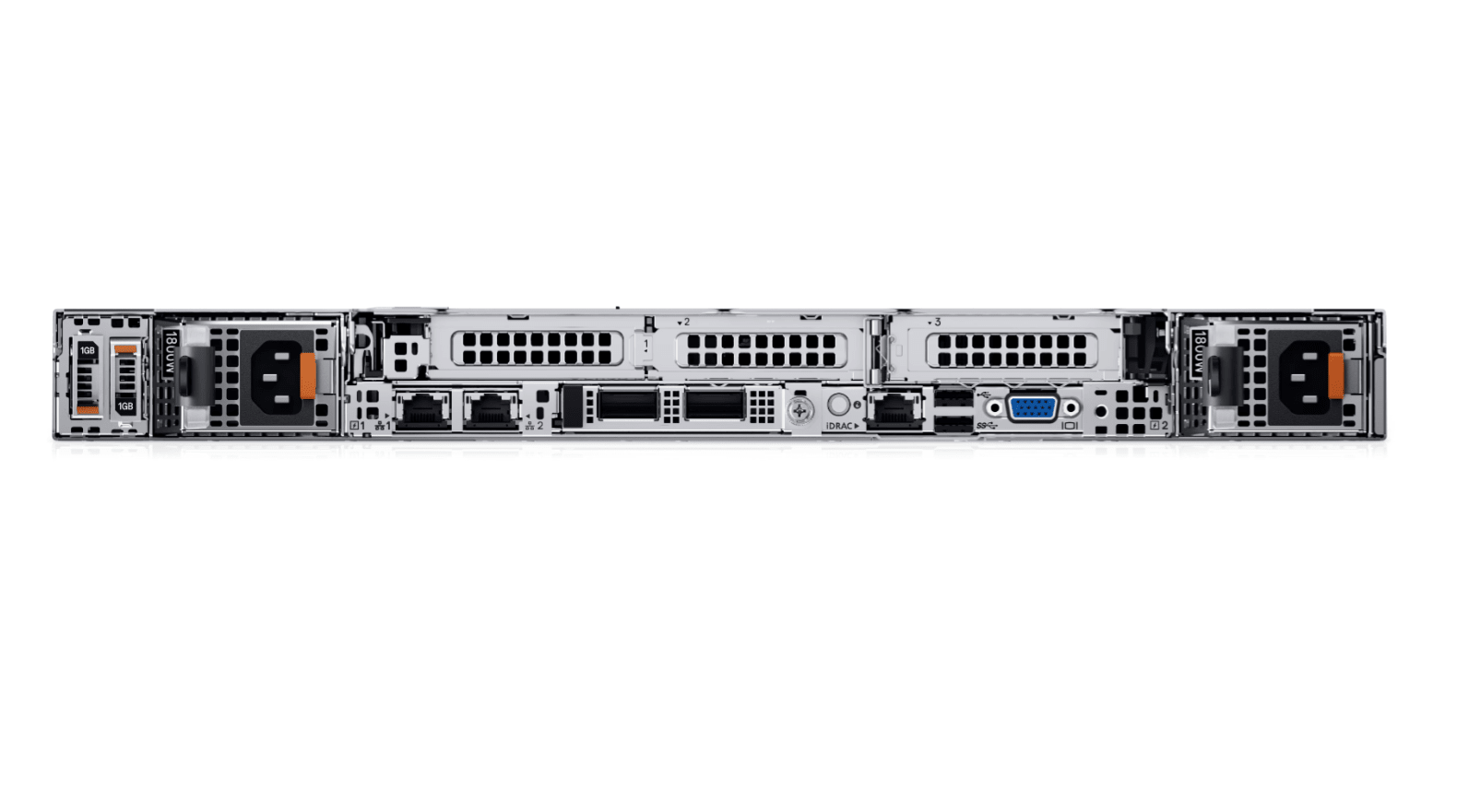

Dell PowerEdge R6625 Rack Server

Dell PowerEdge R6625 Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

High-Density Enterprise Rack Server for Modern Data Centers

Dell Technologies PowerEdge R6625 Rack Server is a high-performance enterprise server platform designed for virtualization, cloud computing, software-defined infrastructure, databases, analytics, and mission-critical business applications. Powered by AMD EPYC processors, the PowerEdge R6625 delivers exceptional compute performance, scalability, and efficiency for demanding enterprise workloads.

Optimized for Virtualization, Cloud and Enterprise Applications

The Dell PowerEdge R6625 supports a wide range of workloads including virtualization clusters, private cloud infrastructure, ERP systems, database platforms, analytics environments, and software-defined storage deployments. Its architecture enables organizations to maximize performance while maintaining operational efficiency and workload consolidation.

Flexible Configure-To-Order Infrastructure Platform

As an Advance CTO (Configure-To-Order) solution, the Dell PowerEdge R6625 Rack Server supports customizable processor, memory, storage, networking, and expansion configurations. Organizations can tailor infrastructure according to business requirements, workload demands, and future scalability objectives.

Built for Enterprise and Mission-Critical Deployments

Designed for enterprises, government agencies, educational institutions, cloud providers, and service providers, the PowerEdge R6625 delivers reliable infrastructure for modern data center operations. Its rack-mounted design supports efficient deployment, centralized management, and enterprise-grade reliability.

Technical Specifications

General
Model: PowerEdge R6625
Product Name: Dell PowerEdge R6625 Rack Server
Manufacturer: Dell Technologies
Server Type: Enterprise Rack Server
Form Factor: 1U Rack Server
Deployment: Virtualization, HPC, cloud infrastructure, analytics, software-defined storage, enterprise applications
Configuration Type: Advanced CTO (Configure-To-Order)
Processor Platform: AMD EPYC™ 9004 Series Processors
Architecture: Dual-Socket Enterprise Compute Platform
Target Workloads: Virtualization, databases, cloud computing, VDI, HPC, AI inferencing, analytics

Processor Specifications
Processor Support: Up to 2 x AMD EPYC™ 9004 Series Processors
Maximum CPU Cores: Up to 128 Cores per Processor
Maximum Total Cores: Up to 256 Cores
Processor Socket: SP5
Processor Architecture: AMD EPYC Genoa / Bergamo
Maximum Processor TDP: Up to 400W per CPU
Performance Optimization: High Core Density Dual-Socket Architecture

Memory Specifications
Memory Technology: DDR5 ECC RDIMM
DIMM Slots: Up to 24 DIMM Slots
Maximum Memory Capacity: Up to 6TB
Memory Speed: Up to 4800 MT/s
Memory Protection: ECC Supported

Storage Specifications
Storage Architecture: Flexible CTO Configuration

Supported Storage Types:
• NVMe SSD
• SAS SSD
• SATA SSD
• HDD

Drive Bay Options:
• Up to 10 x 2.5-inch NVMe/SAS/SATA drives
• EDSFF storage configurations supported

Hot Swap Drives: Supported
RAID Support: Supported
Storage Controller Options: Dell PERC RAID Controllers

Expansion & PCIe
PCIe Generation: PCIe Gen5
Expansion Slots: Multiple PCIe Gen5 Expansion Slots
OCP Support: OCP NIC 3.0 Supported
Networking Expansion: Supported
Storage Expansion: Supported
GPU Support: Selected single-width GPU and accelerator support

Networking
Network Interface: CTO Dependent

Supported Networking Options:
• 1GbE Ethernet
• 10GbE Ethernet
• 25GbE Ethernet
• 100GbE Ethernet
• OCP 3.0 Network Adapters

Remote Management: Dell iDRAC9 Enterprise
Out-of-Band Management: Supported

Power Specifications
Power Supply Type: Dual Hot Plug Redundant Power Supplies
Power Redundancy: Supported
Power Efficiency: 80 PLUS Platinum / Titanium Supported

Cooling & Thermal Design
Cooling Type: Enterprise High Efficiency Cooling
Optimized Airflow Design: Supported
Thermal Monitoring: Supported
Redundant Fans: Supported

Management & Security
Management Platform: Dell OpenManage with iDRAC9
Remote Monitoring: Supported
Firmware Updates: Supported
Server Health Monitoring: Supported
Secure Boot: Supported
TPM 2.0 Security: Supported
Silicon Root of Trust: Supported
System Lockdown: Supported

Virtualization Support
Supported Hypervisors:
• VMware vSphere
• Microsoft Hyper-V
• Linux KVM
• Red Hat Virtualization

Cloud Deployment: Supported
Container Platforms: Kubernetes Ready

Operating System Compatibility
Supported Operating Systems:
• Microsoft Windows Server
• Ubuntu Server
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Design & Construction
Form Factor: 1U Rack Mount
Rack Compatibility: Standard Enterprise Rack
Deployment Environment: Data Center / Enterprise IT / Cloud Infrastructure
Construction: Enterprise Grade Rack Chassis

Performance & Features
Dual-socket AMD EPYC platform with exceptional compute density
Supports up to 256 processing cores
DDR5 high-speed memory architecture
PCIe Gen5 expansion capability
Flexible NVMe storage deployment
Optimized for virtualization and cloud workloads
Enterprise lifecycle management platform
Designed for high-performance enterprise computing

Package Contents
Dell PowerEdge R6625 Rack Server Chassis
Power Supply Units (configuration dependent)
Rail Kit (optional)
Documentation
CTO Components according to final build

Key Features
1U enterprise rack server
Dual AMD EPYC 9004 processor support
Up to 256 CPU cores
DDR5 ECC memory support
PCIe Gen5 architecture
Flexible NVMe storage deployment
Dell iDRAC9 remote management
Advanced CTO configurable platform

Typical Use Cases
Enterprise virtualization
High-performance computing (HPC)
Cloud infrastructure deployment
Database hosting
Analytics workloads
Software-defined storage
Virtual desktop infrastructure (VDI)
Private cloud environments
Enterprise application hosting

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
