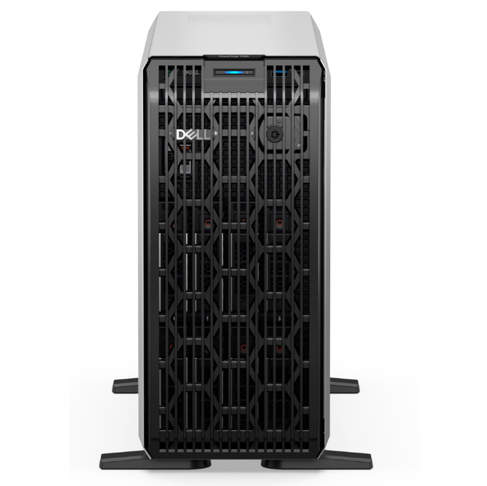

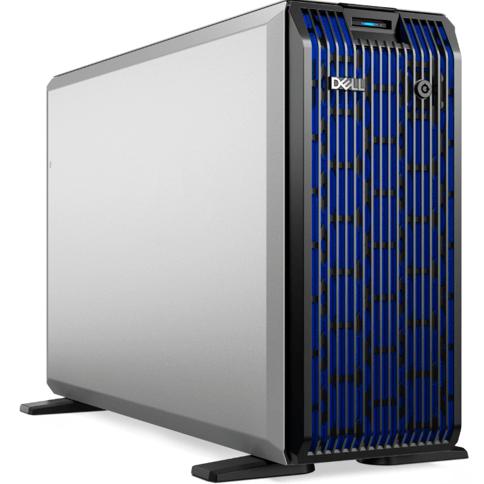

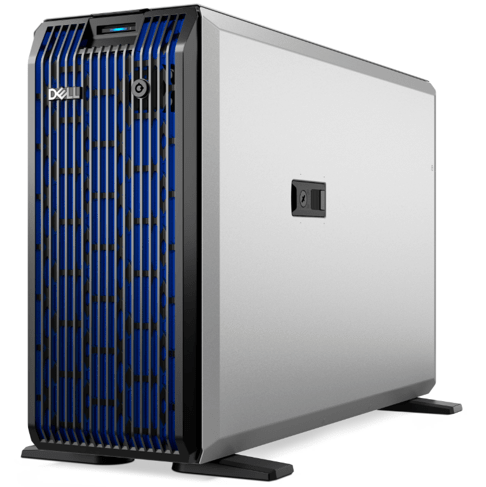

Dell PowerEdge T360 Tower Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge T360 Tower Server (Configure-to-Order) - Local Warranty
Single-Socket Tower Server for the Office
The Dell PowerEdge T360 is Dell's 16th-generation 4.5U tower server for small and mid-sized organisations. It takes one Intel Xeon 6300 series or Intel Xeon E-2400 series processor with up to 8 cores (or an Intel Pentium G7400/G7400T), with four DDR5 ECC UDIMM slots for up to 128 GB of memory at up to 4400 MT/s.
Room for Eight 3.5-inch Drives
Up to 8 x 3.5-inch SAS/SATA drives (max 128 TB) with PERC H355/H755 hardware RAID, an optional BOSS-N1 boot module, up to four PCIe slots including a Gen5 x16, two embedded 1GbE ports and support for a 60 W single-width GPU. It suits file servers, small databases, collaboration and branch-office workloads.
Managed and Secured by iDRAC9
Every T360 ships with Dell's iDRAC9 controller for remote monitoring, alerting and firmware updates, plus OpenManage integration, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot and TPM 2.0.
Dell PowerEdge T360 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge T360 Tower Server |
| Generation | Dell PowerEdge 16th Generation (Intel) |
| Form Factor | 4.5U tower server |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processor | One Intel Xeon 6300 series or Intel Xeon E-2400 series processor, up to 8 cores; or one Intel Pentium G7400/G7400T processor, 2 cores |
| Memory Slots | 4 DDR5 DIMM slots, ECC UDIMMs, up to 32 GB per DIMM |
| Maximum Memory | 128 GB |
| Memory Speed | Up to 4400 MT/s |
Storage
| Drive Bays | Up to 4 x 3.5" SATA HDD/SSD (max 64 TB); up to 8 x 3.5" SAS/SATA HDD/SSD (max 128 TB); or up to 8 x 2.5" drives with adapters (max 61.44 TB) |
| Internal Controllers | PERC H755, PERC H355, HBA355i |
| External Controller | HBA355e |
| Software RAID | S160 |
| Boot | BOSS-N1 with M.2 NVMe SSDs (hardware RAID) |
Expansion & Networking
| PCIe Slots | Up to four: 1 x8 Gen4, 1 x16 Gen5, 1 x1 Gen4, 1 x8 Gen4 |
| GPU Support | 1 x 60 W single-width GPU (e.g. NVIDIA A2) |
| Embedded NIC | 2 x 1GbE LOM |
| Front Ports | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 3.2 Gen1 |

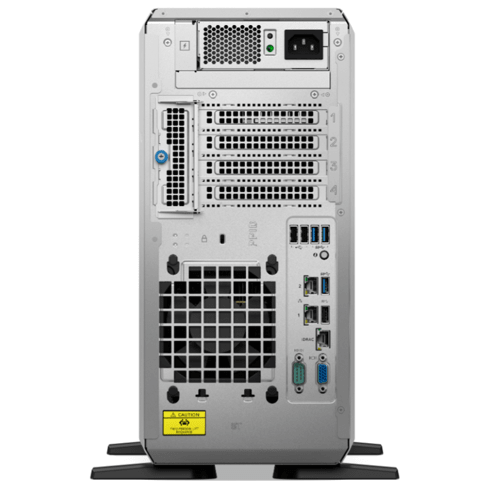

| Rear Ports | 1 x dedicated iDRAC Ethernet, 3 x USB 2.0, 3 x USB 3.2 Gen1, 1 x VGA, 1 x serial, 2 x Ethernet |
| Internal Port | 1 x USB 3.2 Gen1 |
Management & Security
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish |
| OpenManage | OpenManage Enterprise, CloudIQ, Power Manager and Update Manager plug-ins; integrations for VMware vCenter, Microsoft System Center and Windows Admin Center |
| Security | Silicon Root of Trust, cryptographically signed firmware, Secure Boot, hardware integrity check, Data at Rest Encryption, TPM 2.0 (FIPS) |
| Bezel | Security bezel or filter bezel options |
Power, Cooling & Physical
| Power Supplies | 450 W Platinum (100-240 VAC, cabled); 600 W Platinum or 700 W Titanium (hot-swap redundant options) |
| Cooling | Air cooling: one standard fan plus one optional high-performance fan |
| Dimensions (H x W x D) | 382.5 x 175 x 579.72 mm |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and plug-ins bring the T360 into VMware vCenter, Microsoft System Center and Windows Admin Center.
Typical Workloads
Office file and print servers, small databases, collaboration and email, light virtualisation and branch-office servers in sites without a rack.
Package Contents & Dell PowerEdge 16th Generation Ordering Information
What Is Supplied
The T360 is built to order: tower chassis with the processor, memory, drives, RAID controller, network options and power supplies specified on your quotation, plus bezel and power cords where ordered.
Dell PowerEdge 16th Generation
| Model | Key feature |
| PowerEdge R360 | 1U, 1-socket Intel Xeon E-2400 |
| PowerEdge R660xs | 1U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R660 | 1U, 2-socket Intel Xeon, high density |
| PowerEdge R760xs | 2U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R760 | 2U, 2-socket Intel Xeon, up to 8 TB memory |
| PowerEdge R6615 | 1U, 1-socket AMD EPYC 9004 |
| PowerEdge R6625 | 1U, 2-socket AMD EPYC 9004 |
| PowerEdge R7615 | 2U, 1-socket AMD EPYC 9004 |
| PowerEdge R7625 | 2U, 2-socket AMD EPYC 9004 |
| PowerEdge T360 (this listing) | Tower, 1-socket Intel Xeon E-2400 |
| PowerEdge T560 | Tower, 2-socket Intel Xeon |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge T360 Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge T360 Technical Guide (PDF) |
| Manuals & drivers | PowerEdge T360 manuals and documents on Dell Support |
| Dell product page | PowerEdge T360 on dell.com |
Frequently Asked Questions — Dell PowerEdge T360
Is this a fixed configuration?
No. The T360 is configure-to-order. Processor, memory, drives, RAID controller, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much storage can it hold?
Up to 8 x 3.5-inch SAS/SATA drives for a maximum of 128 TB, or 8 x 2.5-inch drives with adapters.
How much memory can it take?
Four DDR5 ECC UDIMM slots, up to 32 GB each, for 128 GB in total at up to 4400 MT/s.
Can it have redundant power supplies?
Yes. The 600 W Platinum and 700 W Titanium options are hot-swap redundant; the 450 W Platinum supply is a single cabled unit.
T360 or R360?
Both use the same single-socket Xeon 6300 / E-2400 platform. The T360 is a tower for offices without a rack, with more drive bays and PCIe slots; the R360 is the 1U rack version.
