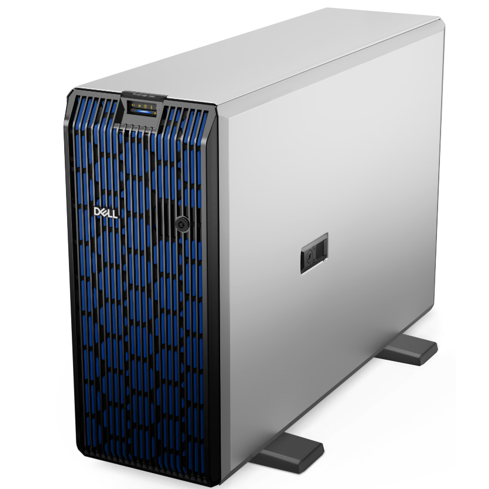

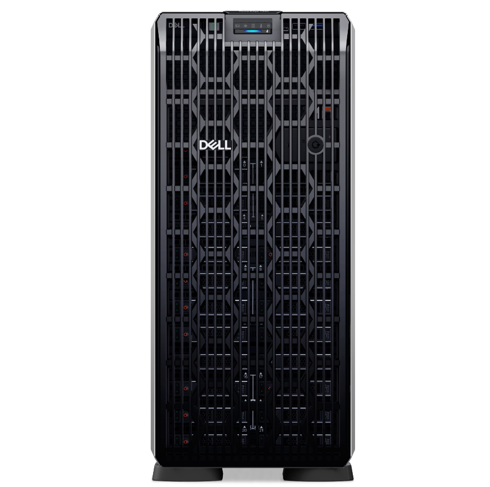

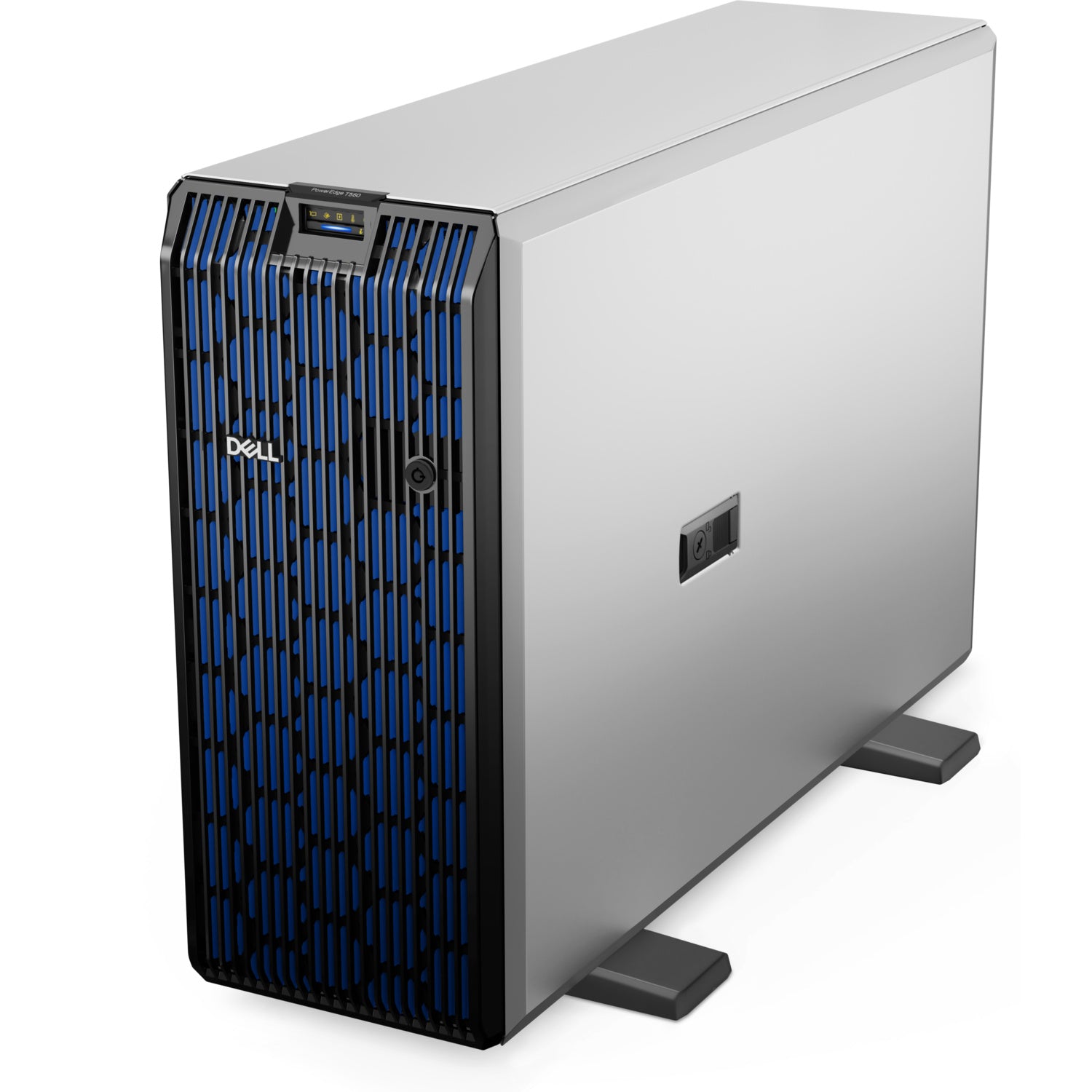

Dell PowerEdge T560 Tower Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge T560 Tower Server (Configure-to-Order) - Local Warranty
Dual-Socket Intel Xeon in a Tower

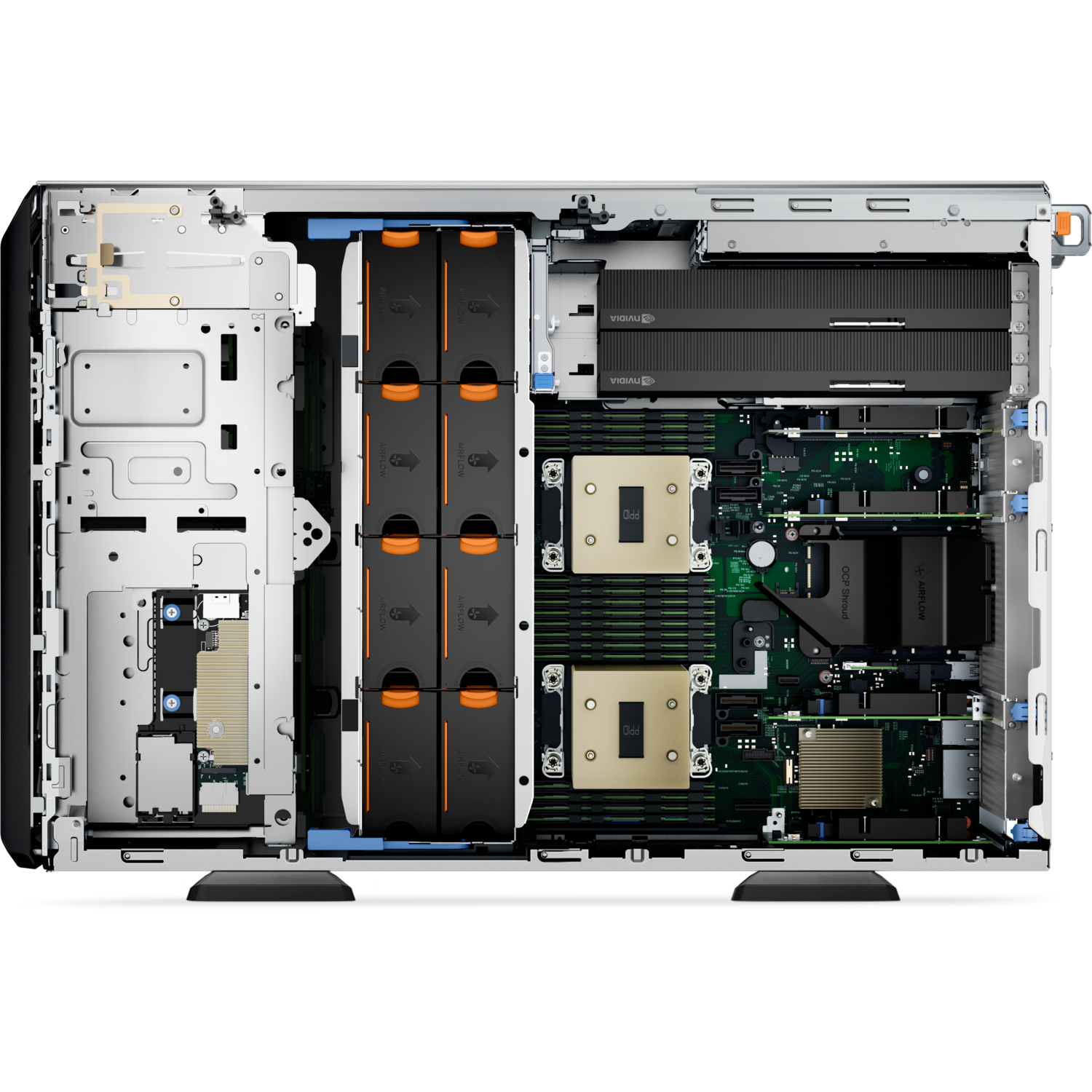

The Dell PowerEdge T560 is Dell's 16th-generation dual-socket tower server. It takes up to two 4th Gen Intel Xeon Scalable processors (up to 32 cores each) or 5th Gen Intel Xeon Scalable processors (up to 28 cores each), and 16 DDR5 RDIMM slots for up to 1.5 TB of memory at up to 5200 MT/s.
Room to Grow on Storage and Expansion

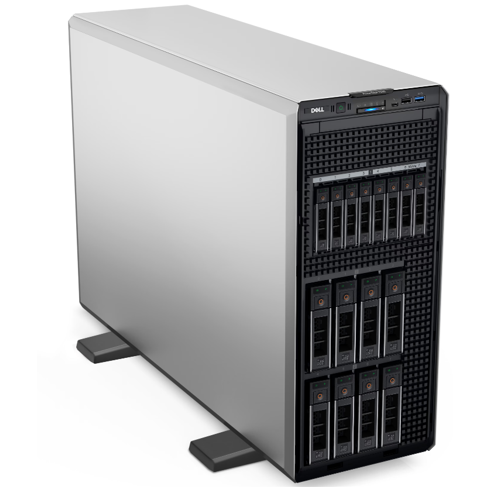

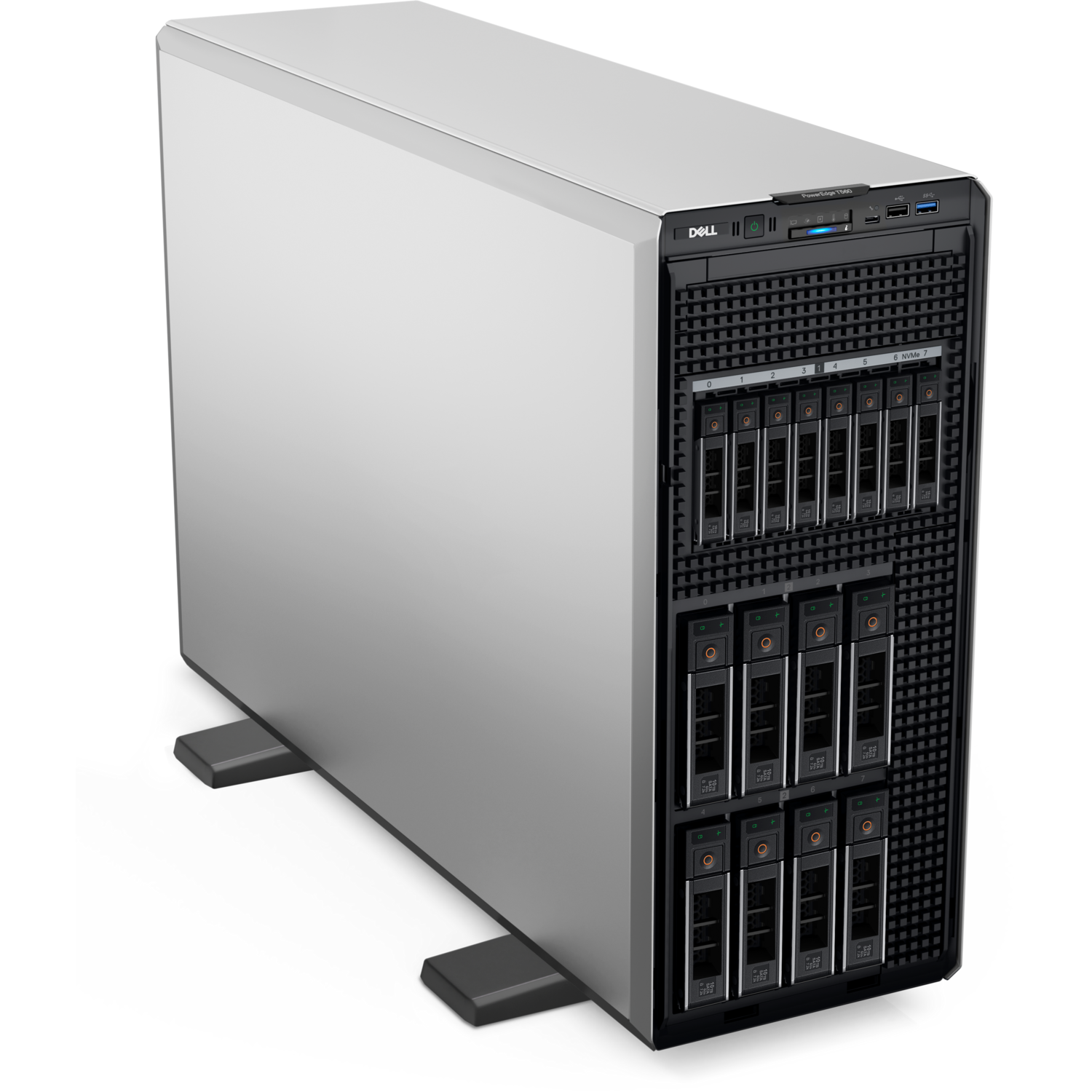

Drive bays take up to 12 x 3.5-inch or 24 x 2.5-inch SAS/SATA drives, or a mix of 8 x 3.5-inch plus 8 x 2.5-inch NVMe drives. Six PCIe slots (two Gen5 x16 full-length), an OCP 3.0 network slot and support for up to two 300 W double-width GPUs suit branch offices, file and database serving, virtualisation and AI at the edge.
Managed and Secured by iDRAC9
Every T560 ships with Dell's iDRAC9 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, System Lockdown and TPM 2.0.
Dell PowerEdge T560 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge T560 Tower Server |
| Generation | Dell PowerEdge 16th Generation (Intel) |
| Form Factor | 4.5U tower server |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processors | Up to two 4th Gen Intel Xeon Scalable processors, up to 32 cores each; or up to two 5th Gen Intel Xeon Scalable processors, up to 28 cores each |
| Memory Slots | 16 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only |
| Maximum Memory | 1.5 TB |
| Memory Speed | Up to 5200 MT/s (5th Gen Xeon); up to 4800 MT/s (4th Gen Xeon) |
Storage
| Drive Bays | Up to 8 or 12 x 3.5" SAS/SATA (max 180 TB); up to 8 x 3.5" SAS/SATA plus 8 x 2.5" NVMe (max 240 TB); or up to 8, 16 or 24 x 2.5" SAS/SATA (max 360 TB) |
| Internal RAID Controllers | fPERC H965i, fPERC H755N, fPERC H755, fPERC H355 |
| HBA Options | HBA355i, HBA465i (internal); HBA355e (external) |
| Software RAID | S160 (NVMe drives only) |
| Boot | BOSS-N1 with 2 x M.2 NVMe (hardware RAID), or USB |
Expansion & Networking
| PCIe Slots | Six slots: 2 x Gen5 x16 full-height full-length; 4 x Gen4 full-height half-length (one x16 slot wired x8) |
| GPU Support | Up to 2 x 300 W double-width or 6 x 75 W single-width GPUs |
| Embedded NIC | 2 x 1GbE LOM on the system board |
| Network Options | 1 x OCP 3.0 card (x8) |
| Front Ports | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x USB 3.0 |

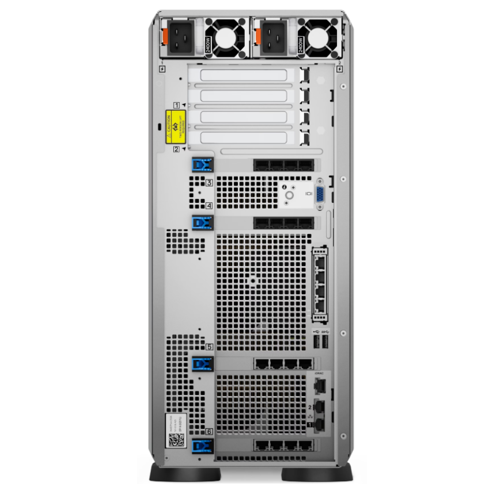

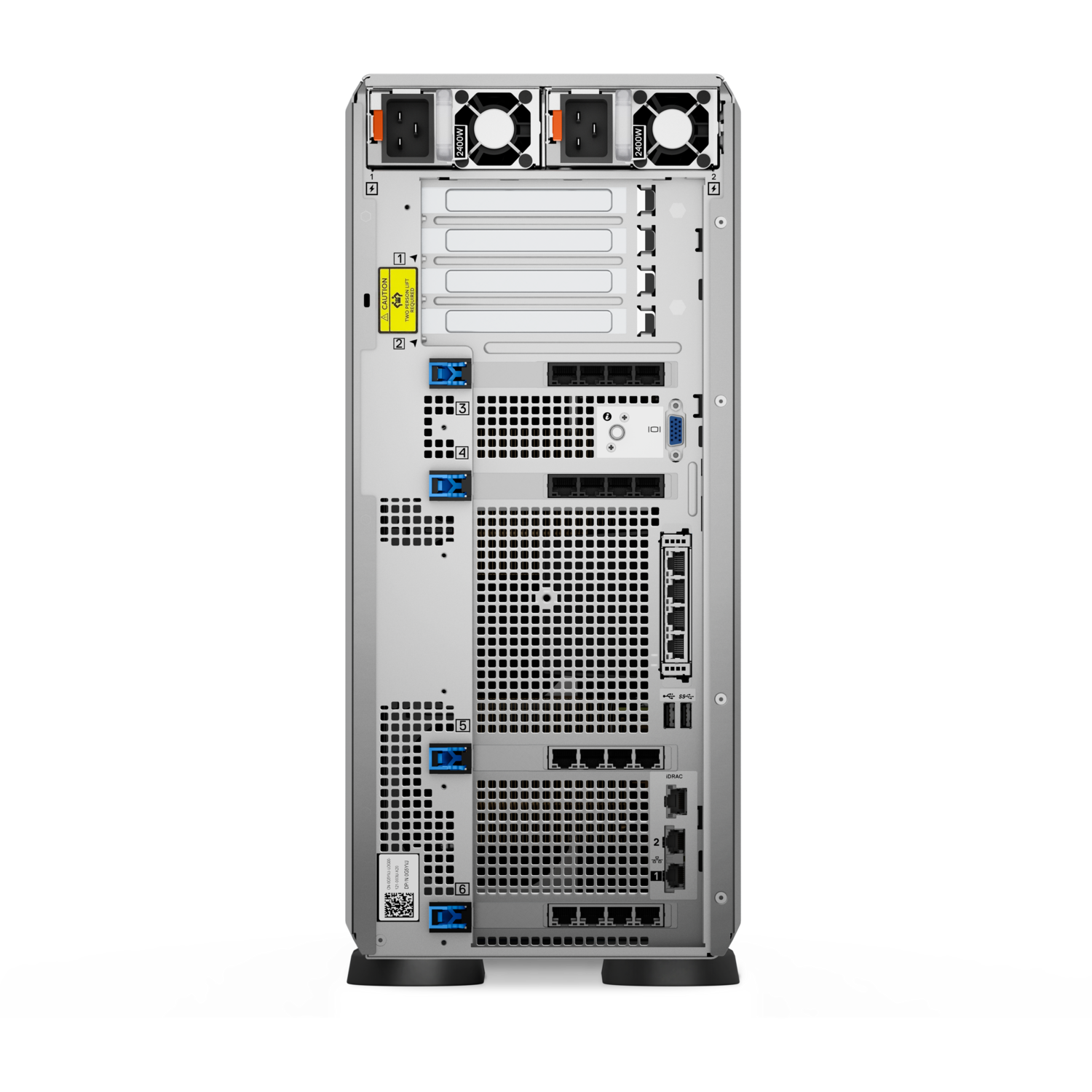

| Rear Ports | 1 x dedicated iDRAC (RJ45), 2 x Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x serial (optional) |
| Internal Port | 1 x USB 3.0 (optional) |
Management & Security
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module |
| OpenManage | OpenManage Enterprise, CloudIQ, Power Manager, Service and Update Manager plug-ins; integrations for VMware vCenter, Microsoft System Center and Windows Admin Center |
| Security | Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification, System Lockdown, Data at Rest Encryption, TPM 2.0 (FIPS, CC-TCG certified) |
| Bezel | Optional security bezel |
Power, Cooling & Physical
| Power Supplies | Hot-swap redundant PSUs, options from 600 W Platinum up to 2800 W Titanium, including 1400 W Titanium 277 VAC and 1100 W -48 to -60 VDC |
| Cooling | Air cooling |
| Fans | Up to 8 fans (Standard or High Performance) |
| Dimensions (H x W x D) | 464.0 x 200.0 x 678.2 mm (with feet and bezel); 508.8 mm high with caster wheels |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and plug-ins bring the T560 into VMware vCenter, Microsoft System Center and Windows Admin Center.
Typical Workloads
Branch-office and SMB infrastructure, file and print, SQL databases, server virtualisation, VDI and GPU-accelerated AI inference at the edge.
Package Contents & Dell PowerEdge 16th Generation Ordering Information
What Is Supplied
The T560 is built to order: tower chassis with the processors, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus bezel and power cords where ordered.
Dell PowerEdge 16th Generation
| Model | Key feature |
| PowerEdge R360 | 1U, 1-socket Intel Xeon E-2400 |
| PowerEdge R660xs | 1U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R660 | 1U, 2-socket Intel Xeon, high density |
| PowerEdge R760xs | 2U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R760 | 2U, 2-socket Intel Xeon, up to 8 TB memory |
| PowerEdge R6615 | 1U, 1-socket AMD EPYC 9004 |
| PowerEdge R6625 | 1U, 2-socket AMD EPYC 9004 |
| PowerEdge R7615 | 2U, 1-socket AMD EPYC 9004 |
| PowerEdge R7625 | 2U, 2-socket AMD EPYC 9004 |
| PowerEdge T360 | Tower, 1-socket Intel Xeon E-2400 |
| PowerEdge T560 (this listing) | Tower, 2-socket Intel Xeon |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge T560 Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge T560 Technical Guide (PDF) |
| Manuals & drivers | PowerEdge T560 manuals and documents on Dell Support |
| Dell product page | PowerEdge T560 on dell.com |
Frequently Asked Questions — Dell PowerEdge T560
Is this a fixed configuration?
No. The T560 is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
16 DDR5 RDIMM slots for up to 1.5 TB, running at up to 5200 MT/s with 5th Gen Xeon processors.
Does it support NVMe and GPUs?
Yes. It supports up to 8 x 2.5-inch NVMe drives alongside 8 x 3.5-inch bays, and up to two 300 W double-width or six 75 W single-width GPUs.
T560 or T360?
The T560 is dual-socket Xeon Scalable with 16 DIMM slots and up to 24 drives. The T360 is the single-socket Intel Xeon E-2400 tower for smaller offices and lighter workloads.
