Dell PowerEdge R7615 Rack Server

Dell PowerEdge R760XS Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

Cost-Optimized Enterprise Rack Server for Virtualization and Business Applications

Dell Technologies PowerEdge R760xs Rack Server is a versatile enterprise server designed to deliver an optimal balance of performance, scalability, and cost efficiency. Built for virtualization, software-defined storage, cloud infrastructure, database applications, and business-critical workloads, the PowerEdge R760xs provides organizations with a reliable platform for modern IT environments.

Designed for Growing Business and Data Center Workloads

The Dell PowerEdge R760xs is engineered to support a wide range of enterprise applications, including virtualization clusters, private cloud deployments, collaboration platforms, databases, and business productivity systems. Its balanced architecture helps organizations maximize infrastructure performance while maintaining cost-effective operations.

Powered by Intel Xeon Scalable Processors

Leveraging Intel Xeon Scalable processor technology, the PowerEdge R760xs delivers strong compute performance, memory capacity, and workload flexibility. Organizations can efficiently consolidate workloads and support expanding IT requirements without compromising reliability or scalability.

Flexible Configuration and Future-Ready Scalability

The server supports configurable processor, memory, storage, and networking options, allowing businesses to tailor the platform according to specific workload requirements. This flexibility enables organizations to scale infrastructure as business needs evolve while protecting long-term IT investments.

Enterprise Security and Simplified Management

Dell PowerEdge servers incorporate advanced security technologies and intelligent management capabilities that simplify deployment, monitoring, maintenance, and lifecycle management. These features help reduce operational complexity while improving infrastructure reliability and availability.

Technical Specifications

General
Model: PowerEdge R760xs
Part Number: Advance CTO (Configure-To-Order)
Product Name: Dell PowerEdge R760xs Rack Server
Manufacturer: Dell Technologies
Product Type: Enterprise Rack Server
Server Form Factor: 2U Rack Server
Processor Platform: 4th Generation and 5th Generation Intel Xeon Scalable Processors
Deployment: Virtualization, Software-Defined Storage, Enterprise Applications, Cloud Infrastructure, Business-Critical Workloads
Management: Integrated Dell Remote Access Controller (iDRAC9)
Warranty: Manufacturer Warranty Varies by Configuration
Availability: Configure-To-Order (CTO) – Please Enquire for Further Information

Processor Specifications
Processor Family: Intel Xeon Scalable Processors
Supported Processors: 4th Gen and 5th Gen Intel Xeon Scalable CPUs
Processor Sockets: Up to 2 Processors
Maximum Cores: Up to 64 Cores per Processor
Maximum Total Cores: Up to 128 Cores per Server
Processor Architecture: 64-Bit x86 Architecture
Intel Hyper-Threading Technology: Supported
Intel Virtualization Technology (VT-x): Supported
Intel VT-d: Supported

Memory Specifications
Memory Type: DDR5 RDIMM
DIMM Slots: Up to 16 DDR5 DIMM Slots
Maximum Memory Capacity: Up to 1 TB DDR5 Memory
Memory Speed: Up to 5600 MT/s (Configuration Dependent)
ECC Memory Support: Supported
Registered DIMM Support: Supported

Storage Specifications
Drive Bay Options: Multiple Configuration Options Available
Drive Types Supported:
• NVMe SSD
• SAS SSD
• SATA SSD
• SAS HDD
• SATA HDD

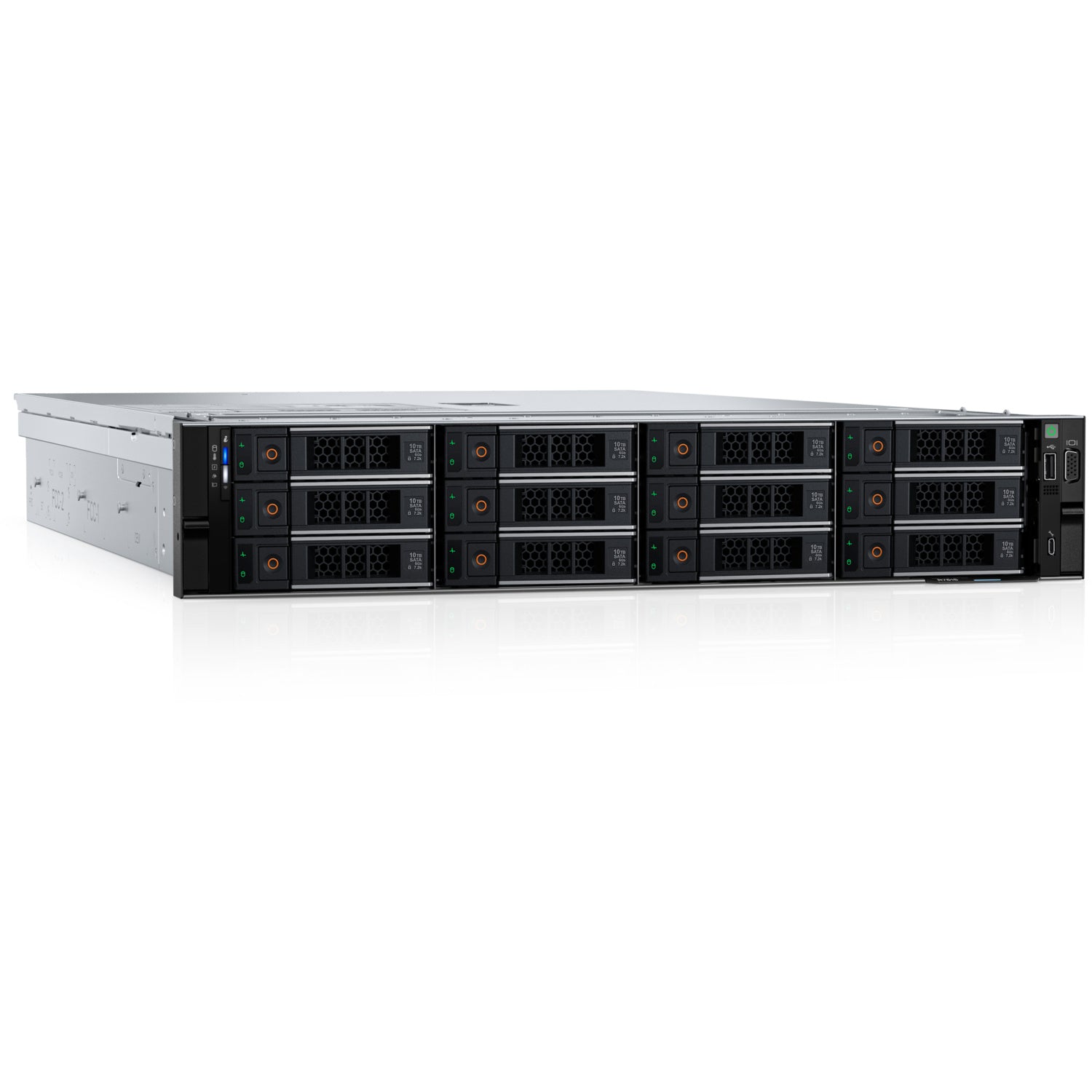

Maximum Front Drive Support: Up to 12 x 3.5-inch Drives
Alternative Configuration: Up to 16 x 2.5-inch Drives
Hot-Plug Drive Support: Supported
RAID Support: Supported via Dell PERC RAID Controllers
Boot Optimized Storage Solution (BOSS): Supported

Expansion Slots
PCIe Generation: PCIe Gen5
Expansion Slots: Up to 6 PCIe Gen5 Slots
OCP Support: OCP 3.0 Network Adapter Support
GPU Support: Entry-Level GPU Support Available in Selected Configurations

Networking
Embedded Networking: OCP 3.0 Compatible
Ethernet Support:
• 1GbE
• 10GbE
• 25GbE
• 100GbE (Configuration Dependent)

Network Adapter Options: Multiple Dell Qualified Network Adapters Available
Remote Management Port: Dedicated iDRAC Management Port

Management & Security
System Management: Dell OpenManage Enterprise
Remote Management Controller: iDRAC9
Lifecycle Controller: Supported
Secure Boot: Supported
TPM 2.0: Supported
System Lockdown: Supported
Silicon Root of Trust: Supported
Secured Component Verification: Supported
Cyber Resilient Architecture: Supported

Operating System Compatibility

Supported Operating Systems:
• Microsoft Windows Server 2025
• Microsoft Windows Server 2022
• Microsoft Windows Server 2019
• Red Hat Enterprise Linux
• Ubuntu Server
• SUSE Linux Enterprise Server
• VMware ESXi

Virtualization Support
VMware vSphere
Microsoft Hyper-V
Nutanix AHV
Red Hat OpenShift
Containerized Workloads
Private Cloud Infrastructure
Hybrid Cloud Environments

Power Specifications
Power Supply Type: Hot-Plug Redundant Power Supplies
Power Supply Options: Multiple Wattage Configurations Available
Redundancy Support: N+1 Redundancy
Energy Efficiency: 80 PLUS Platinum and Titanium Options Available

Cooling Specifications
Cooling Type: High-Efficiency Air Cooling
Hot-Plug Fans: Supported
Fan Redundancy: Supported
Intelligent Thermal Management: Supported

Design & Construction
Form Factor: 2U Rack Server
Rack Mountable: Yes
Chassis Type: Enterprise Data Center Chassis
Serviceability: Tool-Less Access Design
Construction: Commercial and Enterprise Grade Server Platform

Features
Dual Intel Xeon Scalable Processor Support
DDR5 Memory Technology
PCIe Gen5 Expansion
Flexible Storage Configurations
Integrated iDRAC9 Management
Advanced Security Features
Virtualization Optimized Platform
Software-Defined Storage Ready
Cloud Infrastructure Support
Enterprise-Class Reliability

Performance & Features
Optimized for Growing Business and Enterprise Workloads
Provides Excellent Balance of Performance and Cost Efficiency
Supports Virtualization and Consolidated Infrastructure Deployments
Designed for Business Applications and Databases
Delivers High-Speed Memory and Storage Performance
Supports Modern Data Center and Cloud Environments
Scalable Architecture for Future Expansion
Ideal for Software-Defined Storage Applications

Physical Specifications
Form Factor: 2U Rack Server
Processor Support: Up to 2 Intel Xeon Scalable Processors
Memory Slots: Up to 16 DDR5 DIMM Slots
Maximum Memory: Up to 1 TB
Rack Compatibility: Standard 19-Inch Rack
Chassis Depth: Configuration Dependent

Package Contents
Dell PowerEdge R760xs Rack Server Chassis
Configured Processor(s) (Configuration Dependent)
Configured Memory Modules (Configuration Dependent)
Configured Storage Drives (Configuration Dependent)
Power Supply Unit(s) (Configuration Dependent)
Rack Mount Rails (Optional)
Documentation and Quick Start Guide

Key Features
2U Enterprise Rack Server
Dual Intel Xeon Scalable Processor Support
Up to 128 Total CPU Cores
DDR5 High-Speed Memory
PCIe Gen5 Expansion Slots
Flexible NVMe, SAS, and SATA Storage Support
Integrated iDRAC9 Remote Management
Advanced Cyber Resilience Security Features
Virtualization and Cloud Ready
Cost-Optimized Enterprise Platform
Configure-To-Order Flexibility
Designed for Modern IT Infrastructure

Typical Use Cases
Virtualization Infrastructure
Business Applications and Databases
Software-Defined Storage Deployments
Private Cloud Platforms
Hybrid Cloud Environments
Managed Service Provider Deployments
Enterprise Resource Planning (ERP) Systems
Backup and Disaster Recovery Solutions
File and Storage Servers
Data Center Consolidation Projects
General Purpose Enterprise Computing Workloads

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
