PRODUCT DESCRIPTION

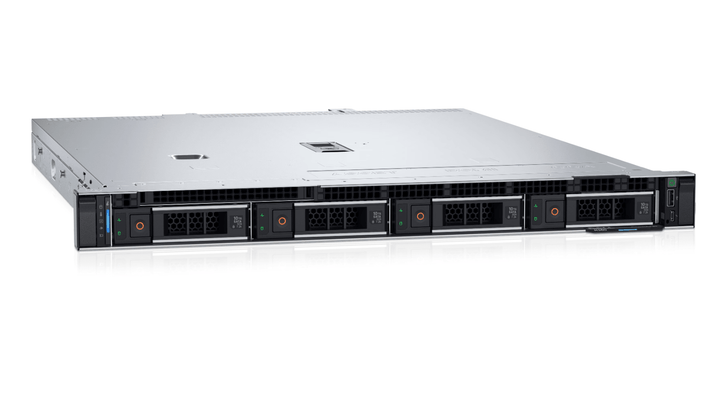

Dell PowerEdge R360 1U Rack Server (Configure-to-Order) - Local Warranty

1U, Single-Socket Server for Growing Businesses

The Dell PowerEdge R360 is Dell's entry-level 16th-generation 1U rack server. It takes one Intel Xeon 6300 series or Intel Xeon E-2400 series processor with up to 8 cores (or an Intel Pentium G7400/G7400T), with four DDR5 ECC UDIMM slots for up to 128 GB of memory at up to 4400 MT/s.

Compact Storage and Expansion

Front bays take up to 4 x 3.5-inch or 8 x 2.5-inch SAS/SATA drives, with PERC H355/H755 hardware RAID, an optional BOSS-N1 boot module, two PCIe Gen4 slots and two embedded 1GbE ports. It suits file and print, small databases, collaboration tools and remote or branch office (ROBO) deployments.

Managed and Secured by iDRAC9

Every R360 ships with Dell's iDRAC9 controller for remote monitoring, alerting and firmware updates, plus OpenManage integration, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, System Lockdown and TPM 2.0.

Dell PowerEdge R360 Datasheet — Technical Specifications

General

Product Name	Dell PowerEdge R360 Rack Server
Generation	Dell PowerEdge 16th Generation (Intel)
Form Factor	1U rack server
Order Type	Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order)
Local Warranty (Singapore)	Dell warranty and support term selected at configuration; 3 years minimum recommended

Processor & Memory

Processor	One Intel Xeon 6300 series or Intel Xeon E-2400 series processor, up to 8 cores; or one Intel Pentium G7400/G7400T processor, 2 cores
Memory Slots	4 DDR5 DIMM slots, unbuffered ECC DDR5 UDIMMs only
Maximum Memory	128 GB
Memory Speed	Up to 4400 MT/s

Storage

Front Drive Bays	Up to 4 x 3.5" SAS/SATA HDD/SSD (max 64 TB) or up to 8 x 2.5" SAS/SATA SSD (max 61.44 TB)
Internal Controllers	PERC H755, PERC H355, HBA355i
External Controller	HBA355e
Software RAID	S160
Boot	BOSS-N1 with 2 x M.2 SSDs (hardware RAID), or USB

Expansion & Networking

PCIe Slots	Two PCIe Gen4 slots: Slot 1 x8, Slot 2 x16 (x8 bandwidth), both half-length low-profile
GPU Support	1 x 60 W single-width GPU
Embedded NIC	2 x 1GbE LOM
Front Ports	1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0
Rear Ports	1 x dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x serial
Internal Port	1 x USB 3.2 Gen1

Management & Security

Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish
OpenManage	OpenManage Enterprise, CloudIQ, Power Manager, Service and Update Manager plug-ins; integrations for VMware vCenter, Microsoft System Center and Windows Admin Center
Security	Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, hardware integrity check, Secured-core server, System Lockdown, Data at Rest Encryption, TPM 2.0 (FIPS, CC-TCG certified)
Bezel	Security bezel or optional filter bezel

Power, Cooling & Physical

Power Supplies	Hot-swap redundant: 600 W Platinum (100-240 VAC or 240 VDC) or 700 W Titanium (200-240 VAC or 240 VDC)
Cooling	Air cooling, up to 4 fans
Dimensions (H x W x D)	42.8 x 482.0 x 598.9 mm (with bezel); depth 585.3 mm without bezel

How to Configure Your Server — Sizing Checklist

Servers are built to order. Answer the questions below so we can size the right configuration for you.

Step 1: Hardware Requirements

Which server form factor do you need: tower or rackmount?
How many CPU cores, how much RAM and how much usable storage capacity do you require?
How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
How many years of maintenance support do you need? (Minimum 3 years)

Step 2: Deployment & Services

How many server units are required?
Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
How do you store data today? Do you have existing NAS or SAN storage?
How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
Do you require burn-in test services?
Do you need hard disk retention services?

Operating Systems, Management & Workloads

Operating Systems & Hypervisors

Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.

Management Tools

iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and plug-ins bring the R360 into VMware vCenter, Microsoft System Center and Windows Admin Center.

Typical Workloads

File and print, small and mid-sized databases, collaboration and email, light virtualisation, and remote or branch office servers where rack space is tight.

Package Contents & Dell PowerEdge 16th Generation Ordering Information

What Is Supplied

The R360 is built to order: chassis with the processor, memory, drives, RAID controller, network options and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.

Dell PowerEdge 16th Generation

Model	Key feature
PowerEdge R360 (this listing)	1U, 1-socket Intel Xeon E-2400
PowerEdge R660xs	1U, 2-socket Intel Xeon, cost-optimised
PowerEdge R660	1U, 2-socket Intel Xeon, high density
PowerEdge R760xs	2U, 2-socket Intel Xeon, cost-optimised
PowerEdge R760	2U, 2-socket Intel Xeon, up to 8 TB memory
PowerEdge R6615	1U, 1-socket AMD EPYC 9004
PowerEdge R6625	1U, 2-socket AMD EPYC 9004
PowerEdge R7615	2U, 1-socket AMD EPYC 9004
PowerEdge R7625	2U, 2-socket AMD EPYC 9004
PowerEdge T360	Tower, 1-socket Intel Xeon E-2400
PowerEdge T560	Tower, 2-socket Intel Xeon

Datasheet & Downloads

Dell spec sheet	Dell PowerEdge R360 Spec Sheet (PDF)
Technical guide	Dell PowerEdge R360 Technical Guide (PDF)
Manuals & drivers	PowerEdge R360 manuals and documents on Dell Support
Dell product page	PowerEdge R360 on dell.com

Frequently Asked Questions — Dell PowerEdge R360

Is this a fixed configuration?

No. The R360 is configure-to-order. Processor, memory, drives, RAID controller, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.

How much memory can it take?

Four DDR5 ECC UDIMM slots for up to 128 GB, running at up to 4400 MT/s.

Does it support redundant power?

Yes. Both power supply options, 600 W Platinum and 700 W Titanium, are hot-swap redundant.

R360 or T360?

Both use the same single-socket Xeon 6300 / E-2400 platform. The R360 is a 1U rack server for up to 4 x 3.5-inch or 8 x 2.5-inch drives; the T360 is a 4.5U tower that takes up to 8 x 3.5-inch drives and four PCIe slots, for offices without a rack.

R360 or R660xs?

The R360 is a single-socket server with up to 8 cores and 128 GB of memory. For more cores, memory or NVMe storage, the dual-socket R660xs is the next step up in 1U.
