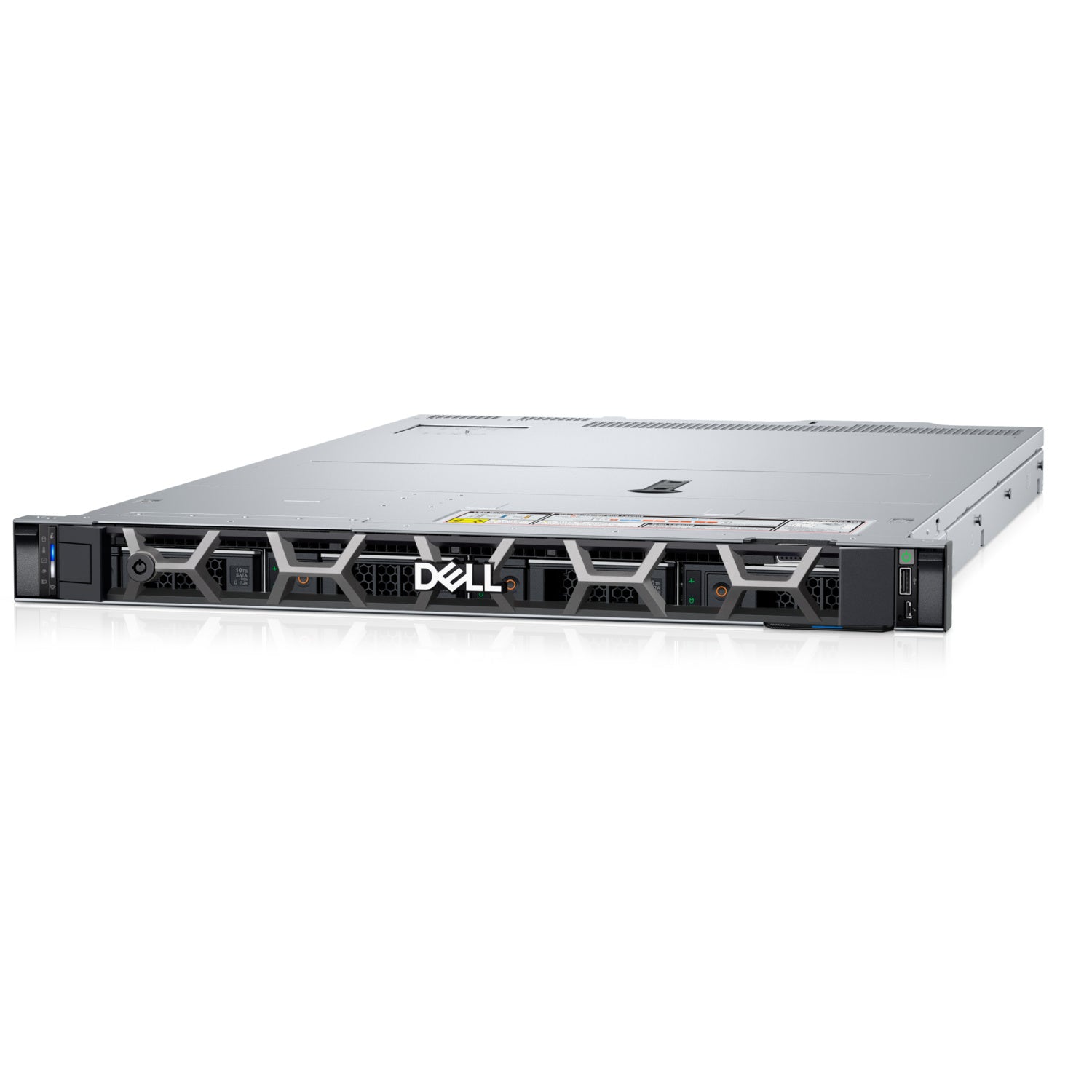

Dell PowerEdge R660xs 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge R660xs 1U Rack Server (Configure-to-Order) - Local Warranty
1U, Dual-Socket and Cost-Optimised
The Dell PowerEdge R660xs is Dell's cost-optimised 16th-generation 1U dual-socket rack server. It takes up to two 5th Gen Intel Xeon Scalable processors (up to 28 cores each) or 4th Gen Xeon Scalable processors (up to 32 cores each), with 16 DDR5 RDIMM slots for up to 1.5 TB of memory at up to 5200 MT/s.
Balanced Storage and I/O

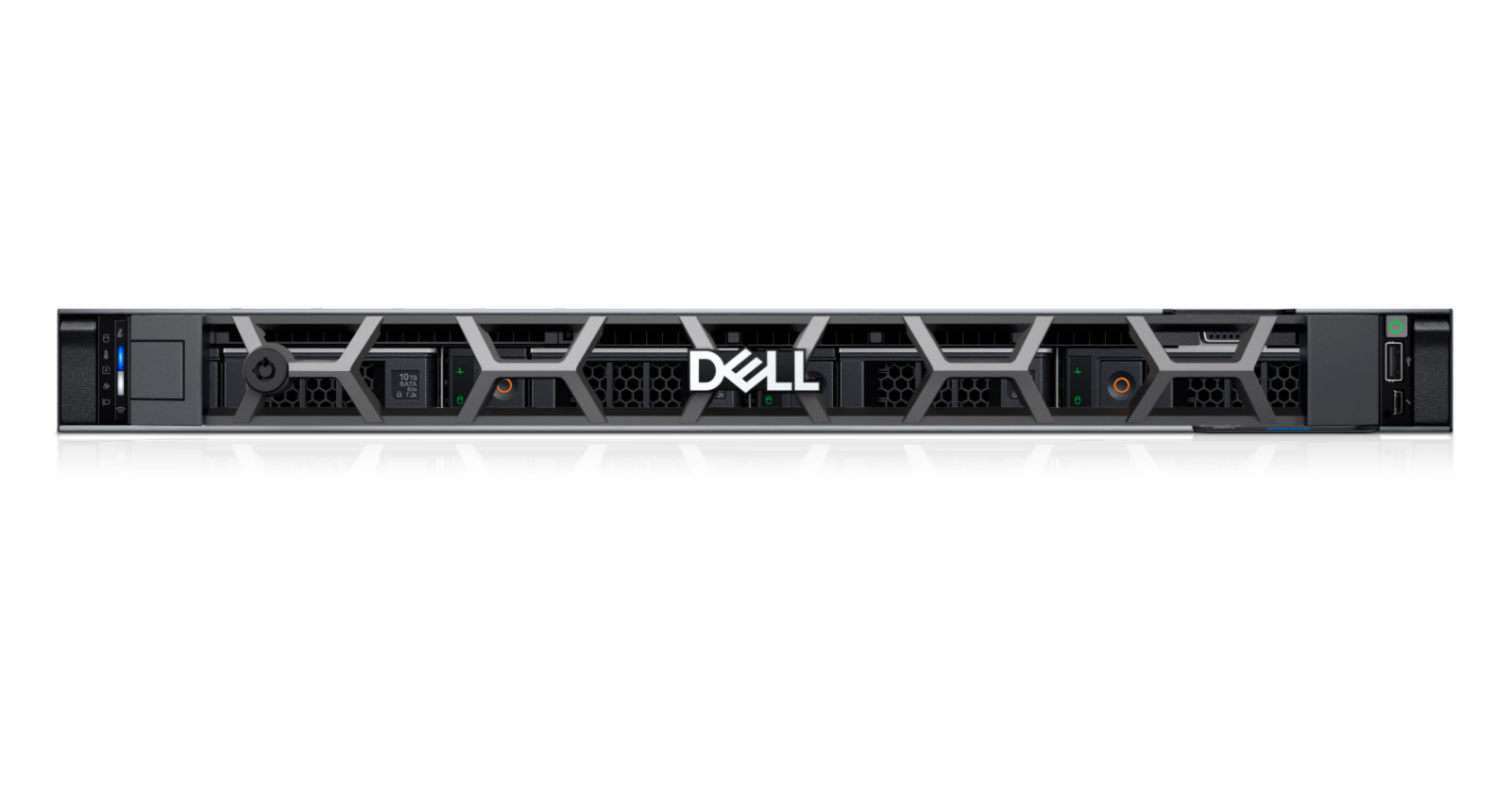

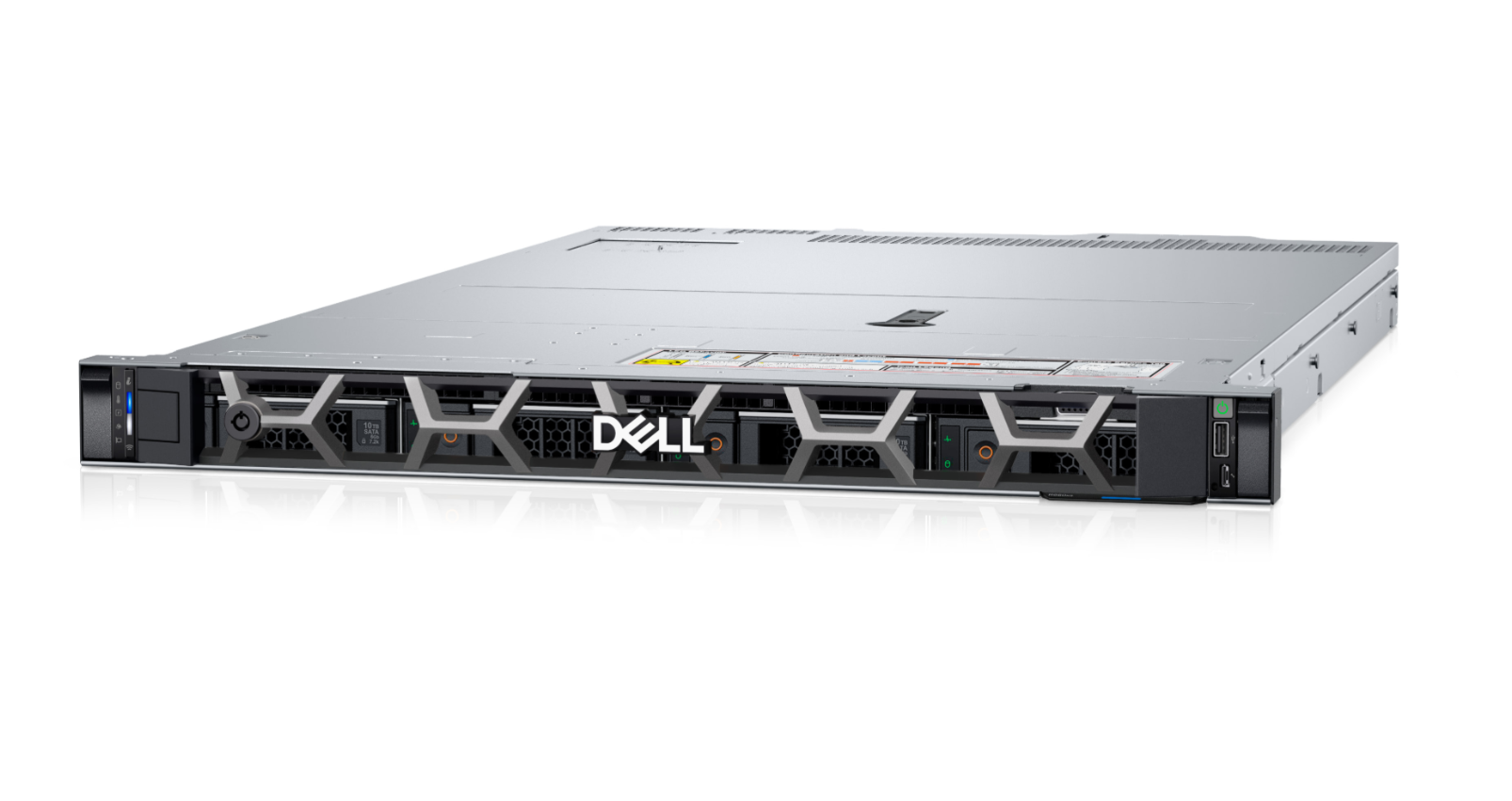

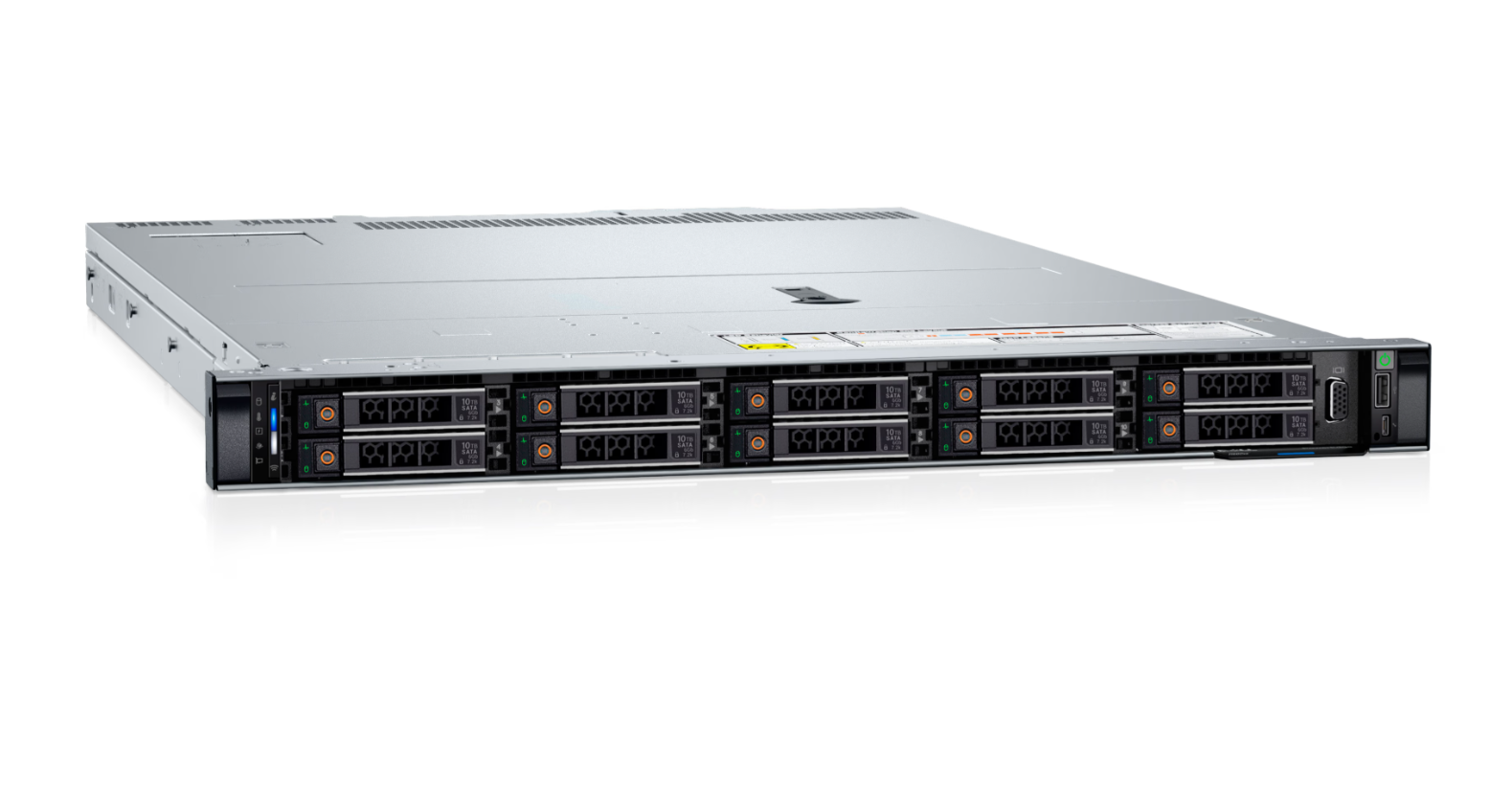

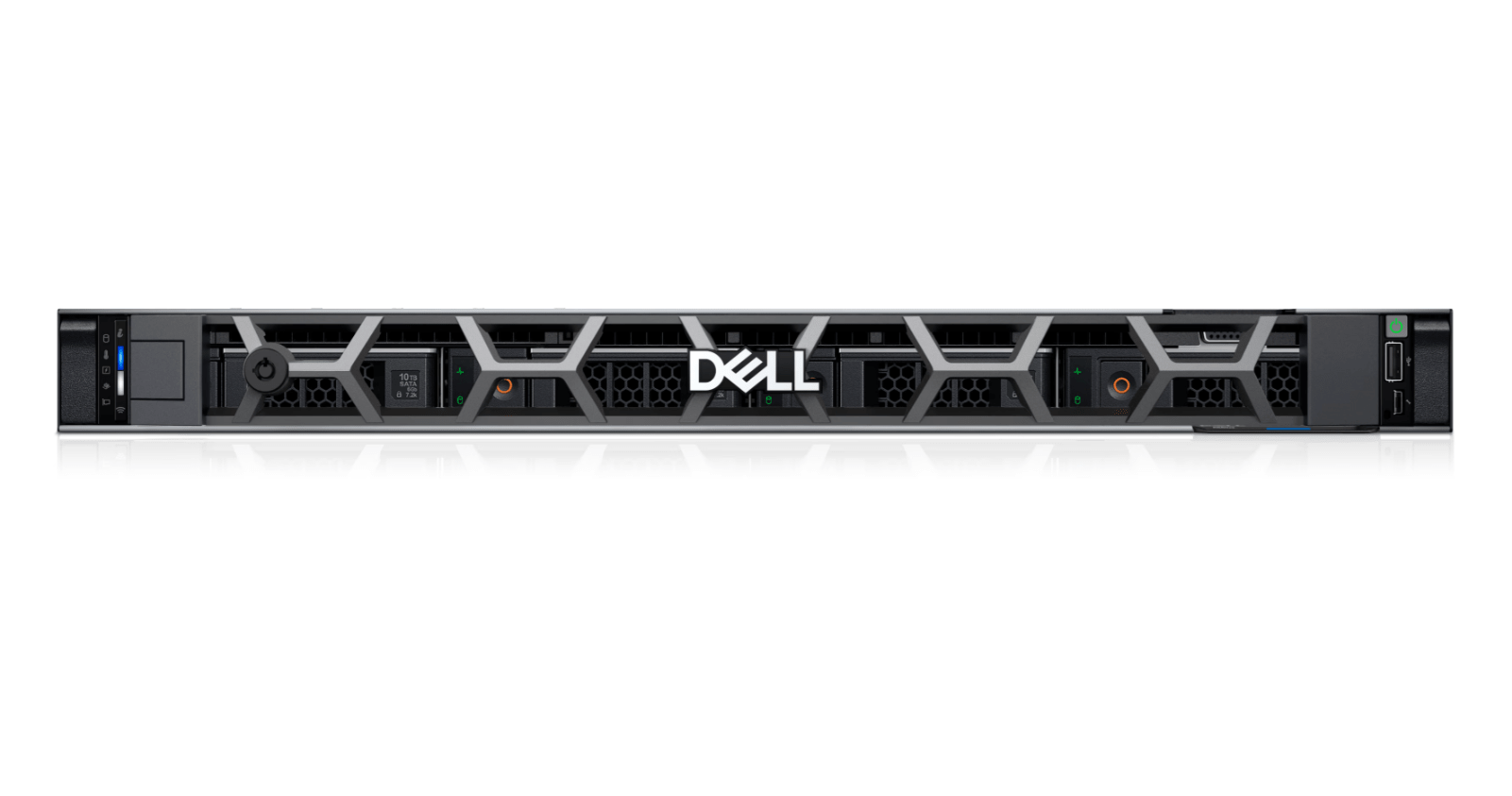

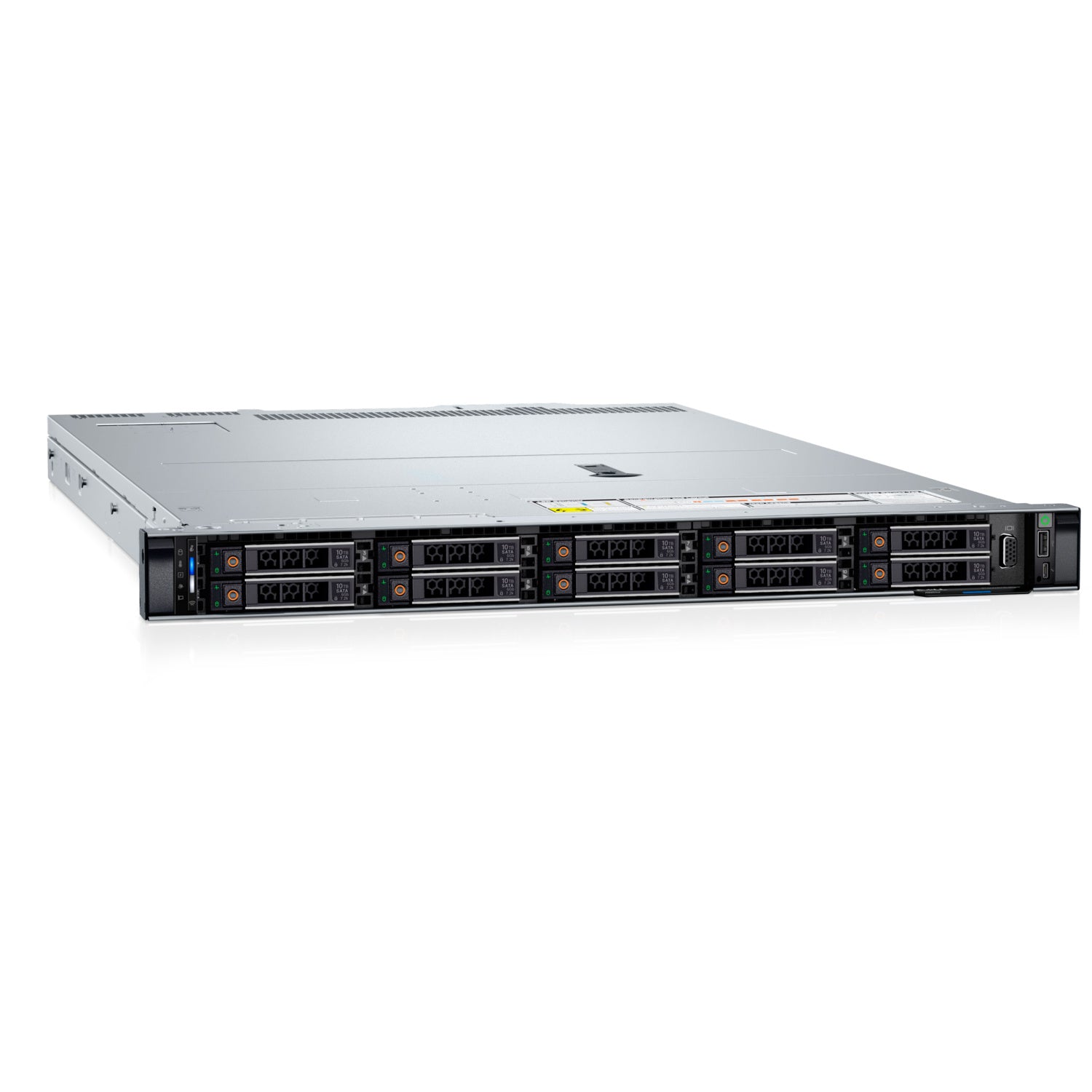

Front bays take up to 4 x 3.5-inch SAS/SATA or up to 10 x 2.5-inch SAS/SATA/NVMe drives, with optional rear bays, PERC hardware RAID, a BOSS-N1 boot module, up to three PCIe Gen4 (or two Gen5) slots and an OCP 3.0 network slot. It suits virtualisation, scale-out databases and high-performance compute.
Managed and Secured by iDRAC9
Every R660xs ships with Dell's iDRAC9 controller and the OpenManage portfolio for remote monitoring, firmware updates and lifecycle management, backed by a Silicon Root of Trust, cryptographically signed firmware, Secure Boot and TPM 2.0.
Dell PowerEdge R660xs Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge R660xs Rack Server |
| Generation | Dell PowerEdge 16th Generation (Intel) |
| Form Factor | 1U rack server |
| Order Type | Configure-to-Order (CPU, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processors | Up to two 5th Gen Intel Xeon Scalable processors, up to 28 cores each; or up to two 4th Gen Intel Xeon Scalable processors, up to 32 cores each |
| Memory Slots | 16 DDR5 DIMM slots, registered ECC DDR5 RDIMMs only |
| Maximum Memory | 1.5 TB |
| Memory Speed | Up to 5200 MT/s |
Storage
| Front Drive Bays | Up to 4 x 3.5" SAS/SATA (max 96 TB); up to 8 x 2.5" SAS/SATA/NVMe (max 122.88 TB); or up to 10 x 2.5" SAS/SATA/NVMe (max 153.6 TB) |
| Rear Drive Bays | Up to 2 x 2.5" SAS/SATA/NVMe (max 15.2 TB) |
| Internal RAID Controllers | PERC H965i, PERC H755, PERC H755N, PERC H355 |
| HBA Options | HBA355i, HBA465i, HBA355e (external) |
| Software RAID | S160 |
| Boot | BOSS-N1 with 2 x M.2 NVMe |
Expansion & Networking
| PCIe Slots | Up to 3 PCIe Gen4 slots (1 x16 + 2 x8) or up to 2 PCIe Gen5 slots (1 x16 + 1 x8) |
| Embedded NIC | 2 x 1GbE LOM card |
| Network Options | 1 x OCP 3.0 card (optional) |

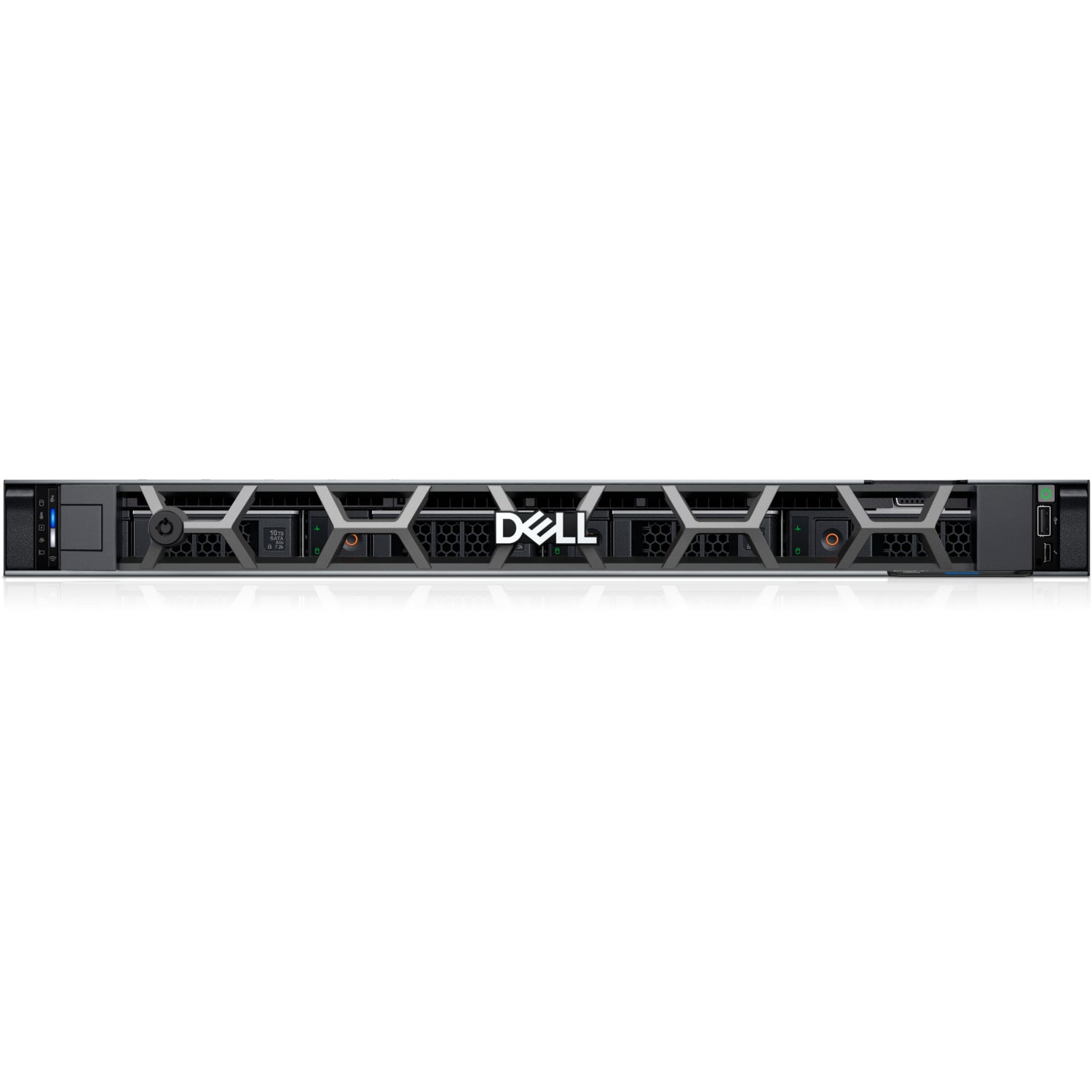

| Front Ports | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA |

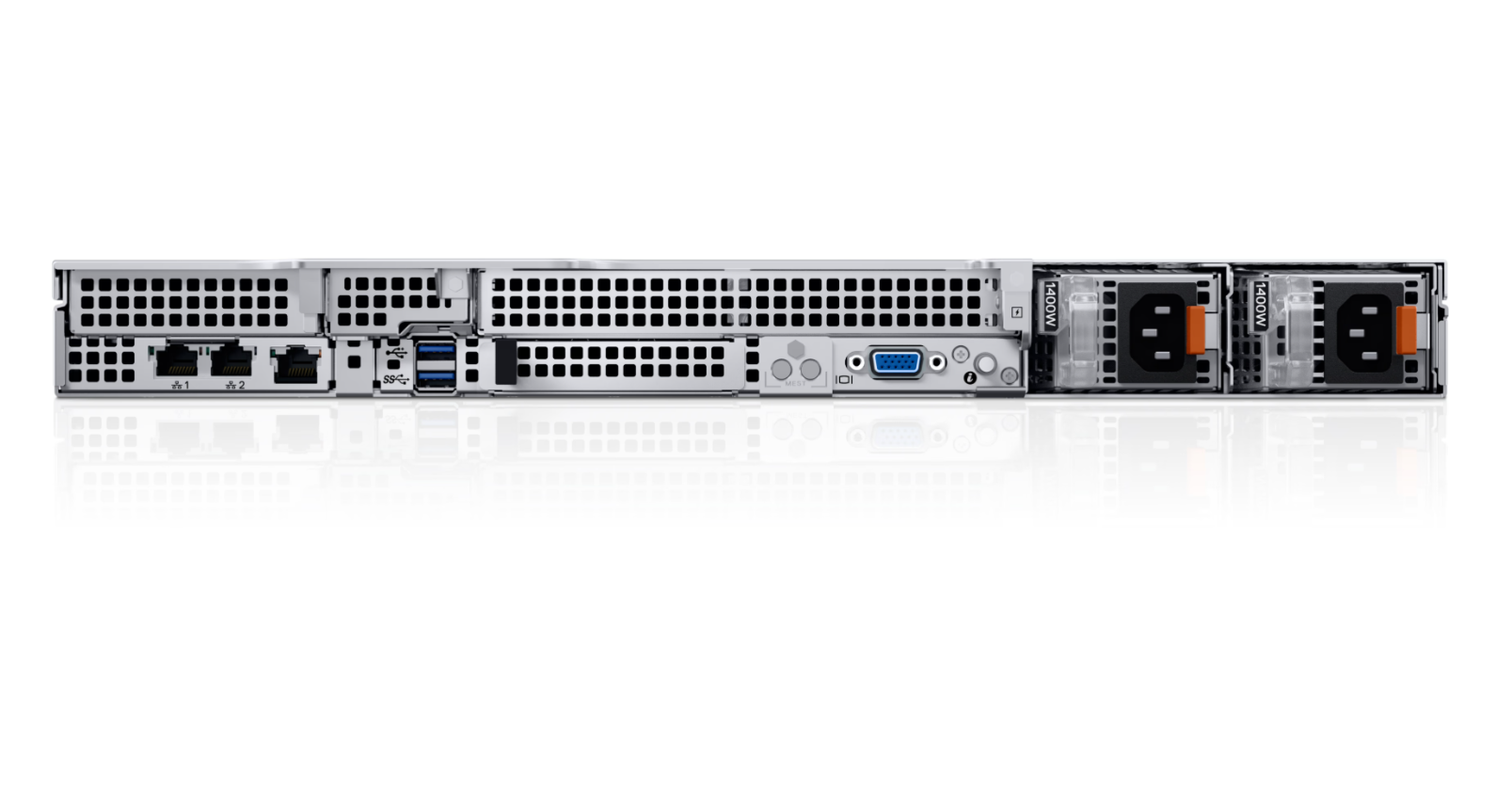

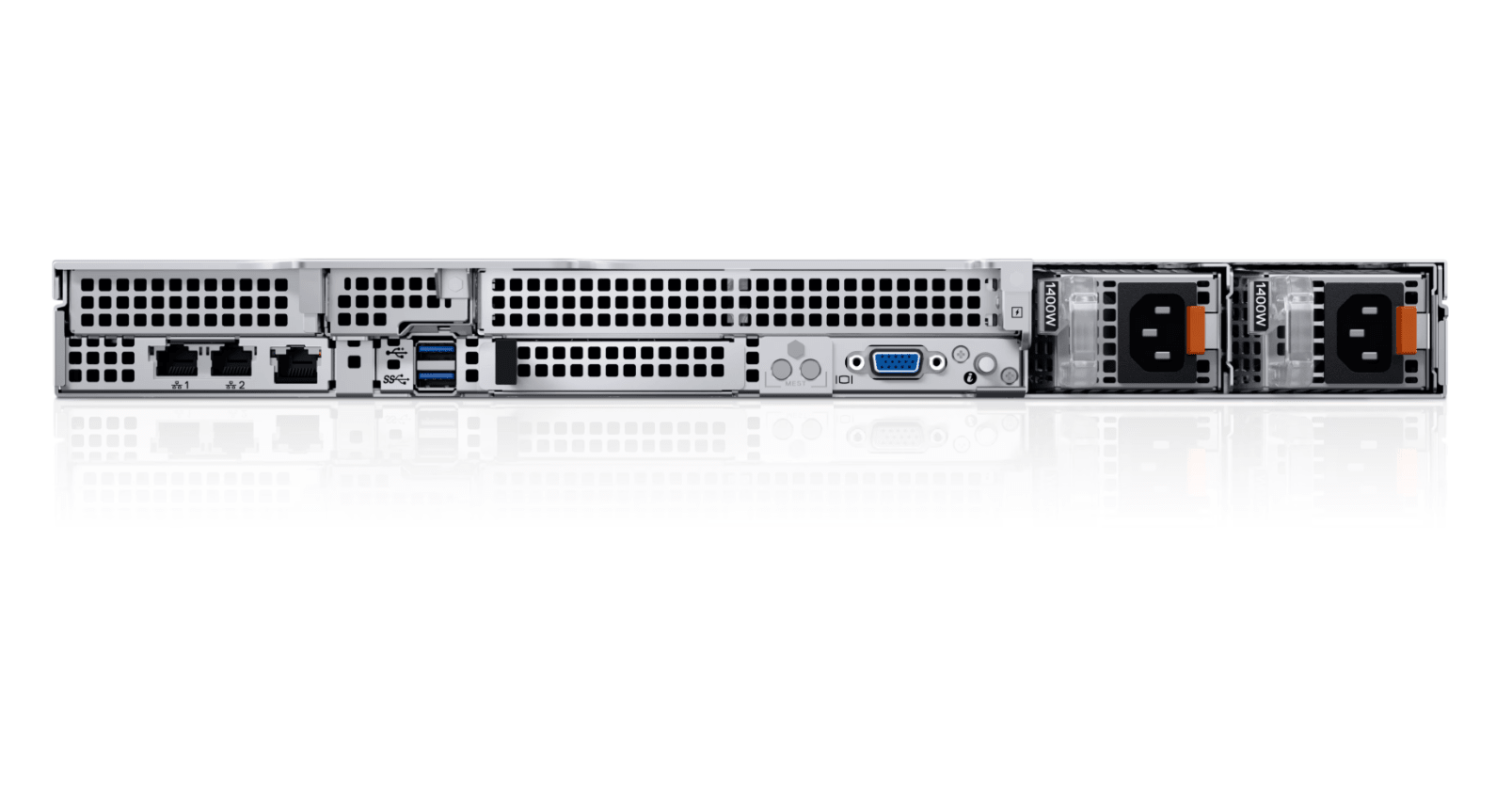

| Rear Ports | 1 x dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x serial (optional) |
Management & Security
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module |
| OpenManage | OpenManage Enterprise, CloudIQ, Power Manager and Update Manager plug-ins; integrations for VMware vCenter, Microsoft System Center and Windows Admin Center |
| Security | Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, Secured Component Verification, Data at Rest Encryption, TPM 2.0 (FIPS) |
| Bezel | Optional LCD bezel or security bezel |
Power, Cooling & Physical
| Power Supplies | Hot-swap PSU options from 600 W Platinum up to 1800 W Titanium |
| Cooling | Air cooling |

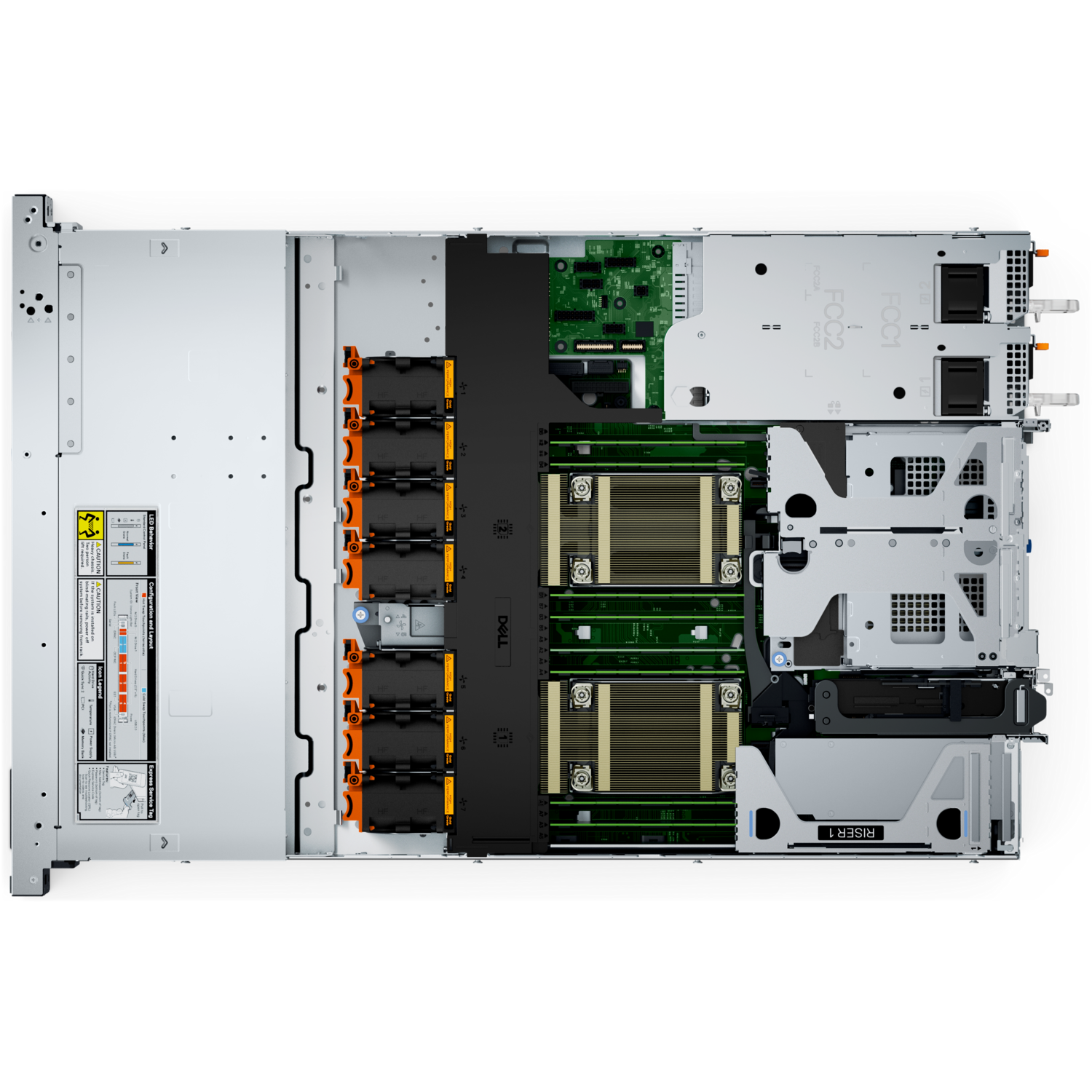

| Fans | Up to 7 hot-swap fans (Standard or High Performance Gold) |
| Dimensions (H x W x D) | 42.8 x 482 x 748.79 mm (with bezel) |
| Weight | 19.45 kg |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and plug-ins bring the R660xs into VMware vCenter, Microsoft System Center and Windows Admin Center.
Typical Workloads
Mainstream server virtualisation, scale-out databases, web and application tiers, and high-performance compute nodes where a dense, cost-optimised 1U dual-socket server fits best.
Package Contents & Dell PowerEdge 16th Generation Ordering Information
What Is Supplied
The R660xs is built to order: chassis with the processors, memory, drives, RAID controller, network cards and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.
Dell PowerEdge 16th Generation
| Model | Key feature |
| PowerEdge R360 | 1U, 1-socket Intel Xeon E-2400 |
| PowerEdge R660xs (this listing) | 1U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R660 | 1U, 2-socket Intel Xeon, high density |
| PowerEdge R760xs | 2U, 2-socket Intel Xeon, cost-optimised |
| PowerEdge R760 | 2U, 2-socket Intel Xeon, up to 8 TB memory |
| PowerEdge R6615 | 1U, 1-socket AMD EPYC 9004 |
| PowerEdge R6625 | 1U, 2-socket AMD EPYC 9004 |
| PowerEdge R7615 | 2U, 1-socket AMD EPYC 9004 |
| PowerEdge R7625 | 2U, 2-socket AMD EPYC 9004 |
| PowerEdge T360 | Tower, 1-socket Intel Xeon E-2400 |
| PowerEdge T560 | Tower, 2-socket Intel Xeon |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge R660xs Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge R660xs Technical Guide (PDF) |
| Manuals & drivers | PowerEdge R660xs manuals and documents on Dell Support |
| Dell product page | PowerEdge R660xs on dell.com |
Frequently Asked Questions — Dell PowerEdge R660xs
Is this a fixed configuration?
No. The R660xs is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
16 DDR5 RDIMM slots for up to 1.5 TB, running at up to 5200 MT/s.
Does it support NVMe drives?
Yes. The 2.5-inch front bays support SAS, SATA or NVMe drives, up to 10 bays and 153.6 TB.
Is it air cooled only?
Yes. The R660xs is air cooled, with up to seven hot-swap fans. For Direct Liquid Cooling, look at the R660.
R660xs or R660?
The R660xs is the cost-optimised choice with 16 DIMM slots and up to 32-core processors. The R660 doubles the memory slots (up to 8 TB), takes processors with up to 64 cores and adds E3.S NVMe and liquid-cooling options.
