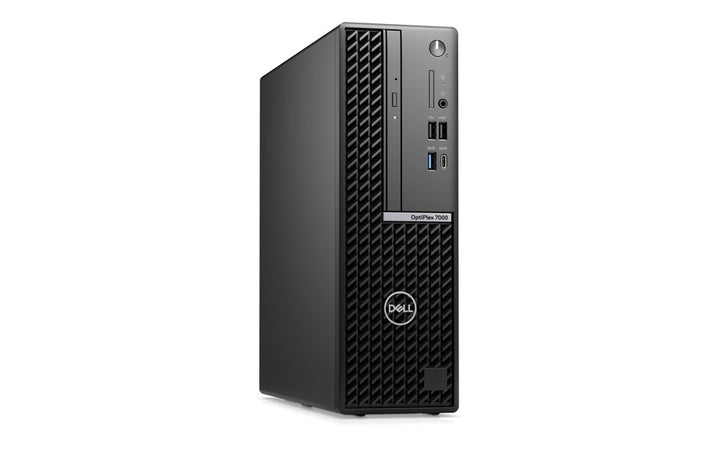

Dell OptiPlex 7000 Tower / SFF Business Desktop
PRODUCT DESCRIPTION
Dell OptiPlex 7000 Series Tower / Small Form Factor Desktop 12th Gen Intel Core i7, 16GB, 512GB SSD or 2TB SATA (210-BCTG / 210-BDEI) - 3 Years Onsite Warranty
12th Gen Intel Core i7 on the Q670 Chipset
Every configuration pairs a 12th Gen Intel Core i7 processor with 16GB of memory and Intel UHD Graphics 770 on the Intel Q670 chipset with PCIe Gen 4, with a choice of a 512GB NVMe SSD or 2TB SATA drive.
Tower or Small Form Factor
The Tower (367 x 169 x 300.8 mm) supports DDR5 memory and up to a 500 W Platinum power supply for expansion, while the Small Form Factor (290 x 92.6 x 292.8 mm, from 3.85 kg) keeps full-size drive bays in a slim desktop chassis.
Fast I/O and Multi-Display
Front USB 3.2 Gen 2x2 Type-C (20 Gbps) and USB 3.2 Gen 2 ports, three DisplayPort 1.4a outputs plus an optional fourth video port, and business security including TPM 2.0, Dell SafeBIOS and a chassis intrusion switch.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex 7000 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex 7000 Series (Tower, Small Form Factor) — series listing, choose chassis and configuration from the options |
| Part Numbers | 210-BCTG / 210-BDEI |
| Tower (listed as Mini Tower) | 12th Gen Intel Core i7 / 16GB / 512GB SSD or 2TB SATA drive |
| Small Form Factor | 12th Gen Intel Core i7 / 16GB / 512GB SSD or 2TB SATA drive |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Local Warranty (Singapore) | 3 years onsite |
Processor & Graphics
| Processor | 12th Gen Intel Core i7 (Dell’s 65 W option is the Core i7-12700 vPro: 12 cores / 20 threads, 2.1–4.9 GHz, 25 MB cache) |
| Graphics | Intel UHD Graphics 770 |
| Chipset | Intel Q670, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 16GB |
| Memory (Tower) | DDR5, four DIMM slots, up to 128GB (up to 4400 MT/s) |
| Memory (SFF) | DDR4 3200 MHz, four UDIMM slots, up to 128GB |
| Storage supplied | 512GB SSD or 2TB SATA drive, per option |
| Storage support | M.2 2230 / 2280 PCIe NVMe SSDs (2280 at Gen 4 x4, up to 2TB) plus 2.5-inch and 3.5-inch SATA drives (3.5-inch up to 4TB) |
| Card Reader | SD card slot (optional) |
Ports
| Front | 1 x USB 2.0, 1 x USB 2.0 with PowerShare, 1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2x2 Type-C, universal audio jack |
| Rear | 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2, 2 x USB 2.0 with Smart Power On, 3 x DisplayPort 1.4a, 1 x RJ45 Ethernet |
| Optional | One video port (HDMI 2.0b / DisplayPort 1.4a / VGA / PS2 / serial / USB-C with DisplayPort Alt mode); Tower also offers an optional 2.5GbE RJ45 port and serial port; SFF adds a rear re-tasking line-in/line-out audio port |
Power
| Tower | Internal PSU: 240 W or 260 W 80 Plus Bronze, or 400 W / 500 W 80 Plus Platinum; 90–264 VAC |
| Small Form Factor | Internal PSU: 240 W or 260 W 80 Plus Bronze, or 300 W 80 Plus Platinum; 90–264 VAC |
Security
| Hardware | TPM 2.0, chassis intrusion switch, chassis lock slot, lockable cable covers, supply chain tamper alerts, Kensington security-cable slot, padlock ring |
| Firmware & Software | Dell SafeBIOS (off-host BIOS verification, BIOS resilience and recovery), Intel Secure Boot, BIOS Secure Erase, Windows BitLocker support |
Physical
| Tower (H x W x D) | 367.00 x 169.00 x 300.80 mm; 5.92–9.68 kg |
| Small Form Factor (H x W x D) | 290.00 x 92.60 x 292.80 mm; 3.85–5.30 kg |
Compatibility & Software Support
Operating System
Dell supports Windows 11 Pro on the OptiPlex 7000. The installed operating system follows the distributor configuration — confirm with sales when ordering.
Displays
Three DisplayPort 1.4a outputs are standard, with one optional extra video port (HDMI 2.0b, DisplayPort, VGA or USB-C with DisplayPort Alt mode). Install the latest Intel graphics driver from Dell Support to enable multiple displays.
Upgrades
Both chassis have four memory slots supporting up to 128GB — DDR5 on the Tower and DDR4 on the Small Form Factor, so buy memory to suit your chassis. Additional M.2 and SATA drives can be added.
Manageability
Dell Command tools, SupportAssist and Dell Update work with the OptiPlex 7000 for driver, BIOS and fleet management.
Package Contents & Dell OptiPlex Desktop Ordering Information
In the Box
Dell OptiPlex 7000 desktop in the chosen chassis, power cable and documentation. Keyboard and mouse follow the distributor configuration — confirm with sales.
Dell OptiPlex Desktops at SourceIT
Looking for the current generation? See the Dell Pro Tower QCT1250 and Dell Pro Micro QCM1250. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | OptiPlex 7000 Tower Setup and Specifications |
| Setup & specifications | OptiPlex 7000 Small Form Factor Setup and Specifications |
| Manuals & drivers | OptiPlex 7000 Tower on Dell Support Singapore |
| Manuals & drivers | OptiPlex 7000 Small Form Factor on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex 7000.
Frequently Asked Questions — Dell OptiPlex 7000
What is the difference between the Tower and SFF?
The Tower is larger (169 mm wide) with DDR5 memory and power supply options up to 500 W. The Small Form Factor is 92.6 mm wide, uses DDR4 memory and offers power supplies up to 300 W.
Can I upgrade the memory?
Yes. Both chassis have four memory slots supporting up to 128GB — DDR5 on the Tower, DDR4-3200 on the SFF.
Should I choose the SSD or the 2TB SATA option?
The 512GB SSD gives faster boot and application loading; the 2TB SATA option gives more capacity for files. Both chassis can take an additional drive later.
How many monitors can I connect?
Three DisplayPort 1.4a ports are standard, plus one optional video port (HDMI, DisplayPort, VGA or USB-C) if fitted.
Does it have Wi-Fi?
Wired Ethernet is built in. Wi-Fi is a Dell option and depends on the distributor configuration — confirm with sales.
Is it still available?
The OptiPlex 7000 series is no longer available for order. Check remaining stock with sales, or see the current Dell Pro Tower QCT1250, Dell Pro Micro QCM1250 and OptiPlex 7020 listings.
What warranty do I get?
3 years onsite warranty, supplied locally by SourceIT with a GST invoice.
