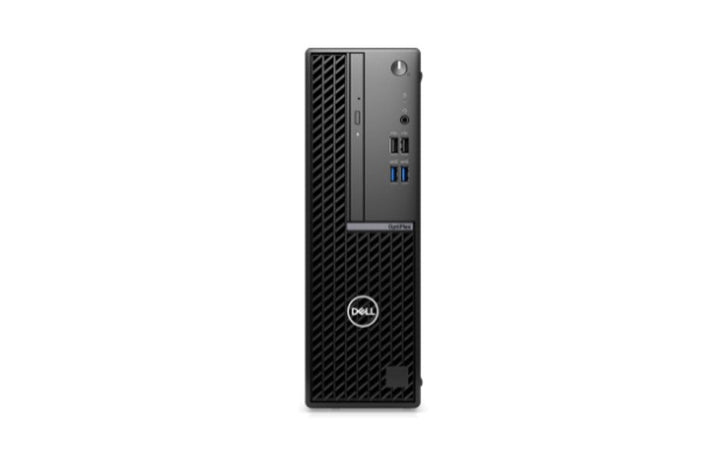

Dell OptiPlex SFF Plus 7010 Core i7-13700 8GB 512GB SSD Desktop
PRODUCT DESCRIPTION
Dell OptiPlex Small Form Factor Plus 7010 Desktop Intel Core i7-13700 / 8GB / 512GB SSD (210-BFXE / AO7010PSFFI78512) - 3 Years ProSupport NBD Onsite Warranty
13th Gen Intel Core i7-13700 Performance
The Core i7-13700 (16 cores, 24 threads) with Intel UHD Graphics 770 on the Intel Q670 chipset handles office suites, browsers, video calls and line-of-business apps, backed by 8GB of DDR5 memory and a fast 512GB PCIe NVMe SSD.
SFF Plus: Compact and Expandable
The SFF Plus adds DDR5 memory up to 128GB, PCIe Gen 4, three M.2 SSD slots and a 20 Gbps front USB-C port to the slim 92.6 mm chassis.
Business-Class Security and Manageability
Security features include TPM 2.0 (Dell SafeID), Dell SafeBIOS, plus Dell Command management tools, with 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex Small Form Factor Plus 7010 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex Small Form Factor Plus 7010 |
| Part Number | 210-BFXE / AO7010PSFFI78512 |
| Processor | Intel Core i7-13700 — 16 cores (8P + 8E), 24 threads, 30 MB cache, 2.1–5.1 GHz, 65 W |
| Memory | 8GB (1 x 8GB) DDR5 |
| Storage | 512GB M.2 2230 PCIe NVMe SSD |
| Optical Drive | 8x DVD+/-RW 9.5 mm slimline |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell KB216 wired keyboard and MS116 optical mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-13700 — 16 cores (8P + 8E), 24 threads, 30 MB cache, 2.1–5.1 GHz, 65 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 8GB (1 x 8GB) DDR5 |
| Memory support | DDR5 up to 4400 MT/s, four UDIMM slots, up to 128GB |
| Storage supplied | 512GB M.2 PCIe NVMe SSD |
| Storage support | Three M.2 SSD slots (two 2230, one 2280) plus bays for 2.5/3.5-inch drives and a slim optical drive; RAID supported |
Ports
| Front | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps), 1 x USB 3.2 Gen 2, 1 x USB 2.0 with PowerShare, 1 x USB 2.0, universal audio jack |
| Rear | 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0 with Smart Power On, 3 x DisplayPort 1.4a, re-tasking line-out/line-in, RJ45 Gigabit Ethernet |
| Optional | One video port (HDMI 2.1 / DisplayPort 1.4a / VGA / USB-C with DisplayPort Alt mode), SD card slot; expansion PCIe Gen 4 x16 + Gen 3 x4 (half height) |
Power & Physical
| Power | Internal 260 W 80 Plus Bronze or 300 W 80 Plus Platinum |
| Dimensions & Weight | 290 x 92.6 x 292.8 mm (H x W x D); 3.90–5.09 kg |
Security
| Security | TPM 2.0 (Dell SafeID), Dell SafeBIOS, Intel Secure Boot, supply chain tamper alerts, chassis intrusion switch, lockable cable covers, Kensington slot, padlock ring |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also supports Windows 11 Pro downgrade (Windows 10 image) and Ubuntu Linux on the OptiPlex Small Form Factor Plus 7010.
Displays
Three DisplayPort 1.4a outputs built in, plus one optional video port. Install the latest Intel graphics driver from Dell Support for multi-monitor use.
Upgrades
Memory: DDR5 up to 4400 MT/s, four UDIMM slots, up to 128GB. Storage: Three M.2 SSD slots (two 2230, one 2280) plus bays for 2.5/3.5-inch drives and a slim optical drive; RAID supported.
Manageability
Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex 7010 Ordering Information
In the Box
Dell OptiPlex Small Form Factor Plus 7010 desktop, power cable, Dell KB216 wired keyboard, Dell MS116 optical mouse and documentation.
Dell OptiPlex 7010 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex Micro 7010 Core i5-13600T | 8GB / 256GB SSD |
| OptiPlex Micro 7010 Core i5-13600T | 8GB / 512GB SSD |
| OptiPlex Micro Plus 7010 Core i7-13700T | 8GB / 512GB SSD |
| OptiPlex Tower 7010 Core i5-13600 | 8GB / 512GB SSD |
| OptiPlex Tower Plus 7010 Core i7-13700 | 8GB / 512GB SSD |
| OptiPlex Tower Plus 7010 Core i7-13700 | 16GB / 512GB SSD |
| OptiPlex Tower Plus 7010 Core i7-13700 | 16GB / 1TB SSD |
| OptiPlex SFF 7010 Core i5-13500 | 8GB / 512GB SSD |
| OptiPlex SFF Plus 7010 Core i7-13700 (this listing) | 8GB / 512GB SSD |
| OptiPlex SFF Plus 7010 Core i7-13700 | 16GB / 512GB SSD |
| OptiPlex SFF Plus 7010 Core i7-13700 | 16GB / 1TB SSD |
Looking for the newer generation? See the OptiPlex 7020 Tower, OptiPlex 7020 SFF and OptiPlex 7020 Micro. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex Small Form Factor Plus 7010 Owner’s Manual (Dell) |
| Manuals & drivers | OptiPlex Small Form Factor Plus 7010 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex Small Form Factor Plus 7010.
Frequently Asked Questions — Dell OptiPlex Small Form Factor Plus 7010
Is this the OptiPlex 7010 or 7010 Plus?
This configuration is the OptiPlex Small Form Factor Plus 7010. The Plus models add DDR5 memory, PCIe Gen 4, a 20 Gbps USB-C port and three DisplayPort outputs.
Can I upgrade the memory?
Yes — DDR5 up to 4400 MT/s, four UDIMM slots, up to 128GB. The supplied 8GB (1 x 8GB) DDR5 module leaves slots free for expansion.
How many monitors can I connect?
Three DisplayPort 1.4a outputs built in, plus one optional video port.
Does it have Wi-Fi?
This configuration is wired Gigabit Ethernet; Wi-Fi is not listed in the supplied configuration — confirm with sales.
Is it still available?
The OptiPlex 7010 has been succeeded by the OptiPlex 7020 and Dell Pro desktops. Check remaining stock with sales or see the OptiPlex 7020 listings above.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
