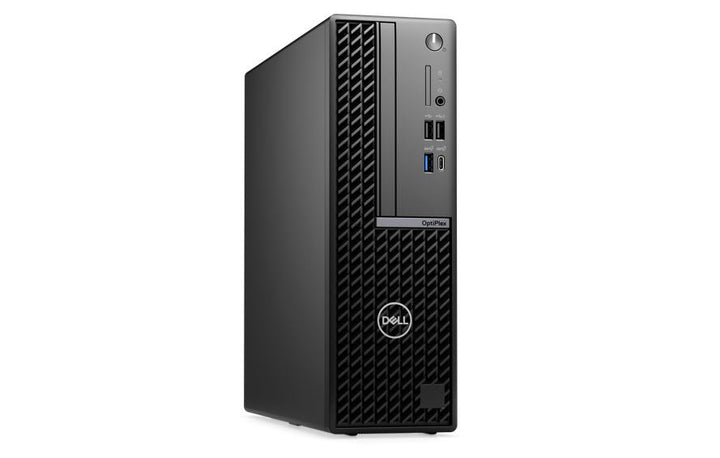

Dell OptiPlex SFF 7020 Core i5-14500 8GB 512GB SSD Desktop
PRODUCT DESCRIPTION
Dell OptiPlex Small Form Factor 7020 Desktop Intel Core i5-14500 vPro / 8GB / 512GB SSD (210-BKWK / AO7020BSFFI54008512) - 3 Years ProSupport NBD Onsite Warranty
14th Gen Intel Core i5-14500 vPro Performance
The 65 W Core i5-14500 vPro (14 cores, 20 threads, up to 5.0 GHz) with Intel UHD Graphics 770 on the Intel Q670 chipset keeps office, finance and line-of-business apps responsive, backed by 8GB of DDR5 memory and a 512GB PCIe NVMe SSD.
Space-Saving Small Form Factor
The 92.6 mm-wide SFF 7020 fits under monitors and on crowded desks while keeping a slim DVD writer, a half-height PCIe x16 slot, DisplayPort plus HDMI outputs and room for a 3.5-inch hard drive.
Business-Class Security and Manageability
TPM 2.0 (Dell SafeID), Dell SafeBIOS, supply chain tamper alerts and Intel vPro manageability, with 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex SFF 7020 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex SFF 7020 |
| Part Number | 210-BKWK / AO7020BSFFI54008512 |
| Processor | Intel Core i5-14500 vPro — 14 cores (6P + 8E), 20 threads, 24 MB cache, 2.6–5.0 GHz, 65 W |
| Memory | 8GB (1 x 8GB) DDR5 UDIMM, 4800 MT/s |
| Storage | 512GB M.2 2230 PCIe NVMe SSD |
| Optical Drive | 8x DVD+/-RW 9.5 mm slimline |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell KB216 wired keyboard and MS116 optical mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i5-14500 vPro — 14 cores (6P + 8E), 20 threads, 24 MB cache, 2.6–5.0 GHz, 65 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 8GB (1 x 8GB) DDR5 UDIMM |
| Memory support | DDR5 UDIMM, two slots, up to 64GB (4800 MT/s with the Core i5-14500) |
| Storage supplied | 512GB M.2 PCIe NVMe SSD |
| Storage support | One M.2 2230/2280 PCIe NVMe SSD slot, one M.2 2230 Wi-Fi/Bluetooth slot, SATA 3.0 for one 3.5-inch hard drive and the slim optical drive |
Ports
| Front | 1 x USB 3.2 Gen 1 (5 Gbps) Type-C, 1 x USB 3.2 Gen 1 (5 Gbps), 2 x USB 2.0, universal audio jack |
| Rear | 1 x DisplayPort 1.4a, 1 x HDMI 1.4b, 2 x USB 3.2 Gen 1 (5 Gbps), 2 x USB 2.0 with Smart Power On, RJ45 Gigabit Ethernet |
| Optional | One video port (HDMI 2.1 / DisplayPort 1.4a / VGA), serial port; expansion 1 x half-height PCIe Gen 3 x16, 1 x half-height PCIe Gen 3 x1 |
Power & Physical
| Power | Internal 180 W 80 Plus Bronze or 300 W 80 Plus Platinum |
| Dimensions & Weight | 290 x 92.6 x 292.8 mm (H x W x D); 4.08–5.38 kg |
Security
| Security | TPM 2.0 (Dell SafeID), Dell SafeBIOS, supply chain tamper alerts, chassis intrusion switch, lockable cable cover, Kensington slot, padlock loop |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 11 Pro National Education and Ubuntu Linux 22.04 LTS for the OptiPlex SFF 7020.
Displays
DisplayPort 1.4a and HDMI 1.4b built in, plus one optional video port. Install the latest Intel graphics driver from Dell Support for multi-monitor use.
Upgrades
Memory: DDR5 UDIMM, two slots, up to 64GB (4800 MT/s with the Core i5-14500). Storage: One M.2 2230/2280 PCIe NVMe SSD slot, one M.2 2230 Wi-Fi/Bluetooth slot, SATA 3.0 for one 3.5-inch hard drive and the slim optical drive.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex 7020 Ordering Information
In the Box
Dell OptiPlex SFF 7020 desktop, power cable, Dell KB216 wired keyboard, Dell MS116 optical mouse and documentation.
Dell OptiPlex 7020 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex Micro 7020 Core i5-14600T | 8GB / 512GB SSD |
| OptiPlex Micro 7020 Core i7-14700T | 8GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 8GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 (this listing) | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
Looking for the previous generation? See the OptiPlex Micro 7010, OptiPlex Tower 7010 and OptiPlex Tower Plus 7010. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex SFF 7020 Owner’s Manual (Dell) |
| Datasheet | OptiPlex Small Form Factor 7020 Spec Sheet (Dell Technologies) |
| Manuals & drivers | OptiPlex SFF 7020 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex SFF 7020.
Frequently Asked Questions — Dell OptiPlex SFF 7020
Is this the OptiPlex SFF 7020 or SFF Plus 7020?
This configuration is the standard OptiPlex Small Form Factor 7020: two DDR5 slots (up to 64GB), one M.2 SSD slot, DisplayPort plus HDMI outputs and a 180 W power supply. Choose the SFF Plus 7020 for more memory, storage and display outputs.
Does it have Wi-Fi?
This configuration is wired Gigabit Ethernet; Wi-Fi is not listed in the supplied configuration. The chassis has an M.2 2230 slot for an optional Dell Wi-Fi/Bluetooth card — ask sales.
How many monitors can I connect?
DisplayPort 1.4a and HDMI 1.4b built in, plus one optional video port.
Can I upgrade the memory?
Yes — DDR5 UDIMM, two slots, up to 64GB (4800 MT/s with the Core i5-14500). The supplied 8GB (1 x 8GB) DDR5 UDIMM module leaves slots free for expansion.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
