Dell Pro Micro QCM1250 Core Ultra 5 235T 16GB 512GB Desktop
PRODUCT DESCRIPTION
Dell Pro Micro Desktop QCM1250 Intel Core Ultra 5 235T / 16GB / 512GB SSD / Wi-Fi (DPQCM1250C516G512) - 3 Years Local Warranty
Full Desktop Power in 1.18 Litres
The Dell Pro Micro QCM1250 measures just 182 x 36 x 178 mm, small enough to sit behind a monitor or under a desk, yet runs a 35 W Intel Core Ultra 5 235T processor with 14 cores (6 performance + 8 efficient), up to 5.0 GHz and 24 MB cache, plus an Intel AI Boost NPU of up to 13 TOPS.
Room to Grow
This configuration ships with 16GB DDR5 (1 x 16GB) in one of two SODIMM slots (up to 64GB) and a 512GB SSD, with a second M.2 SSD slot for expansion. Intel Wi-Fi 6E AX211 and Bluetooth come built in.
Connect Two Displays and More
HDMI 2.1 and DisplayPort 1.4a drive two monitors, while a front 10Gbps USB-C port, three 5Gbps USB-A ports, two USB 2.0 ports and Gigabit Ethernet cover peripherals and wired networking. An optional I/O module slot adds a third video output, serial or more USB.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell QCM1250 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Pro Micro Desktop QCM1250 |
| Part Number | DPQCM1250C516G512 |
| Processor | Intel Core Ultra 5 235T (35 W) |
| Memory | 16GB DDR5 (1 x 16GB), up to 5600 MT/s, non-ECC |
| Storage | 512GB SSD |
| Wireless | Intel Wi-Fi 6E AX211, 2x2, Bluetooth |
| Keyboard & Mouse | Dell Wired Keyboard KB216 and Dell USB Optical Mouse MS116 |
| Operating System | Windows 11 Pro |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra 5 235T: 14 cores (6P + 8E) / 14 threads, up to 5.0 GHz, 24 MB cache |
| NPU | Intel AI Boost, up to 13 TOPS |
| Graphics | Intel Graphics (integrated) |
Memory & Storage
| Memory Slots | 2 x DDR5 SODIMM, up to 64GB |
| Storage Slots | 2 x M.2 2230/2280 SSD slots (heatsinks for dual-SSD sold separately) |
| Wireless Slot | 1 x M.2 2230 for Wi-Fi/Bluetooth |

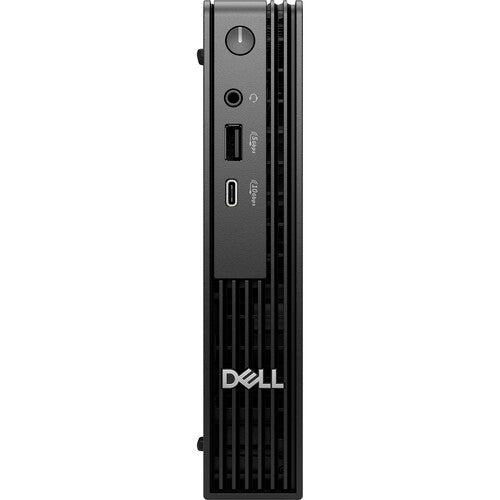

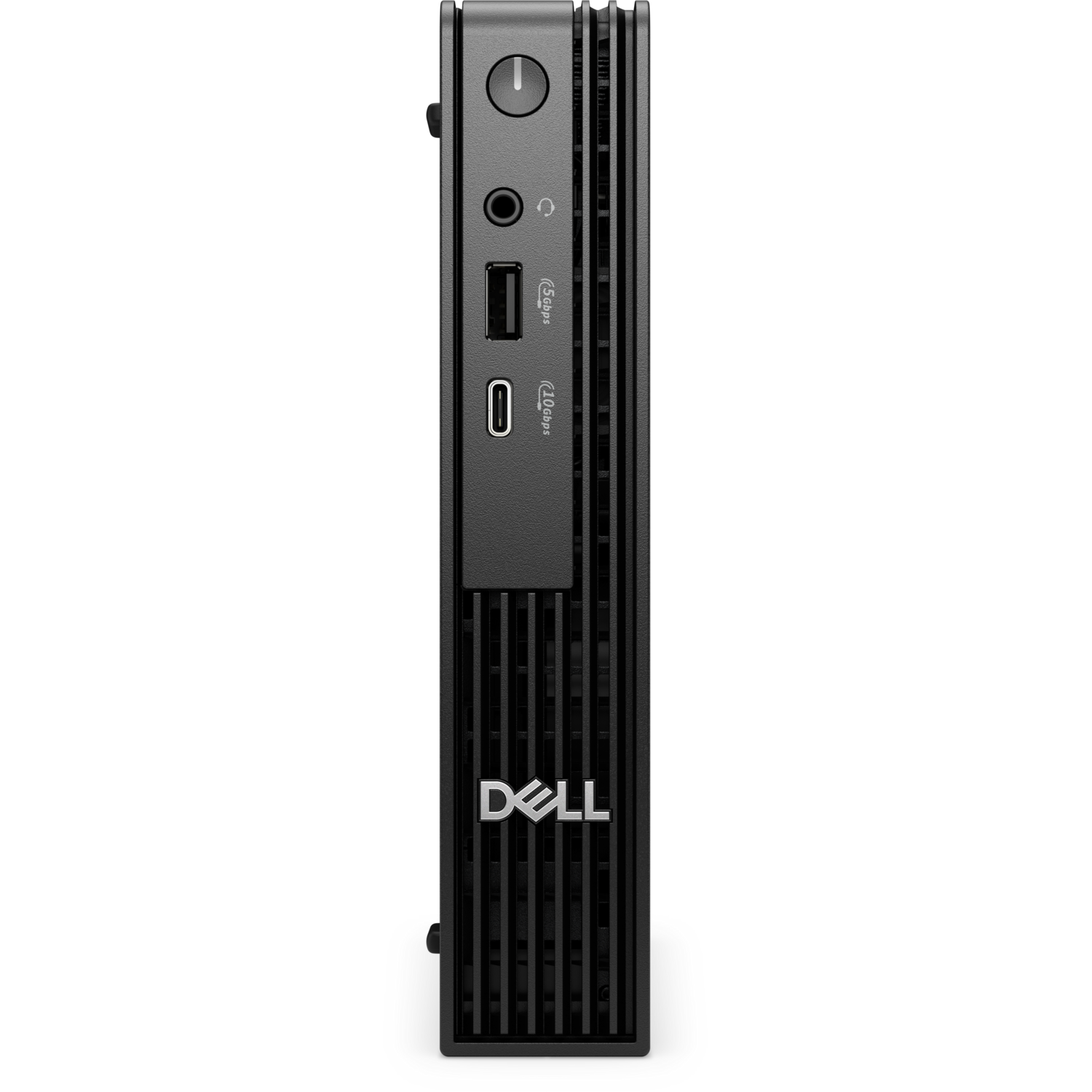

Front Ports
| USB-C | 1 x USB 3.2 Gen 2 (10Gbps) Type-C |
| USB-A | 1 x USB 3.2 Gen 1 (5Gbps) |
| Audio | 1 x headset (headphone and microphone combo) jack |

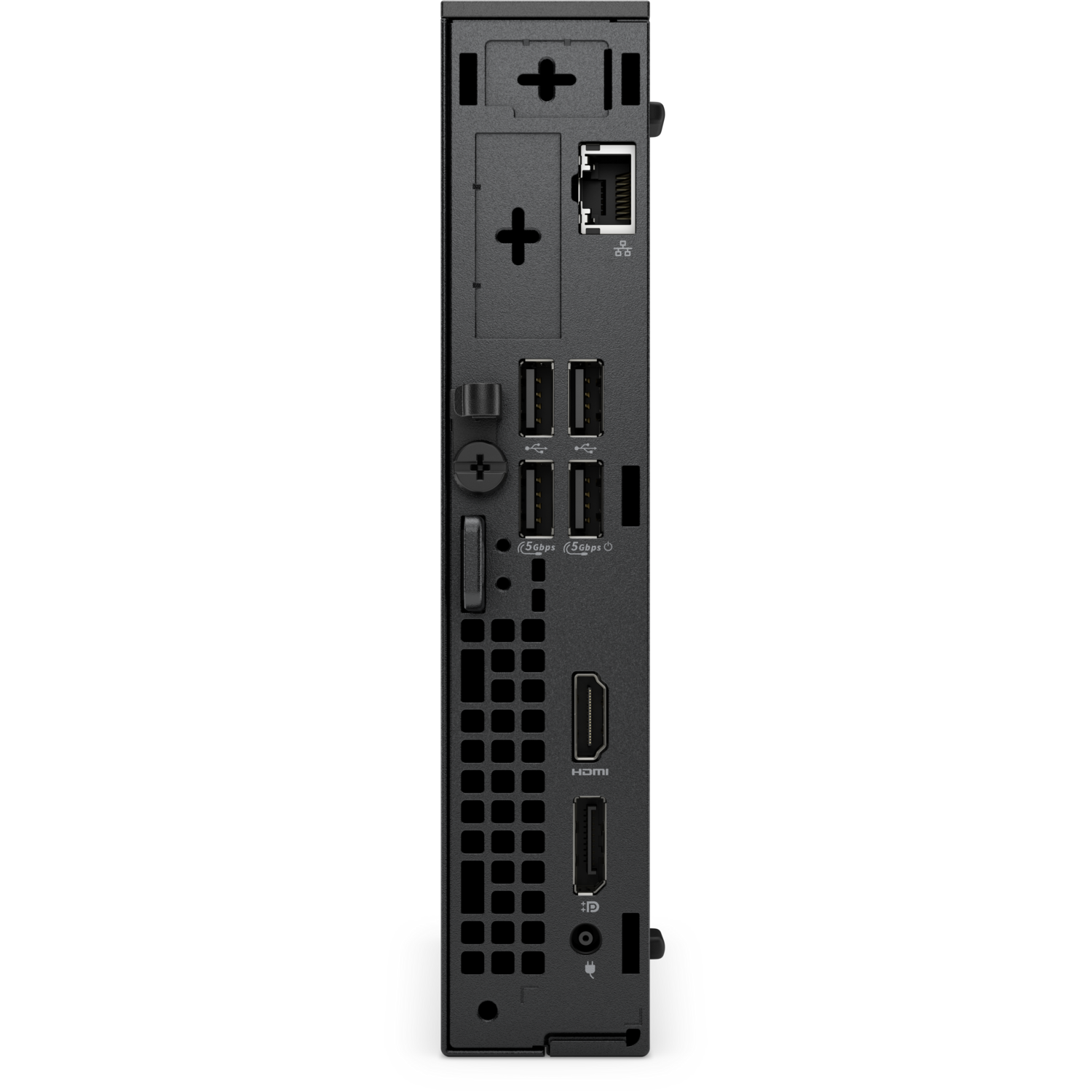

Rear Ports
| Video | 1 x HDMI 2.1 (TMDS); 1 x DisplayPort 1.4a (HBR3 with Core Ultra processors) |
| USB | 2 x USB 3.2 Gen 1 (5Gbps), one with SmartPower On; 2 x USB 2.0 |
| Network | 1 x RJ45, 10/100/1000 Mbps |
| Expansion | Optional I/O module port (HDMI, DisplayPort, VGA, USB-C, USB-A, serial, PS2 or fibre options); optional external antenna port |
| Power | 4.5 mm DC-in |
Power
| Power Adapter | External 65 W or 90 W, 19.5 V, 4.5 mm barrel |
Security
| TPM | TPM 2.0 |
| Physical | Kensington security-cable slot, padlock ring, chassis intrusion switch, lockable cable covers |
| Firmware | Dell SafeBIOS (off-host BIOS verification, BIOS resilience and recovery) |
Physical & Environmental
| Dimensions (H x W x D) | 182.00 x 36.00 x 178.00 mm |
| Volume | 1.18 L |
| Weight | 1.16–1.40 kg, depending on configuration |
| Certifications | ENERGY STAR; EPEAT Gold registered with Climate+ |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro.
Mounting
Dell offers the Dell Pro Micro All-in-One Stand, Dual VESA Mount with Adapter Bracket, Vertical Desktop Stand and Wall/Under-the-Desk VESA Mount with PSU Sleeve for behind-the-monitor and under-desk installs.
Typical Use
Reception and front desks, hot desks, kiosks, meeting rooms and large office roll-outs where desk space is tight but a full Windows desktop is needed.
Package Contents & Dell Pro Micro Ordering Information
In the Box
Dell Pro Micro QCM1250 desktop, external power adapter, Dell Wired Keyboard KB216 and Dell USB Optical Mouse MS116.
Dell Pro Micro Configurations at SourceIT
| Processor | Memory / SSD |
| Core Ultra 5 235T (this listing) | 16GB / 512GB |
| Core Ultra 7 265T | 32GB / 512GB |
Datasheet & Downloads
| Dell brochure | Dell Pro Micro desktop brochure (PDF) |
| Manuals & drivers | Dell Pro Micro QCM1250 manuals on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting QCM1250.
Frequently Asked Questions — Dell QCM1250
How many monitors can I connect?
Two as standard, via HDMI 2.1 and DisplayPort 1.4a. The optional I/O module can add another video output.
Can I add more memory or storage?
Yes. There are two DDR5 SODIMM slots (up to 64GB) and two M.2 SSD slots; a second SSD needs a heatsink, sold separately.
Can it be mounted behind a monitor?
Yes, with Dell's Pro Micro mounting accessories such as the Dual VESA Mount with Adapter Bracket.
Does it have Wi-Fi?
Yes. This configuration includes Intel Wi-Fi 6E AX211 with Bluetooth, plus Gigabit Ethernet.
What warranty do I get?
3 years, supplied locally by SourceIT with a GST invoice.
