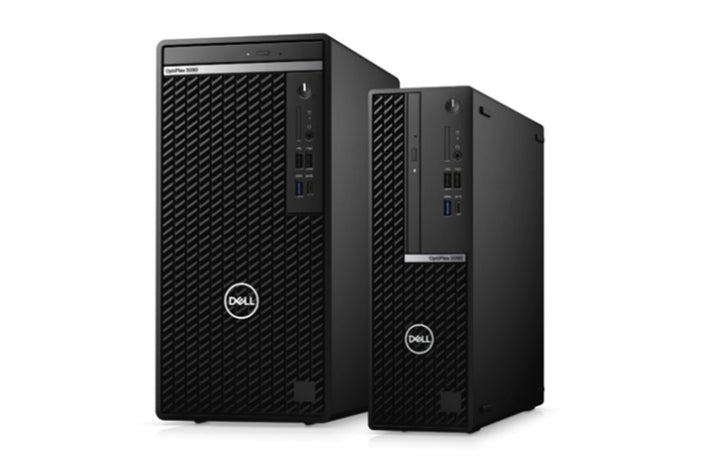

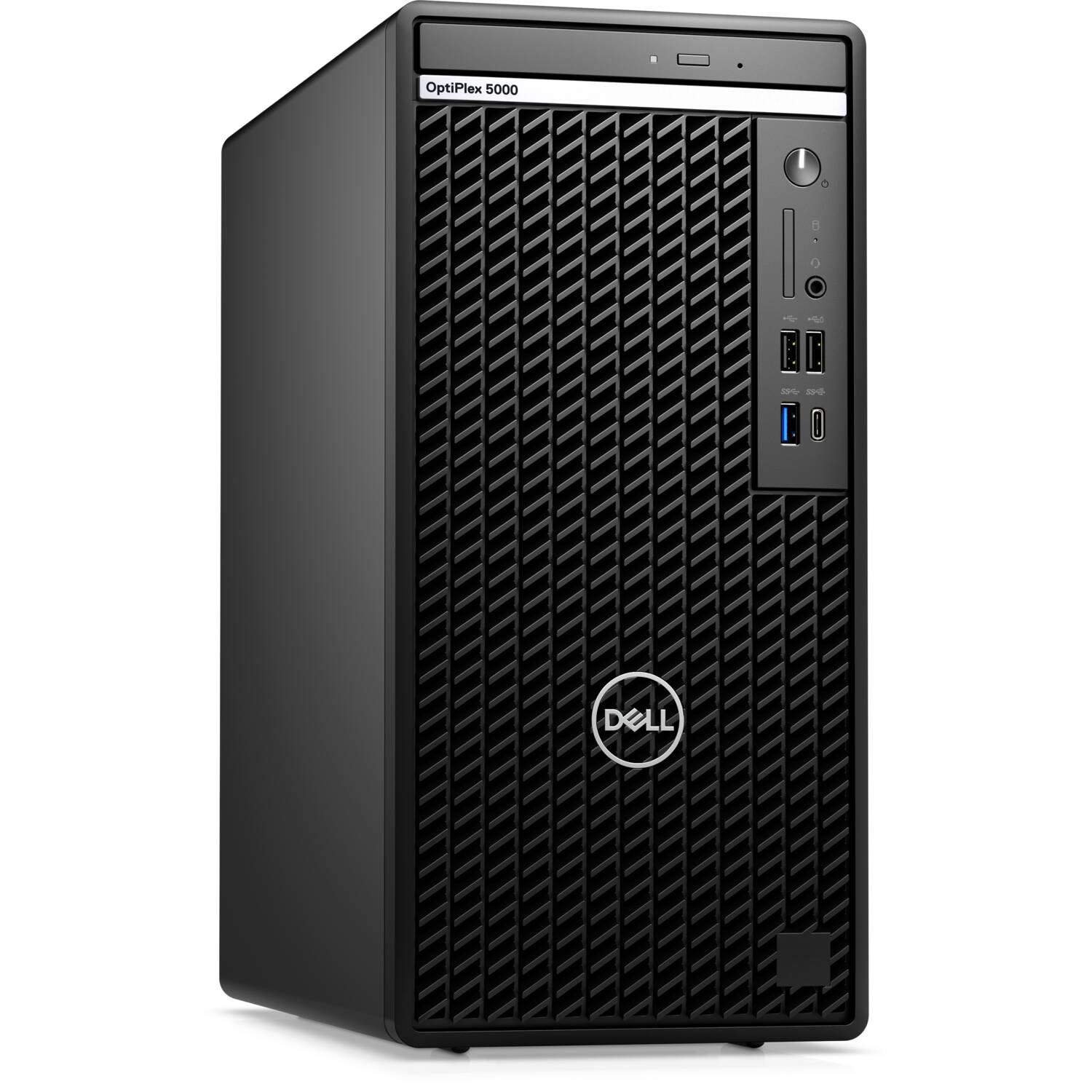

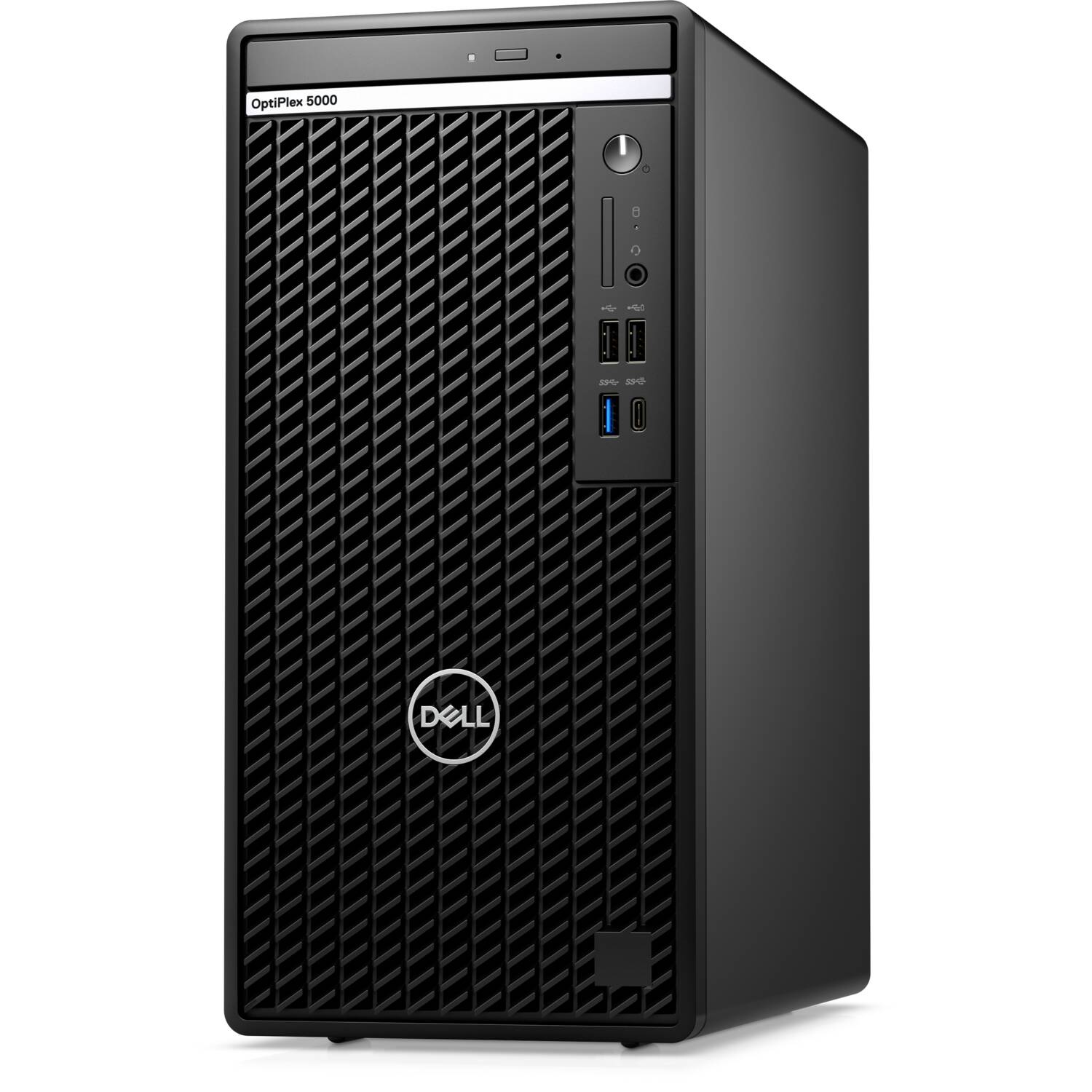

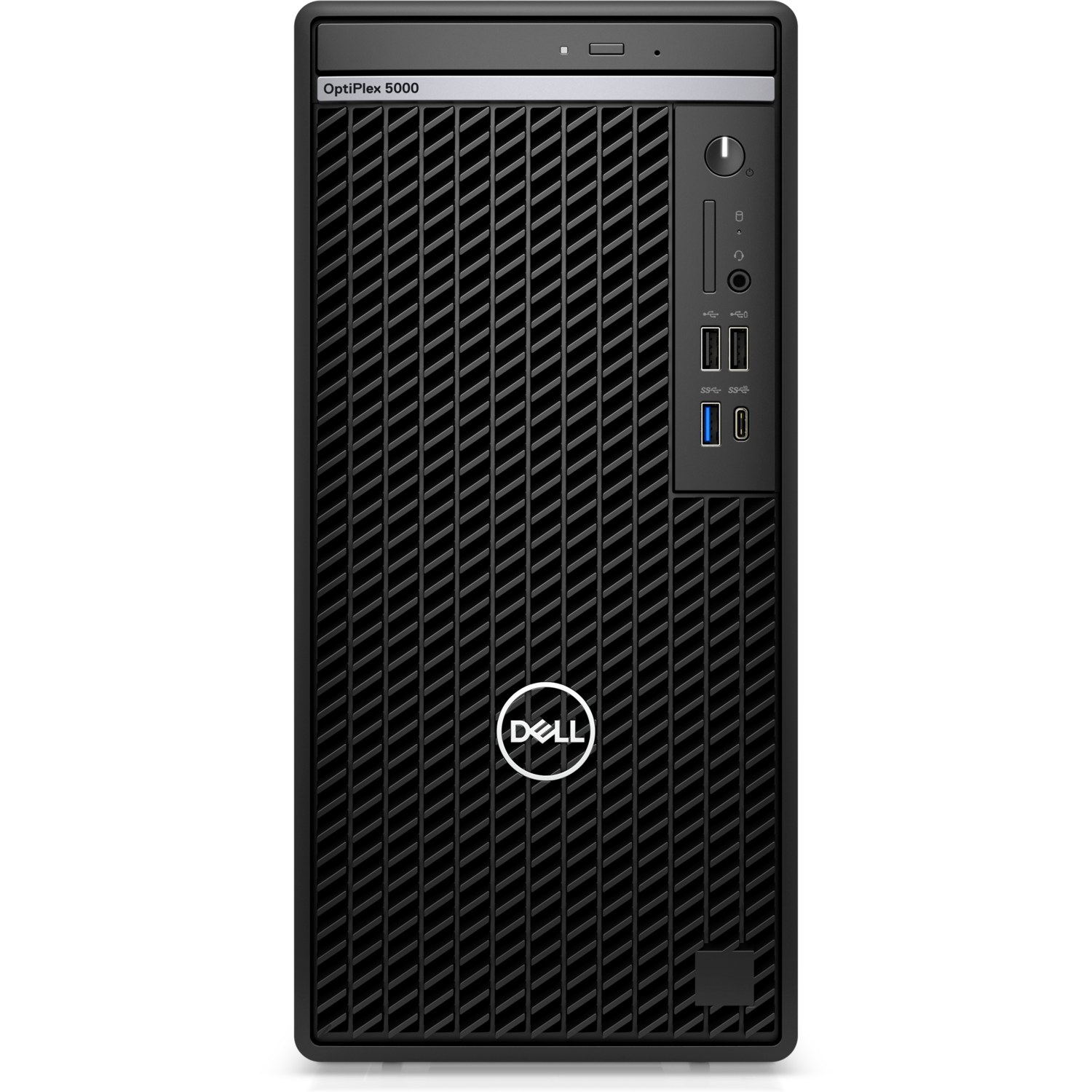

Dell OptiPlex 5000 Tower / SFF / Micro Business Desktop
PRODUCT DESCRIPTION
Dell OptiPlex 5000 Series Tower / Small Form Factor / Micro Desktop 12th Gen Intel Core i5 / i7, 8GB DDR4, 512GB SSD or 1TB HDD, Windows 11 Pro (210-BCRM / 210-BCRK / 210-BCRG) - 3 Years Dell ProSupport Local Warranty
12th Gen Intel Core i5 and i7 Performance
Tower and Small Form Factor configurations use the Intel Core i5-12500 (6 cores, up to 4.6 GHz) or Core i7-12700 (12 cores, up to 4.9 GHz) on the Intel Q670 chipset, while the Micro uses the 35 W Core i7-12700T (12 cores, up to 4.7 GHz). Every configuration has Intel UHD Graphics 770 and 8GB of DDR4-3200 memory.
Three Chassis for Any Workspace
Choose the Tower (324.3 x 154 x 292.2 mm) for the most expansion, the Small Form Factor (290 x 92.6 x 292.8 mm) for a compact desktop with full-size drive bays, or the 1.33 kg Micro (182 x 36 x 178 mm) that fits behind a monitor or on a mount.
Built-in Business Security
TPM 2.0, Dell SafeBIOS with off-host BIOS verification, a chassis intrusion switch, supply chain tamper alerts, a padlock ring and Kensington security-cable slot help protect every system on your network.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex 5000 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex 5000 Series (Tower, Small Form Factor, Micro) — series listing, choose chassis and configuration from the options |
| Part Numbers | Tower 210-BCRM, Small Form Factor 210-BCRK, Micro 210-BCRG |
| Tower (listed as Mini Tower) | Core i5-12500 or Core i7-12700 / 8GB (1 x 8GB) DDR4 / 512GB M.2 2230 PCIe NVMe Class 35 SSD or 1TB 3.5-inch 7200 rpm SATA HDD / 8x DVD+/-RW drive |
| Small Form Factor | Core i5-12500 or Core i7-12700 / 8GB (1 x 8GB) DDR4 / 512GB M.2 2230 PCIe NVMe Class 35 SSD or 1TB 3.5-inch 7200 rpm SATA HDD / 8x DVD+/-RW slim drive |
| Micro | Core i7-12700T / 8GB (1 x 8GB) DDR4 / 512GB M.2 2230 PCIe NVMe Class 35 SSD / internal Wi-Fi and Bluetooth card |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Operating System | Windows 10 Pro image including a Windows 11 Pro licence |
| Accessories | Dell KB216 wired keyboard and Dell MS116 USB optical mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport |
Processor & Graphics
| Core i5-12500 (Tower / SFF) | 6 cores / 12 threads, 3.0–4.6 GHz, 18 MB cache, 65 W, vPro, Intel UHD Graphics 770 |
| Core i7-12700 (Tower / SFF) | 12 cores / 20 threads, 2.1–4.9 GHz, 25 MB cache, 65 W, vPro, Intel UHD Graphics 770 |
| Core i7-12700T (Micro) | 12 cores / 20 threads, 1.4–4.7 GHz, 25 MB cache, 35 W, vPro, Intel UHD Graphics 770 |
| Chipset | Intel Q670 (Tower / SFF), PCIe up to Gen 4 |
Memory & Storage
| Memory (Tower / SFF) | 8GB DDR4 3200 MHz supplied; four DIMM slots, up to 128GB (4 x 32GB) |
| Memory (Micro) | 8GB DDR4 3200 MHz supplied; two SODIMM slots, up to 64GB (2 x 32GB) |
| Storage supplied | 512GB M.2 2230 PCIe NVMe SSD or 1TB 3.5-inch 7200 rpm SATA HDD, per option |
| Storage support | Tower / SFF: M.2 2230/2280 NVMe SSD plus 2.5-inch and 3.5-inch SATA bays; Micro: one M.2 SSD plus one 2.5-inch SATA drive |
| Optical Drive | 8x DVD+/-RW on Tower and SFF configurations; none on Micro |
| Card Reader | SD card slot optional on Tower / SFF; not supported on Micro |
Ports
| Tower / SFF front | 1 x USB 2.0, 1 x USB 2.0 with PowerShare, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, universal audio jack |

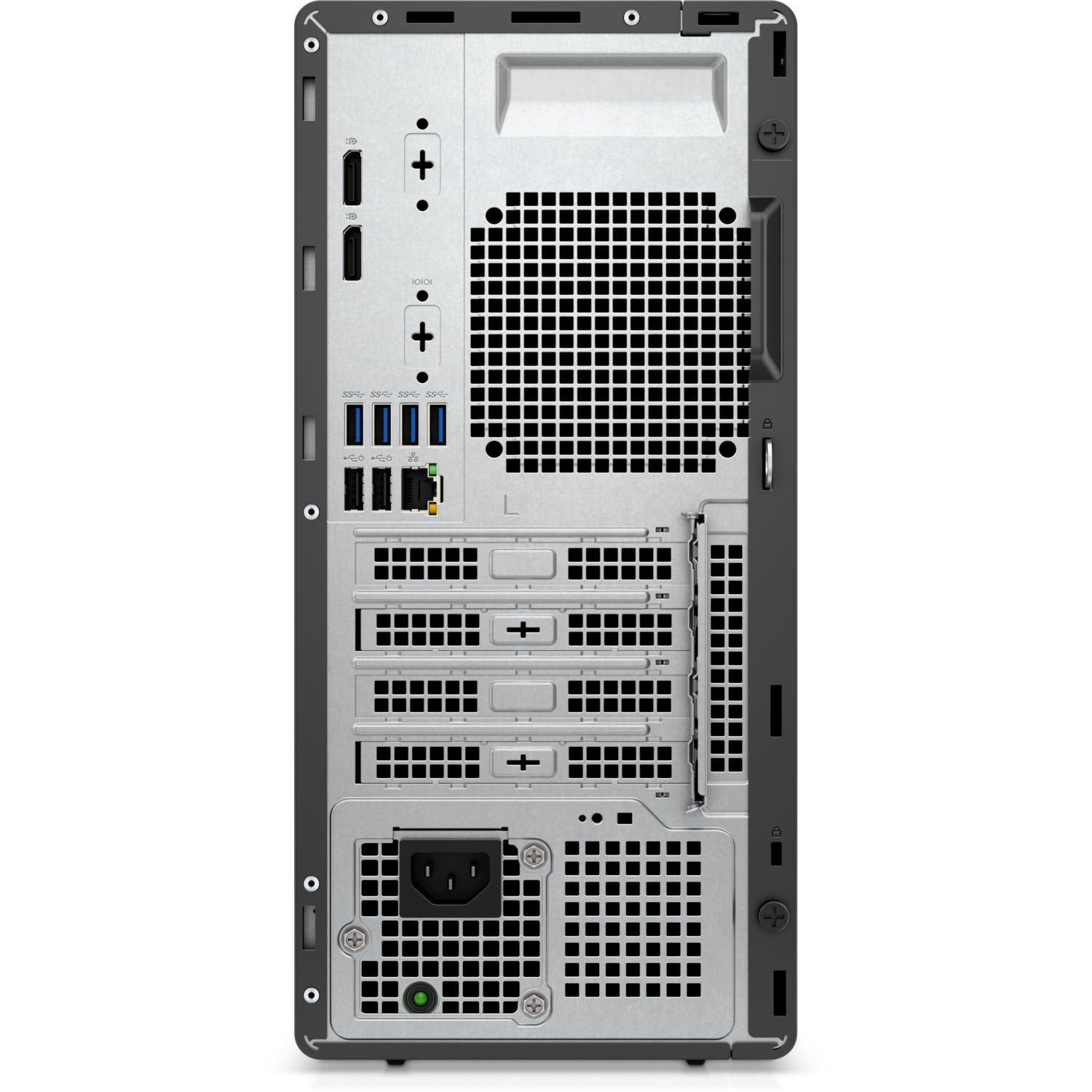

| Tower / SFF rear | 4 x USB 3.2 Gen 1, 2 x USB 2.0 with Smart Power On, 2 x DisplayPort 1.4a, 1 x RJ45 Ethernet, one optional video port (HDMI 2.0b / DisplayPort / VGA / USB-C Alt mode) |
| Micro front | 1 x USB 3.2 Gen 1 with PowerShare, 1 x USB 3.2 Gen 2 Type-C, universal audio jack |
| Micro rear | 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 with Smart Power On, 2 x DisplayPort 1.4a, 1 x RJ45 Gigabit Ethernet, one optional port (HDMI 2.0b / DisplayPort / VGA / PS2 / serial / USB-C), DC-in |
Power
| Tower | Internal PSU: 240 W or 260 W 80 Plus Bronze, or 400 W 80 Plus Platinum; 90–264 VAC |
| Small Form Factor | Internal PSU: 240 W or 260 W 80 Plus Bronze, or 300 W 80 Plus Platinum; 90–264 VAC |
| Micro | External 90 W or 130 W power adapter, 19.5 V DC, 4.5 mm barrel |
Security
| Hardware | TPM 2.0, chassis intrusion switch, supply chain tamper alerts, Kensington security-cable slot, padlock ring (Tower / SFF also: chassis lock slot and lockable cable covers) |
| Firmware & Software | Dell SafeBIOS (off-host BIOS verification, BIOS resilience and recovery), Intel Secure Boot, BIOS Secure Erase, Windows BitLocker support |
Physical
| Tower (H x W x D) | 324.30 x 154.00 x 292.20 mm; 5.41–7.34 kg |
| Small Form Factor (H x W x D) | 290.00 x 92.60 x 292.80 mm; 3.84–5.16 kg |
| Micro (H x W x D) | 182.00 x 36.00 x 178.00 mm; 1.33 kg |
Compatibility & Software Support
Operating System
Supplied with a Windows 10 Pro image and a Windows 11 Pro licence. Dell lists Windows 11 Pro and Ubuntu Linux 20.04 LTS as supported operating systems.
Displays
All three chassis have two DisplayPort 1.4a outputs as standard, plus one optional video port (HDMI 2.0b, DisplayPort, VGA or USB-C with DisplayPort Alt mode) fitted at order time.
Upgrades
Tower and SFF have four DDR4 DIMM slots (up to 128GB) and bays for extra 2.5-inch or 3.5-inch SATA drives. The Micro has two DDR4 SODIMM slots (up to 64GB) and room for one 2.5-inch SATA drive alongside the M.2 SSD.
Manageability
Dell Command tools, SupportAssist and Dell Update work with the OptiPlex 5000 for driver, BIOS and fleet management.
Package Contents & Dell OptiPlex Desktop Ordering Information
In the Box
Dell OptiPlex 5000 desktop in the chosen chassis, Dell KB216 wired keyboard, Dell MS116 USB optical mouse, power cable (Tower / SFF) or external power adapter (Micro) and documentation.
Dell OptiPlex Desktops at SourceIT
Looking for the current generation? See the Dell Pro Tower QCT1250 and Dell Pro Micro QCM1250. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | OptiPlex 5000 Tower Setup and Specifications |
| Setup & specifications | OptiPlex 5000 Small Form Factor Setup and Specifications |
| Setup & specifications | OptiPlex 5000 Micro Setup and Specifications |
| Manuals & drivers | OptiPlex 5000 Tower on Dell Support Singapore |
| Manuals & drivers | OptiPlex 5000 Small Form Factor on Dell Support Singapore |
| Manuals & drivers | OptiPlex 5000 Micro on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex 5000.
Frequently Asked Questions — Dell OptiPlex 5000
Which chassis should I choose?
The Tower has the most room for drives and expansion cards, the Small Form Factor is about 92.6 mm wide with the same memory capacity, and the 1.33 kg Micro (36 mm wide) uses 35 W processors and an external power adapter for the smallest footprint.
Can I upgrade the memory?
Yes. The Tower and SFF have four DDR4-3200 DIMM slots supporting up to 128GB; the Micro has two DDR4-3200 SODIMM slots supporting up to 64GB. All configurations ship with a single 8GB module.
Does it support Intel vPro?
Dell lists the Core i5-12500, Core i7-12700 and Core i7-12700T used in these configurations as vPro processors.
Does it include an optical drive or Wi-Fi?
Tower and SFF configurations include an 8x DVD+/-RW drive and wired Gigabit Ethernet. The Micro has no optical drive but includes an internal Wi-Fi and Bluetooth card.
How many monitors can I connect?
Every chassis has two DisplayPort 1.4a ports as standard, plus one optional video port (HDMI, DisplayPort, VGA or USB-C) if fitted.
Is it still available?
The OptiPlex 5000 series is no longer available for order. Check remaining stock with sales, or see the current Dell Pro Tower QCT1250, Dell Pro Micro QCM1250 and OptiPlex 7020 listings.
What warranty do I get?
3 years Dell ProSupport, supplied locally by SourceIT with a GST invoice.
