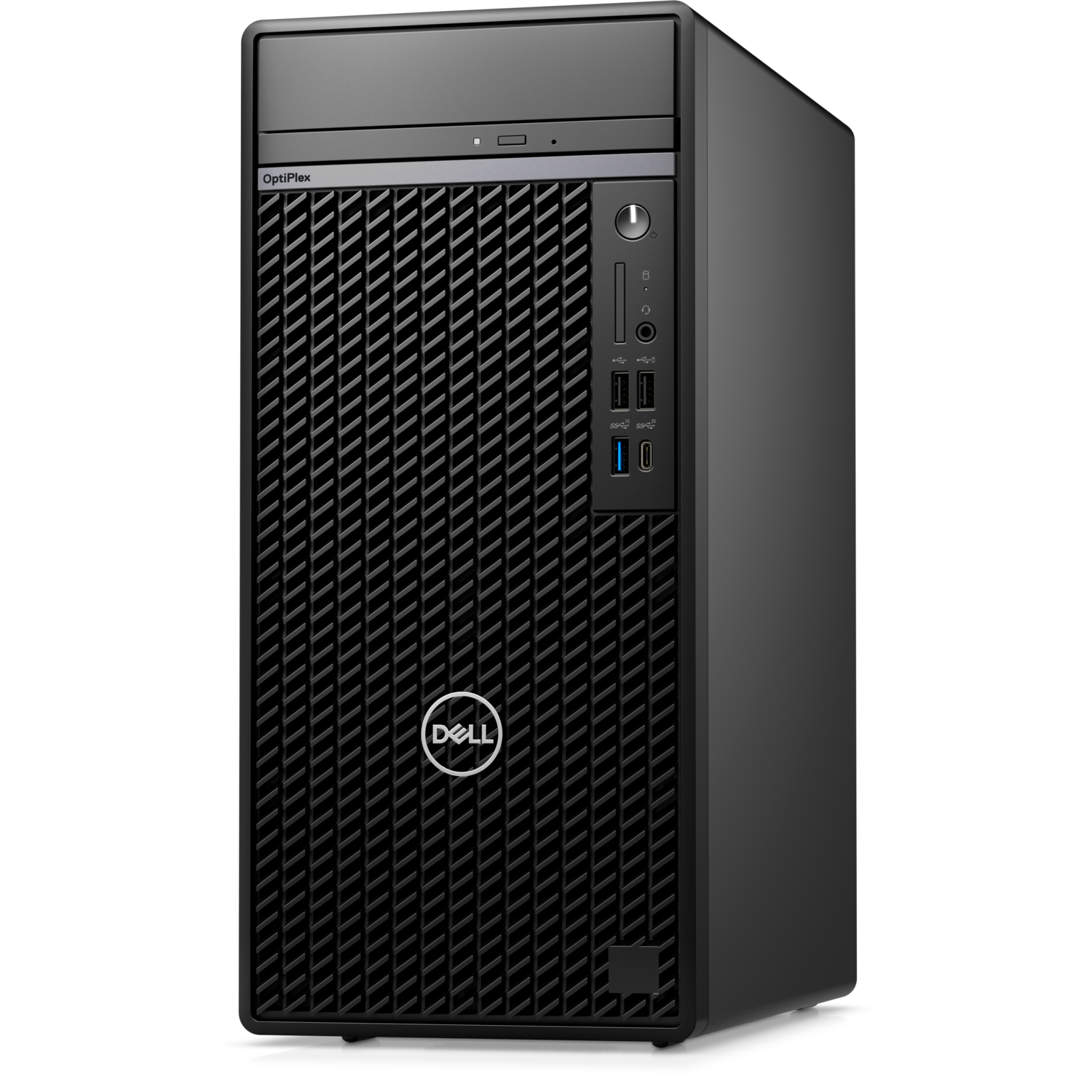

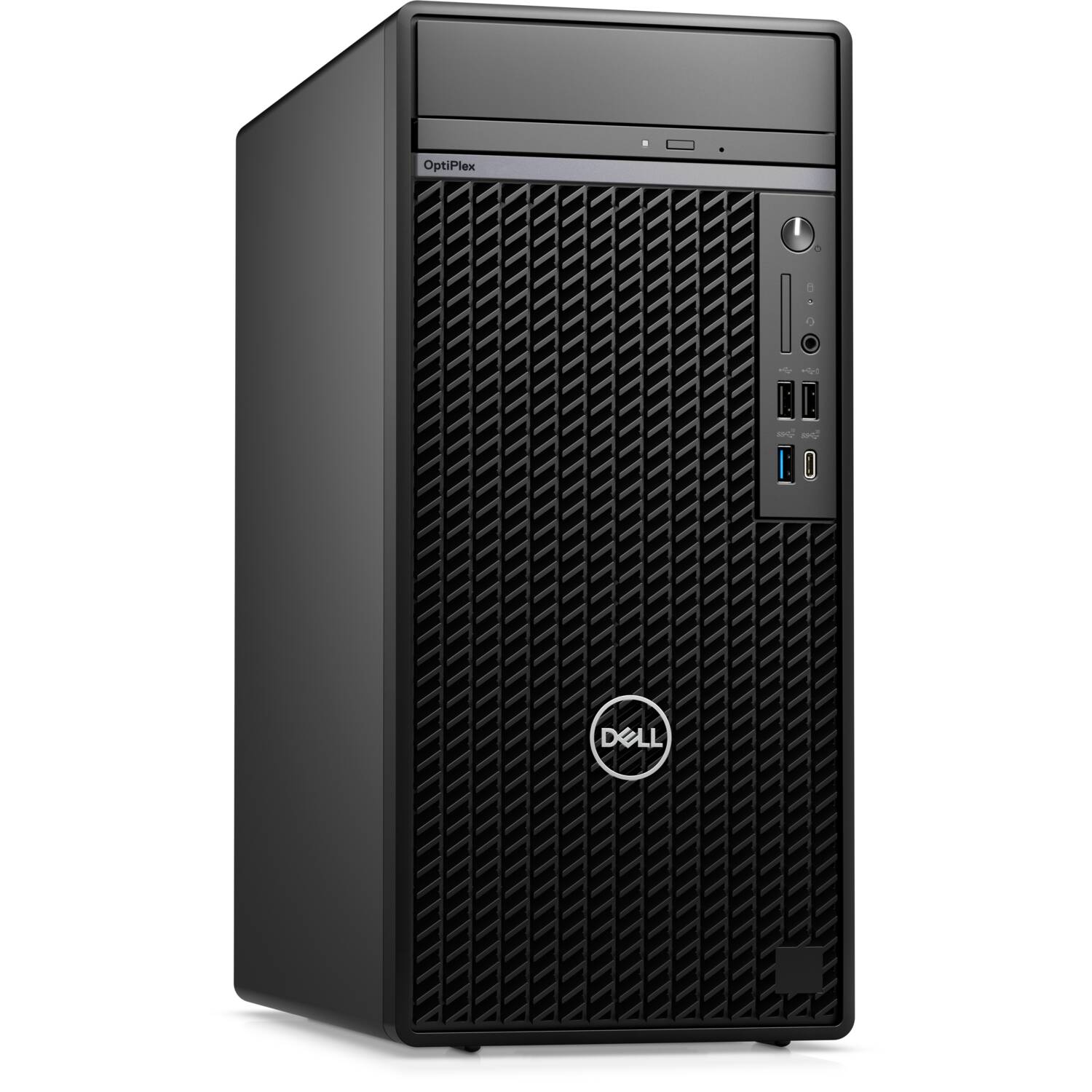

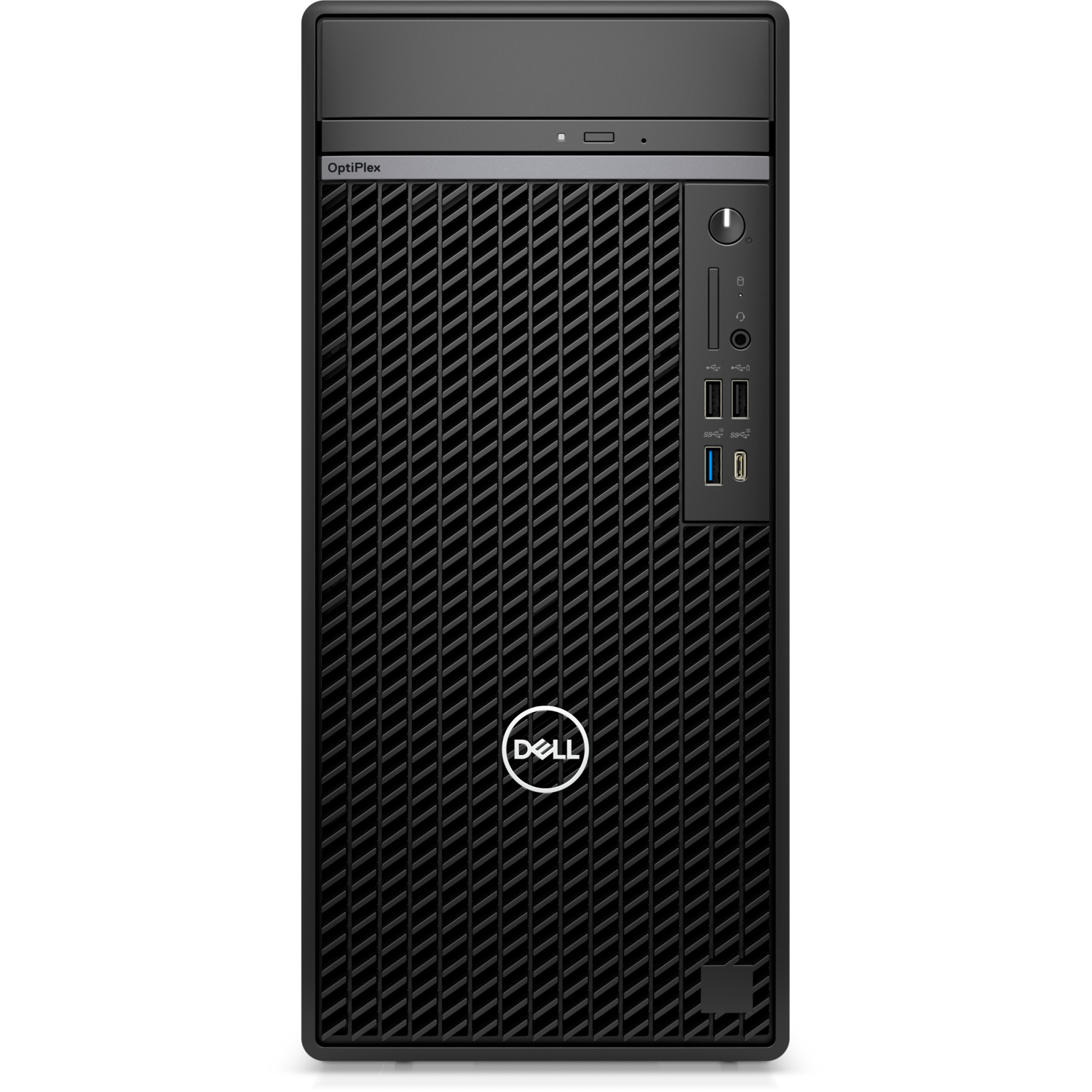

Dell OptiPlex Tower Plus 7020 Core i7-14700 8GB 1TB SSD Desktop
PRODUCT DESCRIPTION
Dell OptiPlex Tower Plus 7020 Desktop Intel Core i7-14700 vPro / 8GB / 1TB SSD (210-BLDN / AO7020PMTI781TB) - 3 Years ProSupport NBD Onsite Warranty
14th Gen Intel Core i7-14700 vPro Performance
The 65 W Core i7-14700 vPro (20 cores, 28 threads, up to 5.3 GHz) with Intel UHD Graphics 770 on the Intel Q670 chipset handles heavy multitasking, analytics and content work, backed by 8GB of DDR5 memory and a fast 1TB PCIe NVMe SSD.
Expandable Tower Plus Chassis
Four DDR5 slots (up to 128GB), three M.2 SSD slots, PCIe Gen 4 x16 for a discrete graphics card, three DisplayPort outputs and a slim DVD writer make the Tower Plus 7020 a long-life, serviceable business desktop.
Business-Class Security and Manageability
TPM 2.0 (Dell SafeID), Dell SafeBIOS, supply chain tamper alerts and Intel vPro manageability, with 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex Tower Plus 7020 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex Tower Plus 7020 |
| Part Number | 210-BLDN / AO7020PMTI781TB |
| Processor | Intel Core i7-14700 vPro — 20 cores (8P + 12E), 28 threads, 33 MB cache, 2.1–5.3 GHz, 65 W |
| Memory | 8GB (1 x 8GB) DDR5 UDIMM, up to 4400 MT/s |
| Storage | 1TB M.2 2230 PCIe NVMe SSD |
| Optical Drive | 8x DVD+/-RW 9.5 mm slimline |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell KB216 wired keyboard and MS116 optical mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-14700 vPro — 20 cores (8P + 12E), 28 threads, 33 MB cache, 2.1–5.3 GHz, 65 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 8GB (1 x 8GB) DDR5 UDIMM |
| Memory support | DDR5 UDIMM, four slots, up to 128GB (up to 4400 MT/s) |
| Storage supplied | 1TB M.2 PCIe NVMe SSD |
| Storage support | Three M.2 2230/2280 PCIe Gen 4 NVMe SSD slots, one M.2 2230 Wi-Fi/Bluetooth slot, four SATA 3.0 connectors for 3.5-inch hard drives and slim optical drive |
Ports
| Front | 1 x USB 3.2 Gen 2x2 (20 Gbps) Type-C, 1 x USB 3.2 Gen 2 (10 Gbps), 1 x USB 2.0 with PowerShare, 1 x USB 2.0, universal audio jack, optional SD card reader |

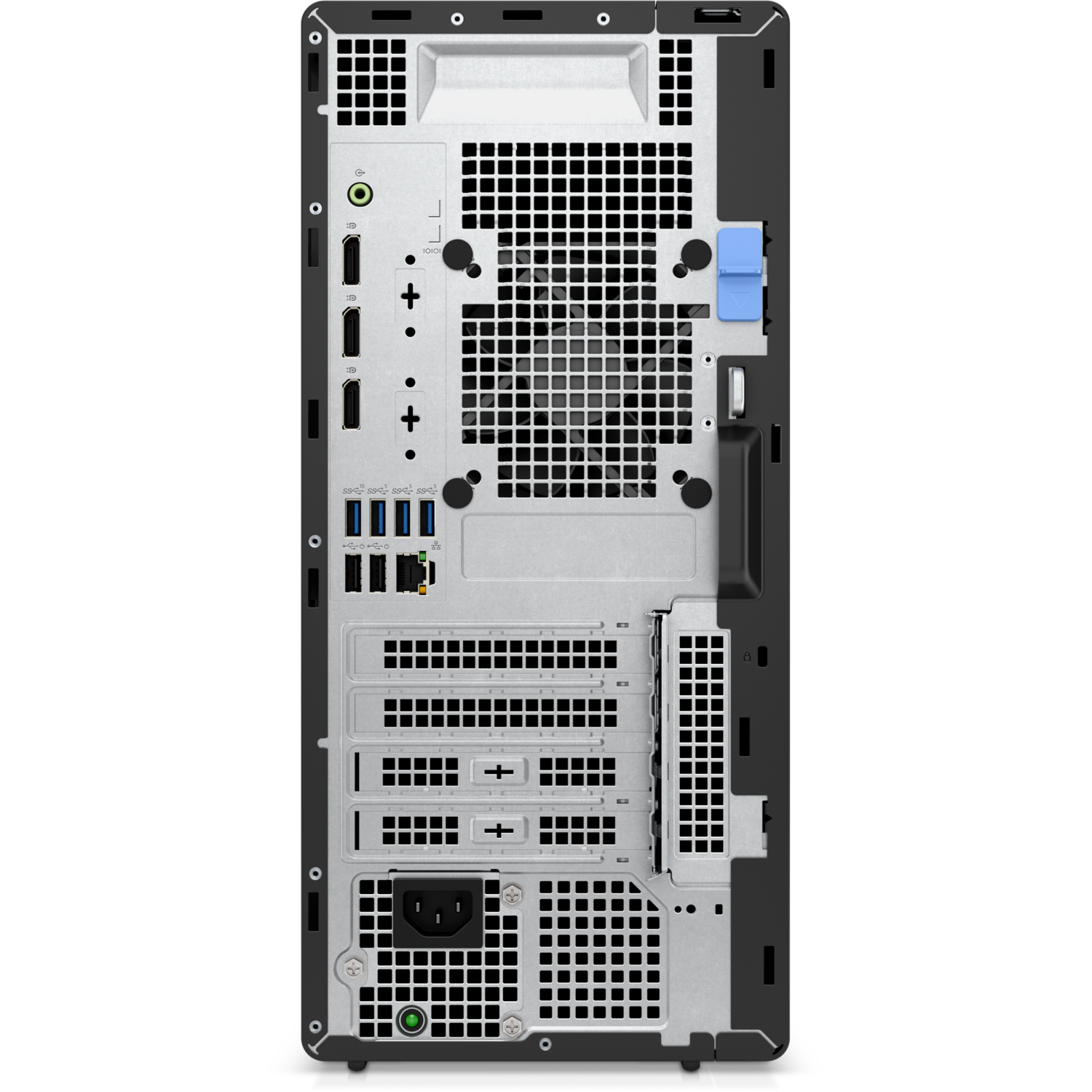

| Rear | 3 x DisplayPort 1.4a, 1 x USB 3.2 Gen 2 (10 Gbps), 3 x USB 3.2 Gen 1 (5 Gbps), 2 x USB 2.0 with Smart Power On, re-taskable line-out/line-in, RJ45 Gigabit Ethernet |
| Optional | One video port (HDMI 2.1 / DisplayPort 1.4a / VGA / USB Type-C with DisplayPort), serial port, external antenna; expansion 1 x PCIe Gen 4 x16, 1 x PCIe Gen 3 x4 (open-end), 1 x PCIe Gen 3 x1, 1 x PCI (full height) |
Power & Physical
| Power | Internal 260 W 80 Plus Bronze or 500 W 80 Plus Platinum |
| Dimensions & Weight | 367 x 169 x 300.8 mm (H x W x D); 5.93–9.63 kg |
Security
| Security | TPM 2.0 (Dell SafeID), Dell SafeBIOS, Intel Secure Boot, supply chain tamper alerts, chassis intrusion switch, lockable cable covers, Kensington slot, padlock ring |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 11 Pro National Education and Ubuntu Linux 22.04 LTS for the OptiPlex Tower Plus 7020.
Displays
Three DisplayPort 1.4a built in, plus one optional video port. Install the latest Intel graphics driver from Dell Support for multi-monitor use.
Upgrades
Memory: DDR5 UDIMM, four slots, up to 128GB (up to 4400 MT/s). Storage: Three M.2 2230/2280 PCIe Gen 4 NVMe SSD slots, one M.2 2230 Wi-Fi/Bluetooth slot, four SATA 3.0 connectors for 3.5-inch hard drives and slim optical drive.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex 7020 Ordering Information
In the Box
Dell OptiPlex Tower Plus 7020 desktop, power cable, Dell KB216 wired keyboard, Dell MS116 optical mouse and documentation.
Dell OptiPlex 7020 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex Micro 7020 Core i5-14600T | 8GB / 512GB SSD |
| OptiPlex Micro 7020 Core i7-14700T | 8GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 (this listing) | 8GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
Looking for the previous generation? See the OptiPlex Micro 7010, OptiPlex Tower 7010 and OptiPlex Tower Plus 7010. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex Tower Plus 7020 Owner’s Manual (Dell) |
| Datasheet | OptiPlex Tower Plus 7020 Spec Sheet (Dell Technologies) |
| Manuals & drivers | OptiPlex Tower Plus 7020 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex Tower Plus 7020.
Frequently Asked Questions — Dell OptiPlex Tower Plus 7020
Is this the OptiPlex Tower 7020 or Tower Plus 7020?
This configuration is the OptiPlex Tower Plus 7020: larger chassis with four DDR5 slots (up to 128GB), PCIe Gen 4, three M.2 SSD slots, three DisplayPort outputs and 20 Gbps USB-C.
Does it have Wi-Fi?
This configuration is wired Gigabit Ethernet; Wi-Fi is not listed in the supplied configuration. The tower has an M.2 2230 slot for an optional Dell Wi-Fi/Bluetooth card — ask sales.
How many monitors can I connect?
Three DisplayPort 1.4a built in, plus one optional video port.
Can I upgrade the memory?
Yes — DDR5 UDIMM, four slots, up to 128GB (up to 4400 MT/s). The supplied 8GB (1 x 8GB) DDR5 UDIMM module leaves slots free for expansion.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
