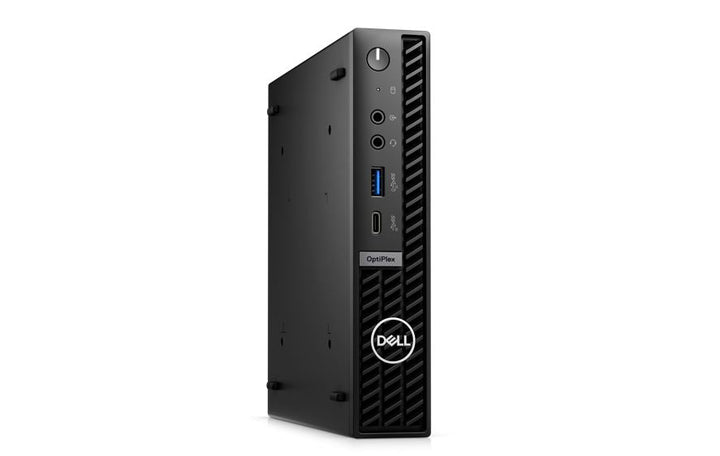

Dell OptiPlex Micro 7020 Core i7-14700T 8GB 512GB SSD Desktop
PRODUCT DESCRIPTION
Dell OptiPlex Micro 7020 Desktop Intel Core i7-14700T vPro / 8GB / 512GB SSD (210-BKXD) - 3 Years ProSupport NBD Onsite Warranty
14th Gen Intel Core i7-14700T vPro in a 1-Litre Chassis
The 35 W Core i7-14700T vPro (20 cores, 28 threads) with Intel UHD Graphics 770 runs office suites, browsers, video calls and line-of-business apps, backed by 8GB of DDR5-5600 memory and a fast 512GB PCIe NVMe SSD.
Space-Saving Micro Form Factor
At 182 x 36 x 178 mm and about 1.3 kg, the OptiPlex Micro 7020 fits on a desk, under it or behind a monitor with Dell mounting options, while Wi-Fi 6E and Bluetooth 5.3 keep cabling to a minimum.
Business-Class Security and Manageability
Discrete TPM 2.0, Dell SafeBIOS and a chassis intrusion switch protect data, while Intel vPro and Dell Command tools simplify fleet management — with 3 years of Dell ProSupport next-business-day onsite service included.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex Micro 7020 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex Micro 7020 |
| Part Number | 210-BKXD |
| Processor | Intel Core i7-14700T vPro — 20 cores (8P + 12E), 28 threads, 33 MB cache, up to 5.0 GHz, 35 W |
| Memory | 8GB (1 x 8GB) DDR5 SO-DIMM, 5600 MT/s |
| Storage | 512GB M.2 2230 PCIe NVMe SSD |
| Wireless | Intel Wi-Fi 6E AX211 2x2 + Bluetooth 5.3 |
| Operating System | Windows 11 Pro |
| Keyboard & Mouse | Dell KB216 wired keyboard and MS116 optical mouse |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-14700T vPro — 20 cores (8P + 12E), 28 threads, 33 MB cache, up to 5.0 GHz, 35 W |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Chipset | Intel Q670 |
Memory & Storage
| Memory supplied | 8GB (1 x 8GB) DDR5 SO-DIMM |
| Memory support | DDR5 SO-DIMM, two slots, up to 64GB (5600 MT/s with i5-14600T / i7-14700T) |
| Storage supplied | 512GB M.2 PCIe NVMe SSD |
| Storage support | Two M.2 2230/2280 PCIe NVMe SSD slots plus one M.2 2230 slot for the Wi-Fi/Bluetooth card |
Ports

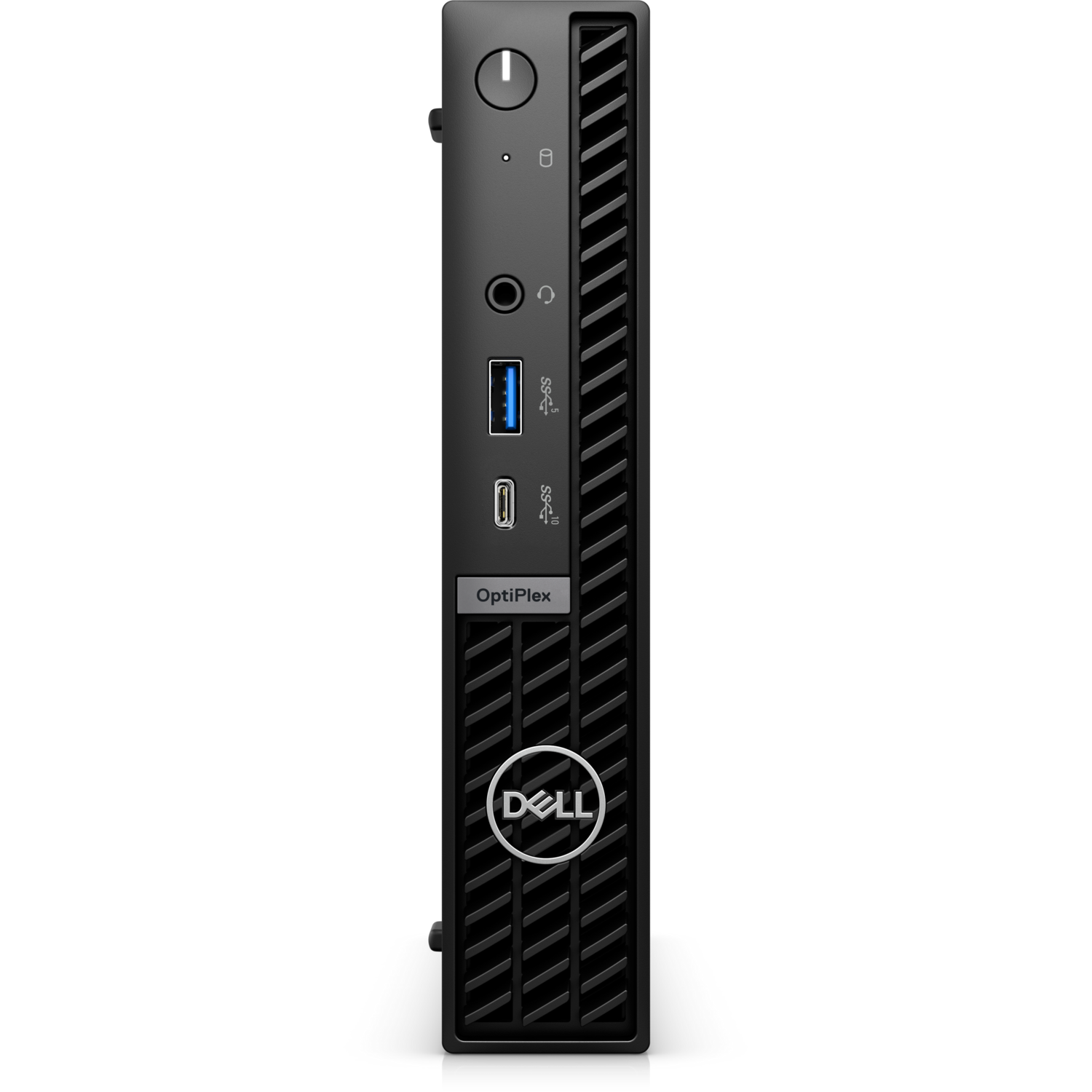

| Front | 1 x USB 3.2 Gen 1 (5 Gbps), 1 x USB 3.2 Gen 2 (10 Gbps) Type-C, universal audio jack |

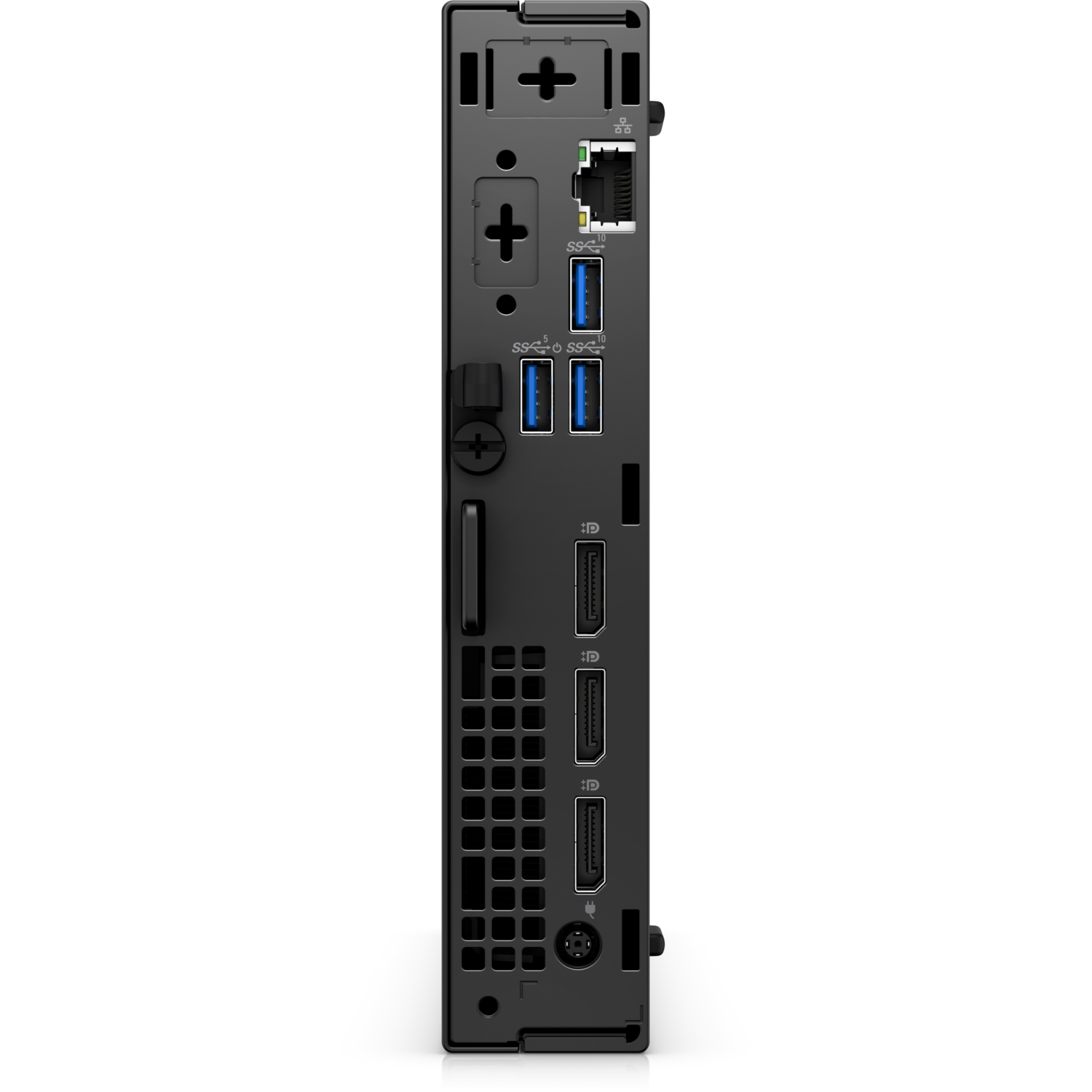

| Rear | 2 x USB 3.2 Gen 1 (5 Gbps), 2 x USB 2.0 (one with Smart Power On), 1 x DisplayPort 1.4a, 1 x HDMI 1.4b, RJ45 Gigabit Ethernet |
| Optional | One optional video module (HDMI 2.1 / DisplayPort 1.4a / VGA / USB Type-C with DisplayPort Alt Mode), optional external antenna port |
Wireless
| Wi-Fi & Bluetooth | Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth 5.3 |
Power & Physical
| Power | External 65 W or 90 W AC adapter (4.5 mm barrel) |
| Dimensions & Weight | 182 x 36 x 178 mm (H x W x D); 1.24–1.32 kg |
Security
| Security | TPM 2.0 (discrete), Dell SafeBIOS, chassis intrusion switch, chassis lock slot support, Kensington security-cable slot, padlock ring |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 11 Pro National Education and Ubuntu Linux 22.04 LTS for the OptiPlex Micro 7020.
Displays
Up to 2 displays without MST (4 with MST); 3 with the optional video module. Install the latest Intel graphics driver from Dell Support for multi-monitor use.
Upgrades
Memory: DDR5 SO-DIMM, two slots, up to 64GB (5600 MT/s with i5-14600T / i7-14700T). Storage: Two M.2 2230/2280 PCIe NVMe SSD slots plus one M.2 2230 slot for the Wi-Fi/Bluetooth card.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell OptiPlex 7020 Ordering Information
In the Box
Dell OptiPlex Micro 7020 desktop, 65 W/90 W power adapter and power cable, Dell KB216 wired keyboard, Dell MS116 optical mouse and documentation.
Dell OptiPlex 7020 Family at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex Micro 7020 Core i5-14600T | 8GB / 512GB SSD |
| OptiPlex Micro 7020 Core i7-14700T (this listing) | 8GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 8GB / 1TB SSD |
| OptiPlex Tower Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex Tower 7020 Core i5-14500 | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 | 8GB / 512GB SSD |
| OptiPlex SFF 7020 Core i5-14500 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 8GB / 1TB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 512GB SSD |
| OptiPlex SFF Plus 7020 Core i7-14700 | 16GB / 1TB SSD |
Looking for the previous generation? See the OptiPlex Micro 7010, OptiPlex Tower 7010 and OptiPlex Tower Plus 7010. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | OptiPlex Micro 7020 Owner’s Manual (Dell) |
| Datasheet | OptiPlex Micro 7020 Spec Sheet (Dell Technologies) |
| Manuals & drivers | OptiPlex Micro 7020 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex Micro 7020.
Frequently Asked Questions — Dell OptiPlex Micro 7020
Is this the OptiPlex Micro 7020 or Micro Plus 7020?
This listing is the OptiPlex Micro 7020 configuration with a 35 W Core i7-14700T vPro. The Micro Plus 7020 adds faster front USB (including 20 Gbps USB-C), three DisplayPort outputs and higher-wattage processor options. The supplier part number does not state the chassis variant — confirm with sales if Plus is required.
Does it have Wi-Fi?
Yes — Intel Wi-Fi 6E AX211 (2x2) with Bluetooth 5.3 is included in this configuration, alongside Gigabit Ethernet.
Can it be mounted behind a monitor?
Yes — the 1.2 kg Micro chassis works with Dell OptiPlex Micro mounting options (VESA mount, monitor stand mount, all-in-one stand), sold separately.
Can I upgrade the memory?
Yes — DDR5 SO-DIMM, two slots, up to 64GB (5600 MT/s with i5-14600T / i7-14700T). The supplied 8GB (1 x 8GB) DDR5 SO-DIMM module leaves slots free for expansion.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
