Dell OptiPlex 7090 Tower / SFF Business Desktop
PRODUCT DESCRIPTION
Dell OptiPlex 7090 Series Tower / Small Form Factor Desktop Intel Core i7 / 16GB / 2TB HDD or 512GB SSD (210-AYVE / 210-AYVL) - 3 Years Onsite Warranty
Intel Core i7 on the Q570 Platform
An 8-core, 16-thread Intel Core i7 with 16GB of DDR4 memory on the Intel Q570 chipset, with a choice of a 2TB SATA hard drive or a 512GB M.2 NVMe SSD.

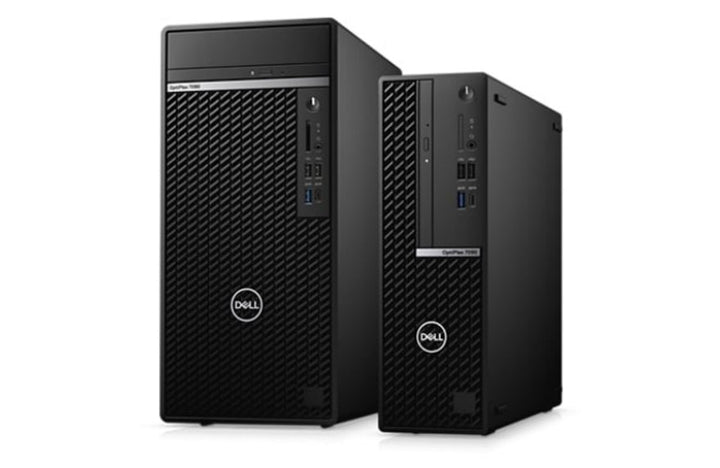

Tower or Small Form Factor
The Tower offers four drive bays and full-height PCIe Gen 4 expansion; the Small Form Factor fits a 92.6 mm-wide chassis with half-height PCIe slots. Both have four DIMM slots for up to 128GB and two M.2 SSD slots.
Connectivity for the Office
A front USB 3.2 Gen 2x2 Type-C port, ten USB ports in total, two DisplayPort 1.4 outputs plus an optional video port, Intel Gigabit Ethernet and TPM 2.0 security.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell OptiPlex 7090 Datasheet — Technical Specifications
Configuration
| Product Name | Dell OptiPlex 7090 Tower and Small Form Factor |
| Part Numbers | 210-AYVE (Tower) / 210-AYVL (Small Form Factor) |
| Configurations offered | Tower: Intel Core i7 / 16GB / 2TB SATA HDD (210-AYVE) Tower: Intel Core i7 / 16GB / 512GB SSD (210-AYVE-512) Small Form Factor: Intel Core i7 / 16GB / 2TB SATA HDD (210-AYVL) Small Form Factor: Intel Core i7 / 16GB / 512GB SSD (210-AYVL-512) |
| Chipset | Intel Q570 |
| Local Warranty (Singapore) | 3 years onsite |
Processor & Graphics
| Processor | Intel Core i7 (Dell offered the 10th Gen Core i7-10700 and 11th Gen Core i7-11700, both 8 cores / 16 threads, 16 MB cache, 65 W) — confirm the exact processor with sales |
| Graphics | Integrated Intel UHD Graphics (UHD 630 with 10th Gen, UHD 750 with 11th Gen) |
Memory & Storage
| Memory | 16GB DDR4 (2933 MT/s with 10th Gen Core i7, 3200 MT/s with 11th Gen); four DIMM slots, up to 128GB |
| Storage | 2TB SATA hard drive or 512GB M.2 PCIe NVMe SSD, depending on variant |
| Tower expansion | 4 SATA bays for 3.5" / 2.5" drives or optical, 2 x M.2 2230/2280 SSD slots; full-height PCIe Gen 4 x16, PCIe x16 (x4), PCIe x1 and PCI slots |
| SFF expansion | 3 SATA bays for 3.5" / 2.5" drive and slim optical, 2 x M.2 SSD slots; half-height PCIe Gen 4 x16 and PCIe Gen 3 x4 slots |
Ports
| Front | 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2, 1 x USB 2.0 with PowerShare, 1 x USB 2.0, universal audio jack, optional SD card reader |

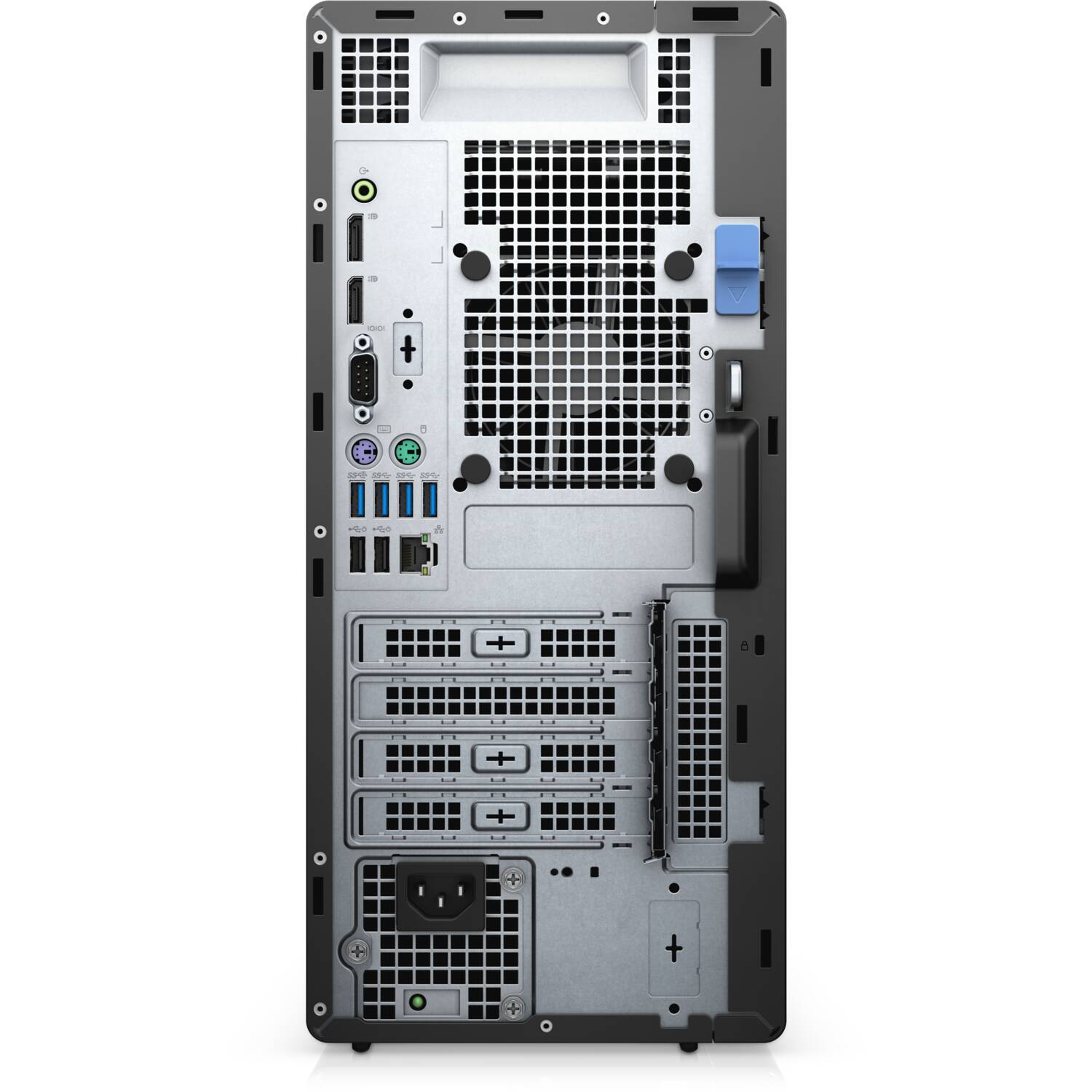

| Rear | 1 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0 with Smart Power On, 2 x DisplayPort 1.4, RJ45 Gigabit Ethernet, re-taskable line-out / line-in |
| Optional video | One of VGA / DisplayPort 1.4 / HDMI 2.0b / USB 3.2 Gen 2 Type-C with DisplayPort Alt Mode |
Network
| Ethernet | Intel i219-LM Gigabit Ethernet (10/100/1000 Mbps) |
| Wireless (optional) | Intel Wi-Fi 6 AX201 with Bluetooth 5.1, or Qualcomm 802.11ac options, where configured |
Power
| Tower power supply | 260 W, 300 W, 360 W or 500 W options |
| SFF power supply | 200 W (80 PLUS Bronze) or 300 W (80 PLUS Platinum) |
Security
| Hardware | TPM 2.0 (FIPS 140-2) integrated on the system board, Kensington security-cable slot (SFF also has a padlock ring) |
Physical
| Tower (H x W x D) | 367.00 x 169.00 x 300.80 mm; 6.56–10.22 kg |
| Small Form Factor (H x W x D) | 290.00 x 92.60 x 292.80 mm; 4.46–5.72 kg |
Compatibility & Software Support
Operating System
Dell supports Windows 11 Pro and Home, Windows 10 Pro and Home (64-bit) and Ubuntu 20.04 LTS on the OptiPlex 7090. Contact sales to confirm the OS supplied with this configuration.
Displays
Two DisplayPort 1.4 ports come standard, with one optional VGA, DisplayPort, HDMI 2.0b or USB-C DisplayPort Alt Mode port. Install the latest Intel graphics driver from Dell Support to enable multiple displays.
Upgrades
Four DDR4 DIMM slots take up to 128GB. Both chassis have two M.2 SSD slots plus SATA bays, so you can add an SSD to the hard-drive variants. The Tower takes full-height PCIe cards; the Small Form Factor takes half-height cards only.
Package Contents & Dell OptiPlex Series Ordering Information
In the Box
Dell OptiPlex 7090 Tower or Small Form Factor desktop, power cable and documentation.
Dell OptiPlex Series at SourceIT
| Model / Processor | Memory / SSD |
| OptiPlex 7090 Tower / SFF Core i7 (this listing) | 16GB / 2TB HDD or 512GB SSD |
| OptiPlex 7000 Tower / SFF | 12th Gen Intel Core — multiple options (next generation) |
| OptiPlex 5000 Tower / SFF / Micro | 12th Gen Intel Core — multiple options |
| OptiPlex 3000 Tower / SFF / Micro | 12th Gen Intel Core — multiple options |
| OptiPlex 3080 Tower / SFF / Micro | 10th Gen Intel Core — multiple options (same generation) |
| OptiPlex 7010 SFF Core i7-13700 | 16GB / 512GB SSD |
| OptiPlex 7010 Tower Core i7-13700 | 16GB / 512GB SSD |
| OptiPlex 7020 Tower Plus Core i7-14700 | 16GB / 512GB SSD (current) |
| OptiPlex 7020 Tower Plus Core i7-14700 | 16GB / 1TB SSD (current) |
| OptiPlex 7020 SFF Plus Core i7-14700 | 16GB / 512GB SSD (current) |
| OptiPlex 7020 SFF Plus Core i7-14700 | 16GB / 1TB SSD (current) |
| OptiPlex 7020 Micro Core i7-14700T | 8GB / 512GB SSD (current) |
Looking for the current generation? See the Dell OptiPlex 7020 Tower and OptiPlex 7020 Small Form Factor listings. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications (Tower) | Dell OptiPlex 7090 Tower Setup and Specifications |
| Setup & specifications (SFF) | Dell OptiPlex 7090 Small Form Factor Setup and Specifications |
| Manuals & drivers (Tower) | Dell OptiPlex 7090 Tower on Dell Support Singapore |
| Manuals & drivers (SFF) | Dell OptiPlex 7090 Small Form Factor on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting OptiPlex 7090.
Frequently Asked Questions — Dell OptiPlex 7090
What is the difference between the Tower and Small Form Factor?
The Tower (367 x 169 x 300.8 mm) has four SATA bays, full-height PCIe slots and power supplies up to 500 W. The Small Form Factor (290 x 92.6 x 292.8 mm) takes half-height PCIe cards and a 200 W or 300 W power supply.
Is a Micro version available in this listing?
No. This listing offers the Tower and Small Form Factor only. For a compact 1-litre desktop, see the current OptiPlex 7020 Micro listings.
Should I choose the 2TB HDD or 512GB SSD?
The 512GB NVMe SSD is much faster for boot and application loading; the 2TB SATA hard drive gives more capacity. Both chassis have spare M.2 slots, so an SSD can be added later.
How much memory can I add?
Both chassis have four DDR4 DIMM slots and support up to 128GB.
Does it have Wi-Fi?
Wireless is optional on the OptiPlex 7090 (Intel Wi-Fi 6 AX201 or Qualcomm 802.11ac). Gigabit Ethernet is standard. Check with sales whether your unit includes Wi-Fi.
Is it still available?
The OptiPlex 7090 is no longer available for order. Check remaining stock with sales, or see the current OptiPlex 7020 Tower and OptiPlex 7020 Small Form Factor listings.
What warranty do I get?
3 years onsite warranty, supplied locally by SourceIT with a GST invoice.
