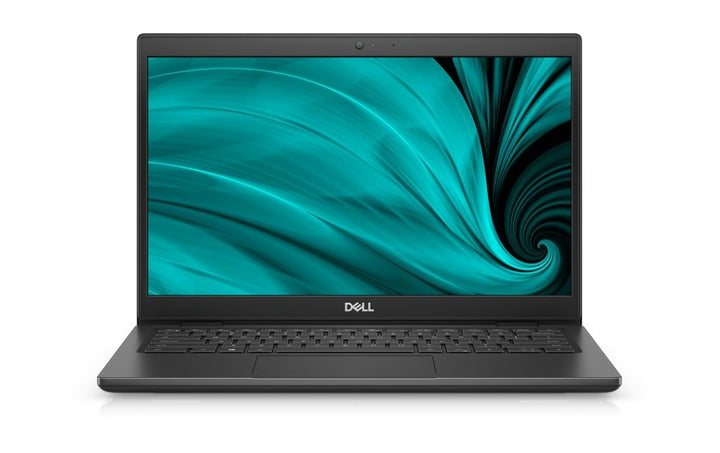

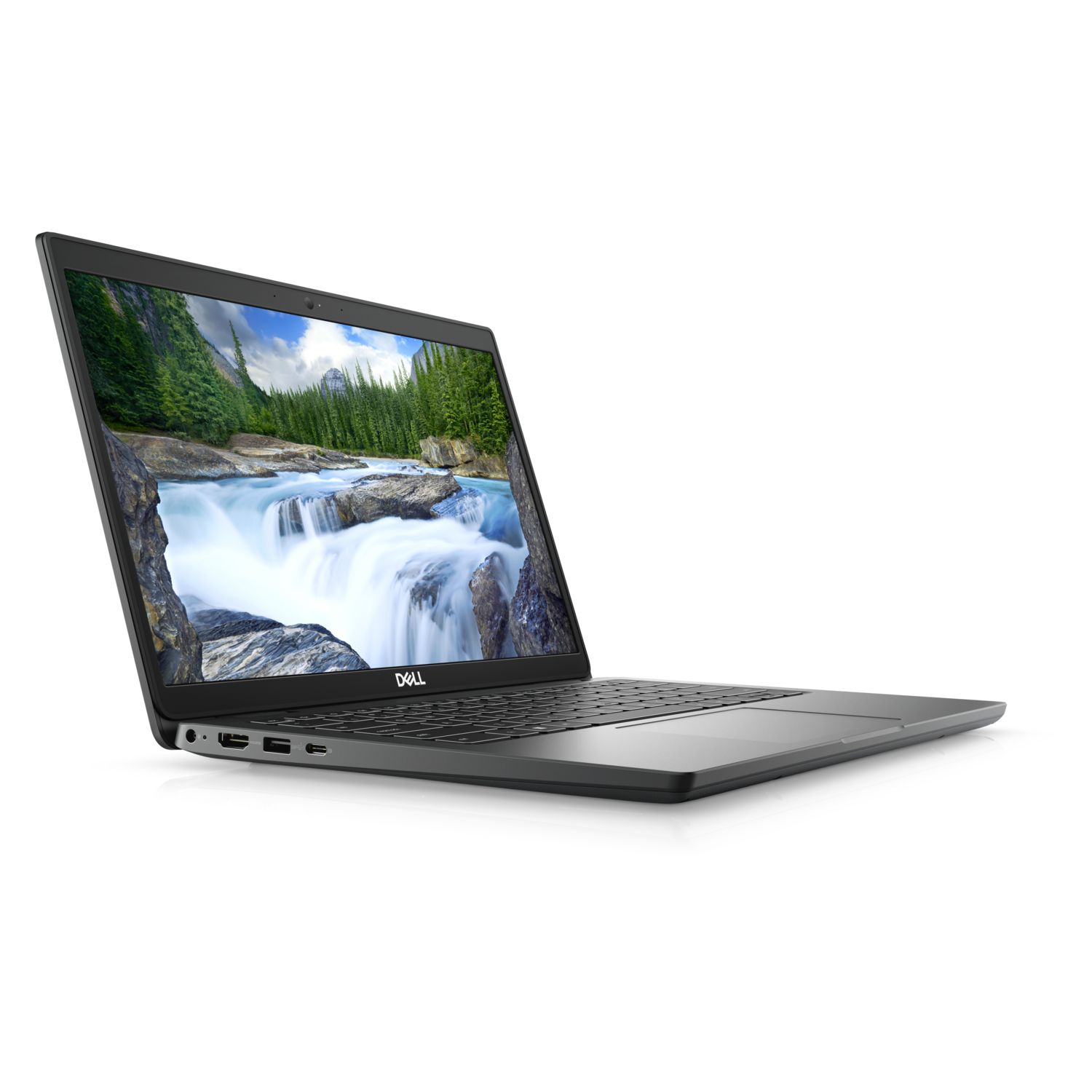

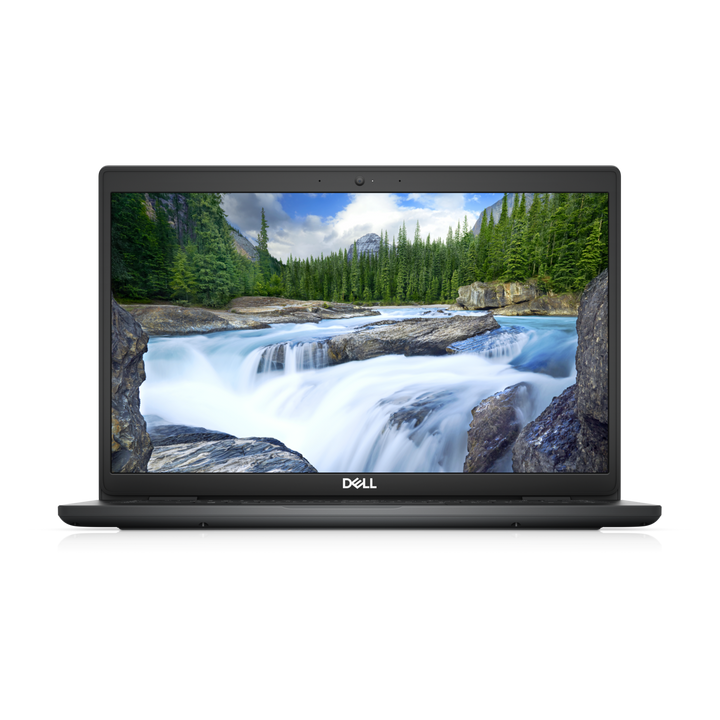

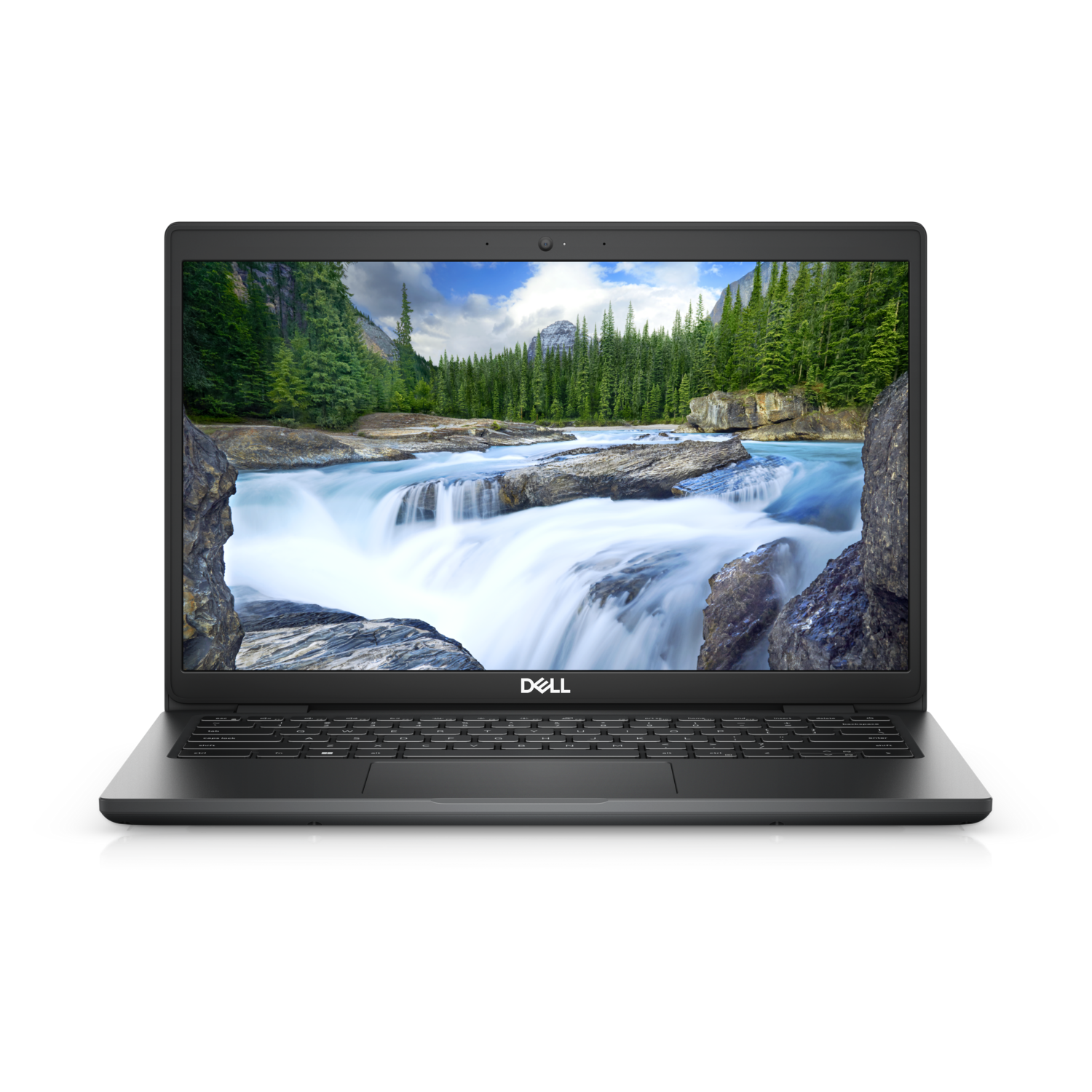

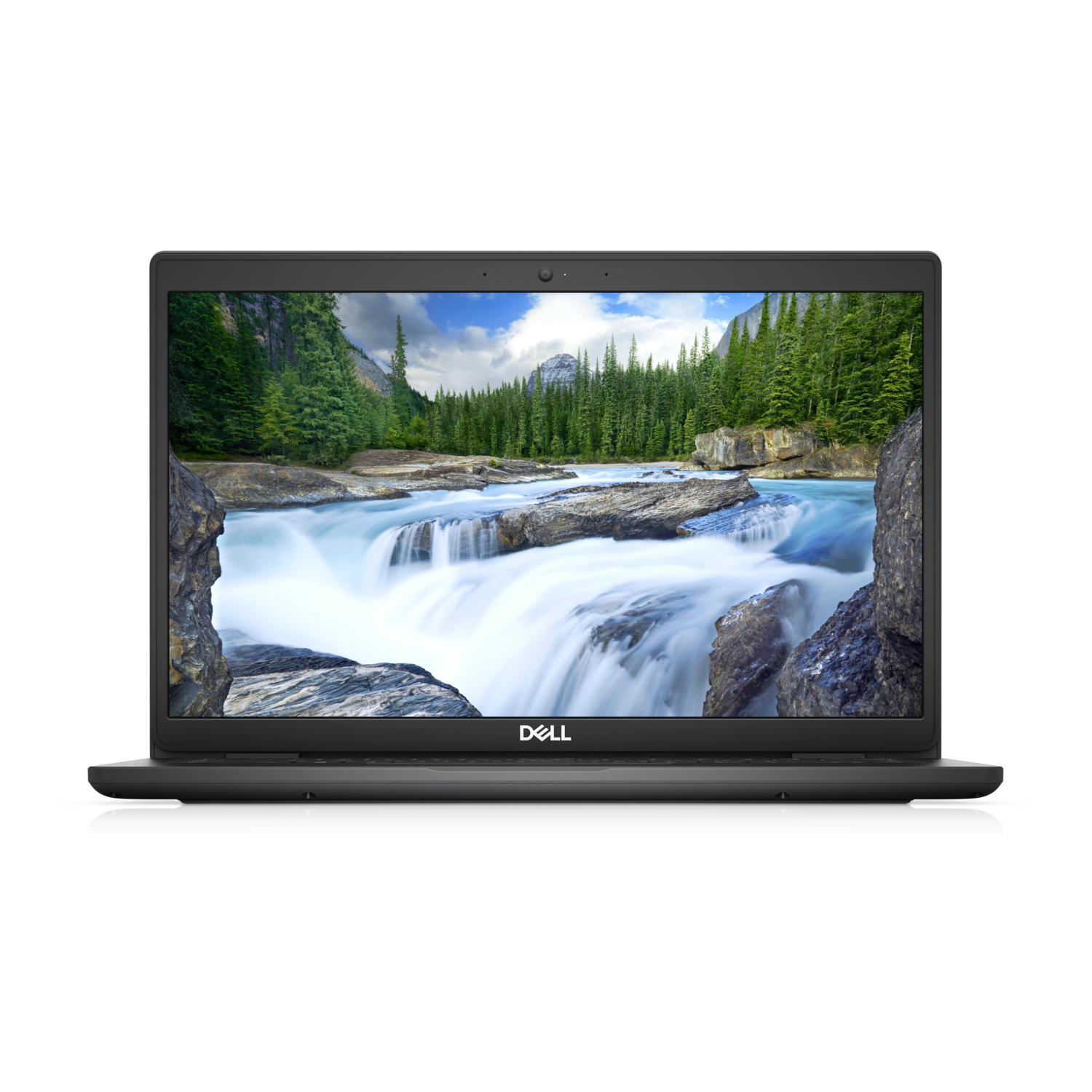

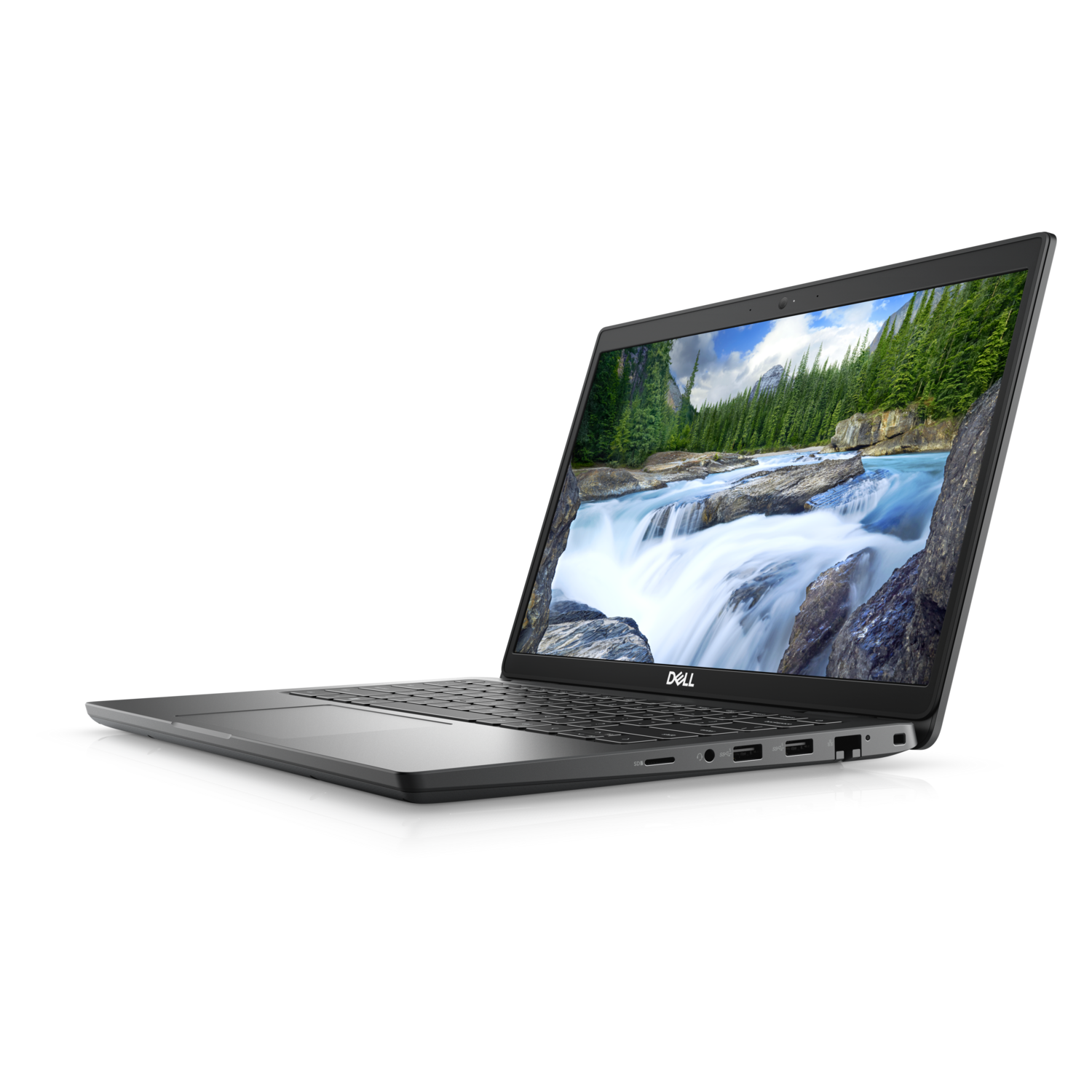

Dell Latitude 3430 14" 12th Gen Intel Core Laptop
PRODUCT DESCRIPTION
Dell Latitude 3430 14-inch Business Laptop, 12th Gen Intel Core i5 / i7, SSD Storage - Local Dell Warranty
10-Core 12th Gen Performance
12th Gen Intel Core i5 and i7 U-series processors with 10 cores and 12 threads, Intel Iris Xe graphics and DDR4-3200 memory keep multitasking smooth.
Fast NVMe SSD Storage
PCIe NVMe solid-state storage boots Windows in seconds and opens large files quickly, with a spare 2.5-inch bay option for secondary storage.
Connected for the Office
USB-C with DisplayPort and Power Delivery, three USB-A ports, HDMI 1.4b, flip-down Gigabit RJ45 and microSD in a 1.53 kg, 17.6 mm chassis.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Latitude 3430 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Latitude 3430 (14-inch) |
| Options at SourceIT | Core i5 8GB/256GB, Core i5 8GB/512GB, Core i7 8GB/512GB, Core i7 16GB/512GB — see variant selector |
| Dell SKUs | 486-78516, 460-BCTV (per option) |
Processor & Graphics
| Processor options (Dell) | 12th Gen Intel Core i5-1235U / i5-1245U (10C/12T, 12 MB, up to 4.4 GHz), i7-1255U (10C/12T, 12 MB, up to 4.7 GHz), 15 W |
| Graphics | Intel Iris Xe Graphics (shared memory) |
Memory & Storage
| Memory | 8GB or 16GB DDR4 3200 MHz; two SODIMM slots, up to 32GB |
| Storage | M.2 2230/2280 PCIe NVMe SSD; optional 2.5-inch SATA drive as secondary storage |
Display
| Panel options | 14" FHD 1920 x 1080 WVA, 250 nits, 45% NTSC, anti-glare; FHD touch 300 nits 72% NTSC; HD 1366 x 768 TN 220 nits |
| Refresh Rate | 60 Hz |
Ports
| USB-C | 1 x USB 3.2 Gen 2 Type-C with DisplayPort / Power Delivery |
| USB-A | 2 x USB 3.2 Gen 1 (one with PowerShare), 1 x USB 2.0 |
| Video | 1 x HDMI 1.4b |
| Network | 1 x flip-down RJ45 10/100/1000 |
| Other | microSD slot, universal audio jack, 4.5 mm DC-in, wedge lock slot, microSIM (WWAN models) |
Wireless, Audio & Camera
| Wireless | Intel Wi-Fi 6 AX201 or Wi-Fi 6E AX210 with Bluetooth 5.2, or Wi-Fi 5 with Bluetooth 5.0 (per SKU) |
| Camera | HD 720p camera or FHD IR camera |
| Audio | Realtek ALC3204, two 2 W speakers, dual-array microphones |
Power
| Battery | 3-cell 41 Wh or 4-cell 54 Wh |
| Adapter | 65 W AC adapter, 4.5 mm barrel or USB Type-C |
Security
| Hardware | TPM 2.0, optional fingerprint reader in power button, optional IR camera, wedge lock slot |
| Keyboard | Backlit or non-backlit, no number pad |
Physical
| Dimensions (W x D x H) | 326 x 226 x 17.6 mm |
| Operating temperature | 0°C to 35°C |
Compatibility & Software Support
Operating System
Windows 11 Pro per supplied SKU (Windows 10 downgrade available on some SKUs) — confirm with sales.
Docks & Displays
USB-C DisplayPort / Power Delivery supports Dell USB-C docks; HDMI 1.4b drives an extra display.
Upgrades
Two DDR4 SODIMM slots up to 32GB.
Package Contents & Dell Latitude 3000 Series Ordering Information
In the Box
Dell Latitude 3430 laptop, AC adapter and documentation.
Dell Latitude 14 3000 Series at SourceIT
| Model / Processor | Memory / SSD |
| Latitude 3420 | 11th Gen Core i5 / i7 — multiple options |
| Latitude 3430 (this listing) | 12th Gen Core i5 / i7 — multiple options |
| Latitude 3440 | 13th Gen Core i5 / i7 — multiple options |
| Latitude 3440 Core i5-1335U | 8GB / 512GB SSD |
| Latitude 3440 Core i5-1335U | 16GB / 512GB SSD |
| Latitude 3440 Core i7-1355U | 8GB / 512GB SSD |
| Latitude 3440 Core i7-1355U | 16GB / 512GB SSD |
Looking for the current generation? See the Dell Latitude 3450. Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Setup & specifications | Dell Latitude 3430 Setup and Specifications |
| Product carbon footprint | Latitude 3430 PCF datasheet (PDF) |
| Manuals & drivers | Dell Latitude 3430 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Latitude 3430.
Frequently Asked Questions — Dell Latitude 3430
Which processor is in each option?
The selector shows Core i5 or Core i7 (12th Gen). Dell offers the i5-1235U/1245U and i7-1255U on the Latitude 3430 — email sales@sourceit.com.sg to confirm the exact CPU for a SKU.
Can I add more memory?
Yes. There are two DDR4-3200 SODIMM slots, up to 32GB in total.
Does it have Thunderbolt?
No. The USB-C port is USB 3.2 Gen 2 with DisplayPort and Power Delivery.
Is it still available?
The Latitude 3430 has been replaced by newer models. Check stock with sales, or see the Latitude 3450.
What warranty do I get?
Local Dell warranty for Singapore; confirm the term for your SKU with sales@sourceit.com.sg.
