Dell Pro Max with GB10 NVIDIA DGX Spark AI Desktop - 128GB / 2TB
PRODUCT DESCRIPTION
Dell Pro Max with GB10 NVIDIA DGX Spark AI Desktop, GB10 Grace Blackwell Superchip, 128GB Unified Memory, 2TB NVMe SSD, ConnectX-7 200GbE, Wi-Fi 7 (DPMFCM1253GB10128G2TB) - 3 Years Onsite Warranty
Dell Pro Max with GB10 — NVIDIA DGX Spark AI Performance in a Dell Desktop
The Dell Pro Max with GB10 (model FCM1253) is Dell's build of the NVIDIA DGX Spark platform: an NVIDIA GB10 Grace Blackwell Superchip pairing a 20-core Arm CPU with a Blackwell GPU and 128 GB of unified LPDDR5x memory, delivering up to 1 petaFLOP (1,000 TOPS) of FP4 AI performance in a 150 × 150 mm desktop that weighs under 1.4 kg. It runs, fine-tunes and prototypes AI models of up to 200 billion parameters locally, and two units link over ConnectX-7 to reach 405 billion parameters.
For Singapore developers, data scientists, research groups and enterprise AI teams that already standardise on Dell, this 2TB configuration adds the DGX Spark platform to a familiar procurement and support model — supplied by SourceIT with 3-year onsite warranty, a full GST invoice and enterprise procurement assistance.
128 GB Unified Memory at 273 GB/s
The GB10's 128 GB of LPDDR5x is a single coherent memory pool shared by CPU and GPU over NVLink-C2C at 273 GB/s, so large language models, vision-language models and RAG pipelines load without the VRAM ceiling of a conventional discrete-GPU workstation. Fifth-generation Tensor Cores with FP4 precision and fourth-generation RT Cores accelerate inference, fine-tuning, simulation and rendering.
2TB NVMe Storage, ConnectX-7 200 GbE and Wi-Fi 7

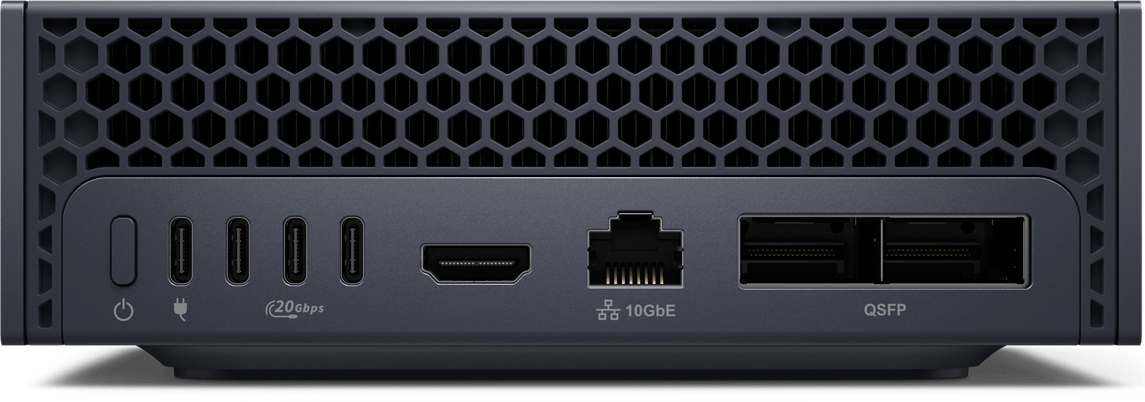

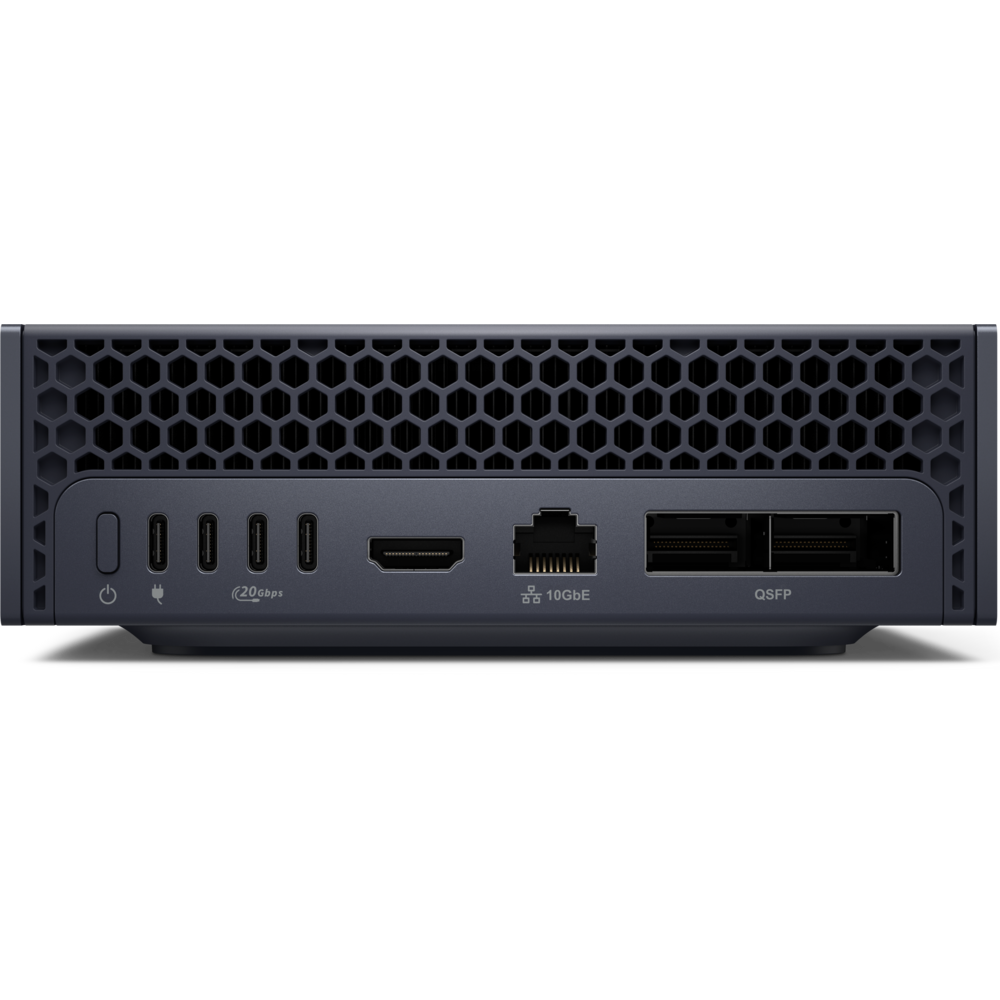

Dell fits a 2 TB M.2 2230 QLC PCIe Gen4 NVMe SSD. Networking pairs an NVIDIA ConnectX-7 SuperNIC with two QSFP 200 Gbps ports (up to 400 Gbps aggregate) for clustering a second unit or connecting to fast storage, with a Realtek 10 GbE RJ45 port and a Wi-Fi 7 / Bluetooth 5.4 module for everyday connectivity. Three USB 3.2 Gen 2x2 20 Gbps Type-C ports with DisplayPort 1.4a Alt Mode and an HDMI 2.1a port drive up to four displays.
NVIDIA DGX OS 7, 280 W USB-C Power, 1.3 kg
The system ships with NVIDIA DGX OS 7 and the NVIDIA AI software stack preinstalled. A 280 W USB Type-C power adapter feeds it on 100–240 V AC, the chassis measures 150 × 150 × 45.5 mm (51 mm at the peak of the top cover), and it weighs 1.22–1.34 kg depending on configuration.
Available in Singapore Through SourceIT
SourceIT supplies the Dell Pro Max with GB10 with a full GST invoice, 3-year onsite warranty and enterprise procurement assistance. For alternative GB10 desktops see the NVIDIA DGX Spark, ASUS Ascent GX10, Lenovo ThinkStation PGX, GIGABYTE AI TOP ATOM, MSI EdgeXpert, HP ZGX Nano and Acer Altos BrainSphere; for trillion-parameter work see the DGX Station GB300 range.
Dell Pro Max with GB10 (2TB) Datasheet — Technical Specifications
General
| Product Name | Dell Pro Max with GB10 |
| Model / Part Number | FCM1253 — SourceIT order code DPMFCM1253GB10128G2TB |
| Category | Personal AI supercomputer / AI developer desktop (NVIDIA DGX Spark platform) |
| Form Factor | Micro desktop, 1 litre class |
| Local Warranty (Singapore) | 3 Years onsite; procurement and GST invoice by SourceIT |
Processor & GPU
| Compute Platform | NVIDIA DGX Spark architecture — NVIDIA GB10 Grace Blackwell Superchip |
| CPU | 20-core Arm — 10 × Cortex-X925 performance cores + 10 × Cortex-A725 efficiency cores |
| GPU | NVIDIA Blackwell architecture GPU — fifth-generation Tensor Cores, fourth-generation RT Cores, 1 × NVENC, 1 × NVDEC |
| AI Performance | Up to 1 PFLOP (1,000 TOPS) FP4 with sparsity |
| Model Support | AI models up to 200 billion parameters on one unit; up to 405 billion parameters with two units linked over ConnectX-7 |
| Superchip TDP | 140 W, per Dell |
Memory
| Unified Memory | 128 GB LPDDR5x coherent unified system memory, 256-bit |
| Memory Bandwidth | 273 GB/s |
| Memory Speed | 8533 MT/s, soldered — not upgradeable |
Storage
| SSD | 2 TB M.2 2230 QLC PCIe Gen4 NVMe SSD |
| Slots | 1 × M.2 2230/2242 PCIe Gen4 NVMe |
Networking
| High-Speed Networking | NVIDIA ConnectX-7 SuperNIC — 2 × QSFP 200 Gbps (up to 400 Gbps) |
| Ethernet | 1 × RJ45 10 GbE (Realtek RTL8127-CG) |
| Wireless | Wi-Fi 7 (802.11be) 2.4 / 5 / 6 GHz + Bluetooth 5.4 (AzureWave AW-EM637) |
I/O Ports
| USB | 3 × USB 3.2 Gen 2x2 Type-C (20 Gbps) with DisplayPort 1.4a Alt Mode and power out |
| Display | 1 × HDMI 2.1a |
| Power In | 1 × USB Type-C power input |
Operating System & Software
| Operating System | NVIDIA DGX OS 7 (Ubuntu Linux) with NVIDIA AI software stack |
Power, Physical & Environmental
| Power Adapter | 280 W USB Type-C; input 100–240 V AC, 50–60 Hz |
| Dimensions (W × D × H) | 150 × 150 × 45.5 mm (51 mm peak) |
| Weight | 1.22 – 1.34 kg |
Compatibility & Software Support
NVIDIA DGX OS and the NVIDIA AI Software Stack
Ships with NVIDIA DGX OS — an Ubuntu Linux build with the NVIDIA AI software stack preinstalled: CUDA, cuDNN, TensorRT and TensorRT-LLM, NVIDIA NeMo, NIM microservices, Triton Inference Server, RAPIDS and NGC containers, alongside PyTorch, TensorFlow, JAX, vLLM, Ollama, Hugging Face Transformers and ONNX Runtime. NVIDIA AI Workbench and the DGX Dashboard simplify environment setup, and Docker or Podman containers keep projects isolated. Because it is the same software foundation as the DGX Station and DGX data-centre systems, models developed here move to larger NVIDIA infrastructure without code changes.
Arm64 Architecture — Plan Your Software Accordingly
The GB10's Grace CPU is Arm-based, so the operating system, drivers and container images are arm64 (aarch64) builds. Mainstream AI frameworks and NVIDIA NGC containers are published for arm64, but proprietary x86-only applications will not run natively — check any commercial software you rely on before ordering. Windows is not supported on this platform.
Clustering Two Units
The two QSFP 200 GbE ports on the NVIDIA ConnectX-7 SuperNIC let two GB10 systems be linked with a QSFP112 direct-attach cable (sold separately) to work with models up to 405 billion parameters. The 10 GbE RJ45 port covers everyday site networking, and Wi-Fi 7 keeps the system connected on a desk without cabling.
Package Contents & Ordering Information
What Ships With the System
- Dell Pro Max with GB10 (FCM1253) with a 2 TB M.2 2230 QLC PCIe Gen4 NVMe SSD
- 280 W USB Type-C power adapter and power cord
- NVIDIA DGX OS 7 preinstalled
- 3-year onsite warranty
A QSFP112 direct-attach cable for linking two units (see the NVIDIA QSFP112 400G DAC cable 40 cm) is sold separately.
NVIDIA DGX Spark / GB10 Systems at SourceIT Singapore
The Dell Pro Max with GB10 2TB is in stock at SourceIT Singapore with GST invoice and 3-year onsite warranty.
- NVIDIA DGX Spark 4TB — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- ASUS Ascent GX10 — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- Lenovo ThinkStation PGX — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- GIGABYTE AI TOP ATOM — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- MSI EdgeXpert MS-C931 — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- HP ZGX Nano G1n — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- Acer Altos BrainSphere GB10 F1 — NVIDIA GB10 Grace Blackwell platform, same 128 GB unified memory and 1 PFLOP FP4 core compute
- MSI XpertStation WS300 (DGX Station GB300) — step up to 748 GB coherent memory and 20 PFLOPS for trillion-parameter models
Browse the full NVIDIA DGX Spark & DGX Station collection. For volume, project, research-grant or education pricing, GST invoicing and current lead times, email sales@sourceit.com.sg.
Datasheet & Downloads
Frequently Asked Questions — Dell Pro Max with GB10 (2TB)
What is the Dell Pro Max with GB10?
Dell's build of the NVIDIA DGX Spark platform: a 150 × 150 mm desktop with the NVIDIA GB10 Grace Blackwell Superchip, 128 GB unified memory and up to 1 PFLOP FP4 for developing and running AI models of up to 200 billion parameters locally. This configuration has 2TB of NVMe storage.
What is the difference between the 2 TB and 4 TB configurations?
Only the SSD: the 2 TB model uses an M.2 2230 QLC PCIe Gen4 drive, while the 4 TB model uses an M.2 2242 TLC self-encrypting (Opal 2.0) PCIe Gen4 drive. Compute, memory and networking are identical.
How does it compare to the NVIDIA DGX Station GB300 systems?
Different class: this is a desktop-scale GB10 system with 128 GB unified memory and 1 PFLOP FP4 for models up to about 200 billion parameters, aimed at individual developers, researchers and small teams. The DGX Station GB300 systems (MSI XpertStation WS300, HP ZGX Fury G1n, ASUS ET900N G3, GIGABYTE W775, Supermicro Super AI Station) carry 748 GB and up to 20 PFLOPS for trillion-parameter models and team-scale production AI.
Can I link two units together?
Yes. Two units connect over their ConnectX-7 200 GbE QSFP ports with a QSFP112 direct-attach cable (sold separately), scaling to models of up to 405 billion parameters.
What operating system does it run?
NVIDIA DGX OS, an Ubuntu Linux build with the NVIDIA AI software stack preinstalled. Windows is not supported.
Does it run Windows software or x86 applications?
No. The Grace CPU is Arm64, so only arm64 Linux software and containers run natively. Mainstream AI frameworks and NVIDIA NGC containers are available for arm64.
What warranty does it come with?
3 years onsite warranty in Singapore, supplied through SourceIT.
How do I purchase the Dell Pro Max with GB10 in Singapore?
SourceIT is an authorised IT reseller in Singapore and supplies the Dell Pro Max with GB10 with GST invoice, onsite warranty and enterprise procurement assistance — contact sales@sourceit.com.sg for volume pricing and lead times.
