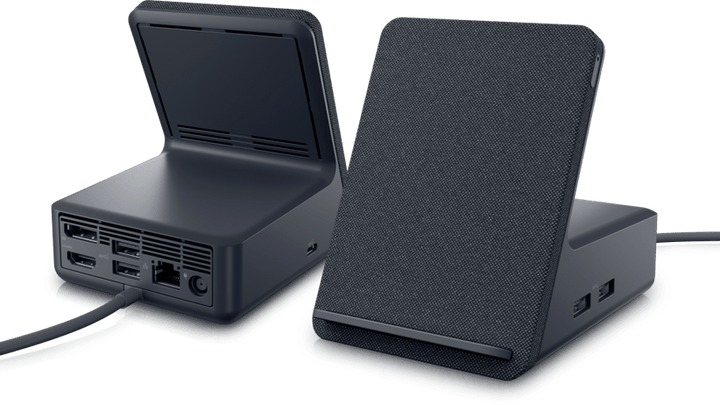

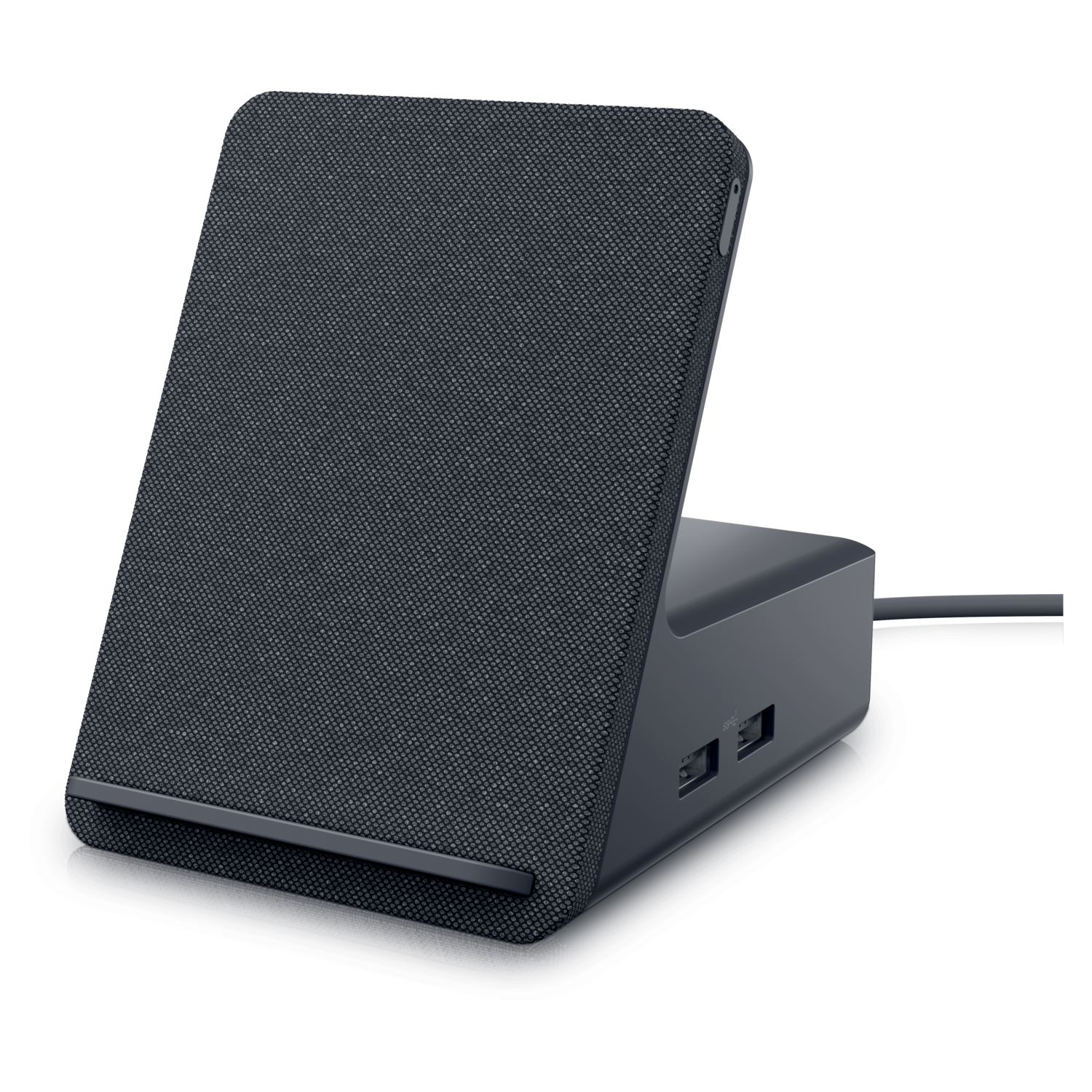

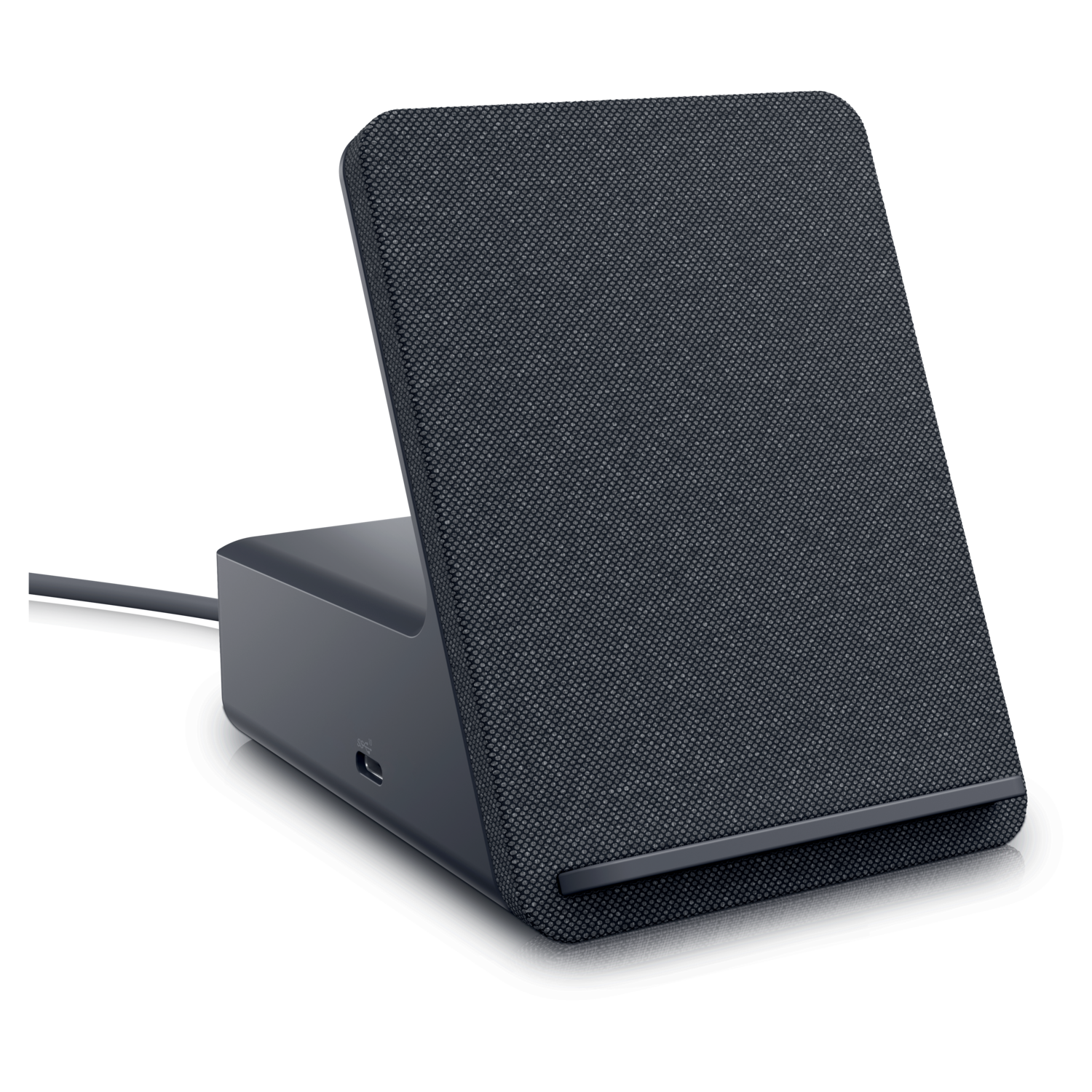

Dell Dual Charge Dock HD22Q USB-C with Qi Wireless Charging
PRODUCT DESCRIPTION
Dell Dual Charge Dock - HD22Q (210-BFDR) - Local Dell Warranty
Laptop and Phone, One Dock
The HD22Q charges your USB-C laptop at up to 90 W and your phone on its built-in Qi 1.3 certified wireless charging pad at up to 12 W.
Compact Tower Design
A small vertical footprint (113.2 x 90.5 x 117.35 mm) with DisplayPort 1.4, HDMI 2.1, four USB 3.2 Gen 1 Type-A ports, a USB-C port with Power Delivery 3.0 and Gigabit Ethernet.
Up to Four Displays
With HBR3 and Display Stream Compression the dock drives up to 4K @ 60Hz on two displays, or 8K @ 30Hz on a single DisplayPort display.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell HD22Q Datasheet — Technical Specifications
General
| Product Name | Dell Dual Charge Dock - HD22Q |
| Model | HD22Q (regulatory model K21A) |
| Dell SKU (Singapore) | 210-BFDR |
| Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange (Dell product guide); supplied locally by SourceIT with a GST invoice |
Host Connection
| System Requirement | USB Type-C systems with DisplayPort Alt Mode |
| Cable Length | 0.8 m |
| AC Adapter | 130 W (7.4 mm DC-in) |
| Power Delivery | 90 W to system with 130 W AC adapter |
Ports
| Video | 1 x DisplayPort 1.4 (rear), 1 x HDMI 2.1 (rear) |
| USB Type-A | 2 x USB 3.2 Gen 1 (rear), 2 x USB 3.2 Gen 1 (right) |
| USB Type-C | 1 x USB 3.2 Gen 2 Type-C with Power Delivery 3.0 (5 V / 3 A, 15 W), left side |
| Network | Gigabit Ethernet (RJ-45) |
| Power Button | Sleep/wake/power button with LED |
Wireless Charging
| Charger Type | Qi 1.3 certified |
| Fast Charge | Up to 12 W |
Display Support
| Maximum Displays | Up to 4 |
| HBR3 with DSC | Single: DP 8K 7680x4320 @ 30Hz or HDMI 4K @ 60/120Hz or 8K @ 30Hz; dual: 4K @ 60Hz; quad: HDMI QHD @ 60Hz + DP 3 x QHD @ 60Hz |
| HBR3 | Single 4K @ 30Hz; dual QHD @ 60Hz |
| HBR2 | Single 4K @ 30Hz; dual FHD @ 60Hz |
Management
| Systems Management | Wireless vPro, Kernel DMA protection, MAC address pass-through, Wake-on-LAN |
Physical
| Dimensions (H x W x D) | 113.20 x 90.50 x 117.35 mm |
| Weight | 0.67 kg (1.48 lb) |
Compatibility & Software Support
Supported Operating Systems
Windows 10, Windows 11, Ubuntu 20.04 and later, Chrome M98 and later (Dell user guide).
Host Laptops
USB Type-C laptops with DisplayPort Alt Mode. Display modes depend on the host link (HBR2/HBR3) and DSC support.
Phones
Qi-enabled smartphones on the wireless charging pad (up to 12 W).
Package Contents & Dell Docking Stations Ordering Information
In the Box
Docking station, power adapter, power cord, documentation (Quick Start Guide; Safety, Environmental and Regulatory Information).
Dell Docking Stations
| Model | Key feature |
| WD19S | USB-C, up to 130 W to Dell PCs (180 W adapter) |
| WD19DCS | Dual USB-C, up to 210 W to Dell Precision 7000 (240 W adapter) |
| WD19TBS | Thunderbolt 3, up to 130 W to Dell PCs |
| HD22Q (this listing) | USB-C dock with Qi wireless charging pad |
| WD22TB4 | Thunderbolt 4 dock |
| UD22 | USB-C universal dock |
| D6000S | Universal dock with DisplayLink |
| WD25 | Dell Pro USB-C dock, 100 W to Dell PCs |
| SD25 | Dell Pro USB-C smart dock |
| SD25TB4 | Dell Pro Thunderbolt 4 smart dock |
| SD25TB5 | Dell Pro Thunderbolt 5 smart dock |
Datasheet & Downloads
| Dell product guide | Dell Dual Charge Dock HD22Q Product Guide (PDF) |
| User guide | HD22Q User Guide on Dell Support |
| Manuals & drivers | Documents and drivers on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting HD22Q.
Frequently Asked Questions — Dell HD22Q
Can it charge my phone?
Yes, the front pad is Qi 1.3 certified and fast-charges at up to 12 W.
How much power does my laptop get?
Up to 90 W with the included 130 W adapter.
Is it Thunderbolt?
No, it connects over USB-C with DisplayPort Alt Mode.
How many monitors?
Up to four, depending on the laptop's DisplayPort link and DSC support.
What warranty do I get?
Dell's product guide states a 3-Year Limited Hardware Warranty with Advanced Exchange; supplied locally by SourceIT with a GST invoice.
