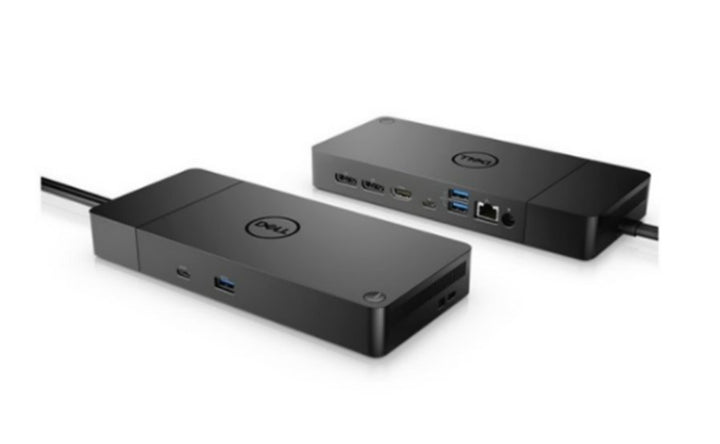

Dell Performance Dock WD19DCS Dual USB-C Docking Station
PRODUCT DESCRIPTION
Dell Performance Dock - WD19DCS (210-AZCT) - Local Dell Warranty
Dual USB-C for Workstations
The WD19DCS connects over a dual USB-C cable to power and drive mobile workstations, with two DisplayPort 1.4 ports, HDMI, a USB-C multi-function DisplayPort, three USB-A and two USB-C 3.2 ports and Gigabit Ethernet.
Up to 210 W
Its 240 W adapter delivers up to 210 W to Dell Precision 7000 series mobile workstations, 130 W to Dell systems on a single cable and 90 W over USB Power Delivery 3.0.
Multi-Display Ready
Drive up to three QHD or 4K @ 60Hz displays on HBR3 laptops with Display Stream Compression.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell WD19DCS Datasheet — Technical Specifications
General
| Product Name | Dell Performance Dock - WD19DCS |
| Model | WD19DCS |
| Dell SKU (Singapore) | 210-AZCT |
| Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange (Dell datasheet); supplied locally by SourceIT with a GST invoice |
Host Connection
| Docking Interface | Dual USB-C |
| Cable Length | 0.8 m |
| Power Adapter | 240 W |
| Power Delivery | 210 W to Dell Precision mobile workstations 7000 series; 130 W to Dell systems (single cable plugged in); 90 W support for USB Power Delivery 3.0 |
Ports
| Video Interfaces | 2 x full-size DisplayPort 1.4, 1 x HDMI, 1 x multi-function DisplayPort USB-C |
| USB | 3 x USB-A 3.2 Gen 1, 2 x USB-C 3.2 Gen 2 |
| Networking | Gigabit Ethernet (RJ-45) |
| Security | 1 x Kensington lock slot, 1 x Noble Wedge lock slot |
| LEDs | Power adapter LED, power button LED, RJ-45 LEDs |
Display Support (dual USB-C input)
| HBR2 PC | 3 x FHD @ 60Hz, 3 x QHD @ 60Hz, 1 x 4K @ 60Hz |
| HBR3 PC | 3 x FHD @ 60Hz, 3 x QHD @ 60Hz, 2 x 4K @ 60Hz, 1 x 8K @ 30Hz |
| HBR3 PC with DSC | 3 x QHD @ 60Hz, 3 x 4K @ 60Hz |
Management
| IT Features | PXE Boot, Wake-On-LAN, MAC address pass-through, Port Disablement, Dell Command Update |
Physical
| Dimensions | 205 x 90 x 29 mm (8.07 x 3.54 x 1.14 in) |
| Mounting | VESA mounting using the Dell Docking Station mounting kit |
Compatibility & Software Support
Supported Operating Systems
Windows 10, Windows 11, Ubuntu 18.04 and Red Hat Enterprise Linux, per the Dell datasheet.
Host Laptops
210 W needs a Dell Precision 7000 series mobile workstation on the dual cable; other Dell systems get 130 W on a single cable and non-Dell USB-C systems up to 90 W.
Software
Dell Command Update for firmware; WD19DCS admin guide on Dell Support.
Package Contents & Dell Docking Stations Ordering Information
In the Box
1 x WD19DCS dock with dual USB-C cable, 1 x 240 W power adapter.
Dell Docking Stations
| Model | Key feature |
| WD19S | USB-C, up to 130 W to Dell PCs (180 W adapter) |
| WD19DCS (this listing) | Dual USB-C, up to 210 W to Dell Precision 7000 (240 W adapter) |
| WD19TBS | Thunderbolt 3, up to 130 W to Dell PCs |
| HD22Q | USB-C dock with Qi wireless charging pad |
| WD22TB4 | Thunderbolt 4 dock |
| UD22 | USB-C universal dock |
| D6000S | Universal dock with DisplayLink |
| WD25 | Dell Pro USB-C dock, 100 W to Dell PCs |
| SD25 | Dell Pro USB-C smart dock |
| SD25TB4 | Dell Pro Thunderbolt 4 smart dock |
| SD25TB5 | Dell Pro Thunderbolt 5 smart dock |
Datasheet & Downloads
| Dell datasheet | Dell Performance Dock WD19DCS Datasheet (PDF) |
| User guide | WD19DCS User Guide on Dell Support |
| Manuals & drivers | Documents and drivers on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WD19DCS.
Frequently Asked Questions — Dell WD19DCS
Who needs the WD19DCS?
Users of Dell Precision 7000 series mobile workstations that need up to 210 W over the dual USB-C cable.
Does it work with a single USB-C laptop?
Yes; Dell systems get 130 W with a single cable plugged in, and other USB-C systems up to 90 W.
How many monitors?
Up to three displays, including three 4K @ 60Hz on HBR3 PCs with Display Stream Compression.
What warranty do I get?
The Dell datasheet states a 3-Year Limited Hardware Warranty with Advanced Exchange. SourceIT supplies it locally with a GST invoice; email us to confirm cover for your order.
