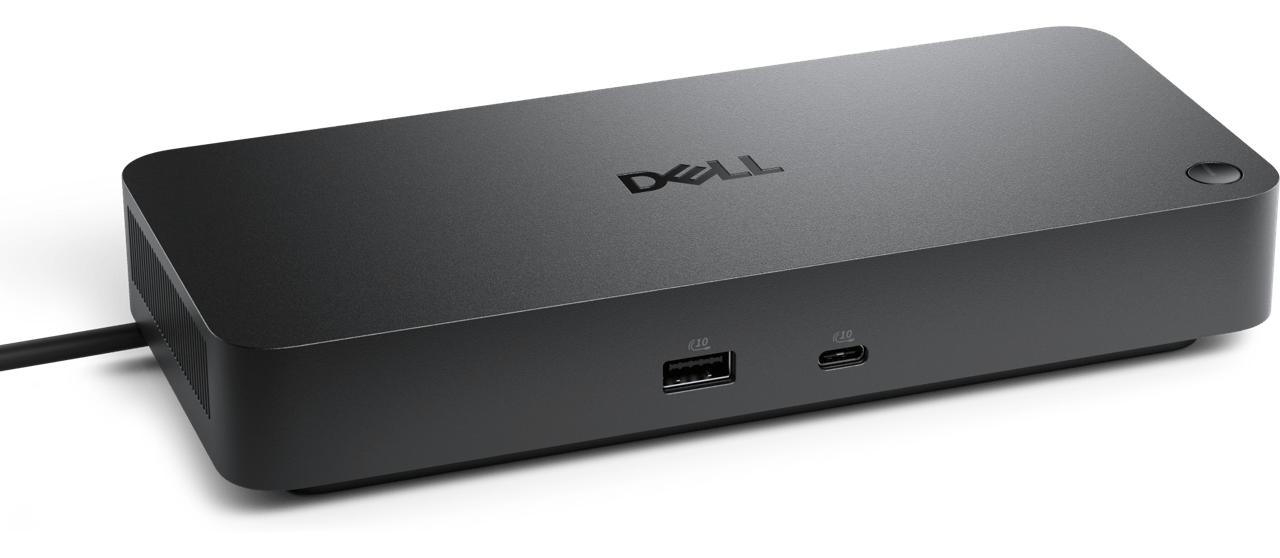

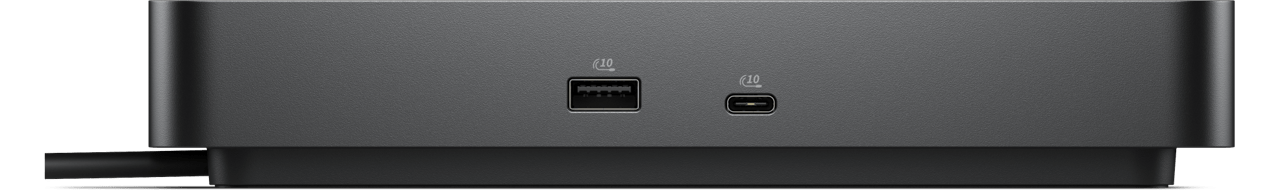

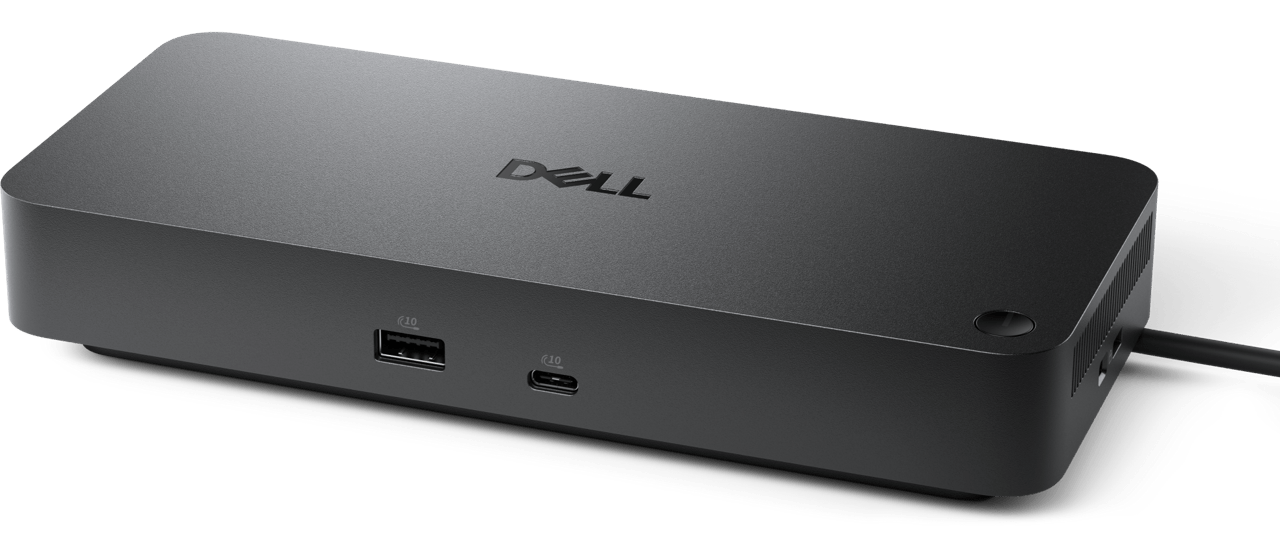

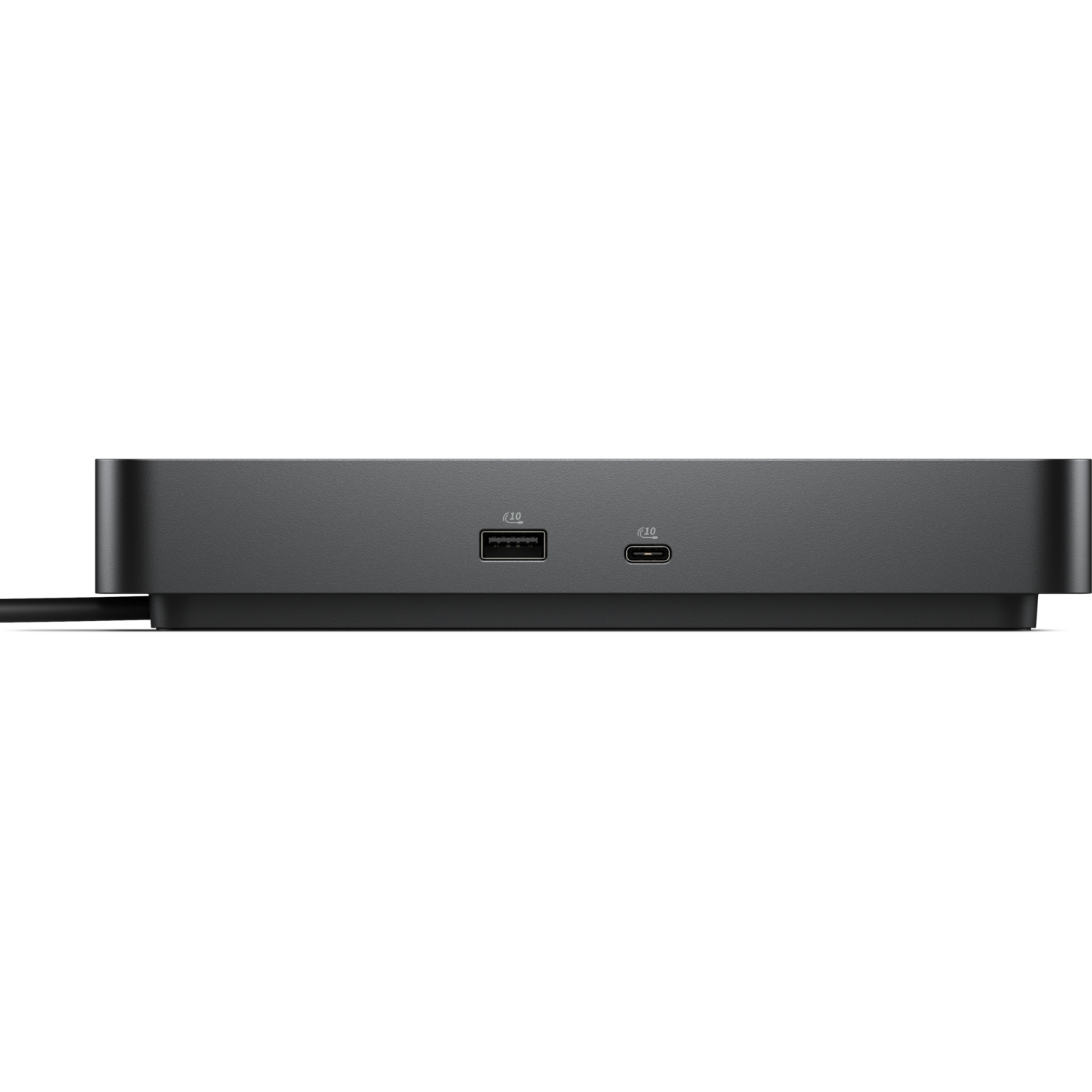

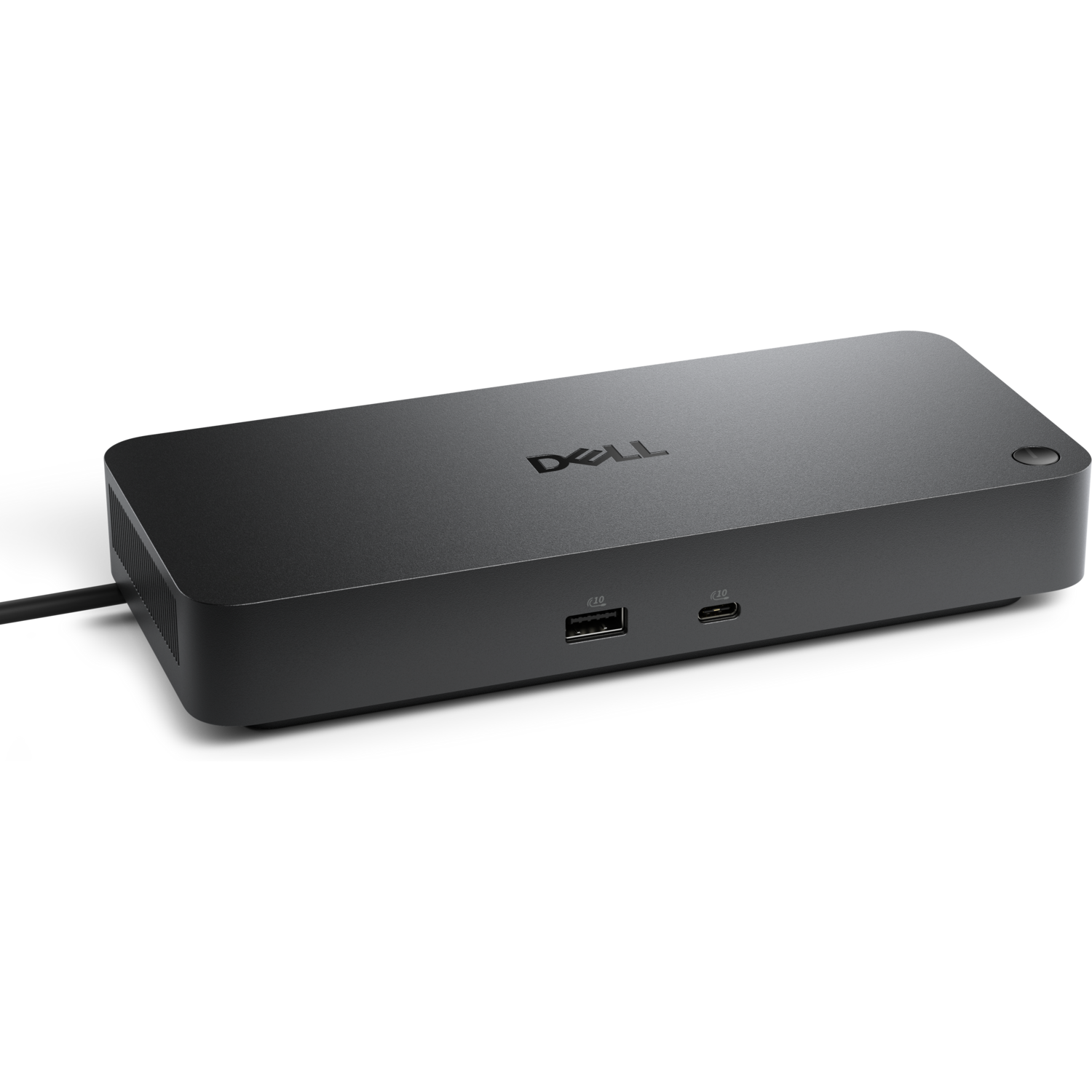

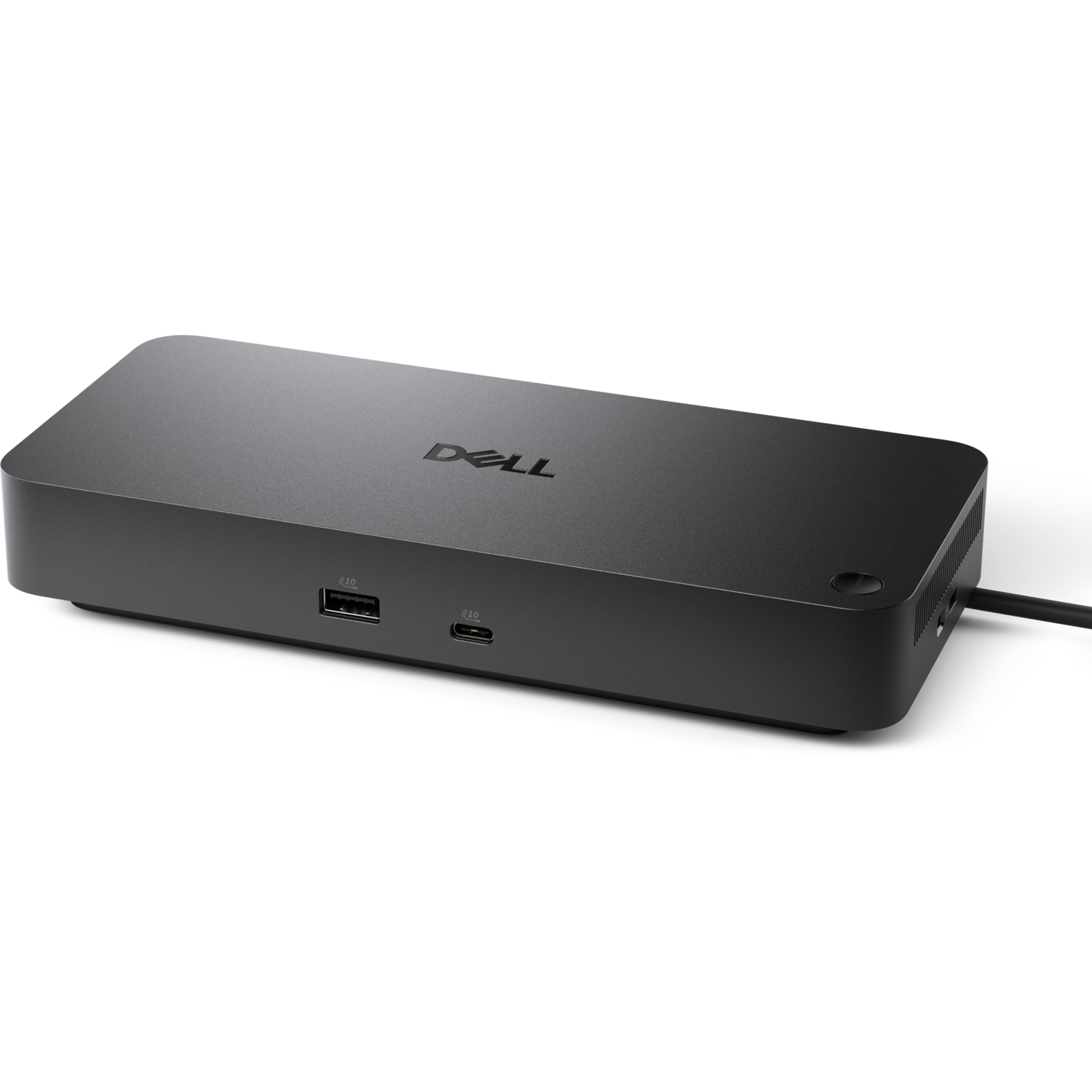

Dell Pro Dock WD25 USB-C Docking Station
PRODUCT DESCRIPTION
Dell Pro Dock - WD25 (210-BRMC) - 3 Years Local Warranty
One USB-C Cable to the Desk
The Dell Pro Dock WD25 connects a laptop over USB-C with DisplayPort Alt Mode and fans out to HDMI 2.1, two DisplayPort 1.4 ports, a USB-C Multi-function DisplayPort, four 10 Gbps USB-A ports, a 10 Gbps USB-C port and 2.5GbE Ethernet.
Charges While You Work
Its 130 W adapter delivers 100 W to Dell computers and 96 W to non-Dell computers, and the USB ports can charge phones and accessories with or without a PC.
Ready for IT Deployment
MAC address pass-through, PXE boot, Wake-on-LAN, Dock Power Button Sync, WLAN to LAN switch, Kernel DMA protection, host-based firmware updates, firmware update on disconnect and port disablement suit managed office fleets.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell WD25 Datasheet — Technical Specifications
General
| Product Name | Dell Pro Dock - WD25 |
| Model | WD25 |
| Dell SKU (Singapore) | 210-BRMC |
| Product Line | Dell Pro Docks |
| Local Warranty (Singapore) | 3-Year Limited Hardware Warranty with Advanced Exchange (Dell Singapore), supplied by SourceIT with a GST invoice |
Host Connection
| Host Interface | USB Type-C with DisplayPort Alt Mode |
| Host Cable Length | 0.9 m |
| Power to Host | 100 W to Dell computers; 96 W to non-Dell computers |
| Power Adapter | 130 W |
Ports

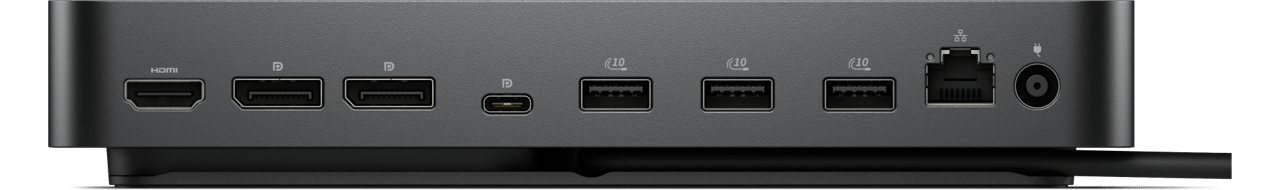

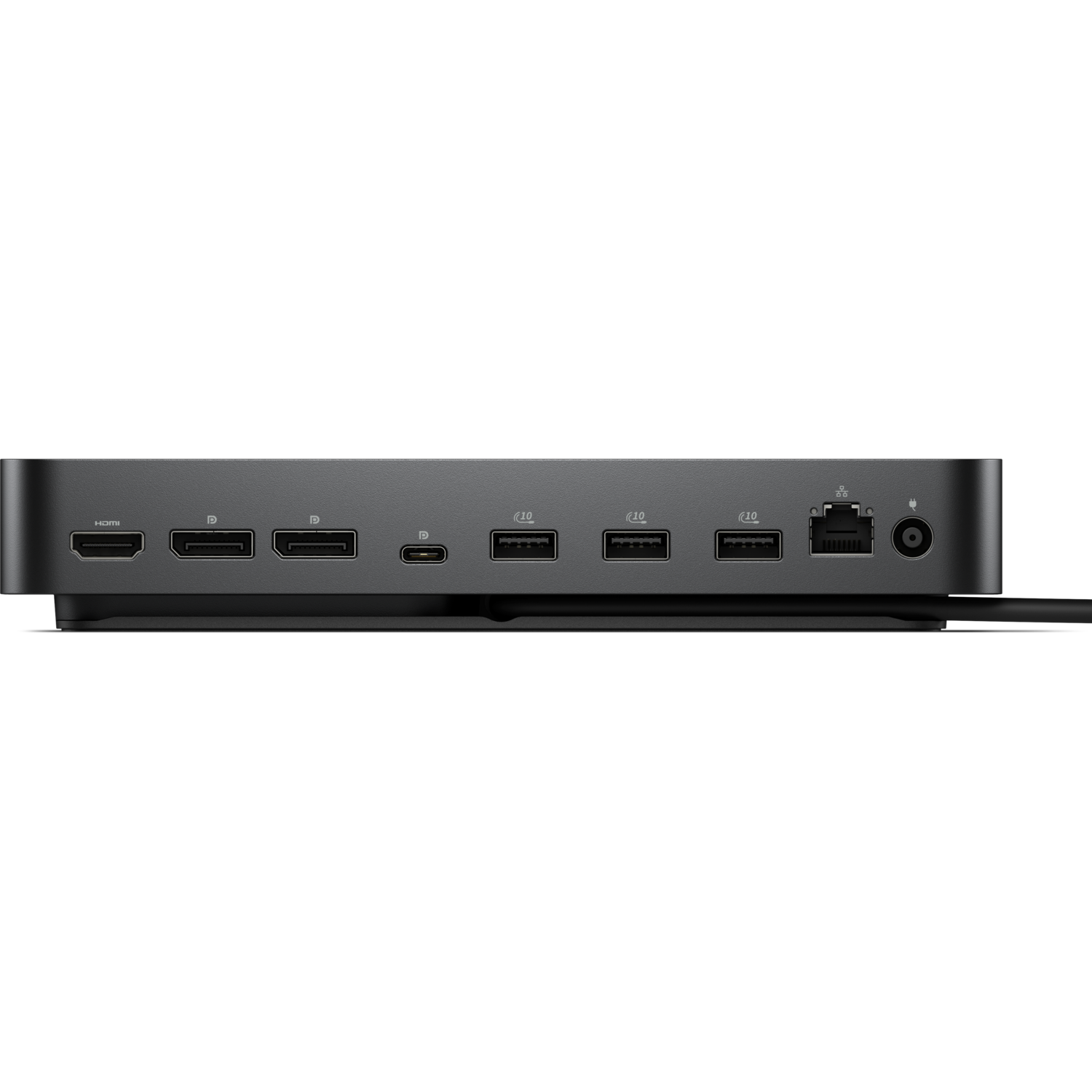

| Video Outputs | 2 x DisplayPort 1.4; 1 x HDMI 2.1; 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 |
| USB-A | 4 x USB-A 3.2 Gen 2 (10 Gbps) |
| USB-C | 1 x USB-C 3.2 Gen 2 (10 Gbps) |
| Ethernet | 1 x RJ45, 2.5GbE |
| Thunderbolt | No |
| Power to Connected Devices | 4 x USB-A 3.2 Gen 2 (4.5 W each), 1 x USB-C 3.2 Gen 2 (15 W), 1 x USB-C Multi-function DisplayPort (7.5 W) |
Video Support
| Maximum Displays | 4 |
| Without Display Stream Compression | Up to 4 x SXGA (1280 x 1024) @ 60 Hz, 3 x FHD @ 60 Hz, 2 x QHD @ 60 Hz, or 1 x 4K @ 60 Hz |
| With Display Stream Compression | Up to 4 x WQHD (3440 x 1440) @ 60 Hz, 2 x 5K (5120 x 2160) @ 60 Hz, or 1 x 6K (6144 x 3456) @ 60 Hz |
Management & Security
| IT Features | MAC address pass-through, PXE boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN switch, Kernel DMA protection, host PC-based firmware update, firmware update on disconnect, port disablement |
| Lock Slots | 1 x Kensington lock slot, 1 x wedge-shaped lock slot |
Physical
| Dimensions | 205 x 90 x 35.25 mm |
Compatibility & Software Support
Supported Operating Systems
Windows 10, Windows 11, Ubuntu 24.04, Red Hat Enterprise Linux 9.6+ and ChromeOS 137, per the Dell datasheet and user guide.
Host Laptops
Any laptop with USB-C and DisplayPort Alt Mode; 100 W charging applies to Dell computers, 96 W to non-Dell. Display modes depend on the host graphics and DSC support.
Software
Dell Display and Peripheral Manager and Dell Command Update for firmware.
Package Contents & Dell Pro Docks Ordering Information
In the Box
Docking station, power adapter and power cord, documentation (Quick Start Guide; Safety, Environmental and Regulatory Information).
Dell Pro Docks
| Model | Key feature |
| WD25 (this listing) | USB-C, 100 W to Dell PCs, 130 W adapter |
| SD25 | USB-C smart dock, 130 W to Dell PCs, cloud management |
| SD25TB4 | Thunderbolt 4 smart dock, 130 W to Dell PCs |
| SD25TB5 | Thunderbolt 5 smart dock, up to 300 W to Dell PCs |
Datasheet & Downloads
| Dell datasheet | Dell Pro Dock WD25 Datasheet (PDF) |
| Manuals & drivers | Documents and drivers on Dell Support |
| Dell product page | Product page on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WD25.
Frequently Asked Questions — Dell WD25
How is the WD25 different from the SD25?
Same port layout, but the SD25 adds cloud management via Dell Device Management Console and gives 130 W to Dell laptops (WD25: 100 W).
How much power does it give my laptop?
100 W to Dell computers and 96 W to non-Dell computers, from the included 130 W adapter.
Is it Thunderbolt?
No, it connects over USB-C with DisplayPort Alt Mode.
How many monitors?
Up to four; up to 1 x 4K at 60 Hz without compression or 1 x 6K at 60 Hz with Display Stream Compression.
What warranty do I get?
3-year Dell Limited Hardware Warranty with Advanced Exchange, supplied locally by SourceIT with a GST invoice.
