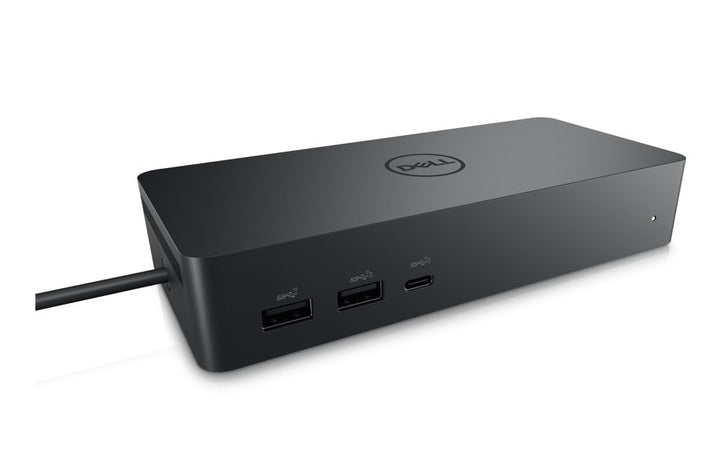

Dell UD22 Universal USB-C Docking Station
PRODUCT DESCRIPTION
Dell Universal Dock - UD22 (210-BFBX) - Local Dell Warranty
The Universal Dock for Any USB-C Notebook
Works with Windows, macOS, Ubuntu and ChromeOS laptops over a single USB-C cable.
Fast Charging
Up to 96 W Power Delivery to any USB-C notebook from the 130 W adapter.
Ten Ports, Up to Four Displays
Four USB-A and two USB-C ports, HDMI 2.0, two DisplayPort 1.2 and Gigabit Ethernet, driving up to four 4K displays at 60 Hz or a single 5K display, depending on the PC.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell UD22 Datasheet — Technical Specifications
General
| Product Name | Dell Universal Dock - UD22 |
| Model | UD22 (regulatory model K22A) |
| Dell SKU (Singapore) | 210-BFBX |
| Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange (Dell datasheet); supplied locally by SourceIT with a GST invoice |
Host Connection
| Host Interface | USB-C |
| Cable Length | 0.8 m |
| AC Adapter | 130 W |
| Power Delivery | Up to 96 W to any USB-C notebook |
Ports
| USB Type-A | 4 x USB 3.2 Gen 2 (1 with PowerShare) |
| USB Type-C | 1 x USB 3.2 Gen 2 with PowerShare; 1 x USB 3.2 Gen 2 with DisplayPort 1.4 Alt Mode |
| Video | 1 x HDMI 2.0, 2 x DisplayPort 1.2, 1 x USB-C with DP 1.4 Alt Mode |
| Network | Gigabit Ethernet (RJ-45) |
| Security | 1 x Kensington security-cable slot, 1 x Kensington nano lock slot |
Display Support
| Range | From 2 x FHD at 60 Hz + 1 x 4K at 30 Hz up to 4 x 4K at 60 Hz, depending on the PC and driver |
| Single Display | 5K at 60 Hz with HBR3 systems supporting Display Stream Compression |
Physical
| Dimensions | 166 x 76 x 32 mm |
| Weight | 416 g |
Compatibility & Software Support
Supported Operating Systems
Windows 10, Windows 11, Ubuntu 20.04 and later, macOS 12.2.1 and later, ChromeOS R100 and later (Dell datasheet).
Host Laptops
Any USB-C notebook; display modes depend on the laptop's DisplayPort capability and driver.
Compatibility Guide
See Dell's UD22/HD22Q docking compatibility guide below.
Package Contents & Dell Docking Stations Ordering Information
In the Box
Docking station, power adapter and power cord, documentation (Quick Start Guide; Safety, Environmental and Regulatory Information).
Dell Docking Stations
| Model | Key feature |
| WD19S | USB-C, up to 130 W to Dell PCs (180 W adapter) |
| WD19DCS | Dual USB-C, up to 210 W to Dell Precision 7000 (240 W adapter) |
| WD19TBS | Thunderbolt 3, up to 130 W to Dell PCs |
| HD22Q | USB-C dock with Qi wireless charging pad |
| WD22TB4 | Thunderbolt 4 dock, 130 W to Dell PCs |
| UD22 (this listing) | USB-C universal dock, up to 96 W to any USB-C laptop |
| D6000S | Universal USB-C/USB-A dock with DisplayLink |
| WD25 | Dell Pro USB-C dock, 100 W to Dell PCs |
| SD25 | Dell Pro USB-C smart dock |
| SD25TB4 | Dell Pro Thunderbolt 4 smart dock |
| SD25TB5 | Dell Pro Thunderbolt 5 smart dock |
Datasheet & Downloads
| Dell product guide | Dell Universal Dock UD22 Product Guide (PDF) |
| Compatibility guide | Dell UD22 / HD22Q Docking Compatibility Guide (PDF) |
| Manuals & drivers | Documents and drivers on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UD22.
Frequently Asked Questions — Dell UD22
Does it work with MacBooks?
Yes, Dell lists macOS 12.2.1 and later, along with Windows, Ubuntu and ChromeOS.
How much power does my laptop get?
Up to 96 W to any USB-C notebook, from the 130 W adapter.
How many monitors can it drive?
Up to four 4K displays at 60 Hz, or one 5K at 60 Hz, depending on the laptop.
Is it Thunderbolt?
No, it is a USB-C dock. For Thunderbolt see the SD25TB4 or SD25TB5 in the table above.
What warranty do I get?
Dell's datasheet states a 3-Year Limited Hardware Warranty with Advanced Exchange; supplied locally by SourceIT with a GST invoice.
