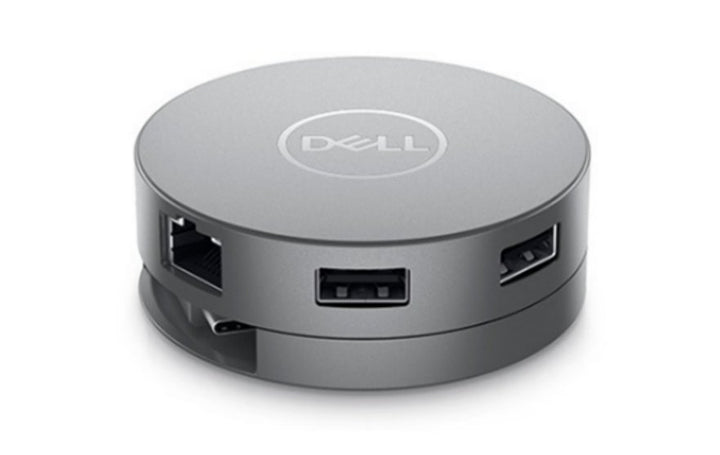

Dell DA310 7-in-1 USB-C Mobile Adapter
PRODUCT DESCRIPTION
Dell USB-C Mobile Adapter DA310 7-in-1 Multiport Hub (450-AKMS) - Local Dell Warranty
Seven Ports on One USB-C Cable
The DA310 (now named Dell Pro 7-in-1 USB-C Travel Hub - DA310 by Dell) adds HDMI, DisplayPort, VGA, two USB-A, one USB-C and Gigabit Ethernet to any laptop with a USB-C port that supports DisplayPort Alt Mode.
4K at 60Hz over HDMI or DisplayPort
Drive one external display at up to 4K 60Hz over HDMI 2.0 or DisplayPort 1.4, 4K 30Hz over USB-C, or Full HD over VGA for older projectors.
Built for Managed Fleets
Up to 90 W power pass-through, plus MAC address pass-through, PXE boot and Wake-on-LAN (dependent on the PC BIOS), in an 80 g body with a retractable 120 mm cable.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell DA310 Datasheet — Technical Specifications
General
| Product Name | Dell USB-C Mobile Adapter - DA310 (Dell Pro 7-in-1 USB-C Travel Hub - DA310) |
| Model | DA310 |
| Dell SKU (Singapore) | 450-AKMS |
| Regulatory model | DA310z / DA310u |
| Local Warranty (Singapore) | Dell datasheet lists a 3-year warranty; supplied by SourceIT with a GST invoice (confirm the term with sales) |
Host Connection
| Upstream | USB-C (Thunderbolt or USB-C with DisplayPort Alt Mode) |
| Cable | Integrated retractable USB-C, round coaxial, 120 mm |
| Power Pass-through | Up to 90 W via the USB-C port (the adapter reserves 15 W for its own operation) |
Ports
| Video | 1 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x VGA |
| USB-A | 2 x USB-A, up to 10 Gbps |
| USB-C | 1 x USB-C, data up to 10 Gbps and power pass-through |
| Ethernet | 1 x RJ-45 Gigabit Ethernet |
Video Support
| HDMI 2.0 | Up to 3840 x 2160 at 60Hz |
| DisplayPort 1.4 | Up to 3840 x 2160 at 60Hz |
| USB-C | Up to 3840 x 2160 at 30Hz |
| VGA | Up to 1920 x 1080 at 60Hz |
| Displays | Single display (one video output at a time); 4K 60Hz needs a PC with DisplayPort 1.3 or higher |
Management
| IT Features | MAC address pass-through, Wake-on-LAN, PXE boot (dependent on PC BIOS) |
Physical
| Dimensions | 69.8 mm x 24.5 mm (2.75 x 0.96 in) |
| Weight | 80 g |
| Operating Temperature | Maximum ambient 35°C |
Compatibility & Software Support
Supported Operating Systems
Windows 10 64-bit, macOS, Chrome OS, Ubuntu and Red Hat Enterprise Linux, per Dell.
Host Devices
Laptops and tablets with a USB-C port; video needs DisplayPort Alt Mode on the host. Dell publishes a DA310 compatibility list on its support site.
Package Contents & Dell USB-C Adapters & Hubs Ordering Information
In the Box
Dell USB-C Mobile Adapter DA310 with integrated retractable USB-C cable, and documentation.
Dell USB-C Adapters & Hubs
| Model | Key feature |
| DA305 6-in-1 USB-C Multiport Adapter (450-ALWY) | HDMI 2.0 + DisplayPort + USB-C video, Gigabit Ethernet |
| DA310 7-in-1 USB-C Mobile Adapter (450-AKMS) (this listing) | HDMI 2.0 / DP 1.4 at 4K60, VGA, Gigabit Ethernet, 90 W pass-through |
| DA326 Pro 7-in-1 USB-C Travel Hub (450-BHBS) | HDMI 2.1 + DP 1.4 up to 6K, 2.5GbE, 100 W pass-through |
| USB-C to 2.5Gbps Ethernet Adapter SA224 (492-BDMW) | USB-C to RJ45 up to 2.5 Gbps, PXE / WoL / MAC pass-through |
| USB 3.0 to Gigabit Ethernet Adapter (492-11726) | USB-A to Gigabit Ethernet with PXE boot |
Datasheet & Downloads
| Dell datasheet | Dell USB-C Mobile Adapter DA310 Datasheet (PDF) |
| User guide | DA310 User's Guide (PDF) |
| Manuals & drivers | DA310 on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DA310.
Frequently Asked Questions — Dell DA310
How many monitors can it drive?
One external display at a time: up to 4K 60Hz over HDMI or DisplayPort, 4K 30Hz over USB-C, or 1080p over VGA.
Can it charge my laptop?
Yes. Connect a USB-C power adapter to the USB-C port and it passes through up to 90 W (15 W is reserved for the adapter).
Does it support PXE boot and MAC address pass-through?
Yes, together with Wake-on-LAN, where the PC BIOS supports them.
Is the DA310 still current?
Dell has withdrawn the DA310 from its online store; the DA326 Pro 7-in-1 USB-C Travel Hub is the newer model. Email sales for availability.
What warranty do I get?
Dell's datasheet lists a 3-year warranty; supplied locally by SourceIT with a GST invoice. Please confirm the term with sales.
