D-Link DAP-2662 Nuclias Connect AC1200 Wave 2 Access Point
PRODUCT DESCRIPTION
D-Link DAP-2662 Nuclias Connect AC1200 Wave 2 Dual-Band PoE Access Point (DAP-2662) - 5 Years Local Warranty
High-Power AC1200 Wave 2 Coverage
The D-Link DAP-2662 is a dual-band IEEE 802.11ac Wave 2 access point delivering up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, with 26 dBm maximum output power on both bands for wide coverage.
Seamless Roaming
IEEE 802.11r/k/v support helps clients roam smoothly between APs, while band steering moves capable devices onto the less congested 5 GHz band.
Free Centralised Management
Deploy standalone or manage it with D-Link's free Nuclias Connect software (up to 1,000 APs) or a Nuclias Connect hub (up to 100 APs).
Easy PoE Installation

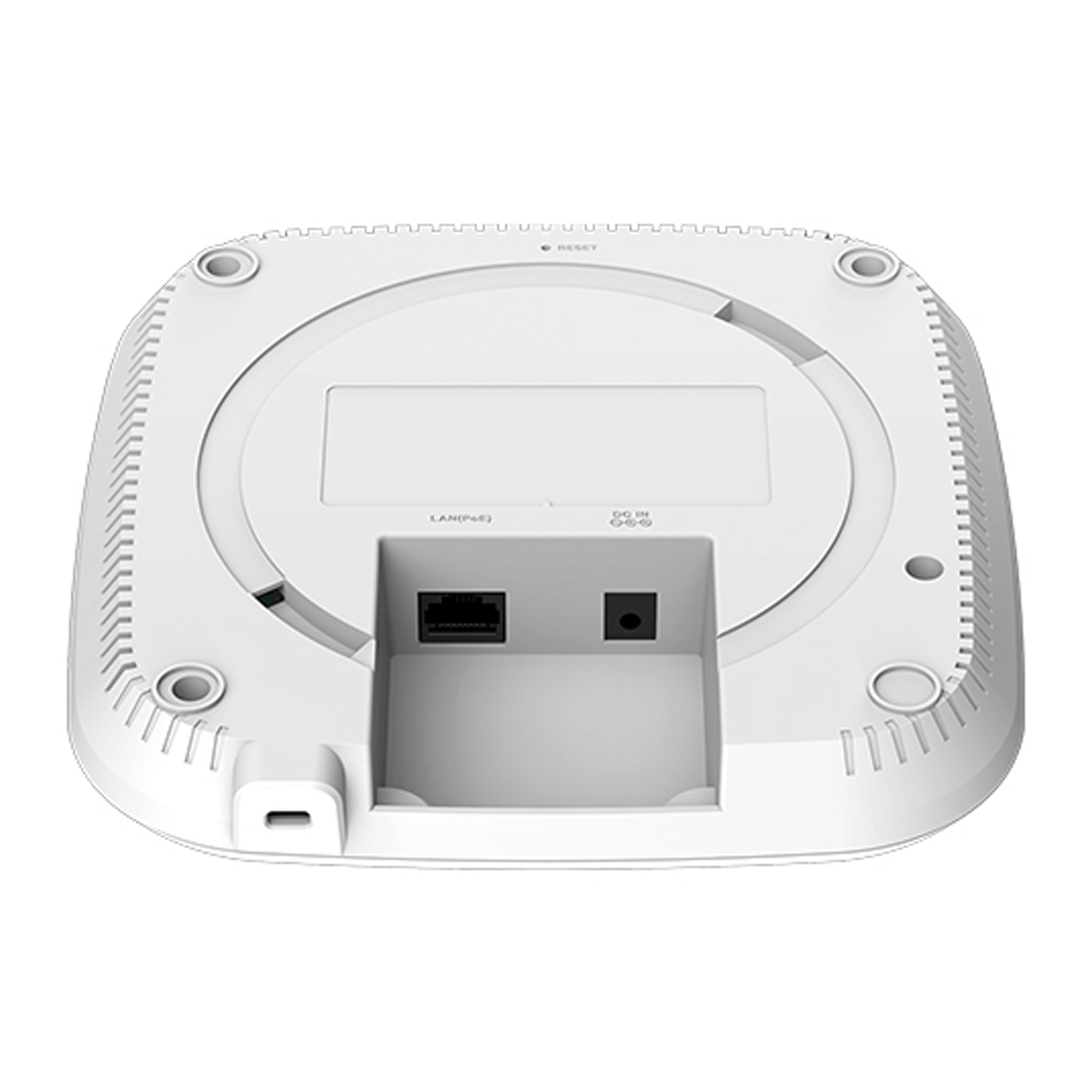

A Gigabit LAN port with IEEE 802.3af PoE input powers the AP from your switch at just 6.5 W maximum; the soft-edge housing mounts on a wall or ceiling indoors.
Need help choosing? Email sales@sourceit.com.sg with your floor plan and user count and we will plan the Nuclias Connect AP mix for you.
D-Link DAP-2662 Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-2662 Wireless AC1200 Wave 2 Dual-Band PoE Access Point |
| Part Number | DAP-2662 |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac Wave 2; 802.11r/k/v; 802.1x |
| Frequency Bands | 2.4 - 2.4835 GHz; 5.15 - 5.35 GHz, 5.47 - 5.85 GHz |
| Data Rate | 2.4 GHz up to 300 Mbps; 5 GHz up to 867 Mbps (AC1200) |
| Antennas | 2 x 3 dBi internal (2.4 GHz); 2 x 4 dBi internal (5 GHz) |
| Max Output Power | 26 dBm (2.4 GHz and 5 GHz) |
| SSIDs | 8 per radio (16 total) |
Interfaces & Power
| Ethernet | 1 x Gigabit LAN (PoE in) |
| Wired Standards | IEEE 802.3u/ab, IEEE 802.3az EEE |
| Power Input | IEEE 802.3af PoE, or 12 V DC +/- 10% |
| Max Power Consumption | 6.5 W |
| LEDs | Power |
Security
| Encryption | 128-bit personal and enterprise wireless encryption (WPA/WPA2 Personal and Enterprise) |
| Access Control | 802.1x, MAC address filtering, WLAN partitioning, captive portal |
Physical & Environmental
| Dimensions | 170 x 170 x 28 mm |
| Weight | 350 g without bracket; 400.6 g with bracket |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Operating Humidity | 10% to 90% non-condensing |
| MTBF | 341,897 hours |
| Certifications | FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint |
Compatibility & Software Support
Management
Standalone web management, or centralised via D-Link's free Nuclias Connect software (up to 1,000 APs) or a Nuclias Connect hardware hub (up to 100 APs), with multiple AP modes.
Typical Use
Larger open-plan offices, warehouses, schools and hospitality venues where high output power and fast roaming between APs matter.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-2662 (this listing) | AC1200 Wave 2 AP, 802.3af PoE |
| DAP-2610 | AC1300 Wave 2 AP, 802.3af PoE |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Mounting hardware for wall or ceiling installation is included, per D-Link Singapore. Ask us to confirm whether a power adapter is included.
Datasheet & Downloads
| D-Link datasheet | DAP-2662 Datasheet (PDF) |
| D-Link product page | DAP-2662 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-2662.
Frequently Asked Questions — D-Link DAP-2662
What is the difference between the DAP-2662 and DAP-2610?
The DAP-2662 has higher output power (26 dBm) and 802.11r/k/v roaming support; the DAP-2610 offers a slightly higher 2.4 GHz rate (400 Mbps) with MU-MIMO. Both use 802.3af PoE.
Does it support WPA3?
WPA3 is not listed in D-Link's datasheet; plan on WPA/WPA2 Personal or Enterprise.
How many users can it handle?
D-Link Singapore states 250+ concurrent client connections (tested and verified by IXIA).
Can it be used outdoors?
No, it is an indoor AP rated 0 to 40 °C. For outdoor use see the IP68 DAP-X3060OU.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
