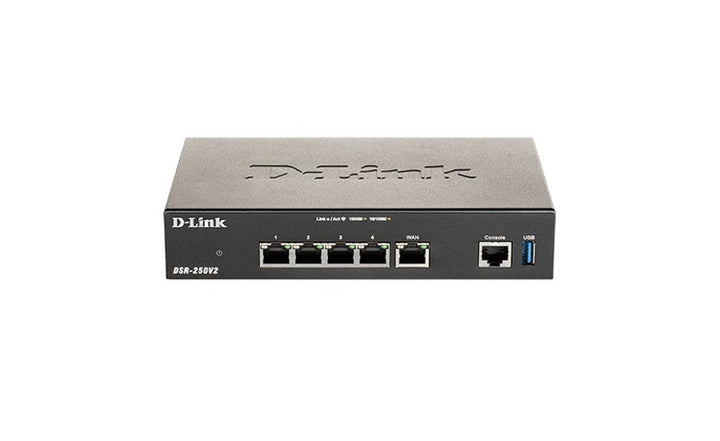

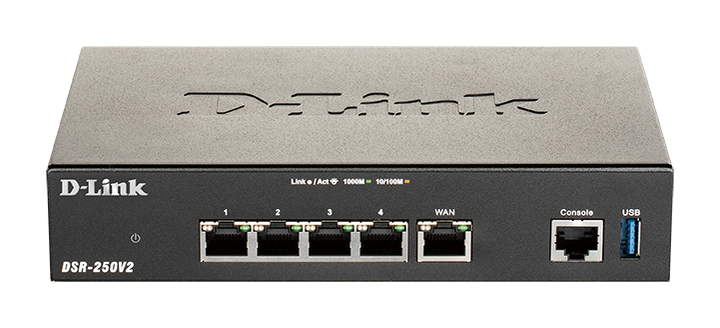

D-Link DSR-250V2 Gigabit VPN Router
PRODUCT DESCRIPTION
D-Link DSR-250V2 Unified Services VPN Router (DSR-250V2) - 5 Years Local Warranty
Dual-WAN Gigabit VPN Router for Small Offices
The D-Link DSR-250V2 is a wired Unified Services VPN router in a metal housing. It provides one Gigabit WAN port, one configurable Gigabit WAN/LAN port and three Gigabit LAN ports, with WAN failover and outbound load balancing to keep the office online.
Complete VPN Support
IPSec, PPTP, L2TP, GRE and OpenVPN are all supported, with D-Link specifying 50 IPSec, 30 PPTP/L2TP, 20 GRE and 20 OpenVPN tunnels, plus Hub-and-Spoke and Dead Peer Detection for branch connectivity.
Security Built In
A 950 Mbps firewall with 300 policies, IPS, application control and web content filtering (dynamic WCF requires a licence) protect the network, and a captive portal adds web authentication for guests.
Flexible Management
Manage via web UI, CLI or SNMP v1/v2c/v3; a USB 3.0 port supports 3G redundancy with a mobile dongle.
Need help choosing? Email sales@sourceit.com.sg with your user count, internet lines and VPN needs and we will size it for you.
D-Link DSR-250V2 Datasheet — Technical Specifications
General
| Product Name | D-Link DSR-250V2 Unified Services VPN Router |
| Part Number | DSR-250V2 |
| Hardware Revision | B1 (dlink.com) |
| Housing | Metal |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 1 x Gigabit Ethernet |
| WAN/LAN | 1 x Gigabit Ethernet, configurable |
| LAN | 3 x Gigabit Ethernet |
| USB | 1 x USB 3.0 |
| Console | RJ45 |
| Wi-Fi | None (wired router) |
Performance
| Firewall Throughput | 950 Mbps |
| VPN Throughput (3DES) | 200 Mbps |
| Concurrent Sessions | 50,000 |
| New Sessions per Second | 2,000 |
| Firewall Policies | 300 |
| Port-based VLANs | 16 |
VPN Tunnels
| IPSec | 50 |
| PPTP / L2TP | 30 |
| GRE | 20 |
| OpenVPN | 20 |
| Encryption | DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL |
Physical & Environmental
| Power Input | DC 12 V / 1.5 A |
| Max Power Consumption | 14.4 W |
| Dimensions | 190 x 120 x 38 mm |
| Operating Temperature | 0 to 40 °C |
| Humidity | 5% to 95% non-condensing |
| MTBF | 1,230,157.85 hours |
Certifications
| EMI | FCC Class B, CE Class B, RCM, IC, VCCI |
| Safety | LVD (EN62368) |
Compatibility & Software Support
Features
Firewall: NAT/PAT, IPS, web content filtering, inter-VLAN, static and dynamic routing, Dynamic DNS. Networking: dual-WAN outbound load balancing and route failover, 3G redundancy, DHCP server/client/relay, IEEE 802.1Q and port-based VLAN, IP multicast, IPv6. VPN: IPSec/PPTP/L2TP server, IPSec NAT traversal, Hub and Spoke, Dead Peer Detection.
Licences
Dynamic web content filtering requires a D-Link licence — ask us for the matching licence SKU.
Management
Web UI, CLI, SNMP v1/v2c/v3.
Package Contents & D-Link VPN Router Ordering Information
D-Link Business / VPN Routers
| Model | Ports | Wi-Fi | Part No. |
| DSR-250V2 (this listing) | 1 x GE WAN + 1 x GE WAN/LAN + 3 x GE LAN | No | DSR-250V2 |
| DSR-500AC | 2 x GE WAN + 4 x GE LAN | 802.11ac | DSR-500AC |
| DSR-1000AC | 2 x GE WAN + 4 x GE LAN | Dual-band 802.11ac | DSR-1000AC |
Package contents are not listed in D-Link's datasheet — ask us to confirm the included power adapter and accessories.
Datasheet & Downloads
| D-Link datasheet | DSR Series Datasheet (PDF, Jan 2023) |
| D-Link product page | DSR-250V2 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DSR-250V2.
Frequently Asked Questions — D-Link DSR-250V2
Does the DSR-250V2 have Wi-Fi?
No, it is a wired router. For built-in Wi-Fi see the DSR-500AC or DSR-1000AC.
Can I connect two internet lines?
Yes. One port is a dedicated WAN and a second is configurable as WAN or LAN, with load balancing and failover.
How many VPN tunnels does it support?
50 IPSec, 30 PPTP/L2TP, 20 GRE and 20 OpenVPN tunnels, per D-Link's datasheet.
Is web filtering included?
Static filtering is built in; dynamic web content filtering needs a D-Link licence.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
