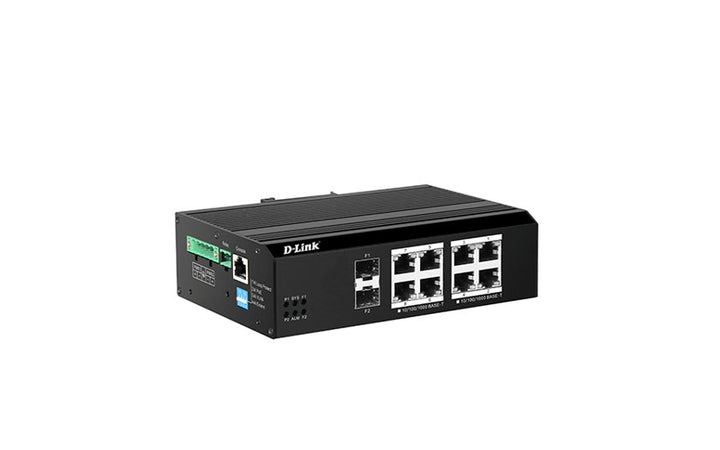

D-Link 10-port Industrial 250m PoE 240W Switch with 4-port Gigabit Uplinks (DIS-F2010PS-E)
D-Link 10-port Industrial 250m PoE 240W Switch with 4-port Gigabit Uplinks (DIS-F2010PS-E) - 2 Years Local Warranty
D-Link 10-Port Industrial 250m PoE 240W Switch with 4-Port Gigabit Uplinks (DIS-F2010PS-E)
The D-Link DIS-F2010PS-E is a rugged 10-port Industrial PoE Switch designed to provide high-power, long-distance network connectivity in demanding environments. With 240W of PoE power and 4 Gigabit Uplink ports, this switch offers a reliable, scalable, and secure solution for industrial and outdoor applications such as surveillance systems, factory automation, and transportation networks.
Power over Ethernet (PoE) with Long-Distance Support
The DIS-F2010PS-E provides 10 Ethernet ports with PoE+ support (up to 250 meters) to power connected devices like IP cameras, wireless access points, and sensors directly through the network cable, eliminating the need for additional power sources. It is ideal for applications requiring extended reach and reliable power delivery, with a 240W total PoE budget to support multiple devices.
4 Gigabit Uplink Ports for High-Speed Connectivity
This industrial-grade PoE switch is equipped with 4 Gigabit uplink ports, ensuring high-speed data transfer to core network devices. These ports facilitate fast and stable connections to backbone networks or other industrial systems, making the DIS-F2010PS-E ideal for high-bandwidth applications.
Industrial-Grade Design for Harsh Environments
Built to withstand challenging conditions, the DIS-F2010PS-E features an industrial-grade design with a wide operating temperature range of -40°C to 75°C. It is designed to operate in harsh environments such as factories, warehouses, and outdoor installations, ensuring reliable performance even in extreme conditions.
Enhanced Security and Network Management
This switch offers advanced network management features, including VLAN support, QoS (Quality of Service), and IGMP Snooping, to optimize network performance and ensure efficient traffic handling. The D-Link Web Smart interface allows for easy configuration and monitoring, providing administrators with full control over the network and connected devices.
Durable and Compact for Flexible Installation
With a compact and rugged metal enclosure, the DIS-F2010PS-E is designed for easy mounting in industrial racks or wall-mounted setups, providing flexibility in various installations. The switch’s fanless design also ensures quiet operation, making it ideal for noise-sensitive environments.
Technical Specifications
- Model: DIS-F2010PS-E
- Ports: 10 x 10/100/1000Base-T PoE Ports, 4 x Gigabit Uplink Ports
- PoE Power Budget: 240W (supporting 250m PoE)
- PoE Standard: IEEE 802.3af/at PoE+
- Uplink Ports: 4 x Gigabit Ethernet
- Industrial Temperature Range: -40°C to 75°C
- Network Management: Web Smart, VLAN, QoS, IGMP Snooping
- Enclosure: Industrial metal
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Power Supply: 240W total PoE budget
- GTIN: 0790069282275
Detailed Specification
10-port Gigabit Layer 2 Managed Industrial 250m PoE (240W) Switch with 4-port Gigabit Uplinks
8 x 10/100/1000Base-T 802.3af/802.3at PoE, 2 x 100/1000Mbps SFP DIN-Rail
(Port 1-8 Up-to 30W, Up to 250m (@ 10Mbps)), MAC Address 8K, IP40 , -40°C to +75°C Operating Temperature Range, PSU not included, Managed Layer 2
Power Budget: 240W
6KV Surge Protection, Self-healing Run-Ring (<10ms), VLAN, QoS, STP/RSTP/MSTP, Port Mirroring, Link Aggregation, Bandwidth Control, IGMP/MLD Snooping, Web-based Access Control, RADIUS, Web-based UI, CLI, SNMP V1/V2/V3, Certification: CE, FCC
- Support up to 250m PoE and Data
transmission
- Industrial model variations with wider
operating temperature ranges - Fanless, passive cooling design
- High EMC endurance
- Built-in 6 KV surge protection on copper ports
- Run-Ring (Self-healing < 10ms)
- Dual power input for redundant power
supplies
- Port mirroring
- Link aggregation
- Bandwidth control
