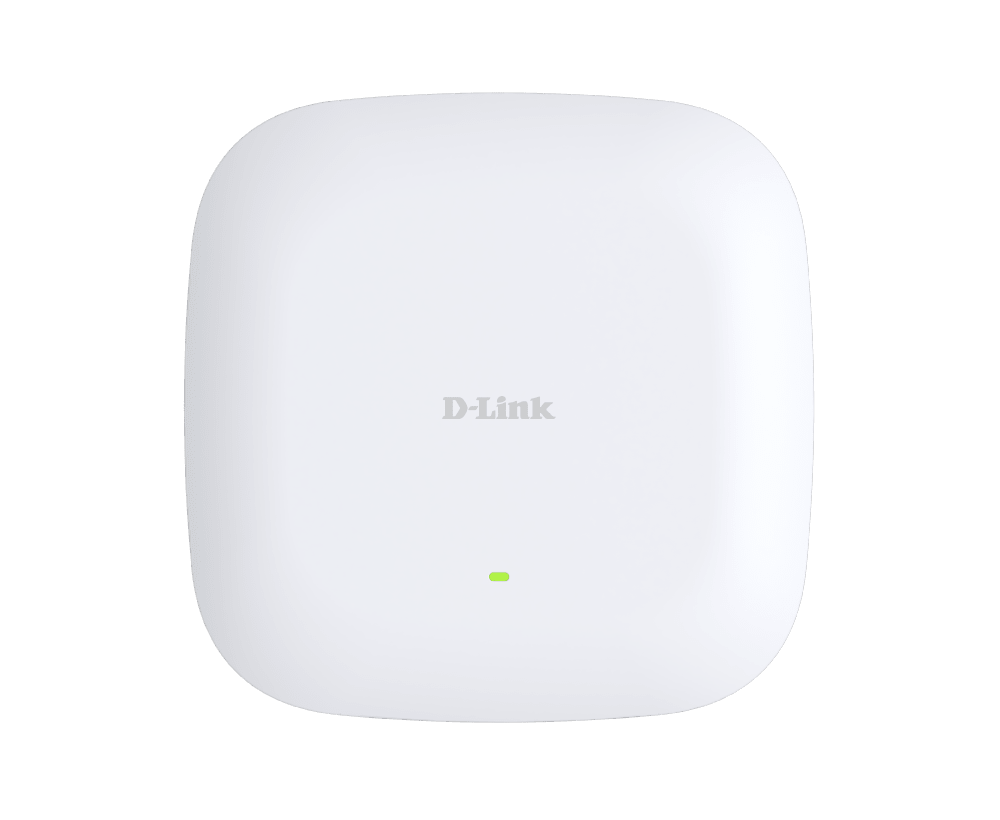

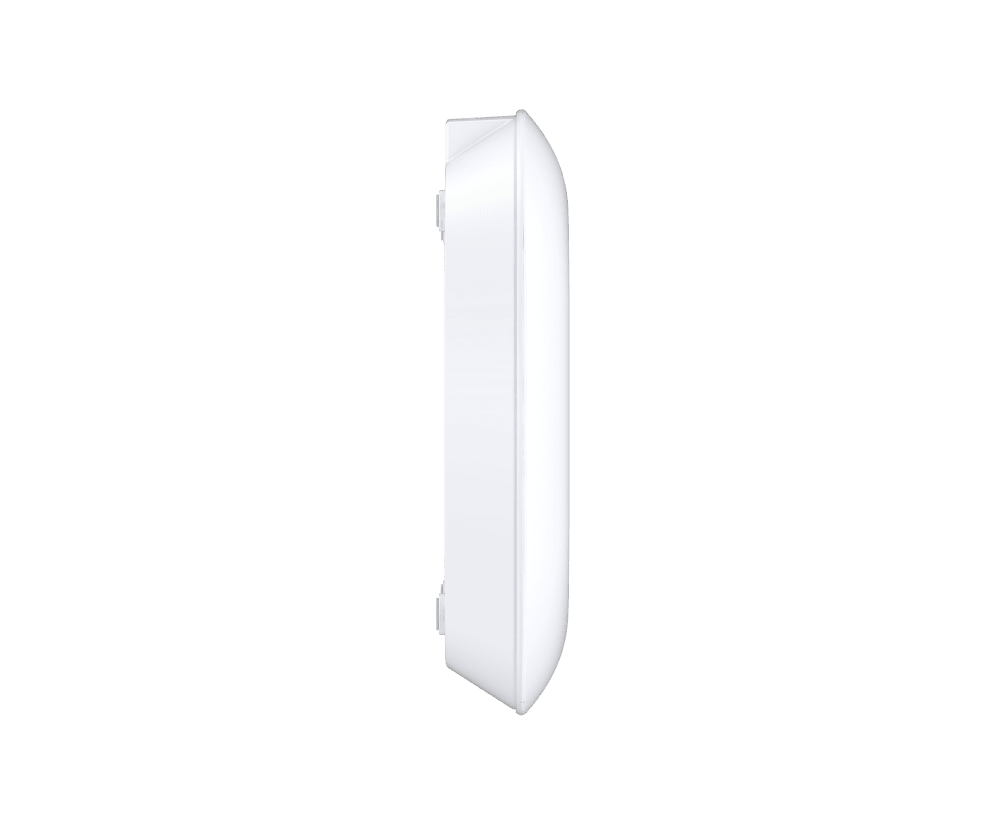

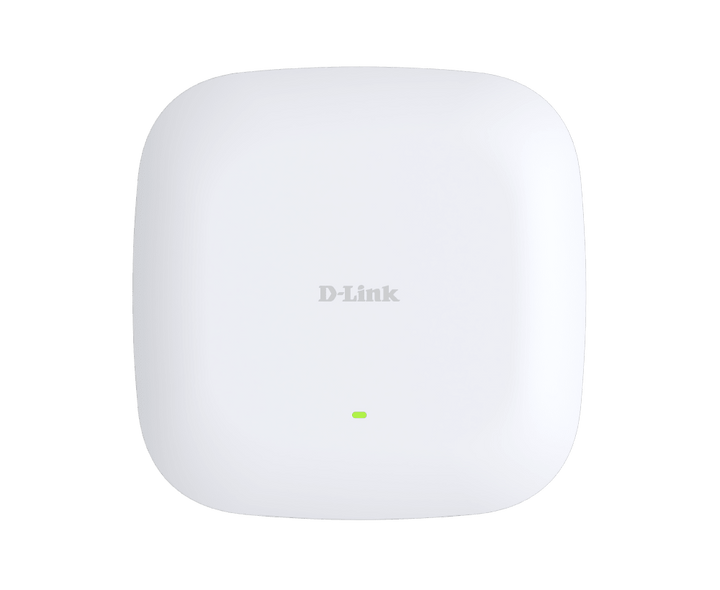

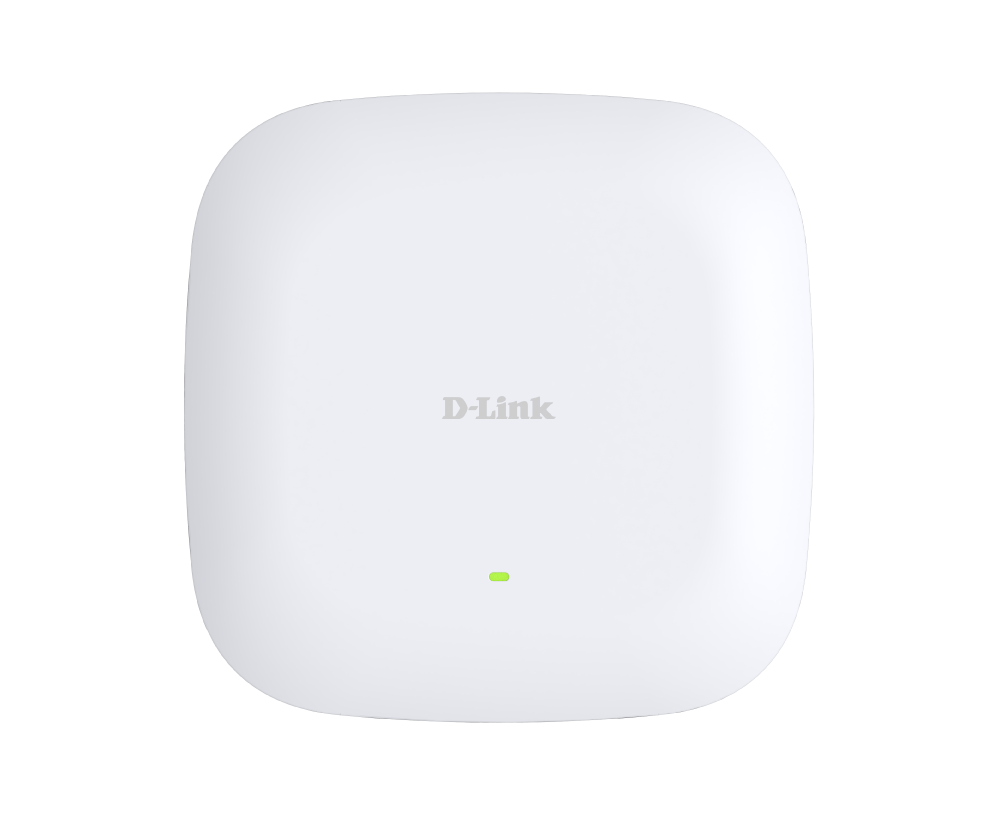

D-Link DAP-E9560 BE9500 Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
D-Link DAP-E9560 BE9500 Wi-Fi 7 Tri-Band Ceiling Mount Access Point (DAP-E9560) - 5 Years Local Warranty
Ultra-Fast Wi-Fi 7 Performance
The D-Link DAP-E9560 is a 2x2+2x2+2x2 tri-band IEEE 802.11be (Wi-Fi 7) access point delivering up to 9.5 Gbps combined: 688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz and 5764 Mbps on 6 GHz, with 320 MHz channels, 4096-QAM and Multi-Link Operation (MLO).
10G PoE Uplink

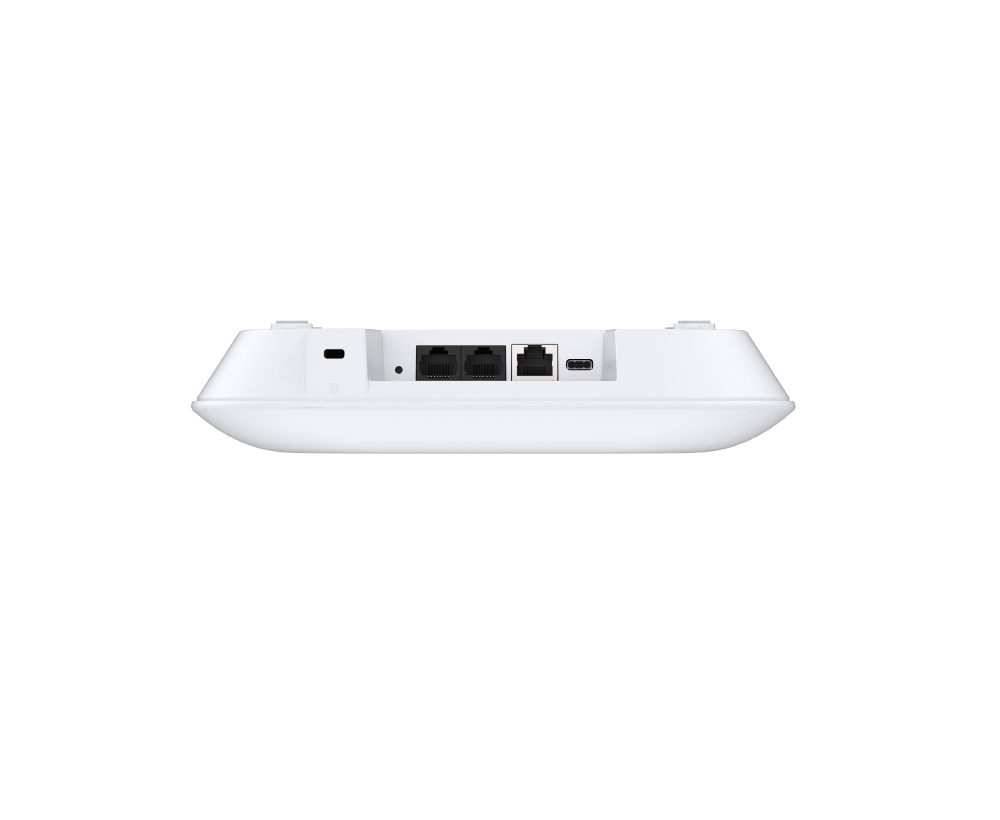

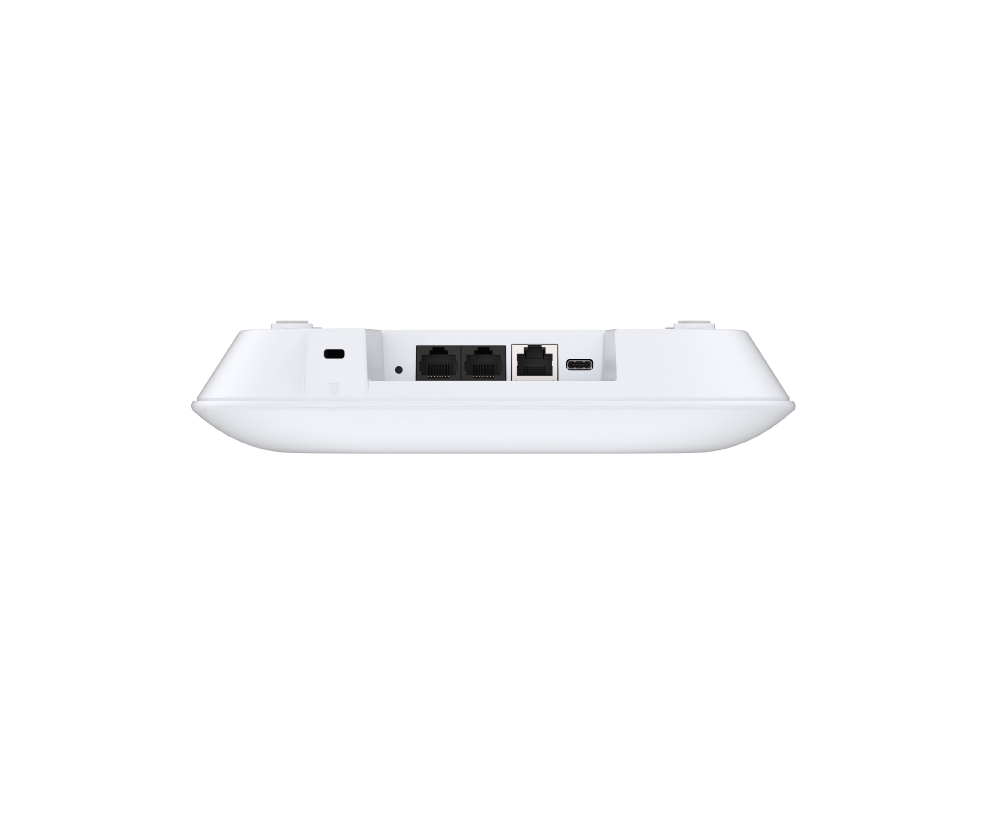

A 10 Gigabit Ethernet LAN port with IEEE 802.3bt PoE input carries both data and power, with an additional 2.5 Gigabit Ethernet LAN port and an RJ45 console. A 20 V / 2.25 A USB Type-C input is the alternative power option.
Enterprise Design
Built for offices, campuses and high-density areas, with WPA3 Personal/Enterprise, an internal RADIUS server, 802.1X and MAC/IP ACLs, and management by D-Link's Nuclias Network Controller or locally via web, SSH/Telnet and SNMP.
Need help choosing? Email sales@sourceit.com.sg with your floor plan and client density and we will plan a Wi-Fi 7 deployment with the right multi-gigabit PoE switching.
D-Link DAP-E9560 Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-E9560 BE9500 Wi-Fi 7 Tri-Band PoE Access Point |
| Part Number | DAP-E9560 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11be/ax/ac/n/g/b/a |
| Radio | 2x2 + 2x2 + 2x2 tri-band (2.4 / 5 / 6 GHz), BE9500 |
| Data Rate | 2.4 GHz up to 688 Mbps; 5 GHz up to 2882 Mbps; 6 GHz up to 5764 Mbps |
| Wi-Fi 7 Features | 320 MHz channel bandwidth, 4096-QAM, Multi-Link Operation (MLO) |
| Antennas | 2 x 3.3 dBi (2.4 GHz), 2 x 4.8 dBi (5 GHz), 2 x 4.6 dBi (6 GHz) |
| Max Output Power | 23 dBm (2.4 GHz), 25 dBm (5 GHz), 24 dBm (6 GHz) |
Interfaces & Power
| Ethernet | 1 x 10 Gigabit Ethernet PoE LAN; 1 x 2.5 Gigabit Ethernet LAN |
| Console | 1 x RJ45 |
| Power Input | IEEE 802.3bt PoE, or 20 V / 2.25 A (USB Type-C) |
| Max Power Consumption | 27.756 W |
Security & Management
| Encryption | WPA/WPA2/WPA3 Personal/Enterprise |
| Access Control | MAC address access control, internal RADIUS server, 802.1X, MAC/IP ACL |
| Management | Nuclias Network Controller; Web (HTTP/HTTPS), SSH/Telnet, SNMP |
Physical & Environmental
| Dimensions | 223.04 x 223.04 x 46.7 mm |
| Weight | 1167 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Humidity | Operating 10% to 90%; storage 5% to 95% (non-condensing) |
| Certifications | CE, IC, FCC, LVD |
Compatibility & Software Support
Management
Centrally managed by D-Link's Nuclias Network Controller, or standalone via Web (HTTP/HTTPS), SSH/Telnet and SNMP.
Switching Requirements
To use the full uplink speed and power it over one cable, connect it to a 10GbE switch port that supplies IEEE 802.3bt PoE. D-Link's PoE Power Capacity Guide (see Downloads) helps size the switch.
Typical Use
Offices, campuses, department stores and other high-density areas moving to Wi-Fi 7 with 6 GHz.
Package Contents & Nuclias Ordering Information
Package Contents

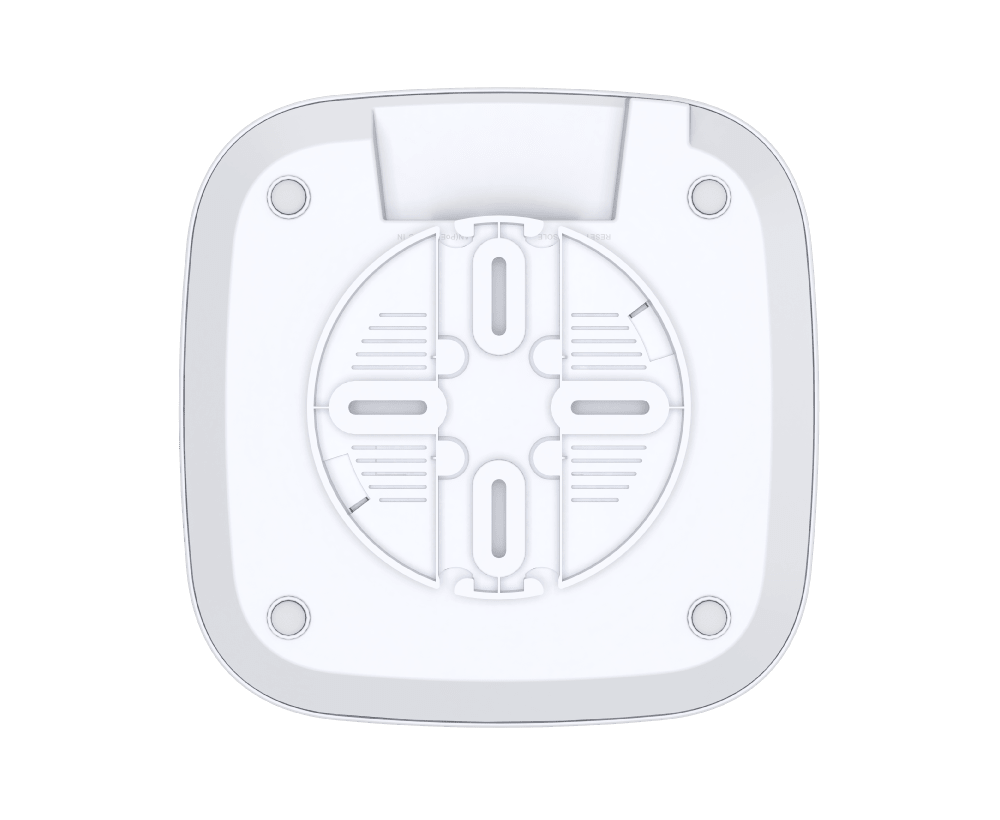

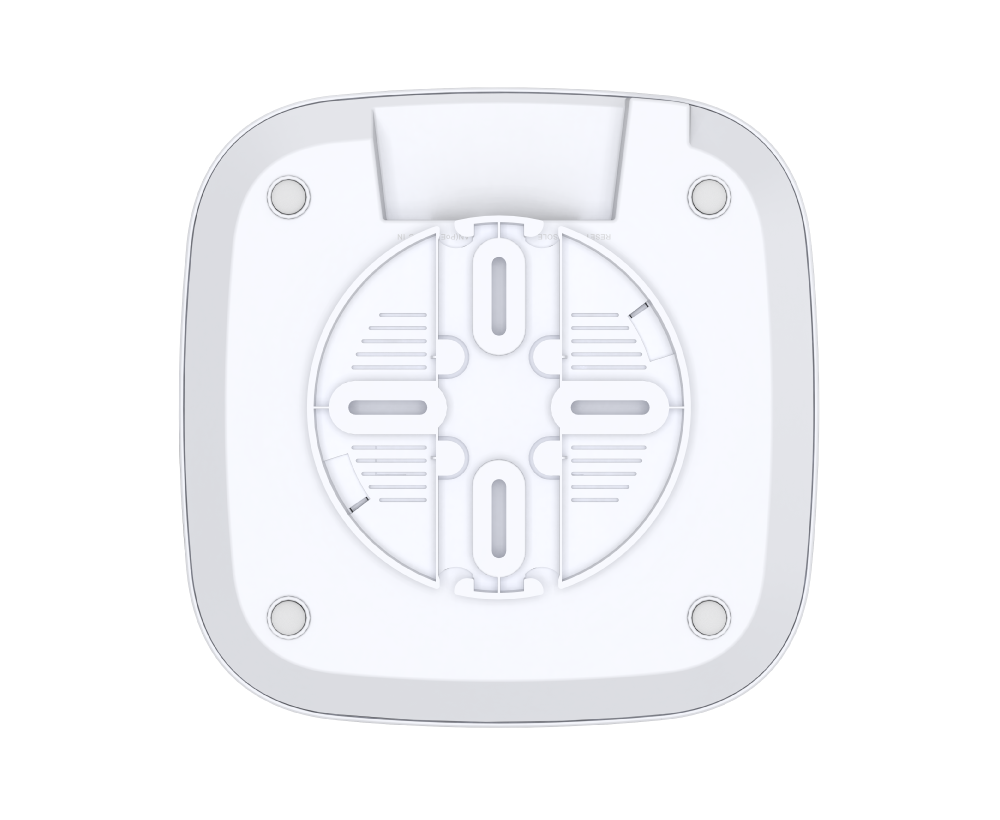

DAP-E9560 unit, ceiling brackets, mounting plate, Quick Start Guide.
Nuclias Access Points and Controllers
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 (this listing) | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Datasheet & Downloads
| D-Link datasheet | DAP-E9560 Datasheet (PDF) |
| PoE Power Capacity Guide | D-Link PoE Power Capacity Guide (PDF) |
| D-Link product page | DAP-E9560 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-E9560.
Frequently Asked Questions — D-Link DAP-E9560
What PoE does it need?
IEEE 802.3bt PoE on the 10GbE port; maximum consumption is 27.756 W. It can also run from a 20 V / 2.25 A USB Type-C supply.
Does it support 6 GHz?
Yes, it is tri-band 2.4 / 5 / 6 GHz with up to 5764 Mbps on 6 GHz and 320 MHz channels.
How is it managed?
By D-Link's Nuclias Network Controller, or standalone through its web interface, SSH/Telnet and SNMP.
What is in the box?
The AP, ceiling brackets, a mounting plate and a Quick Start Guide.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
