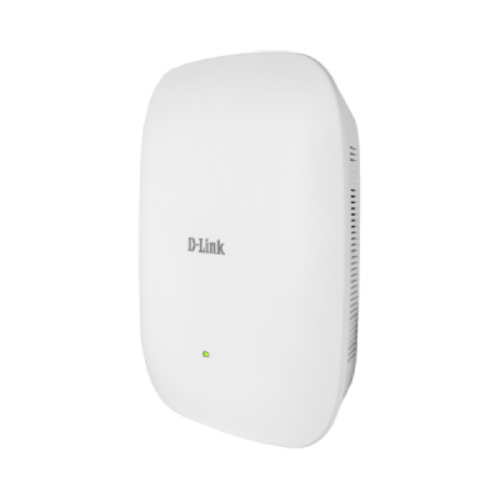

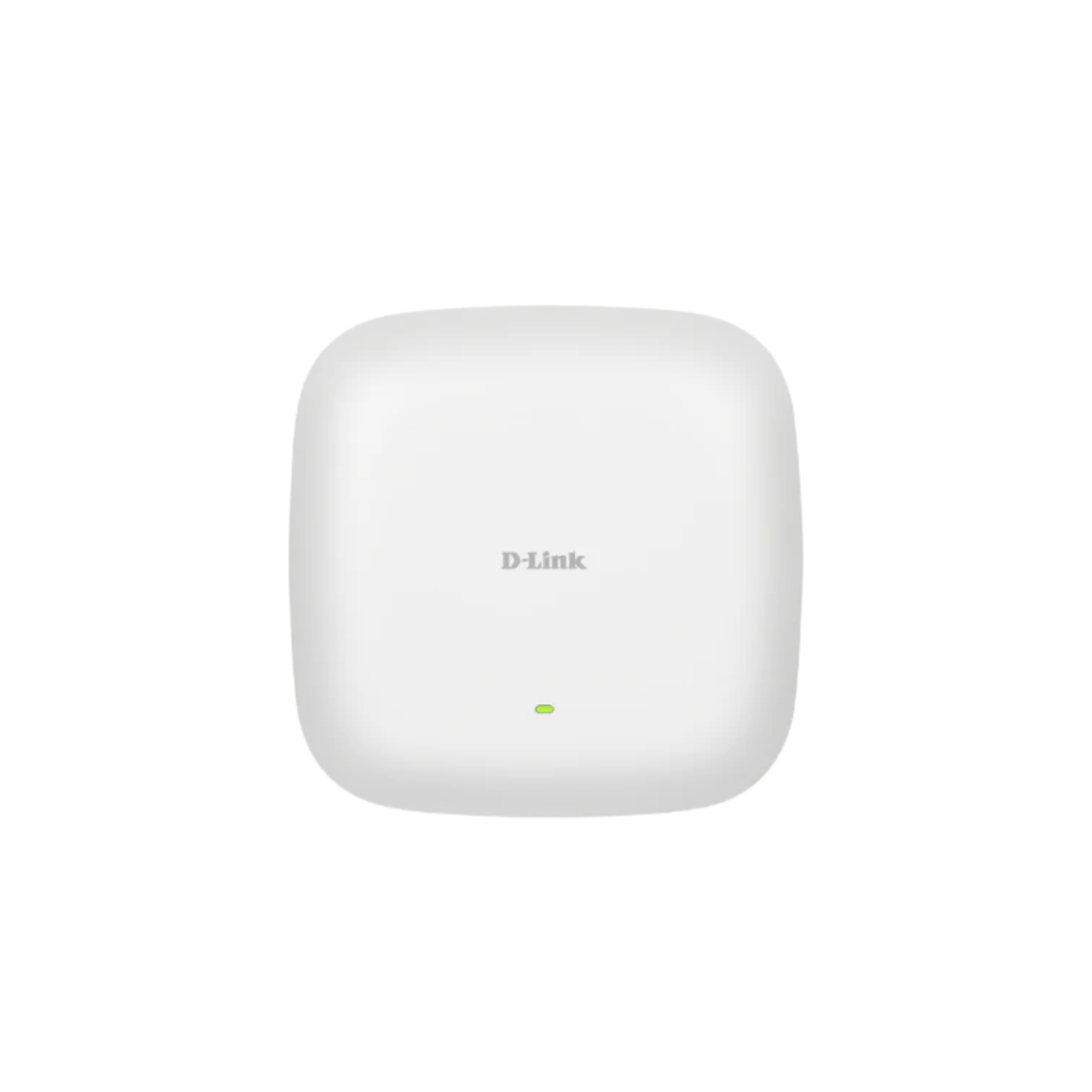

D-Link DAP-X2850 Nuclias Connect AX3600 Wi-Fi 6 Access Point
PRODUCT DESCRIPTION
D-Link DAP-X2850 Nuclias Connect AX3600 Wi-Fi 6 Dual-Band PoE Access Point (DAP-X2850) - 5 Years Local Warranty
AX3600 Wi-Fi 6 with 4x4 MIMO
The D-Link DAP-X2850 is a dual-band IEEE 802.11ax (Wi-Fi 6) access point with a data signal rate of up to 3600 Mbps, four internal antennas per band and 4x4 MIMO with band steering and airtime fairness for busy, high-density spaces.
2.5 Gigabit Uplink

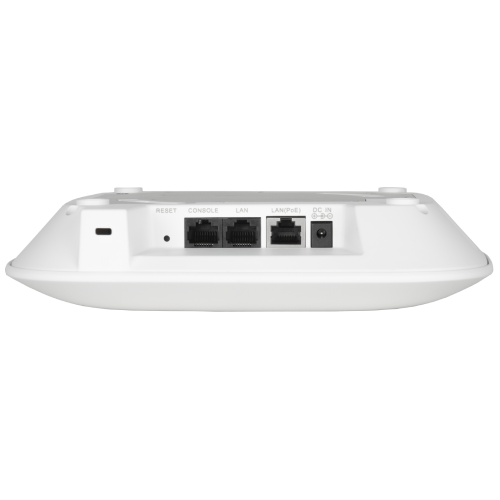

A 2.5 Gbps Ethernet LAN port with IEEE 802.3at PoE input keeps the backhaul ahead of the radio, plus a second 10/100/1000 Mbps LAN port and an RJ45 console port.
Free-to-Download Management
Manage it with D-Link's free Nuclias Connect software and app or a Nuclias Connect hardware hub, or locally via web, Telnet or SSH.
High Output Power
Up to 28 dBm on 2.4 GHz and 25.5 dBm on 5 GHz with 3.5 dBi / 5.5 dBi internal antennas.
Need help choosing? Email sales@sourceit.com.sg with your floor plan and user count and we will plan the Nuclias Connect AP mix for you.
D-Link DAP-X2850 Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-X2850 Nuclias Connect AX3600 Access Point |
| Part Number | DAP-X2850 |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.4 - 2.483 GHz; 5.15 - 5.35 GHz, 5.47 - 5.85 GHz |
| Data Signal Rate | Up to 3600 Mbps |
| Antennas | 4 x internal 3.5 dBi (2.4 GHz); 4 x internal 5.5 dBi (5 GHz) |
| Max Output Power | 28 dBm (2.4 GHz); 25.5 dBm (5 GHz) |
Interfaces & Power
| Ethernet | 1 x 2.5 Gbps Ethernet LAN (PoE); 1 x 10/100/1000 Mbps Ethernet LAN |
| Console | 1 x RJ45 |
| Wired Standards | IEEE 802.3u/ab, IEEE 802.3az EEE, IEEE 802.3at PoE |
| Power Input | IEEE 802.3at PoE, or 12 V / 2.5 A |
| Max Power Consumption | 19.44 W |
Security & Management
| Encryption | WPA/WPA2/WPA3 Personal/Enterprise, WEP 64/128-bit |
| Management | Telnet, SSH, Web (HTTP), SSL, traffic control, D-Link Nuclias Connect |
Physical & Environmental
| Dimensions | 212.4 x 212.4 x 46.7 mm |
| Weight | 807.7 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Operating Humidity | 10% to 90% |
| MTBF | >30,000 hours |
| Certifications | CE, FCC, IC, RCM, LVD |
Compatibility & Software Support
Management
Web, Telnet and SSH locally, or centralised via D-Link's free Nuclias Connect software and app or the DNH-100 Nuclias Connect Hub. For the newer DNH-1000/DNH-3000 controllers, check D-Link's supported-devices list or ask us.
Typical Use
High-density offices, lecture halls, meeting rooms and venues that need a multi-gigabit uplink; pair with a 2.5GbE 802.3at PoE switch to use the full uplink speed.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-2662 | AC1200 Wave 2 AP, 802.3af PoE |
| DAP-2610 | AC1300 Wave 2 AP, 802.3af PoE |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 (this listing) | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Package contents are not listed in D-Link's datasheet — ask us to confirm the mounting kit and whether a power adapter is included.
Datasheet & Downloads
| D-Link datasheet | DAP-X2850 Datasheet v1.03 (PDF) |
| D-Link product page | DAP-X2850 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-X2850.
Frequently Asked Questions — D-Link DAP-X2850
Why a 2.5GbE port?
An AX3600 radio can exceed 1 Gbps, so the 2.5 Gbps PoE uplink avoids a wired bottleneck when connected to a 2.5GbE switch.
What PoE does it need?
IEEE 802.3at (PoE+); maximum consumption is 19.44 W. A 12 V / 2.5 A DC input is also supported.
Does it support WPA3?
Yes, WPA3 Personal and Enterprise alongside WPA/WPA2.
Do I need a paid controller?
No. Nuclias Connect software is free to download; a hardware hub is optional.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
