D-Link DNH-100 Nuclias Connect Hub
PRODUCT DESCRIPTION
D-Link DNH-100 Nuclias Connect Hub Hardware Controller (DNH-100) - 5 Years Local Warranty
Standalone Centralised AP Management
The D-Link DNH-100 is a compact hardware hub with D-Link's Nuclias Connect software built in. It manages up to 100 Nuclias Connect access points and switches on your own network, with no PC or server to maintain.
Simple and Cost-Effective
Nuclias Connect itself is free, so the hub is the only hardware you add: batch configuration, traffic analytics, captive portal, VLAN management and PoE scheduling from one web interface.
Versatile Installation

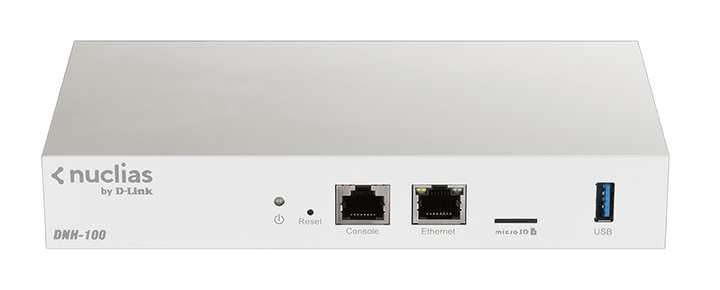

A 190 x 100 x 31 mm desktop unit with an internal power supply drawing just 6.5 W, plus a Gigabit LAN port, USB 3.0 port, microSD slot for storage and an RJ45 console.
Need help choosing? Email sales@sourceit.com.sg with your AP count and site layout and we will size the right Nuclias controller for you.
D-Link DNH-100 Datasheet — Technical Specifications
General
| Product Name | D-Link DNH-100 Nuclias Connect Hub |
| Part Number | DNH-100 |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Device Interfaces | 1 x Gigabit LAN, 1 x USB 3.0 (offers 5 V / 1 A power), 1 x microSD slot, 1 x RJ45 console |
| Standards | IEEE 802.3u/ab, IEEE 802.3x flow control |
| LEDs | Power/Status, LAN |
Management Capacity
| Managed Devices | Up to 100 access points / switches |
| Supported APs | Nuclias Connect dual-band Wave 2 AC and Wi-Fi 6 AX models |
| Wi-Fi Hotspots | Multi-SSID (8 per radio) |
| Management Interfaces | D-Link Nuclias Connect, Web (HTTPS), Telnet, SSH |
Power, Physical & Environmental
| Power | Internal power supply; max power consumption 6.5 W |
| Dimensions | 190 x 100 x 31 mm |
| Weight | 529 g (without microSD card) |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Humidity | Operating 10% to 90%; storage 5% to 95% (non-condensing) |
| MTBF | >30,000 hours |
| Certifications | FCC, CE, UL, BSMI |
Compatibility & Software Support
Management
Runs D-Link Nuclias Connect on-premises (not a cloud service): batch configuration, traffic analytics, captive portal, VLAN management and PoE scheduling, accessed through a web browser or the Nuclias Connect app.
Typical Use
Schools, hotels, clinics and multi-floor offices with up to 100 Nuclias Connect APs and switches that want central control without a server. For larger sites see the DNH-1000 (500 devices) and DNH-3000 (1500 devices).
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 (this listing) | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-2662 | AC1200 Wave 2 AP, 802.3af PoE |
| DAP-2610 | AC1300 Wave 2 AP, 802.3af PoE |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Package contents are not listed in D-Link's datasheet — ask us to confirm the power cord and mounting accessories supplied.
Datasheet & Downloads
| D-Link datasheet | DNH-100 Datasheet (PDF) |
| D-Link product page | DNH-100 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DNH-100.
Frequently Asked Questions — D-Link DNH-100
Is the DNH-100 a cloud controller?
No. It runs Nuclias Connect locally on your network; you reach it through a browser or the Nuclias Connect app.
How many devices can it manage?
Up to 100 access points / switches.
Is there a licence fee?
Nuclias Connect is D-Link's free management software; the DNH-100 is simply a hardware platform that runs it.
How is it powered?
By an internal power supply, drawing a maximum of 6.5 W.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
