D-Link DAP-2610 Nuclias Connect AC1300 Wave 2 Access Point
PRODUCT DESCRIPTION
D-Link DAP-2610 Nuclias Connect AC1300 Wave 2 Dual-Band PoE Access Point (DAP-2610) - 5 Years Local Warranty
AC1300 Wave 2 for Small and Medium Offices
The D-Link DAP-2610 is a dual-band IEEE 802.11ac Wave 2 access point delivering up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz (up to 1,300 Mbps combined), with MU-MIMO, band steering and beamforming.
Free Centralised Management with Nuclias Connect
Run it standalone or manage many APs from D-Link's free Nuclias Connect software or a Nuclias Connect hub, with multiple AP modes (Access Point, WDS, WDS with AP, Wireless Client).
Simple PoE Installation
One Gigabit LAN port with IEEE 802.3af PoE input powers and connects the AP over a single cable; a 12 V / 1 A adapter can be used instead. The soft-edge housing mounts on a wall or ceiling.
Controlled Access
Up to 16 SSIDs with VLANs, WPA/WPA2 Personal/Enterprise, RADIUS, MAC address filtering and WLAN partitioning. D-Link rates it for 250+ concurrent clients (tested by IXIA).
Need help choosing? Email sales@sourceit.com.sg with your floor area and user count and we will plan the Nuclias Connect AP mix for you.
D-Link DAP-2610 Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point |
| Part Number | DAP-2610 |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Data Rate | 2.4 GHz up to 400 Mbps; 5 GHz up to 867 Mbps (up to 1,300 Mbps combined) |
| Antennas | 2 internal dual-band 3 dBi omni-directional |
| Wireless Features | MU-MIMO, band steering, beamforming |
| Operating Modes | Access Point, WDS, WDS with AP, Wireless Client |
| SSIDs | Up to 16 |
Interfaces & Power
| Ethernet | 1 x Gigabit LAN (PoE in) |
| Wired Standards | IEEE 802.3u/ab, IEEE 802.3az Energy Efficient Ethernet |
| Power Input | IEEE 802.3af PoE, or 12 V / 1 A external adapter |
| Max Power Consumption | 12 W |
| LEDs | Power/Status |
Security
| Encryption | WPA/WPA2 Personal/Enterprise, 64/128-bit WEP |
| Access Control | RADIUS, MAC address filtering, WLAN partitioning |
Physical & Environmental
| Dimensions | 170 x 170 x 28 mm |
| Weight | 314 g without mounting base; 370.6 g with mounting base |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Operating Humidity | 10% to 90% non-condensing |
| MTBF | >30,000 hours |
| Certifications | FCC, IC, CE, UL, Wi-Fi Certified |
Compatibility & Software Support
Management
Standalone web management, or centralised through D-Link's free Nuclias Connect software (DNC-100) or a Nuclias Connect hub such as the DNH-100.
Typical Use
Offices, classrooms, clinics and retail sites that need reliable Wave 2 Wi-Fi on an 802.3af PoE switch without a paid controller licence.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-2662 | AC1200 Wave 2 AP, 802.3af PoE |
| DAP-2610 (this listing) | AC1300 Wave 2 AP, 802.3af PoE |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |

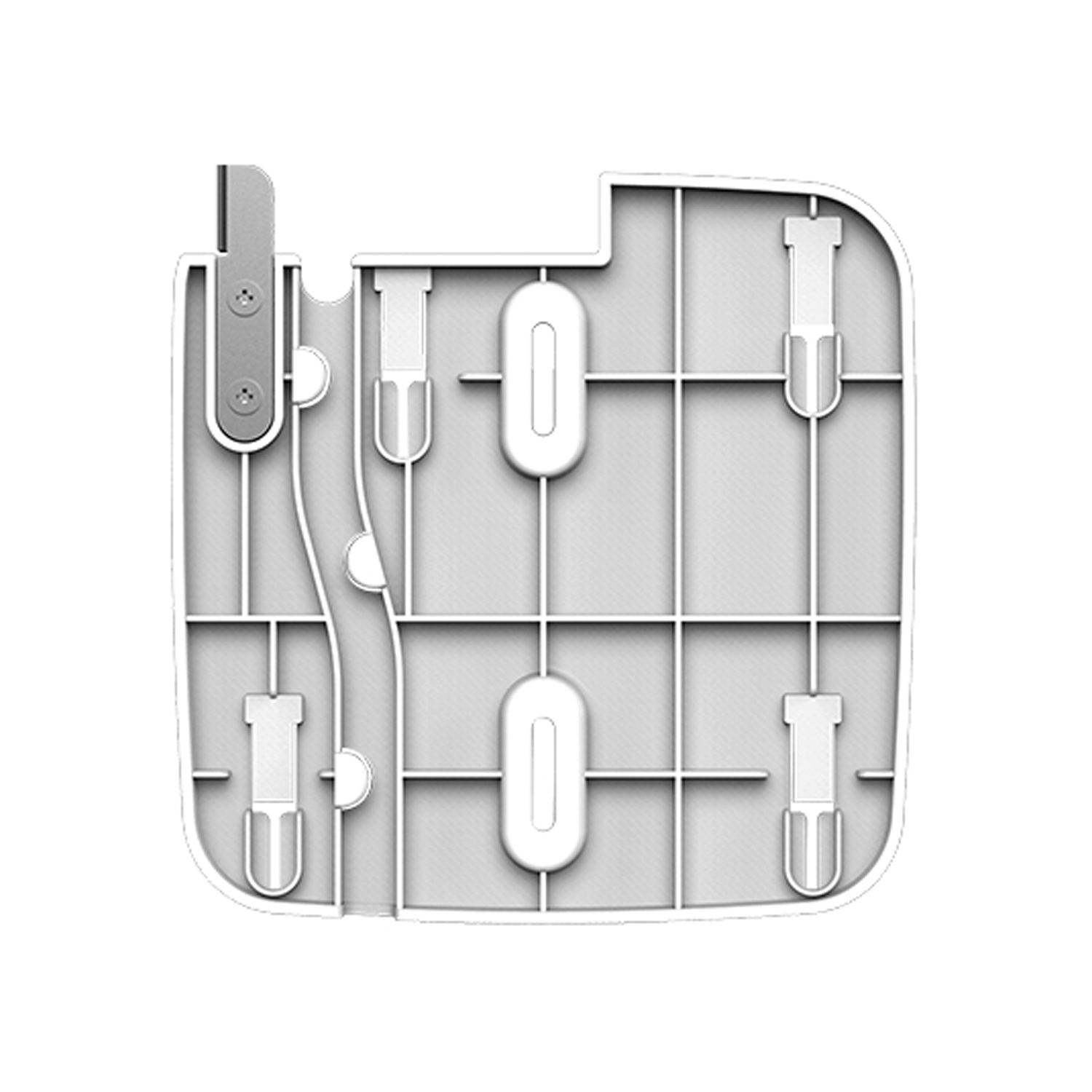

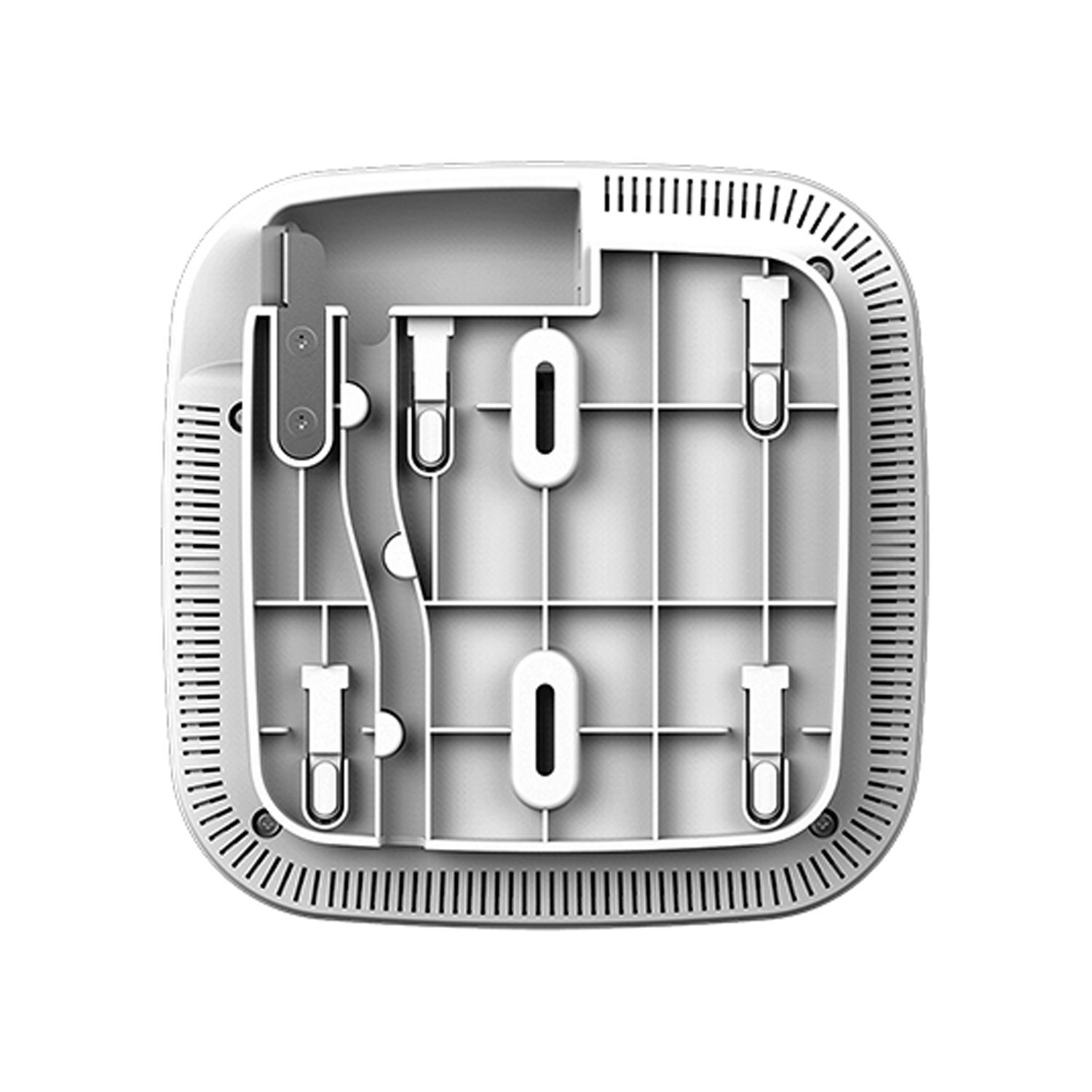

Mounting hardware for wall or ceiling installation is included, per D-Link Singapore. Ask us to confirm whether a power adapter is included.
Datasheet & Downloads
| D-Link datasheet | DAP-2610 Datasheet (PDF) |
| D-Link product page | DAP-2610 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-2610.
Frequently Asked Questions — D-Link DAP-2610
Does it support WPA3?
D-Link's datasheet lists WPA/WPA2 Personal/Enterprise and WEP. WPA3 is not listed, so plan on WPA2 unless D-Link confirms otherwise for your firmware.
What PoE does it need?
IEEE 802.3af PoE; maximum power consumption is 12 W.
Do I need a paid controller?
No. It works standalone or with the free Nuclias Connect software or a Nuclias Connect hub.
How many users can it handle?
D-Link states 250+ concurrent client connections (tested and verified by IXIA) and up to 16 SSIDs.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
