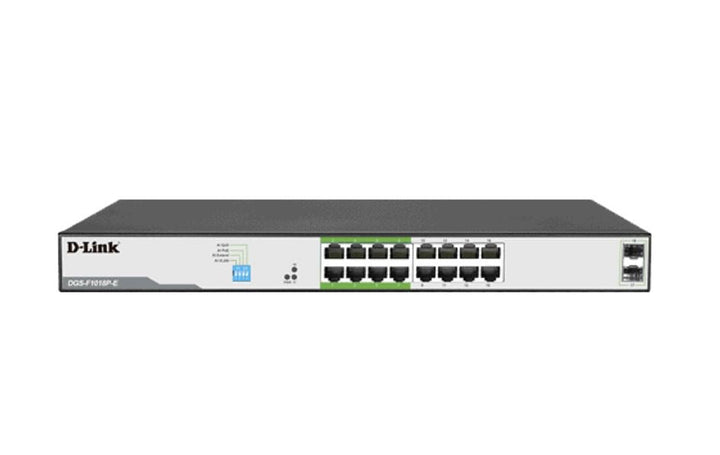

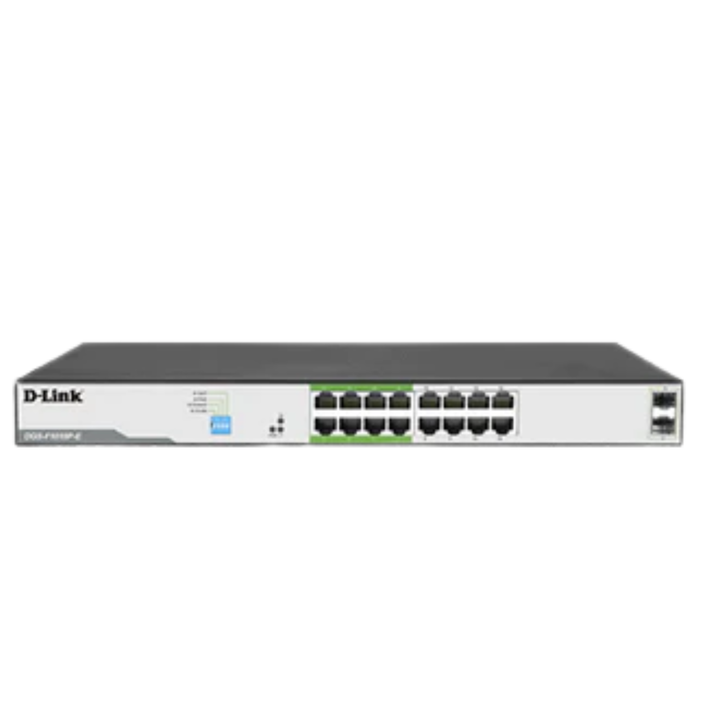

D-Link DGS-F1018P-E 16-Port Gigabit 250m PoE Switch with 2 SFP
PRODUCT DESCRIPTION
D-Link DGS-F1018P-E 250m 16-Port Gigabit PoE Switch with 2 SFP Ports (DGS-F1018P-E) - 3 Years Local Warranty
16 PoE Ports and a 150 W Budget
The D-Link DGS-F1018P-E is an unmanaged 250m PoE switch with 16 x 10/100/1000BASE-T PoE ports and 2 x SFP uplinks. Every PoE port supports IEEE 802.3af/at with up to 30 W per port, from a 150 W total PoE budget, for IP cameras, wireless access points and VoIP phones.
250 m Reach with Extend Mode
With Extend mode enabled, ports 1–8 carry data and PoE up to 250 m at 10 Mbps, well beyond the usual 100 m Ethernet limit — useful for car parks, perimeters and warehouse cameras.
DIP-Switch Modes, No Configuration
Plug-and-play operation with DIP-switch selectable modes (VLAN, Extend, PoE and QoS), store-and-forward switching and 6 kV lightning/surge protection.
Need help choosing? Email sales@sourceit.com.sg with your camera count, cable distances and uplink needs and we will size it for you.
D-Link DGS-F1018P-E Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-F1018P-E 250m 16-Port Gigabit PoE Switch with 2 SFP Ports |
| Part Number | DGS-F1018P-E |
| Type | Unmanaged PoE switch (DIP-switch modes) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| PoE Ports | 16 x 10/100/1000BASE-T |
| Uplinks | 2 x SFP |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| Per-Port Output | Up to 30 W |
| PoE Budget | 150 W |
| Extend Mode | Ports 1–8, up to 250 m at 10 Mbps |
Performance
| Switching Capacity | 36 Gbps |
| Forwarding Rate (per port) | 14,800 pps (10M) / 148,800 pps (100M) / 1,488,000 pps (1000M) |
| Transmission Method | Store-and-forward |
Physical & Environmental
| Dimensions | 440 x 180 x 44 mm |
| Weight | 3 kg |
| Power Consumption | 150 W |
| Surge Protection | 6 kV |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 0% to 95% RH non-condensing |
| EMI/EMC | CE |
Compatibility & Software Support
Management
Unmanaged — no software or web interface. Operating modes (VLAN, Extend, PoE, QoS) are selected with DIP switches on the unit.
Typical Use
IP surveillance and SMB networks powering up to 16 IEEE 802.3af/at devices, including cameras mounted beyond 100 m on ports 1–8, with SFP fibre uplinks to an NVR or core switch.
Package Contents & 250m PoE Switch Ordering Information
D-Link 250m Gigabit PoE Switches
| Model | Ports | PoE Budget | Part No. |
| DGS-F1005P-E | 4 x GE PoE + 1 x GE uplink | 60 W | DGS-F1005P-E |
| DGS-F1018P-E (this listing) | 16 x GE PoE + 2 x SFP | 150 W | DGS-F1018P-E |
| DGS-F1026P-E | 24 x GE PoE + 2 x SFP | 250 W | DGS-F1026P-E |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit. SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DGS-F1018P-E Datasheet (PDF) |
| D-Link product page | DGS-F1018P-E on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-F1018P-E.
Frequently Asked Questions — D-Link DGS-F1018P-E
How much PoE power does it provide?
150 W in total, up to 30 W per port, across 16 IEEE 802.3af/at PoE ports.
Which ports reach 250 m?
Ports 1–8, when Extend mode is switched on (link runs at 10 Mbps).
Does it need configuration?
No. It is unmanaged; VLAN, Extend, PoE and QoS modes are set with DIP switches.
Does it have fibre uplinks?
Yes, 2 x SFP ports (modules sold separately).
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
