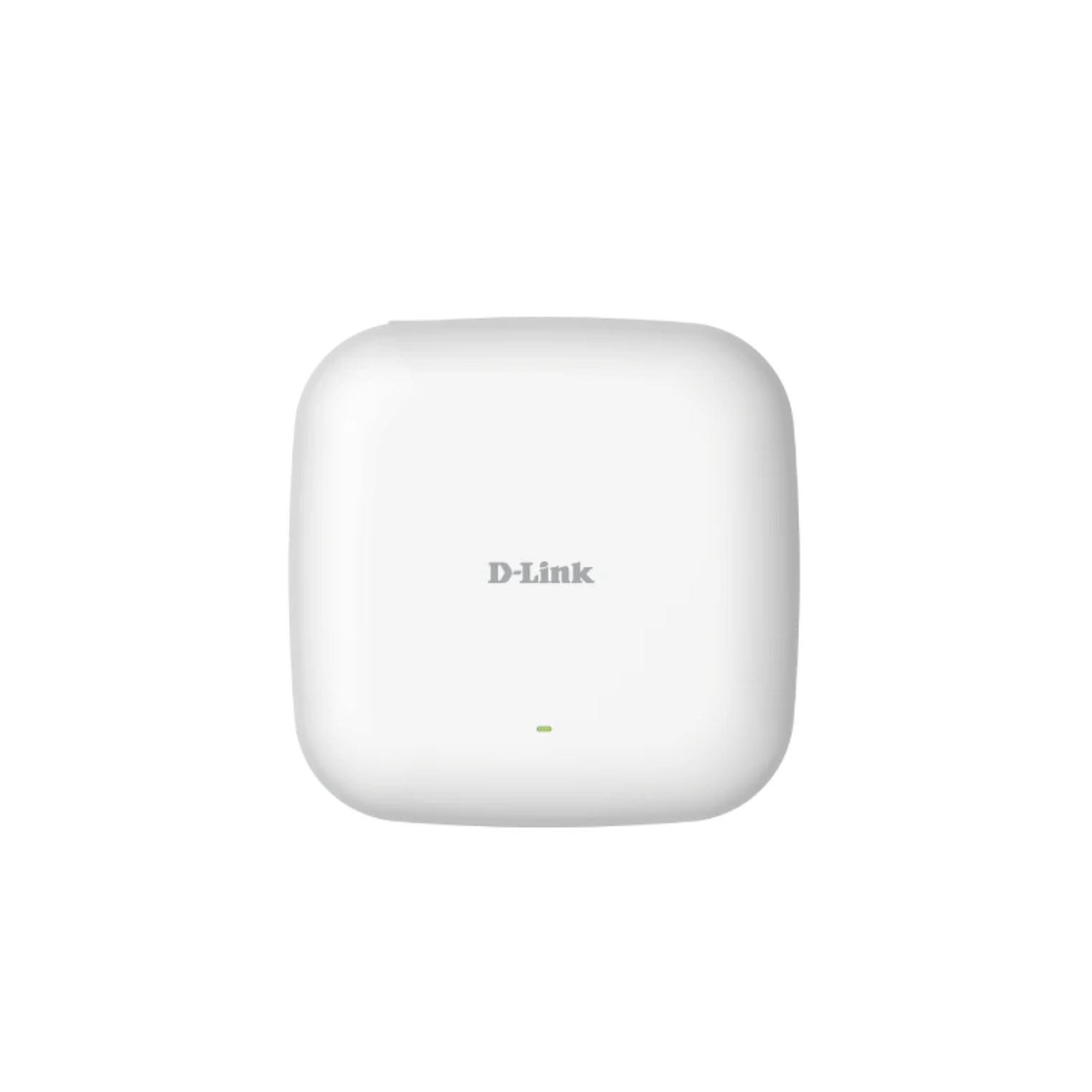

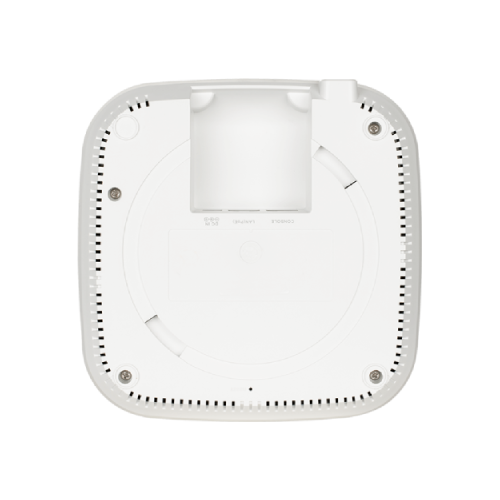

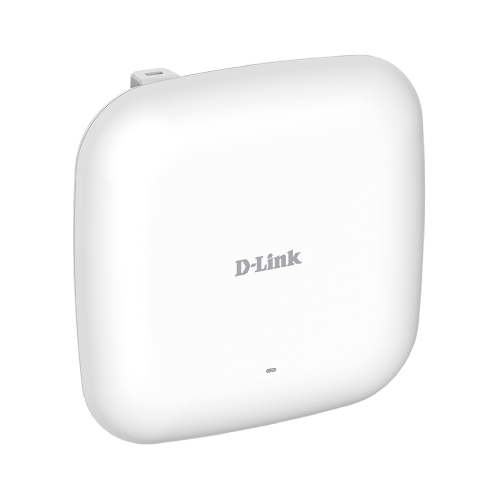

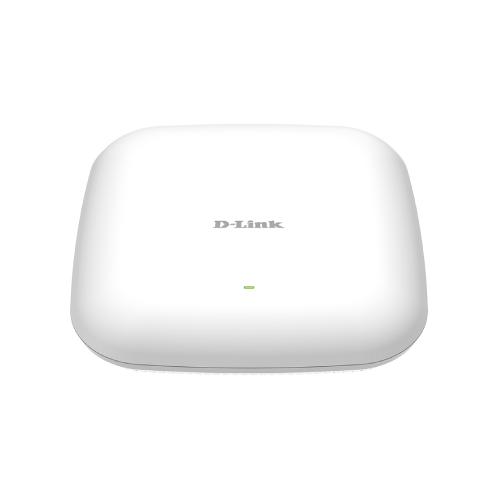

D-Link DAP-X2810 Nuclias Connect AX1800 Wi-Fi 6 Access Point
PRODUCT DESCRIPTION
D-Link DAP-X2810 Nuclias Connect AX1800 Wi-Fi 6 Dual-Band PoE Access Point (DAP-X2810) - 5 Years Local Warranty
Affordable Wi-Fi 6 for Business
The D-Link DAP-X2810 is a dual-band IEEE 802.11ax (Wi-Fi 6) access point delivering up to 575 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz, with 2x2 MIMO, band steering and airtime fairness.
Free-to-Download Management
Manage it with D-Link's free Nuclias Connect software and app, or a low-cost Nuclias Connect hardware hub, for batch configuration, monitoring and a customisable captive portal.
Single-Cable PoE Installation
One Gigabit Ethernet port with IEEE 802.3at PoE input powers the AP (19.44 W maximum); an optional 12 V / 2.5 A adapter is available.
Modern Security
WPA/WPA2/WPA3 Personal and Enterprise, SSID broadcast disable and MAC address access control protect staff and guest networks.
Need help choosing? Email sales@sourceit.com.sg with your floor plan and user count and we will plan the Nuclias Connect AP mix for you.
D-Link DAP-X2810 Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-X2810 Nuclias Connect AX1800 Wi-Fi 6 Access Point |
| Part Number | DAP-X2810 |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Data Rate | 2.4 GHz up to 575 Mbps; 5 GHz up to 1200 Mbps |
| Antennas | 2 x dual-band internal: 3.2 dBi (2.4 GHz), 4.3 dBi (5 GHz) |
| Wireless Features | 2x2 MIMO, band steering, airtime fairness |
Interfaces & Power

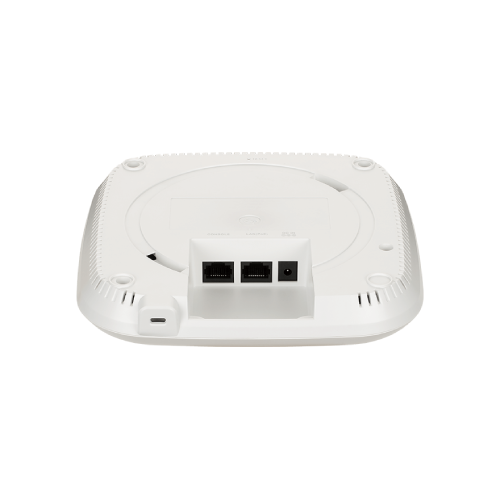

| Ethernet | 1 x 10/100/1000 Mbps (PoE) LAN |
| Console | 1 x RJ45 console port |
| Wired Standards | IEEE 802.3u/ab, IEEE 802.3az EEE, IEEE 802.3at PoE |
| Power Input | IEEE 802.3at PoE, or 12 V / 2.5 A (optional adapter, not included) |
| Max Power Consumption | 19.44 W |
| LEDs | Power/Status |
Security & Management
| Encryption | WPA/WPA2/WPA3 Personal/Enterprise, WEP 64/128-bit |
| Access Control | SSID broadcast disable, MAC address access control |
| Management | Web (HTTP), SSL, traffic control, D-Link Nuclias Connect |
Physical & Environmental
| Dimensions | 170 x 170 x 28 mm |
| Weight | 477.4 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 65 °C |
| Operating Humidity | 10% to 90% |
| MTBF | >30,000 hours |
| Certifications | CE, FCC |
Compatibility & Software Support
Management
Local web interface, or centralised via D-Link's free Nuclias Connect software and app or the DNH-100 Nuclias Connect Hub. For the newer DNH-1000/DNH-3000 controllers, check D-Link's supported-devices list or ask us.
Typical Use
Small and medium offices, schools, cafes and retail sites moving to Wi-Fi 6 on an existing 802.3at PoE switch.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-2662 | AC1200 Wave 2 AP, 802.3af PoE |
| DAP-2610 | AC1300 Wave 2 AP, 802.3af PoE |
| DAP-X2810 (this listing) | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
The 12 V power adapter is optional and not included. Package contents are not otherwise listed in D-Link's datasheet — ask us to confirm the mounting kit.
Datasheet & Downloads
| D-Link datasheet | DAP-X2810 Datasheet (PDF) |
| D-Link product page | DAP-X2810 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-X2810.
Frequently Asked Questions — D-Link DAP-X2810
What PoE does it need?
IEEE 802.3at (PoE+); maximum consumption is 19.44 W.
Does it support WPA3?
Yes, WPA3 Personal and Enterprise alongside WPA/WPA2.
Do I need a paid controller?
No. Nuclias Connect software is free to download; a hardware hub such as the DNH-100 is optional.
DAP-X2810 or DAP-X3060?
The DAP-X3060 is faster (AX3000, up to 2401 Mbps on 5 GHz) with a 2.5GbE uplink; the DAP-X2810 is the value AX1800 option with a Gigabit port.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
