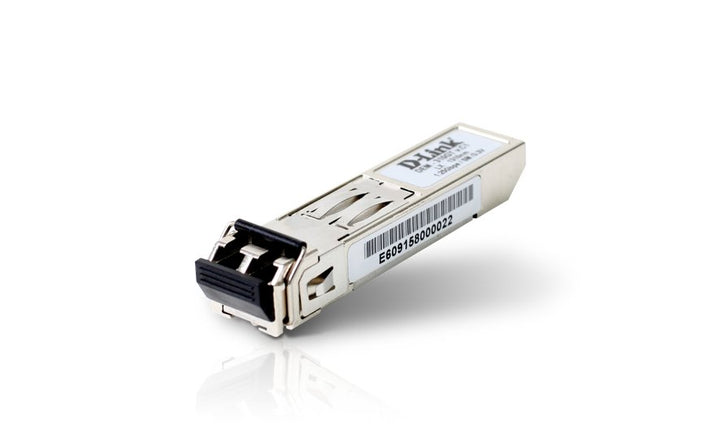

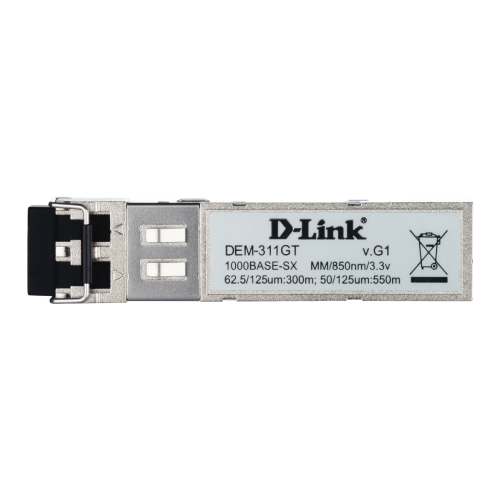

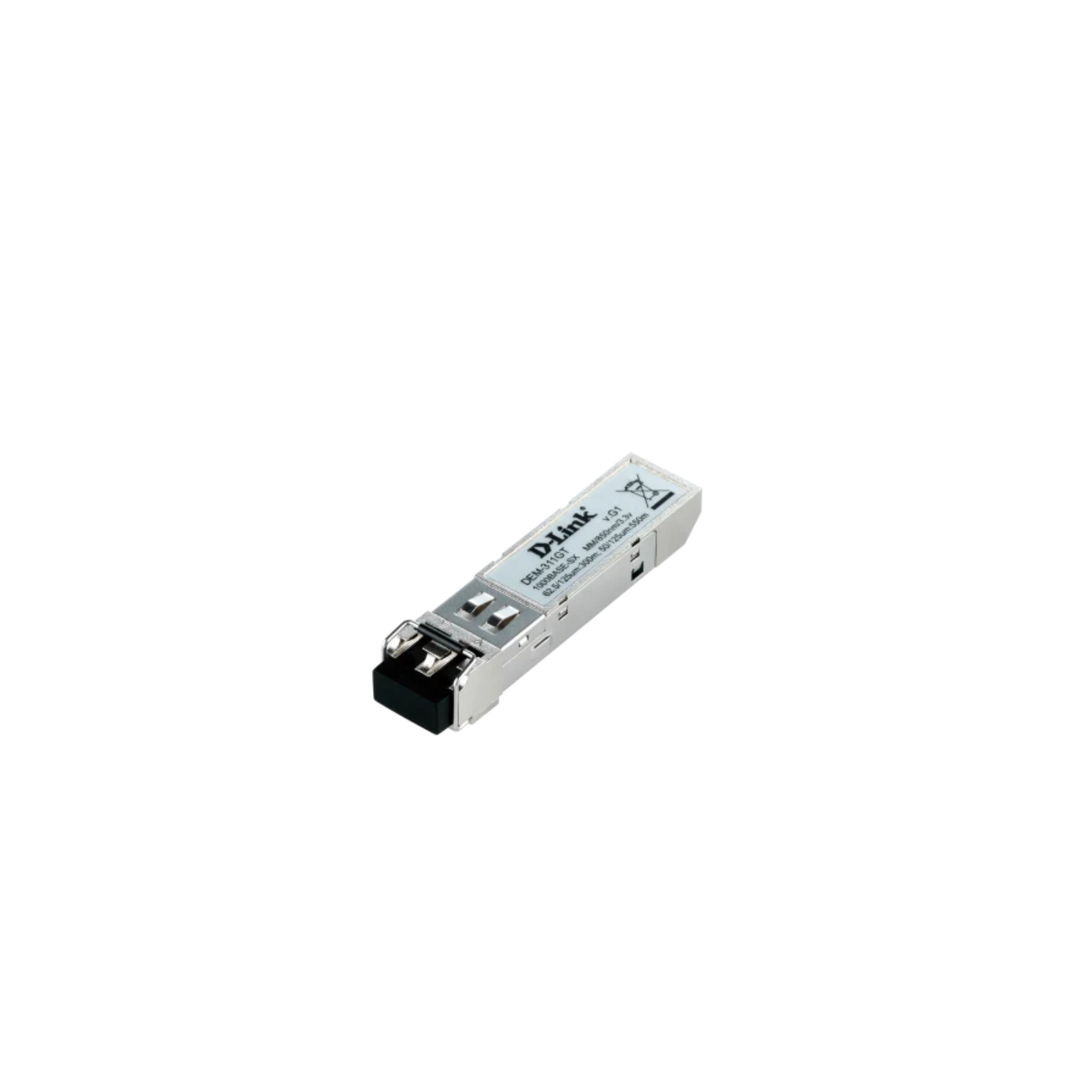

D-Link 1-Port 1000BaseLX SFP 550m Transceiver LC Duplex (DEM-311GT)
D-Link 1-Port 1000BaseLX SFP 550m Transceiver LC Duplex (DEM-311GT) - 3 Years Local Warranty
High-Performance 1000BaseLX SFP Transceiver for Shorter Distances
The D-Link 1-Port 1000BaseLX SFP Transceiver (DEM-311GT) is a high-performance module designed to provide gigabit-speed connectivity for fiber-optic networks with a reach of up to 550 meters. Ideal for short to medium-distance connections, this transceiver is perfect for smaller office buildings, campus networks, or backbone connections where fiber-optic infrastructure is already in place. It ensures fast, reliable data transfer over fiber, supporting high-bandwidth applications.
LC Duplex Connector for Reliable Signal Transmission
The DEM-311GT is equipped with an LC duplex connector, providing a robust and efficient fiber-optic connection. This design minimizes signal loss and maximizes the overall performance of your network, ensuring clear and high-speed data transmission. Whether used in a server room, data center, or business campus, the LC duplex connector offers superior stability and optimal throughput.
Easy Installation and Seamless Integration
Designed for convenience, the D-Link DEM-311GT is a plug-and-play transceiver. Simply insert the module into any compatible SFP port, and it will immediately start delivering high-speed connectivity without the need for complicated setup. It’s the ideal solution for users looking for a hassle-free, cost-effective way to enhance their fiber-optic networks, ensuring reliable connectivity with minimal effort.
Perfect for High-Density Networks and Small to Medium Deployments
The D-Link DEM-311GT is optimized for high-density network environments, providing a seamless solution for users who need to connect multiple devices over short to medium-range fiber-optic links. Its 550m range makes it ideal for smaller deployments, such as connecting network switches within a building, linking switches between floors, or supporting fiber backbones in enterprise networks where distances are moderate.
Cost-Effective Solution for Fiber Networking Needs
Offering great value for money, the D-Link DEM-311GT 1-Port 1000BaseLX SFP transceiver delivers dependable gigabit-speed connectivity at a fraction of the cost of traditional copper-based solutions. Its 550m transmission range and LC duplex design make it a cost-effective choice for users who want to implement fiber networking without the need for extensive, expensive equipment or configurations. This SFP module is an excellent option for expanding your fiber-optic infrastructure on a budget.
Technical Specifications
- Model: D-Link 1-Port 1000BaseLX SFP Transceiver (DEM-311GT)
- Data Rate: 1 Gbps (Gigabit Ethernet)
- Fiber Type: LC Duplex
- Transmission Distance: Up to 550 meters
- Wavelength: 1310nm
- Interface: SFP (Small Form-factor Pluggable)
- Compatibility: Compatible with D-Link switches, routers, and other SFP-enabled devices
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Power Consumption: 1.5 W (max)
- Dimensions: 57 x 13.6 x 8.5 mm (2.24 x 0.54 x 0.33 inches)
- Weight: 0.02 kg (0.07 lbs)
- GTIN: 0790069232482
Detailed Specification
1-port 1000Base-SX (LC) Multi-mode Fiber SFP (Mini-GBIC) Transceiver (Up to 550m, Support 3.3V Power)
- 1000BASE-SX port (IEEE 802.3z standard)
- Duplex LC connector
- Full duplex operation
- 802.3x flow control support
- Fiber type: 50um or 62.5um multi-mode fiber up to 550 m
- Wave length: 850nm
- Power support: 3.3V
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI
