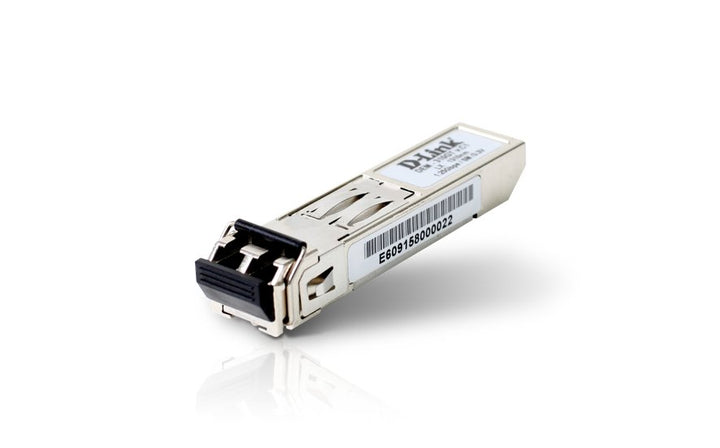

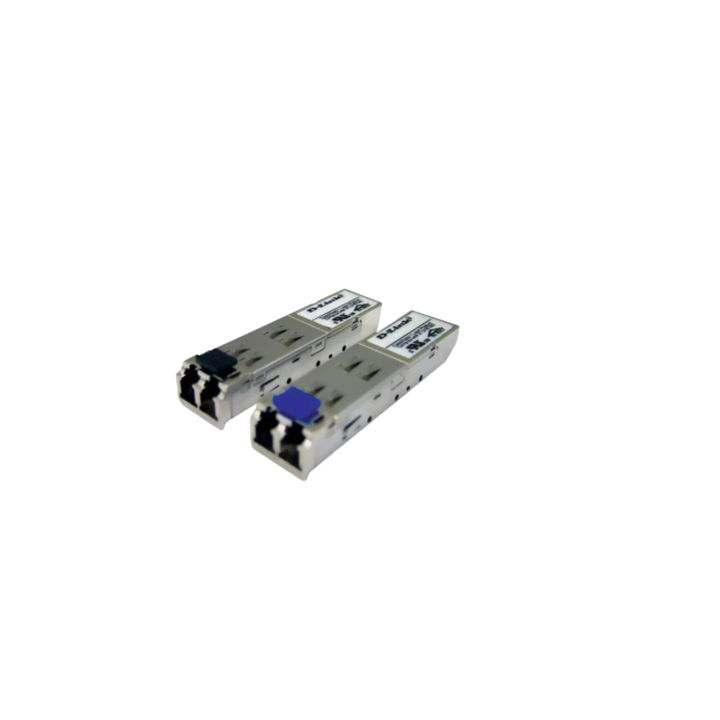

D-Link DEM-312GT2 1000BASE-SX Multi-Mode SFP Transceiver (2 km)
PRODUCT DESCRIPTION
D-Link DEM-312GT2 1000BASE-SX Multi-Mode SFP Transceiver, 2 km (DEM-312GT2) - 5 Years Local Warranty
Extended-Reach Gigabit over Multi-Mode Fibre
The D-Link DEM-312GT2 is a Gigabit SFP transceiver for multi-mode fibre with a 1310 nm laser and a duplex LC connector. D-Link rates it for up to 2 km on 50/125 µm fibre and 1 km on 62.5/125 µm fibre — further than the 550 m of the 850 nm DEM-311GT.
Standards-Based and Hot Pluggable
The module is SFP MSA compliant and hot pluggable, with a metal enclosure for lower EMI and a TTL signal-detect indicator.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will match the right module for you.
D-Link DEM-312GT2 Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-312GT2 1000BASE-SX Multi-Mode SFP Transceiver (2 km) |
| Part Number | DEM-312GT2 |
| Series | DEM-300 Series Gigabit SFP Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interface
| Standard | IEEE 802.3z 1000BASE-SX |
| Connector | Duplex LC |
| Media | Multi-mode fibre 50/125 µm or 62.5/125 µm |
| Wavelength | 1310 nm |
| Maximum Distance | 2 km on 50/125 µm fibre; 1 km on 62.5/125 µm fibre |
Module
| Form Factor | SFP (mini-GBIC), Multi-Source Agreement (MSA) compliant |
| Power Supply | 3.3 V |
| Hot Pluggable | Yes |
| Other Features | TTL signal detect indicator; metal enclosure for lower EMI; full-duplex Gigabit |
| Safety | FDA, CDRH, TUV laser eye safety certified |
Compatibility & Software Support
Host Ports
Plugs into a standard Gigabit SFP slot on a switch, router or media converter. D-Link's datasheet does not publish a host compatibility list — send us your switch model and we will confirm before you order.
Diagnostics
D-Link's DEM-300 datasheet does not list Digital Diagnostic Monitoring (DDM) for this module.
Package Contents & DEM-300 Gigabit SFP Ordering Information
D-Link Gigabit SFP Transceivers (DEM-300 Series)
| Model | Standard | Wavelength | Distance | Part No. |
| DEM-310GT | 1000BASE-LX, single-mode | 1310 nm | 10 km | DEM-310GT |
| DEM-311GT | 1000BASE-SX, multi-mode | 850 nm | 550 m | DEM-311GT |
| DEM-312GT2 (this listing) | 1000BASE-SX, multi-mode | 1310 nm | 2 km | DEM-312GT2 |
| DEM-314GT | 1000BASE-LHX, single-mode | 1550 nm | 50 km | DEM-314GT |
| DEM-315GT | 1000BASE-ZX, single-mode | 1550 nm | 80 km | DEM-315GT |
| DEM-330T | 1000BASE-BX-D, single-mode | Tx 1550 / Rx 1310 nm | 10 km | DEM-330T |
| DEM-330R | 1000BASE-BX-U, single-mode | Tx 1310 / Rx 1550 nm | 10 km | DEM-330R |
| DEM-331T | 1000BASE-BX-D, single-mode | Tx 1550 / Rx 1310 nm | 40 km | DEM-331T |
| DEM-331R | 1000BASE-BX-U, single-mode | Tx 1310 / Rx 1550 nm | 40 km | DEM-331R |
| DGS-712 | 1000BASE-T, copper RJ45 | — | 100 m | DGS-712 |
Specifications per D-Link's DEM-300 Series datasheet (v1.02 WW, updated 31 Jan 2024).
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-300 Series Datasheet v1.02 WW (PDF) |
| D-Link DEM-312GT2 datasheet | DEM-312GT2 / DEM-300 Series Datasheet, June 2018 (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-312GT2.
Frequently Asked Questions — D-Link DEM-312GT2
How far can the DEM-312GT2 reach?
2 km on 50/125 µm multi-mode fibre and 1 km on 62.5/125 µm fibre, per D-Link's datasheet.
What wavelength does it use?
D-Link specifies 1310 nm for this model (the DEM-311GT uses 850 nm). Use the same model at both ends of the link.
What connector does it use?
Duplex LC.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
